Rim Lock Case, Roller Shutter, Backset 24.5 mm, Symo 3000

Product Details

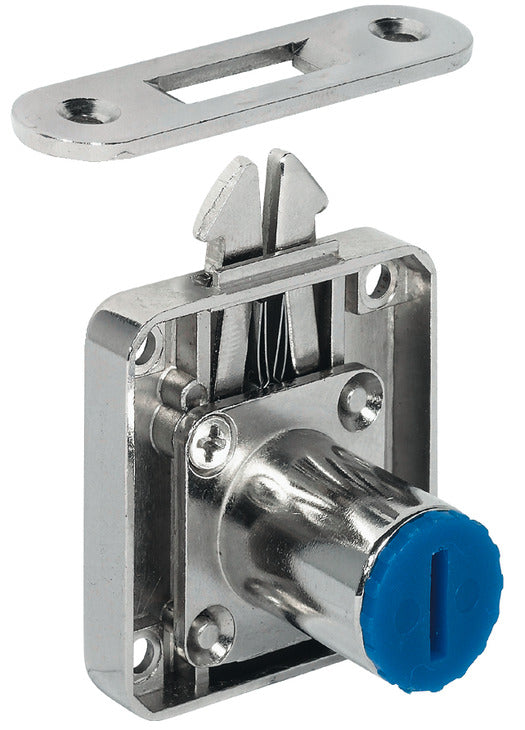

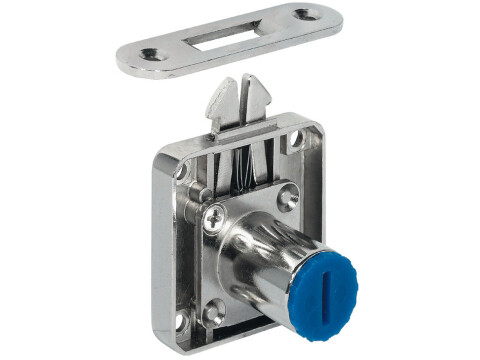

Rim Lock Case, Roller Shutter, Backset 24.5 mm, Symo 3000 (Product Part No. 232.30.620) is a reliable cabinet security solution designed for quality-focused living and commercial environments. Built for smooth operation and secure closure, this drawer rim lock is ideal when you need a robust locking system that works seamlessly with Symo removable cylinder cores.

Made from zinc alloy and finished in nickel plated, the Symo3000 rim lock delivers a durable, professional look that suits a wide range of furniture applications. It’s specifically a Drawer version (key turn to the left), making it a convenient choice for installations where consistent key direction and dependable engagement matter.

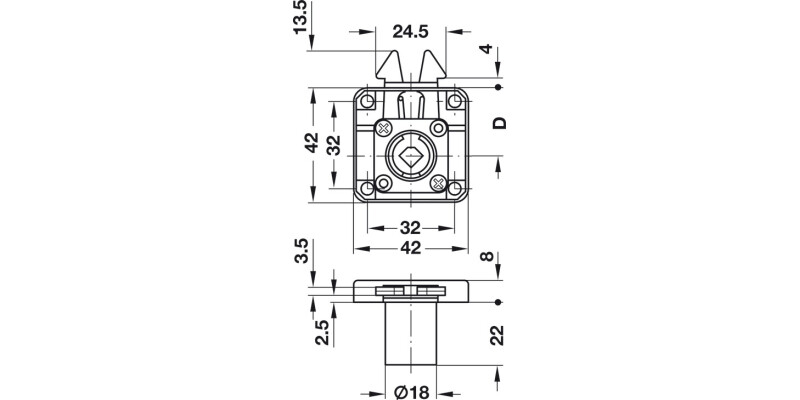

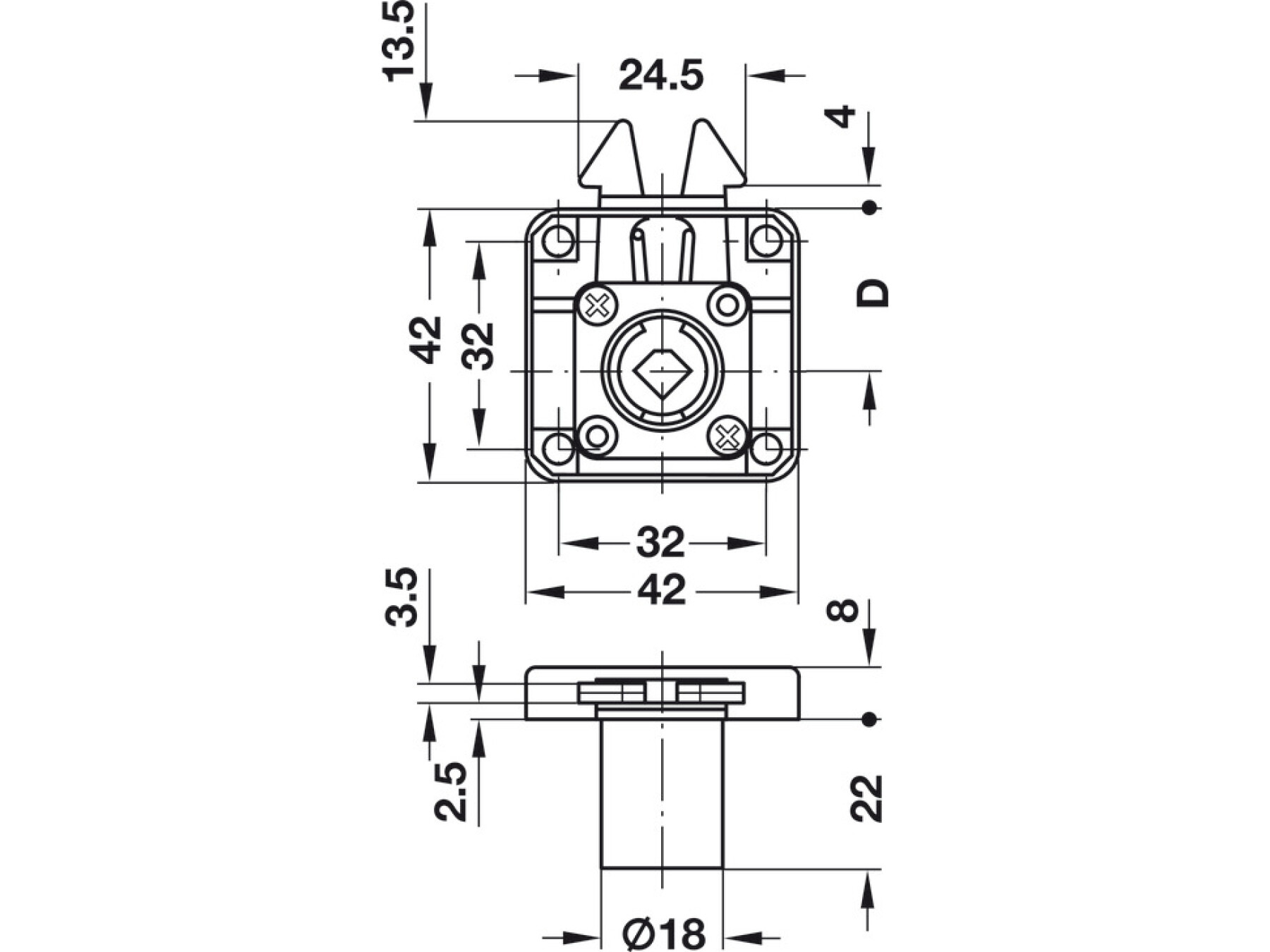

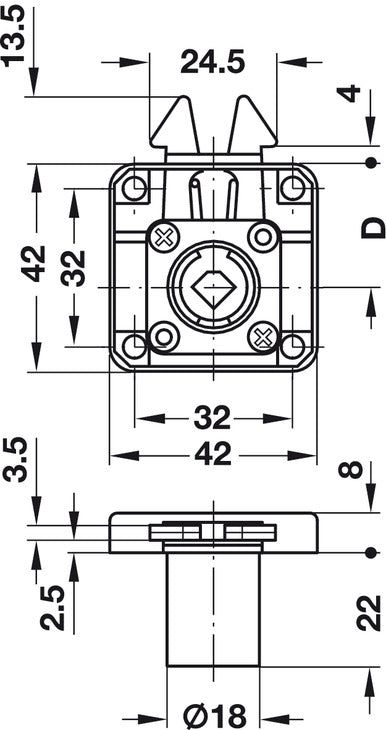

With a forend type of 24.50 mm and a matching backset D of 24.50 mm, the lock is engineered for a precise fit. The cylinder housing length is 22.00 mm, and the cylinder is prepared for a round cylinder with a 18.00 mm cylinder diameter.

This model is for combination with Symo cylinder removable core, supporting a front-insert installation approach: for cylinder cores inserted from the front on site. Installation is designed for screw fixing, providing stability during everyday use.

Supplied with 1 roller shutter rim lock and 1 striking plate, the Rim Lock Case, Roller Shutter, Backset 24.5 mm, Symo 3000 is an excellent upgrade for drawer and cabinet locking systems—secure, practical, and built to last.

1 Roller shutter rim lock

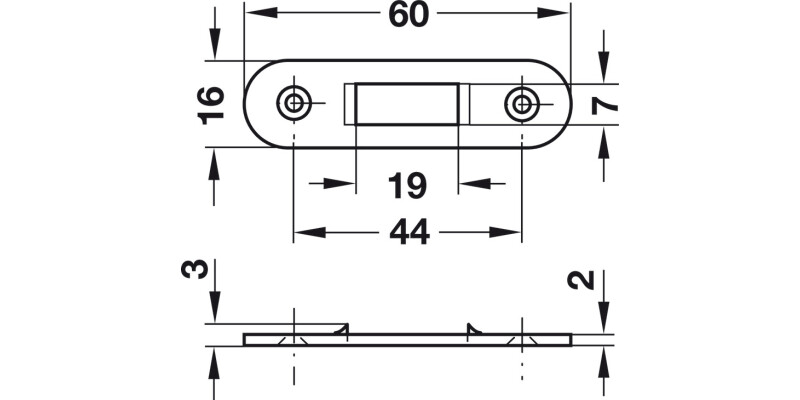

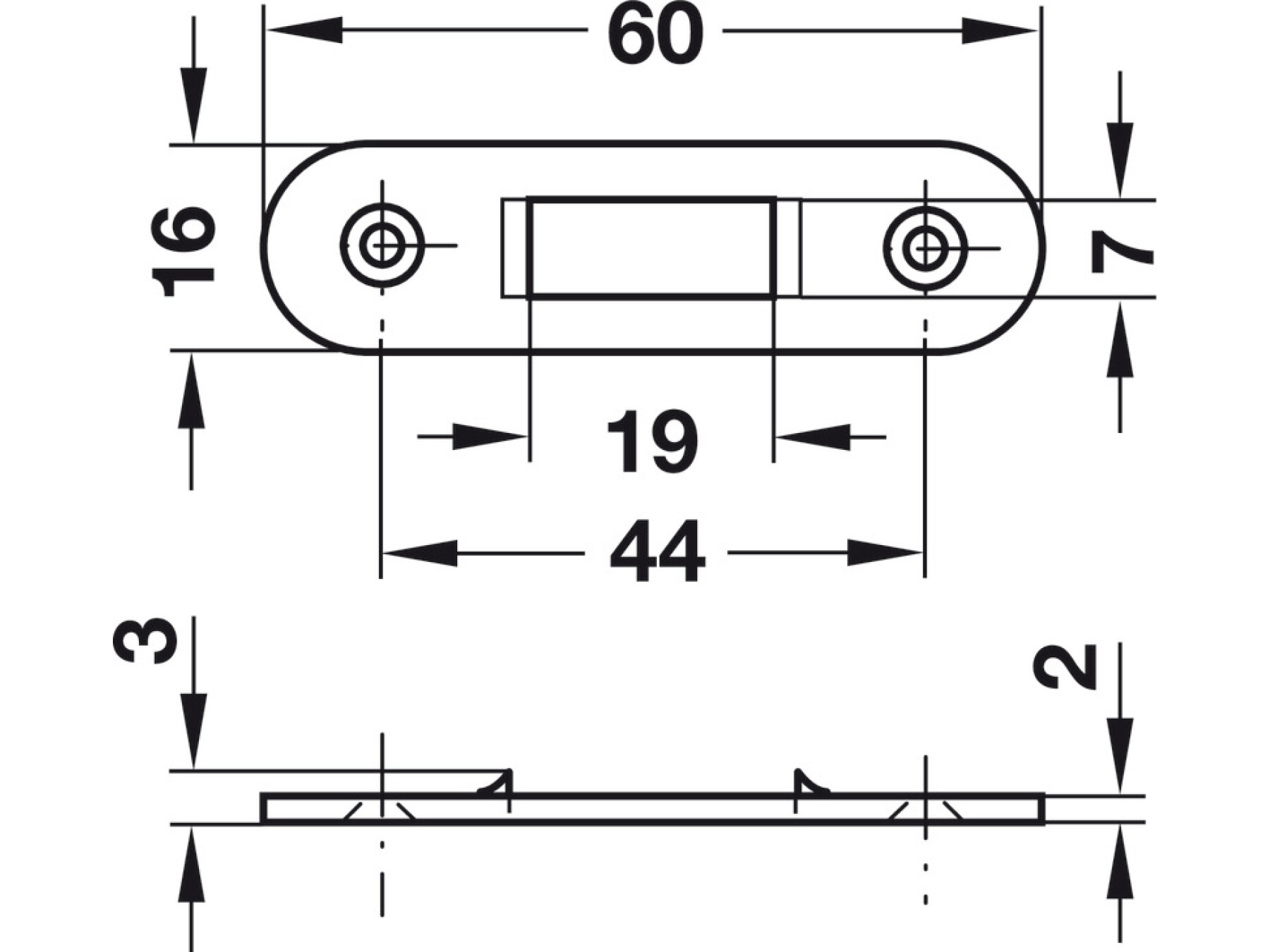

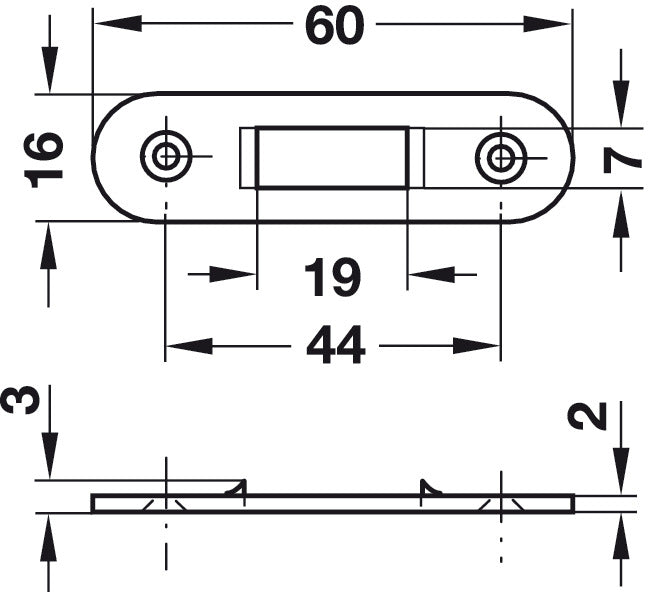

1 Striking plate
