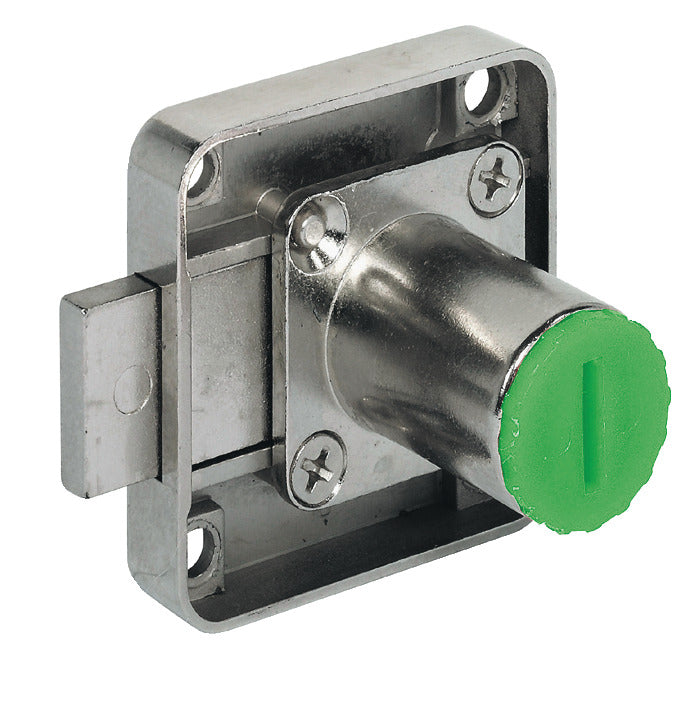

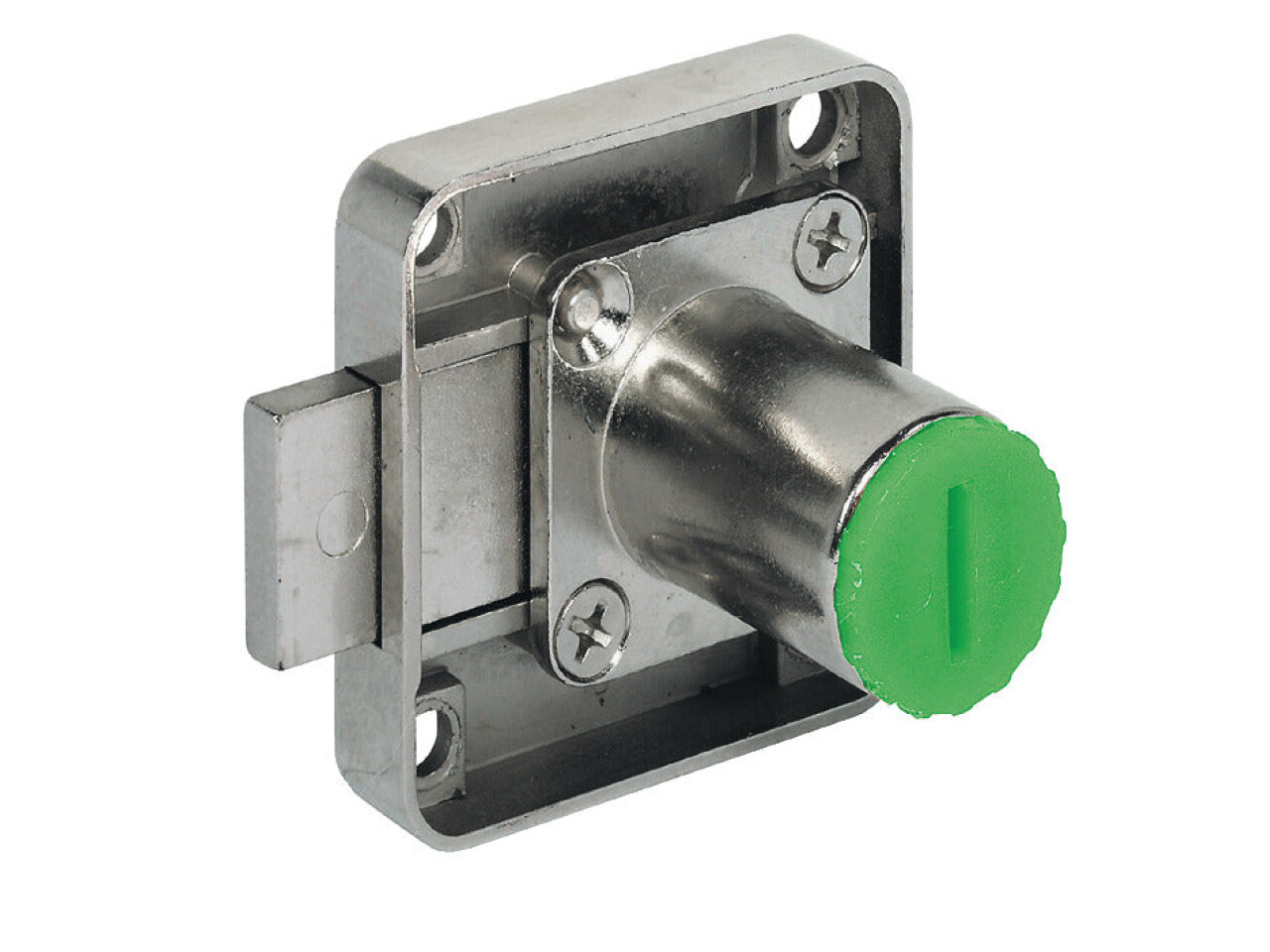

Rim Lock Case, Short Bolt Travel, Backset 23 mm, Symo 3000

Product Details

Is the Symo3000 Rim Lockcase compatible with Symo cylinder removable cores?

Yes. This rim lock case is designed for use with a Symo cylinder removable core, with the cylinder housing length set for 32 mm. This makes it a good choice if you are standardising on Symo cores for cabinets or furniture hardware.

What is the correct cylinder size for this lockcase?

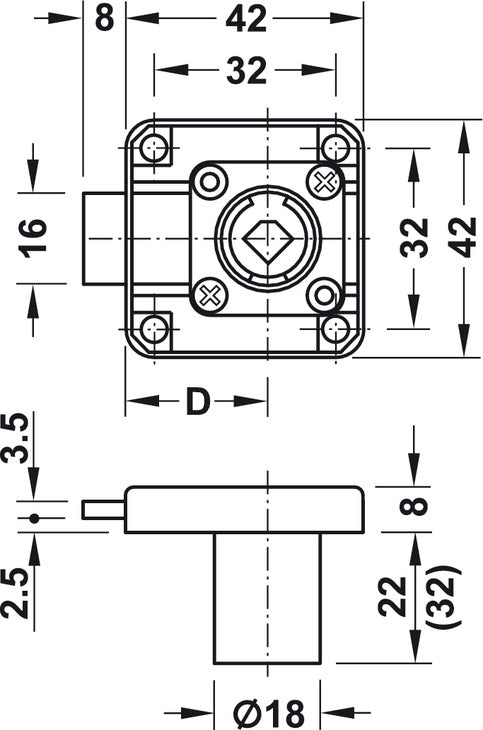

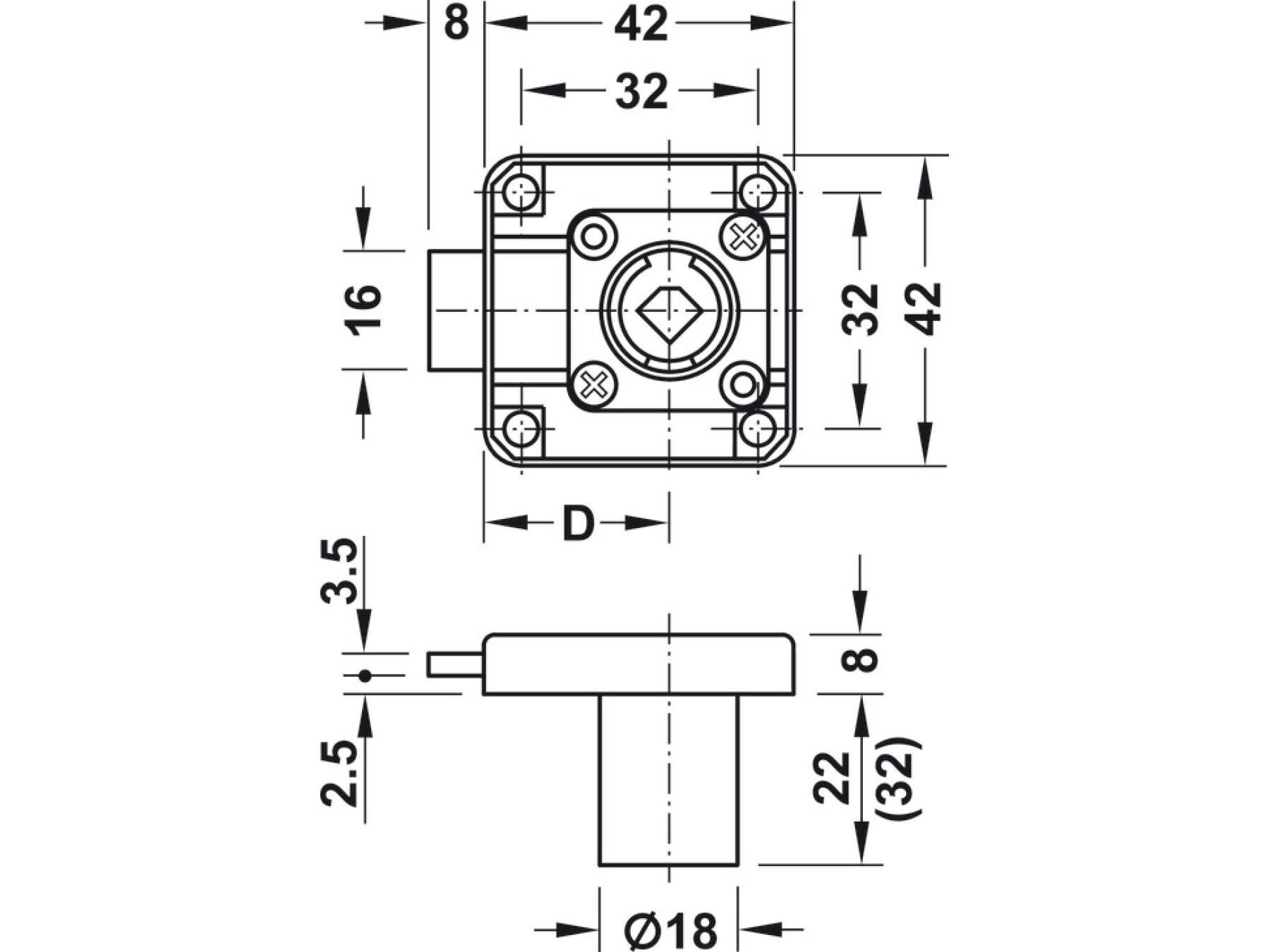

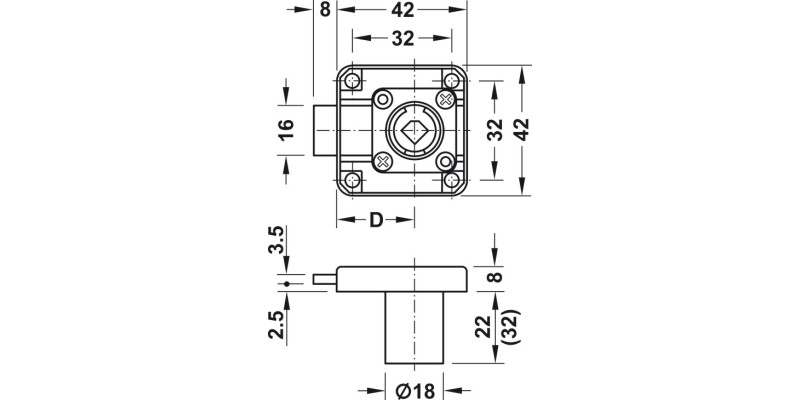

Use a round cylinder with an 18 mm diameter. The case is also specified as being prepared for a round cylinder, so it is intended to match that cylinder shape when you build or replace the lock setup.

Will this rim lockcase work on a drawer, and how does it operate?

Yes, it is a drawer version. The operation is specified as key turn to the right, which is helpful to confirm before fitting, especially if you are matching the feel and action of other drawer locks in the same unit.

What bolt movement should I expect from the deadbolt?

The deadbolt throw dimension is listed as 8 mm. If you are planning cabinet alignment, strike positions, or replacement parts, this figure helps you confirm there is enough engagement for reliable locking.

Does it come with a key?

No, this version is supplied without a key. It is intended for combination with the appropriate Symo removable core, so you should select the core and keying option separately to suit your needs.

What finish and material is the lockcase, and is it suitable for indoor use?

It is made from zinc alloy and finished in nickel plated, which is commonly chosen for furniture and indoor commercial or domestic applications. The nickel plating also helps provide a neat, durable appearance on the hardware.

Can the cylinder core be inserted from the front on site?

Yes. The specified area of application states it is for cylinder cores that are inserted from the front on site. This can make fitting and servicing easier when you are installing cabinets or upgrading locks without fully removing the unit hardware.
