Fitting Set, for Sliding Glass Interior Doors, Hawa-Junior 80/GP

Hawa Junior 80GP FitSet 1Dr w SoftMove FAQ

Is this fitting set suitable for a single sliding or folding door?

Yes. Hawa Junior 80GP FitSet 1Dr is designed as a top hung system for 1 door leaf per set, supporting a maximum of 1 to 2 door wings in a system depending on your overall configuration.

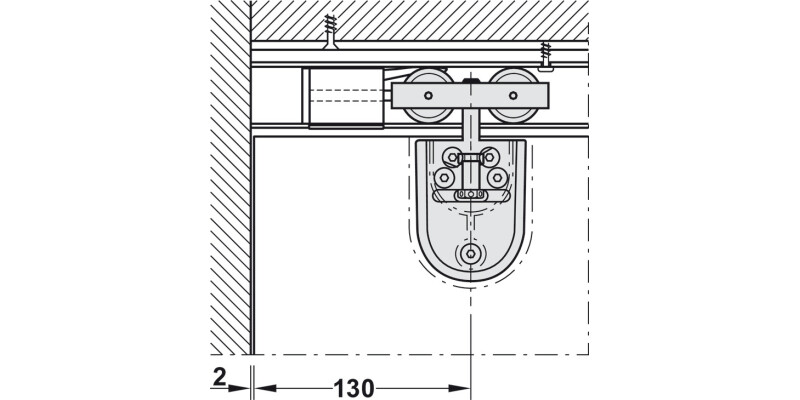

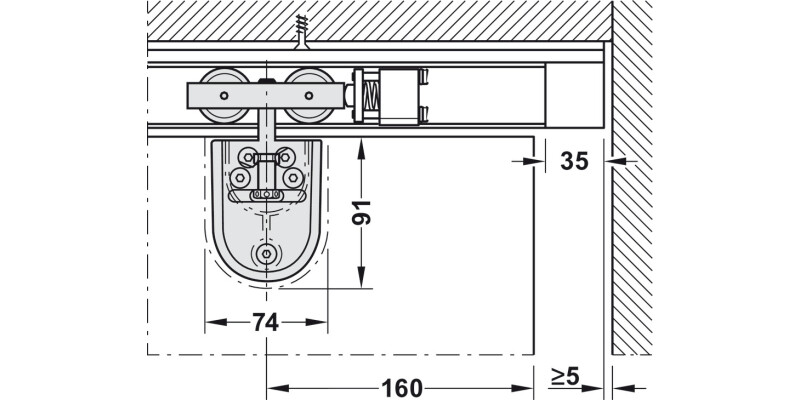

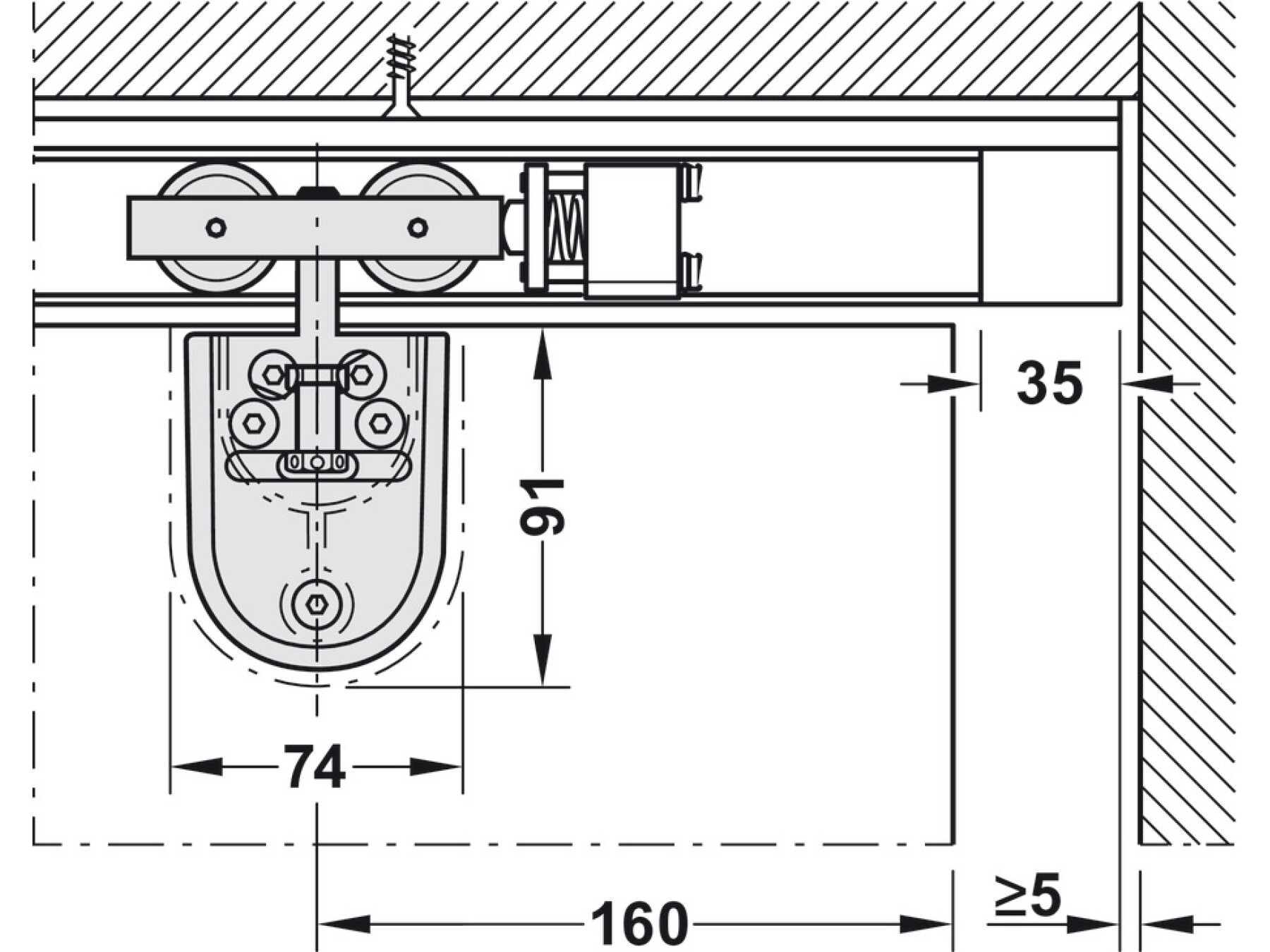

How does the SoftMove 80 mechanism work for smoother closing?

SoftMove 80 provides soft and self closing on one side. This means the door is guided into the closed position with controlled movement, helping to reduce impact at the end of travel and improve everyday operation.

What is the maximum door weight and width this system can handle?

Door weight up to 80 kg is supported, with a recommended door width range of 690 to 1,500 mm. These limits help ensure stable running and reliable performance with appropriate door hardware and installation.

Which glass types and thicknesses can be used?

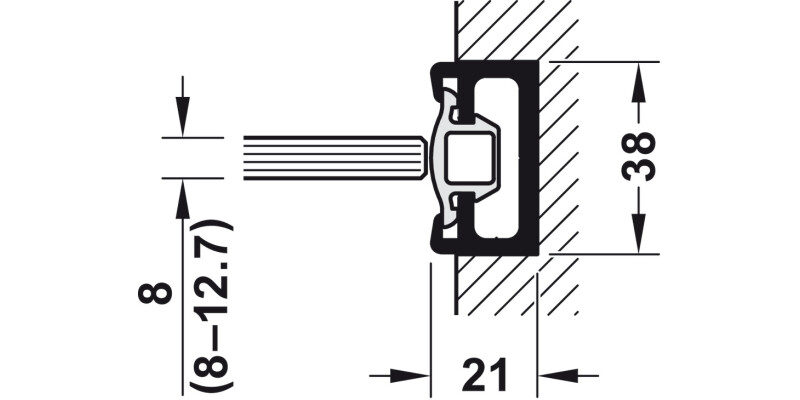

This set is suitable for tempered safety glass and laminated glass. Recommended glass thickness is 8 mm, 10 mm, 12 mm, or 12.7 mm for tempered safety glass, and 8.7 to 12.7 mm for laminated glass.

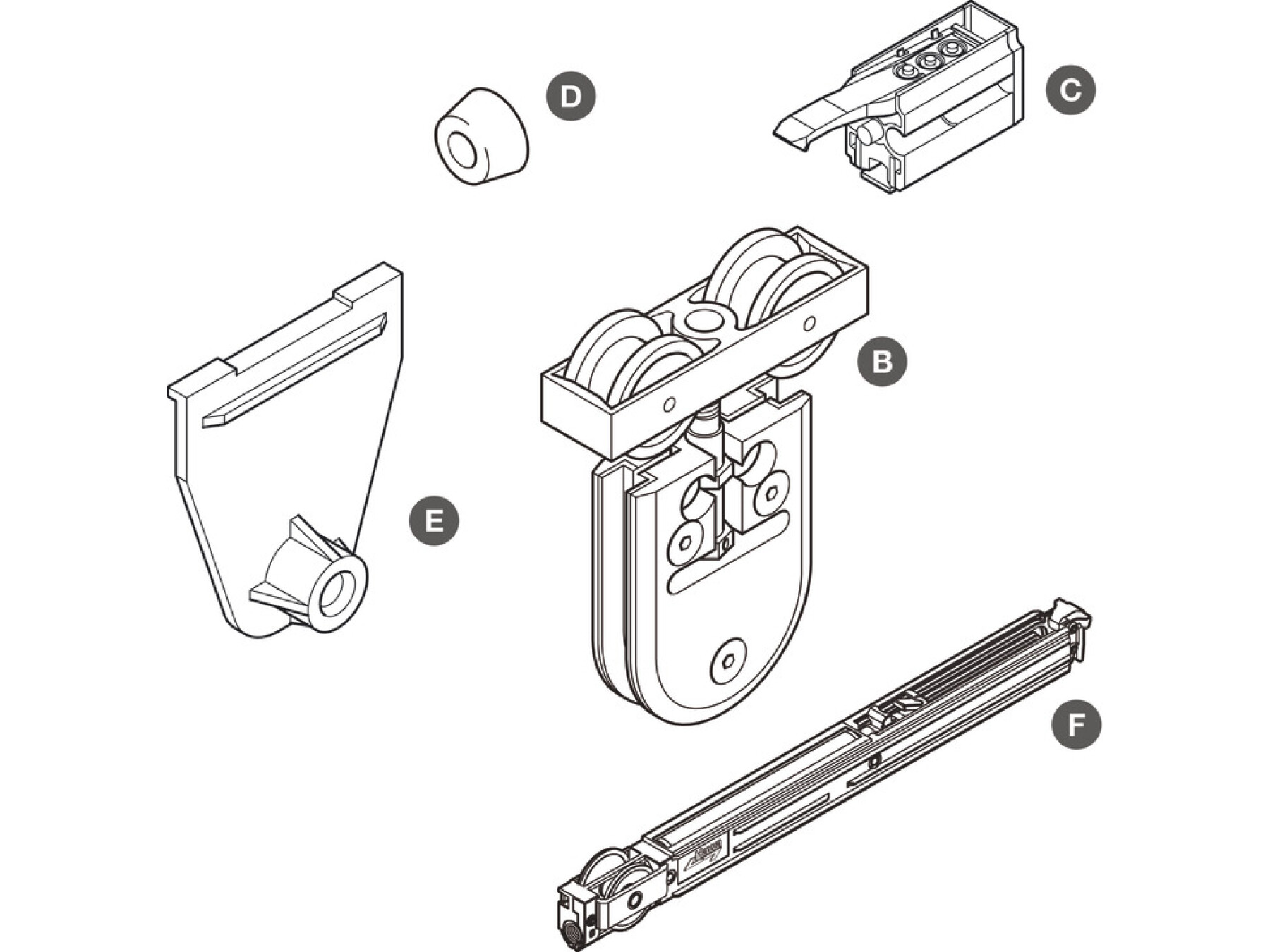

Does the installation include a track buffer and what does that mean?

Yes, it includes a track buffer as part of the SoftMove 80 configuration. A buffer helps manage the door’s movement at the end of travel, supporting quieter operation and helping protect components over time.

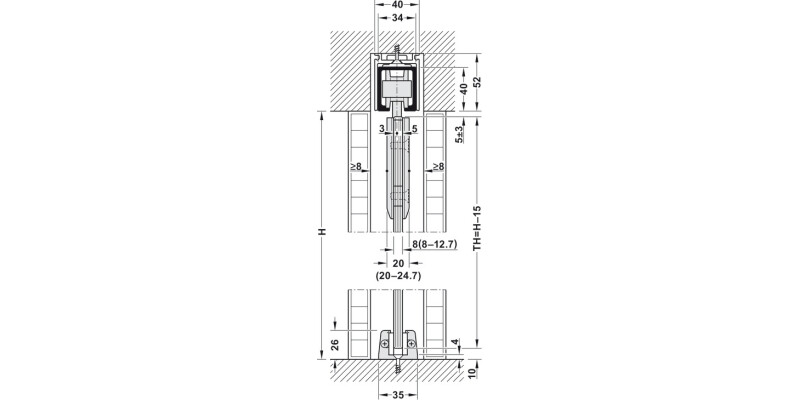

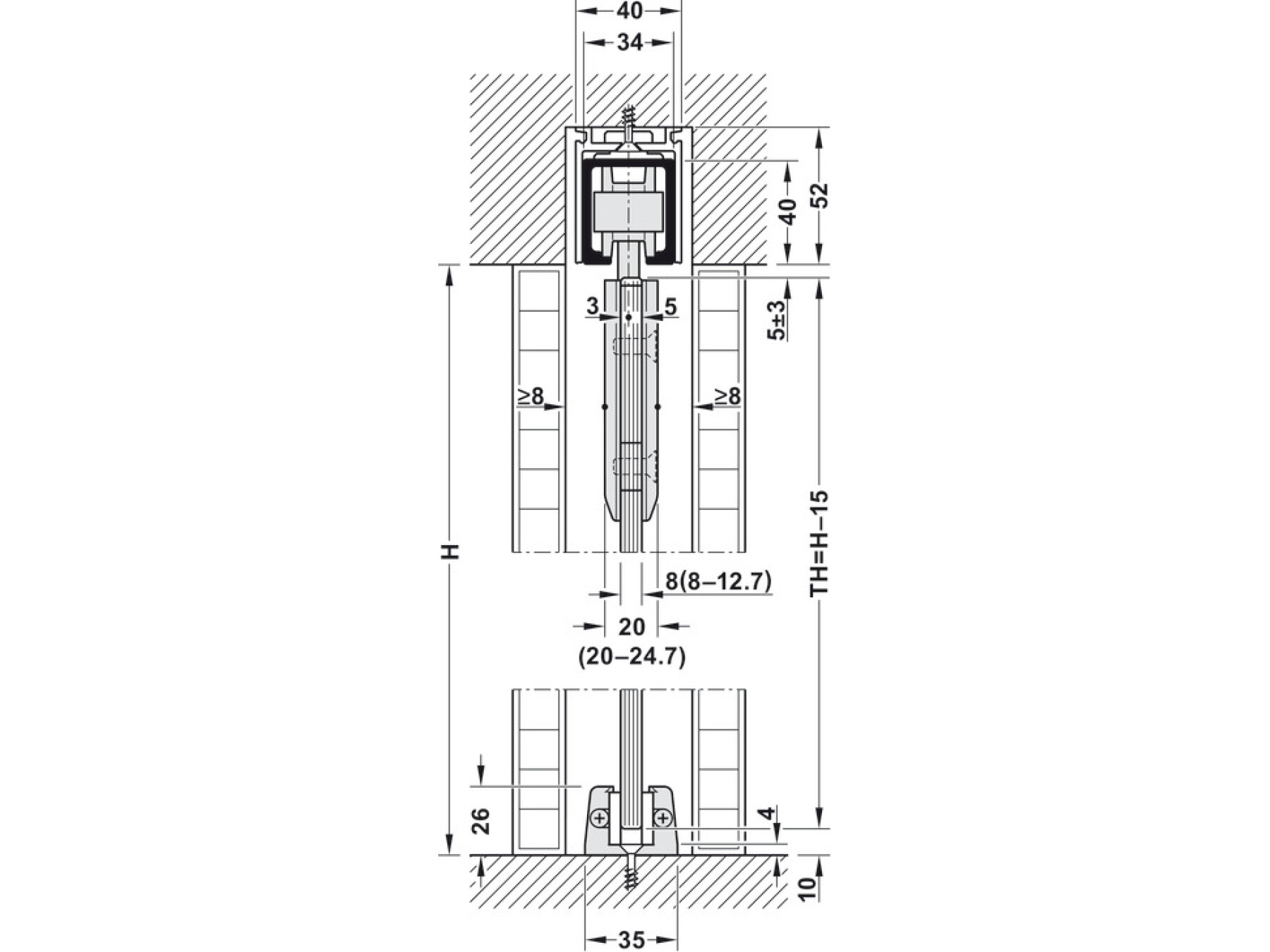

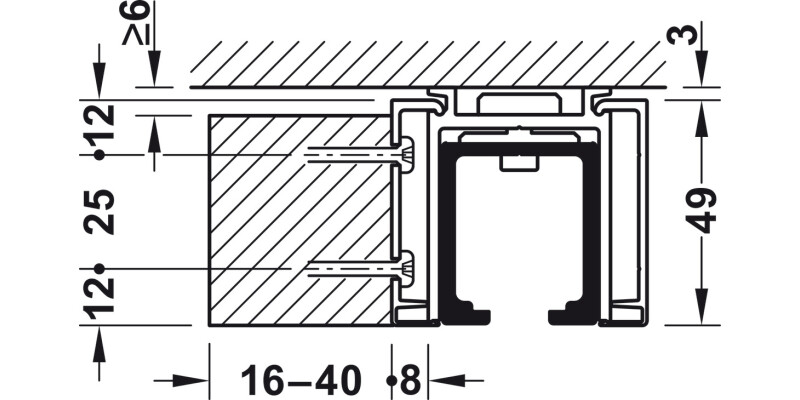

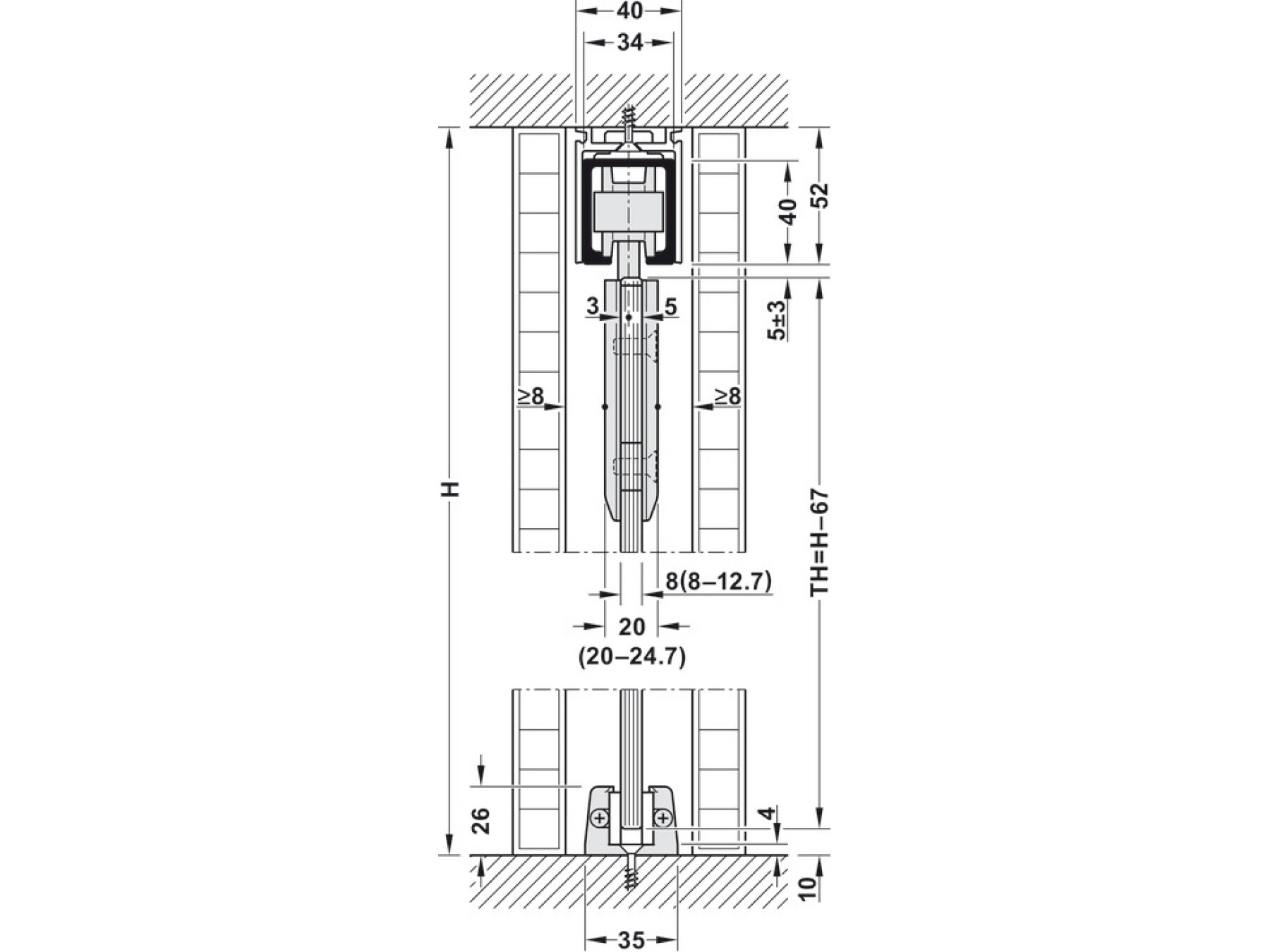

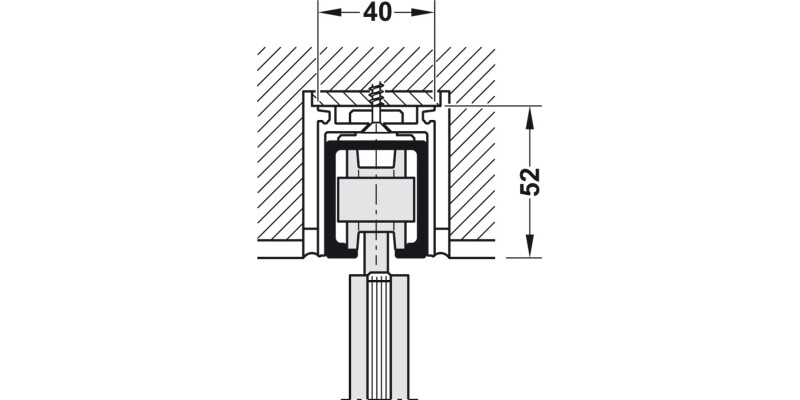

Is this system intended to be installed from the ceiling?

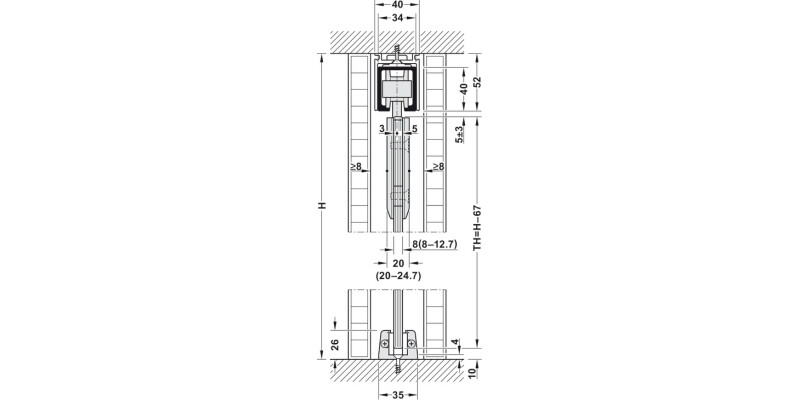

Correct. The product is a top hung system for ceiling installation and includes options such as integrated ceiling installation and a wall pocket solution. It runs at the top for a clean appearance without floor tracks for the door panel.

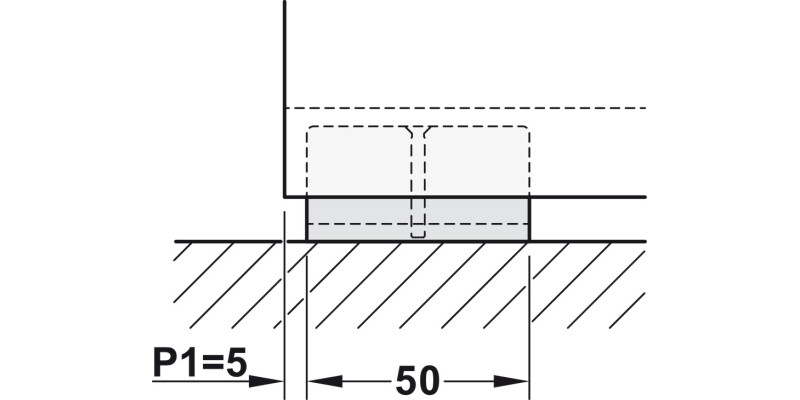

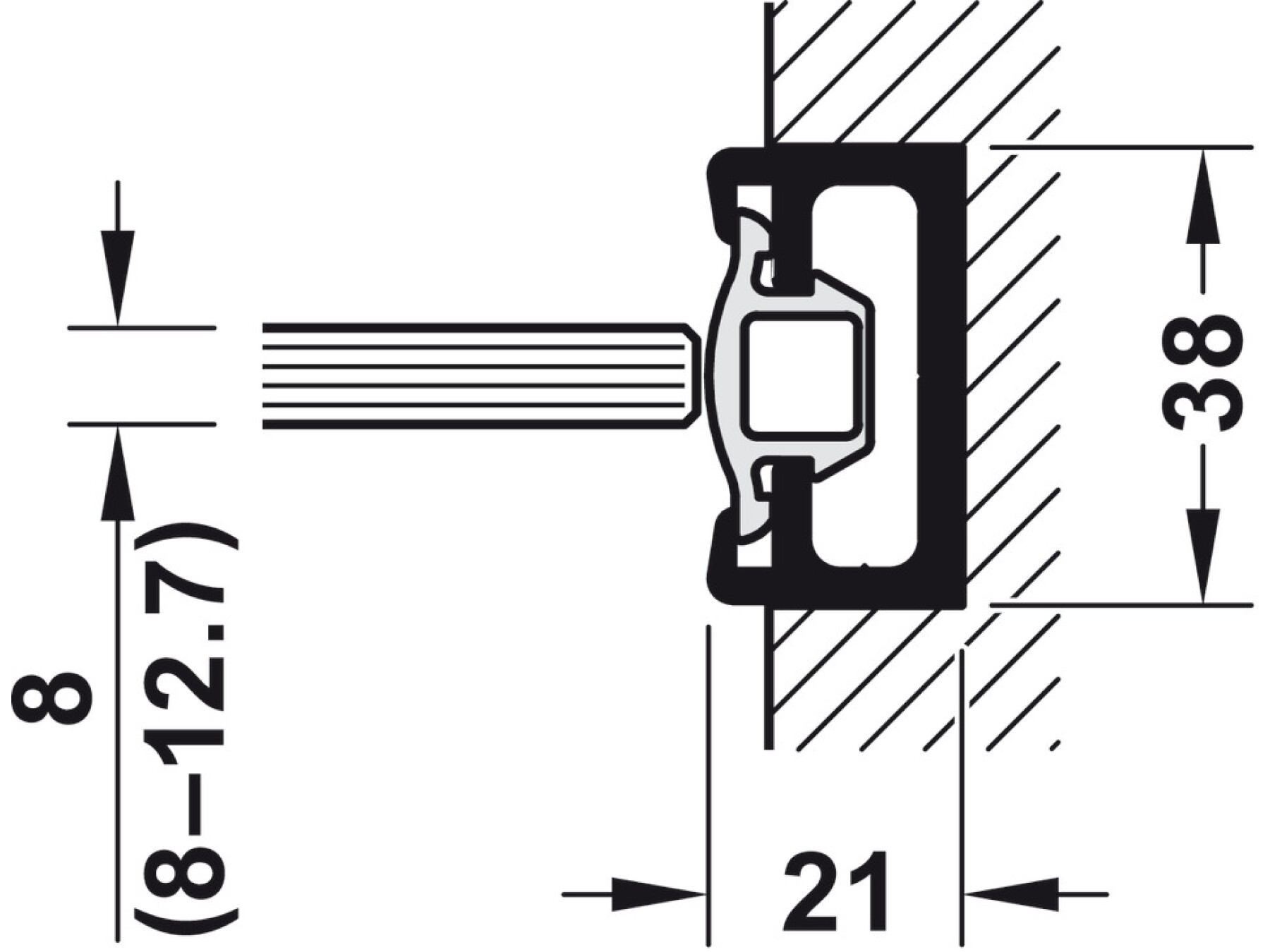

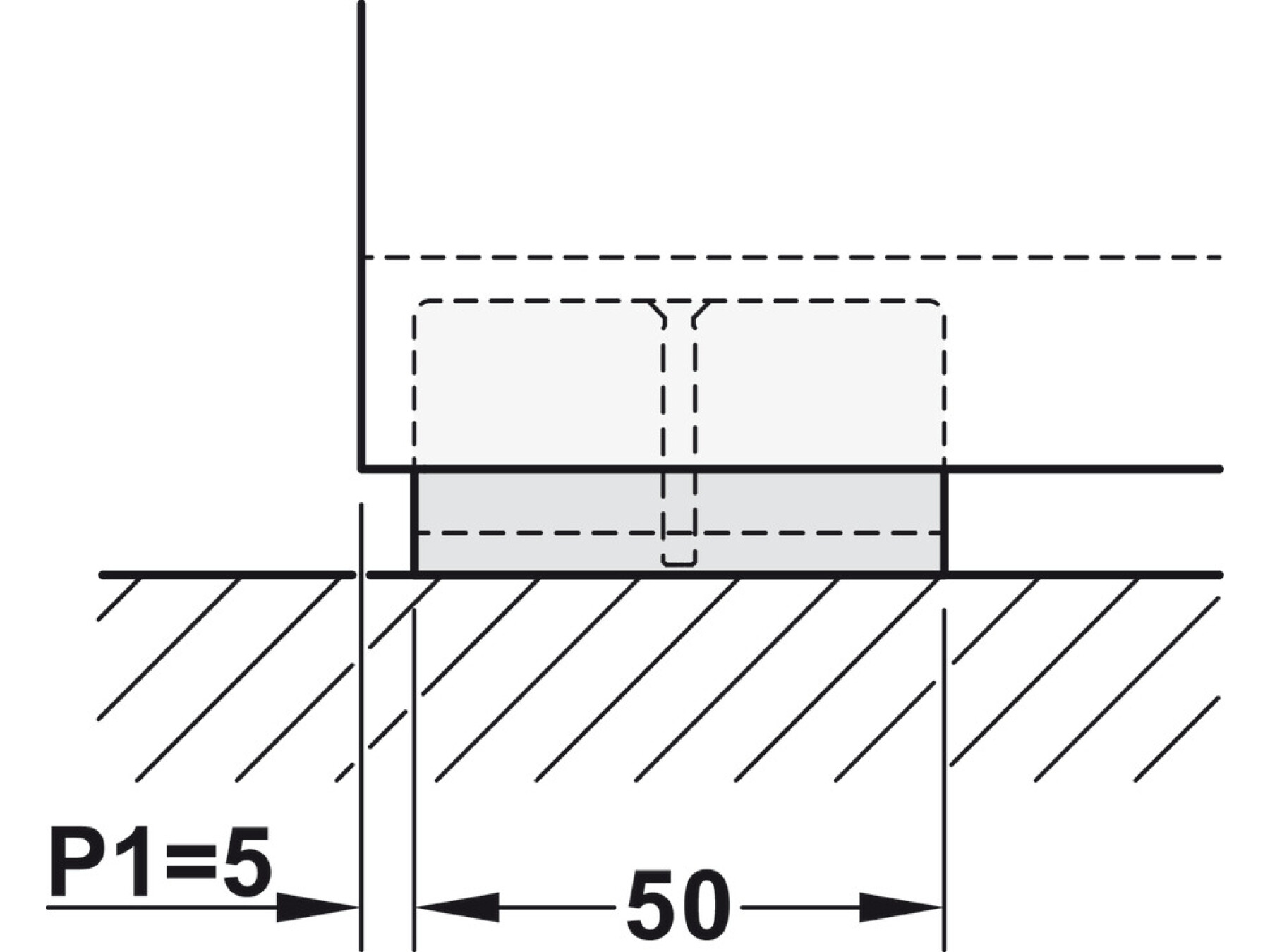

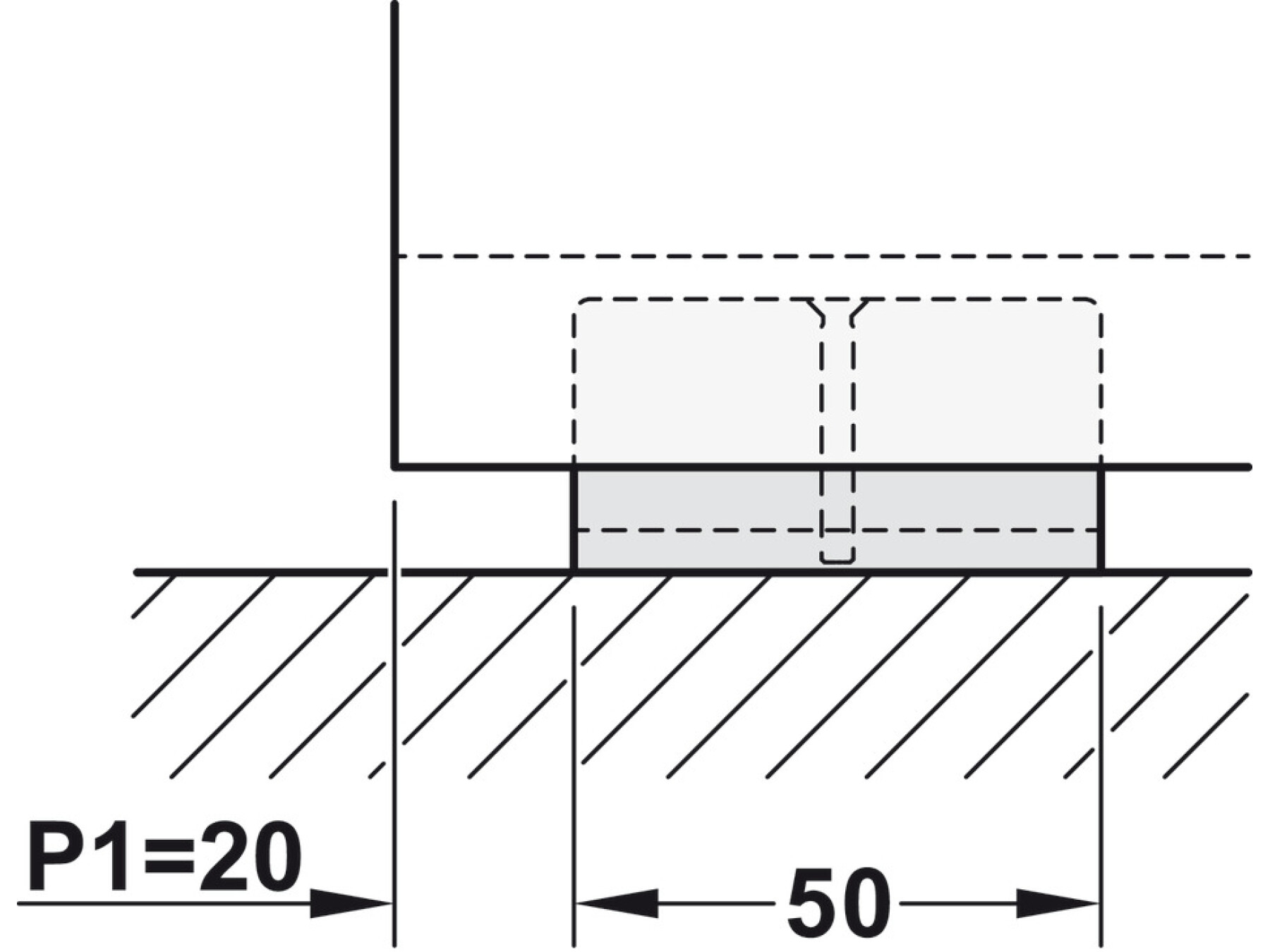

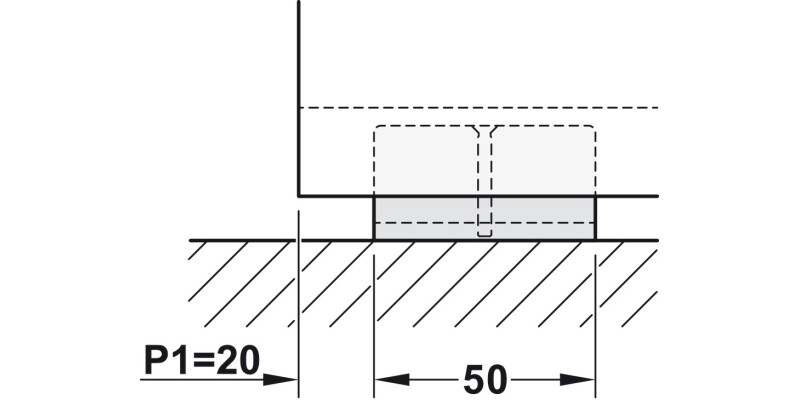

Do I need to order a floor guide separately?

Yes. The order reference notes that a floor guide must be ordered separately. For sliding and folding door systems, a floor guide typically helps stabilise the door leaf and keep it aligned during movement.
