Fitting Set, for Sliding Cabinet Doors, Hawa-Clipo 36 H

Product Details

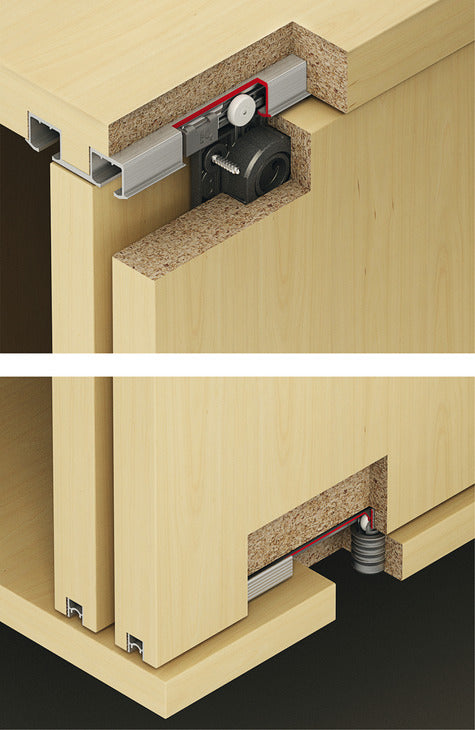

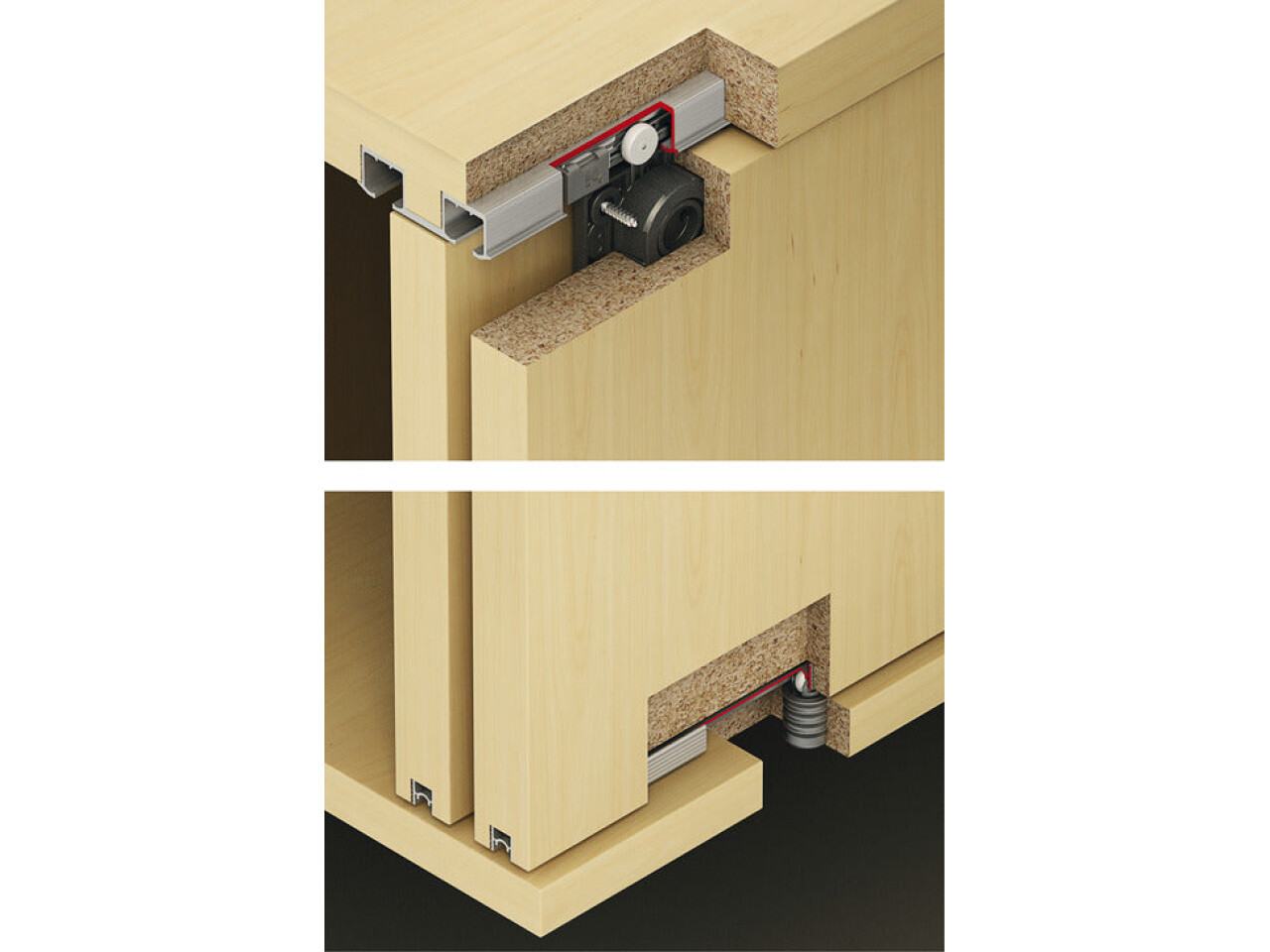

Fitting Set, for Sliding Cabinet Doors, Hawa-Clipo 36 H. (Part No. 405.02.404) is a heavy duty, back-fitting top hung system designed for reliable sliding and folding door operation in demanding cabinet and interior applications. If you’re upgrading existing door hardware or fitting new sliding solutions, this Top hung system, For 2 doors, back fitting set delivers smooth, controlled movement with a strong, stable running performance.

Built for practicality and long-term durability, the Eku Clipo 36H FitSet supports door weights up to 36 kg with a smooth top running position. The system includes 4 rollers guided by a friction bearing for steady travel and reduced wear. For comfortable everyday use, the soft closing mechanism helps guide doors gently into position—ideal for kitchens, wardrobes, offices, and other frequently used spaces.

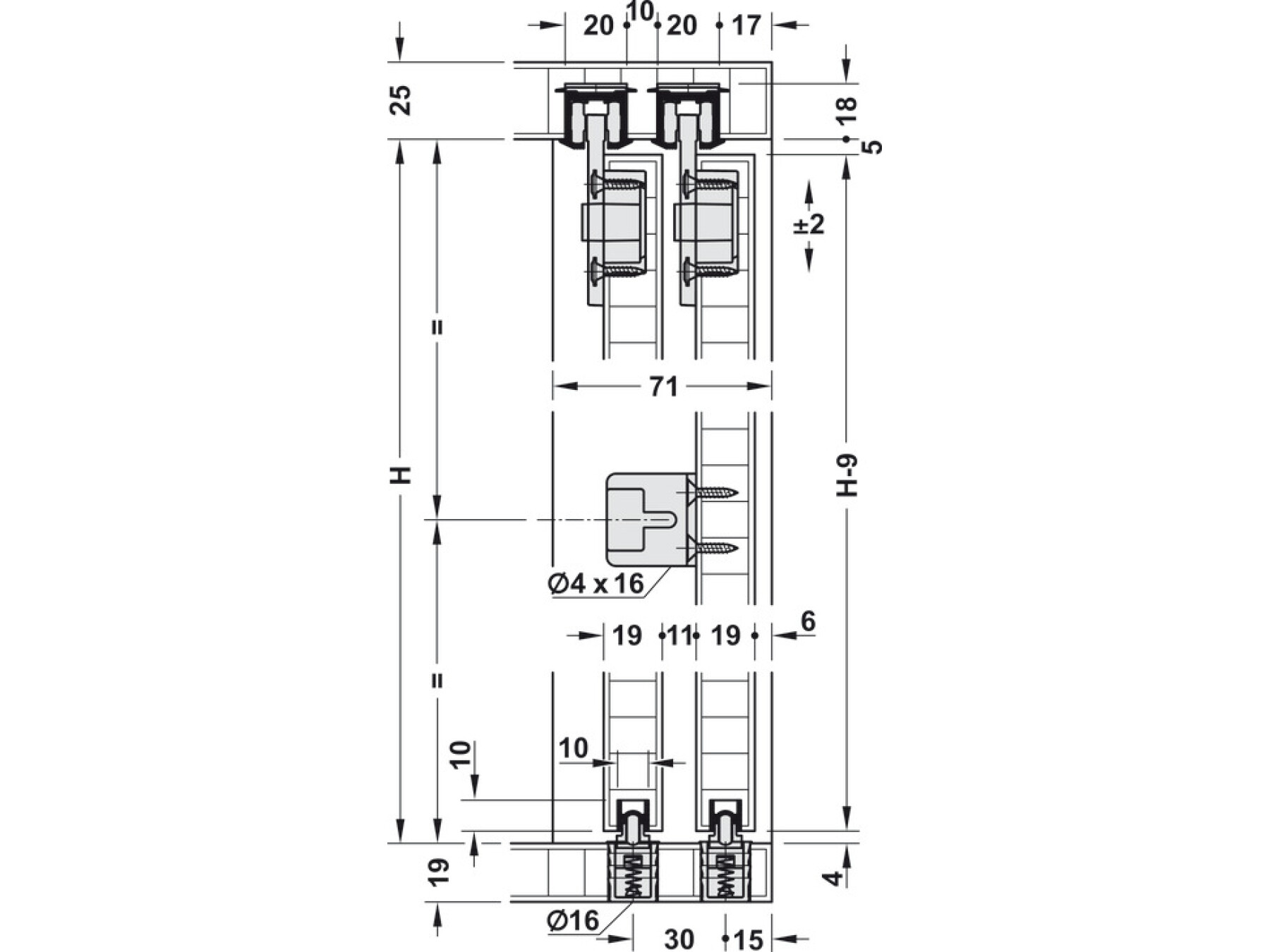

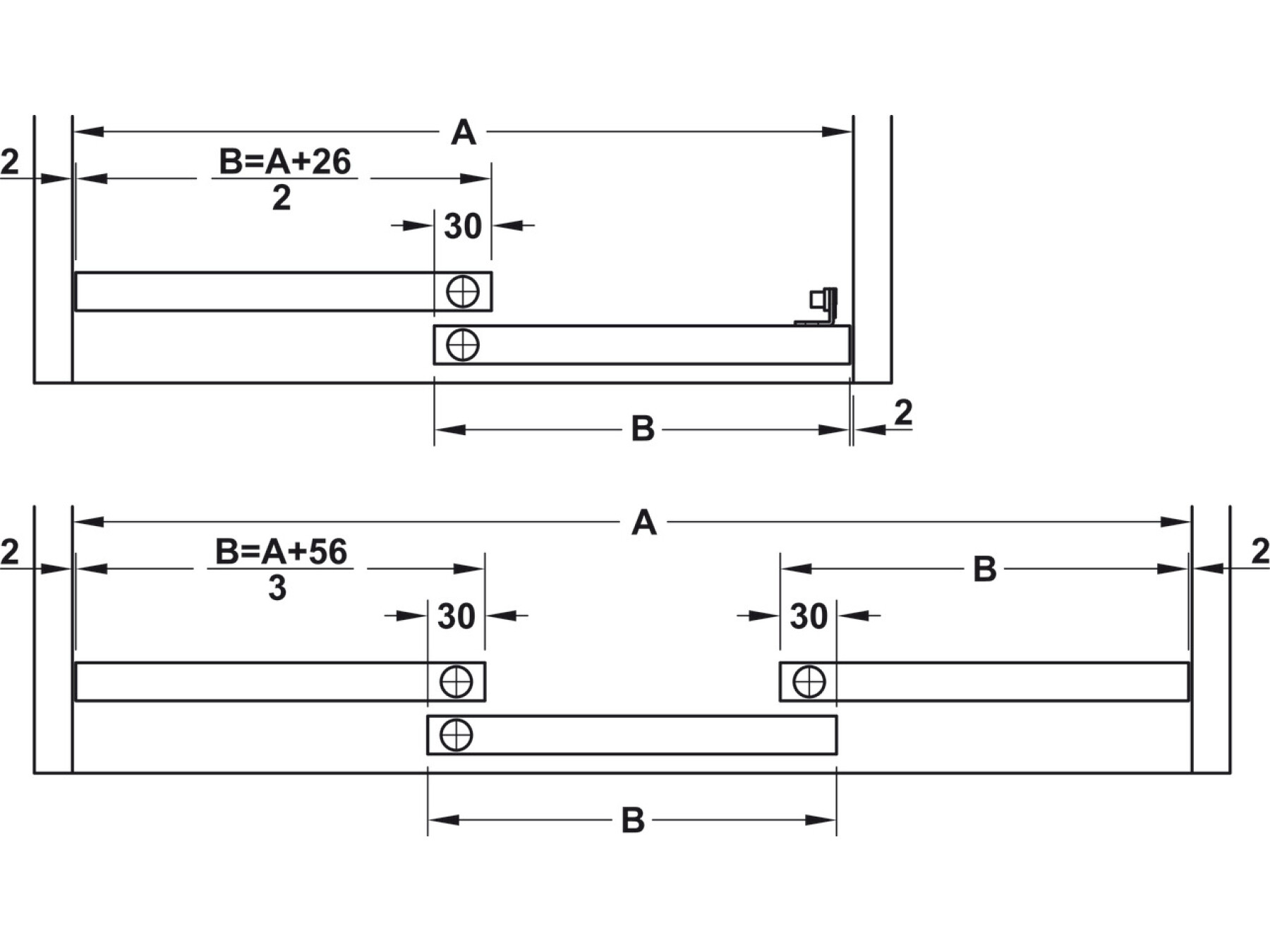

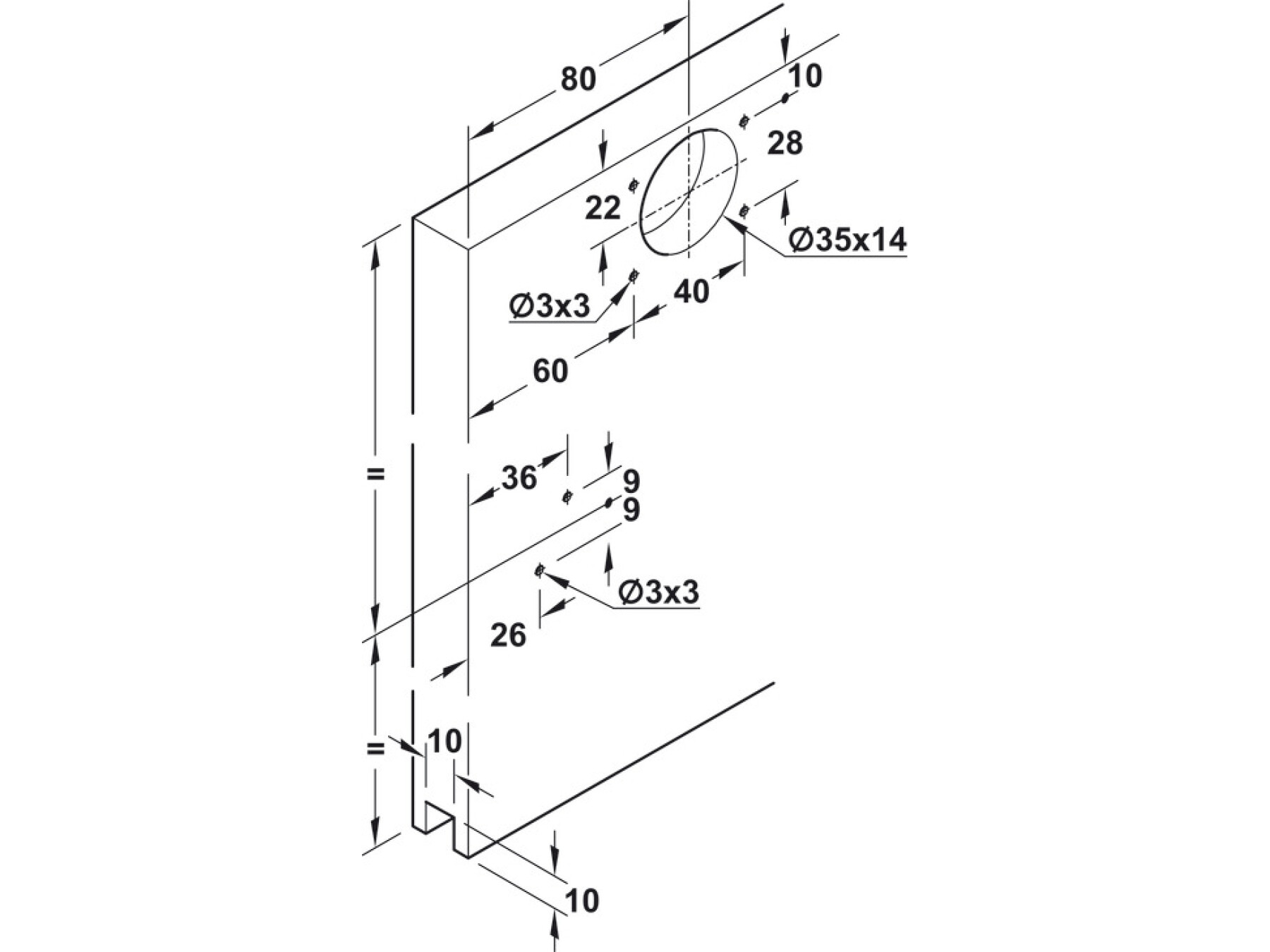

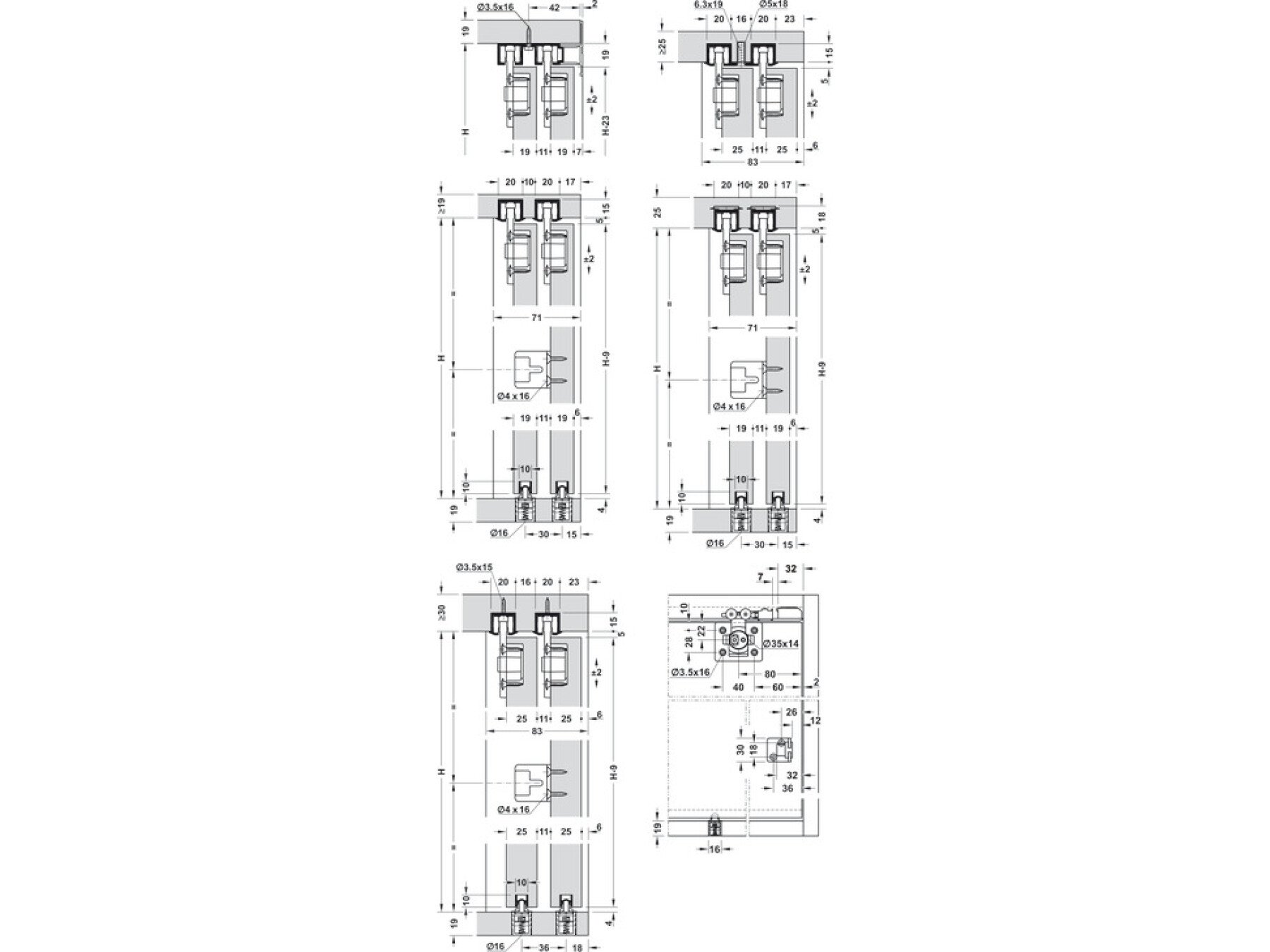

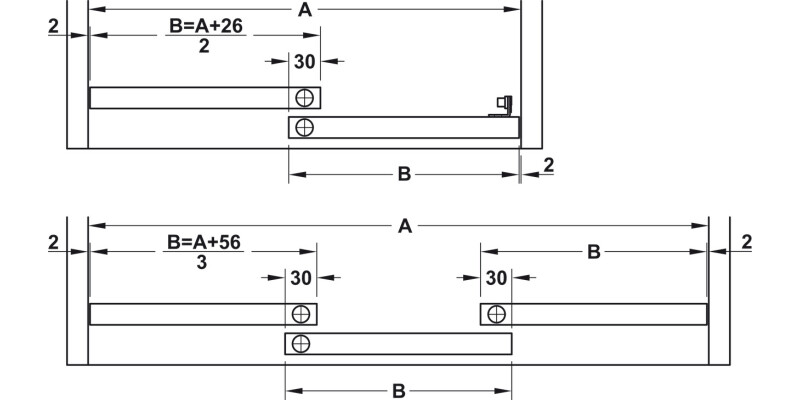

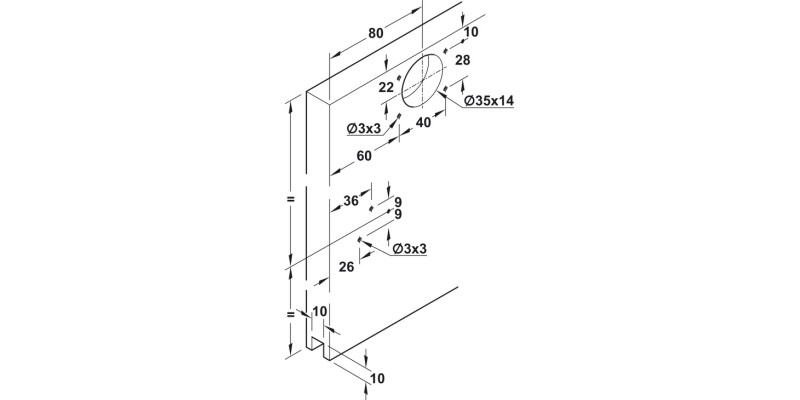

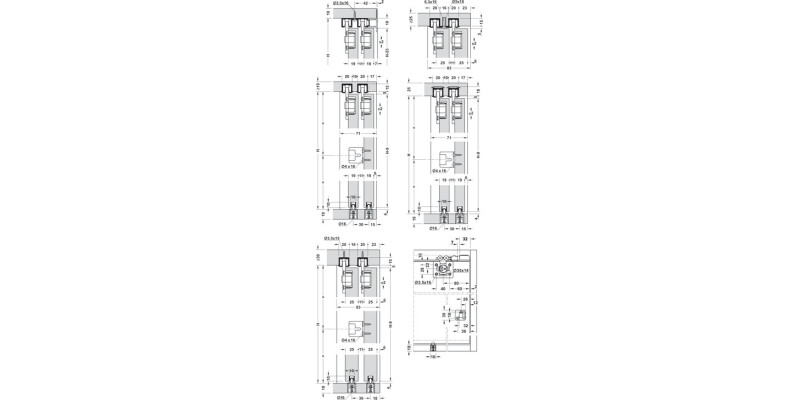

This fitting set is engineered to match common door dimensions: suitable for door thickness 19–25 mm, door width up to 1,000 mm, and door heights up to 2,200 mm. Height adjustment is possible in the range of -2 to +2 mm using the eccentric screw on the running gear, allowing fine tuning during installation.

A convenient top clip-in door stopper is included to support stable sliding into the running track. The set is for 2 doors and supports cabinet applications with sliding doors with zero clearance. Set without tracks, it’s the ideal choice when you already have tracks or are planning a coordinated installation.
