Fitting Set, for Vertically Sliding Cabinet Doors, Hawa-Libra 20 H

Part Number: 403.20.002
With counterweight system, For 2 doors
Price:
£937.88
Per Item
VAT excluded

Fitting Set, for Vertically Sliding Cabinet Doors, Hawa-Libra 20 H. (Product Part No: 403.20.002) is a heavy duty... Read More

Product Information

Product Details

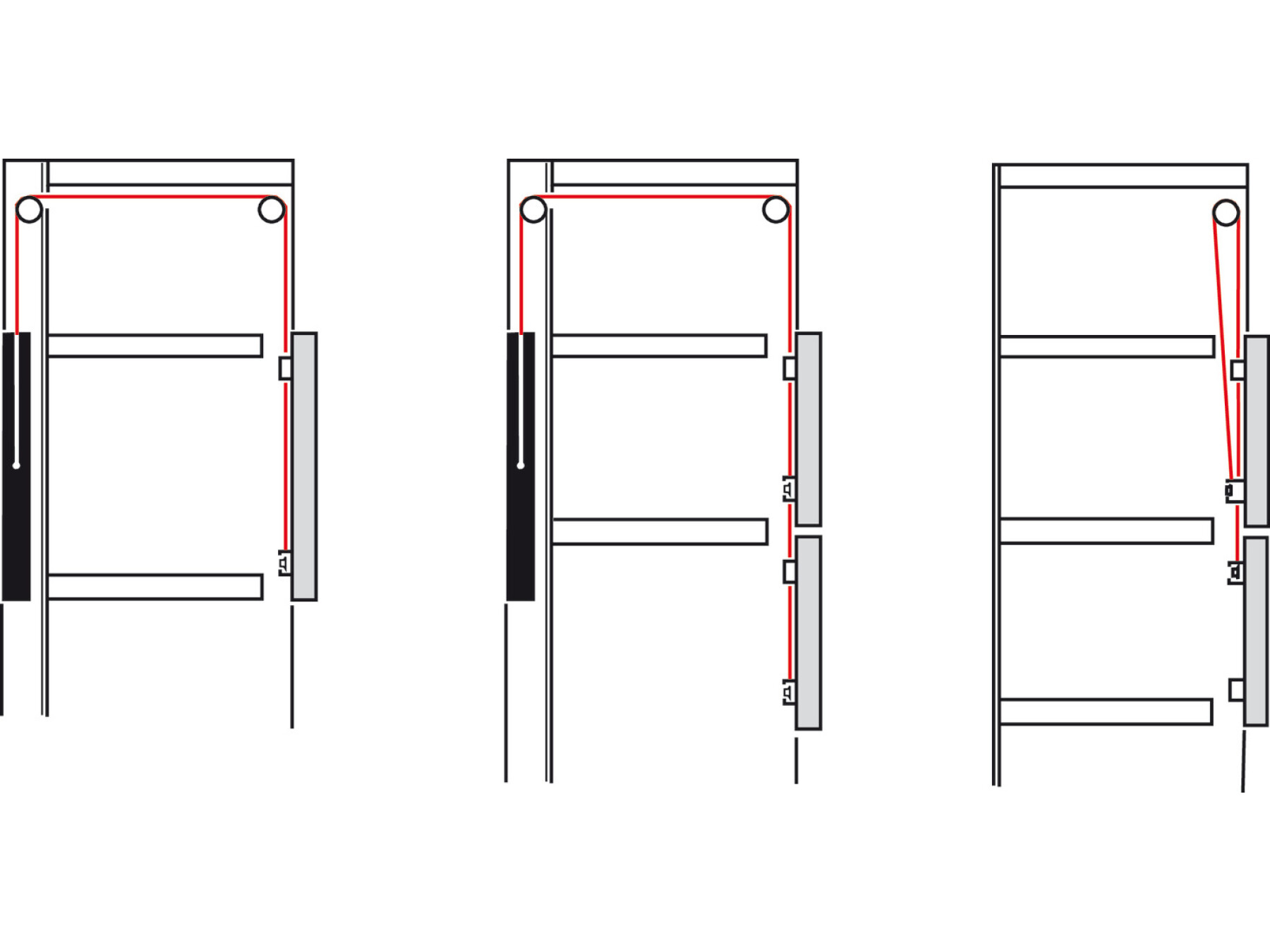

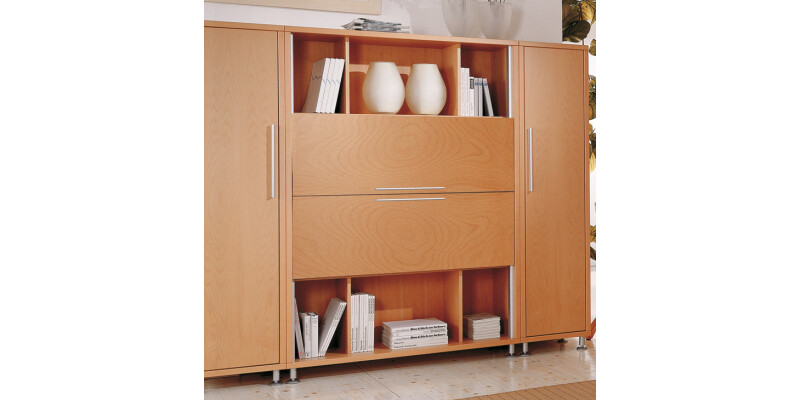

Fitting Set, for Vertically Sliding Cabinet Doors, Hawa-Libra 20 H. (Product Part No: 403.20.002) is a heavy duty sliding and folding door fitting set built for smooth, controlled movement—ideal for premium inset cabinet doors and contemporary interior installations. Designed as counterweight-assisted hardware for two doors, this system helps balance the door for easier operation and a stable, precise run every time.

When performance matters, the Eku Libra 20H Vertical FitSet is engineered to handle demanding specifications. It suits door thicknesses of 16 mm or more and supports door widths up to 1,600 mm. Each door wing can weigh up to 20 kg, making it a strong choice for robust wooden door panels. The rollers are positioned for dependable guidance in bottom, lateral, and top running positions, with 1 roller per setup for reliable tracking.

Installation is straightforward with screw-fixing guidance: the running gear and guide are designed for screw fixing. The material/finish includes plastic rollers for quiet, consistent sliding. The set is designed for door wings that open linearly, with a system capacity of 1 to 2 door wings.

Important: the fitting set is supplied without tracks. Front and rear guide tracks and cover profiles must be ordered separately. To ensure correct operation, the counterweight must match the door weight, and its height must be smaller than the door height. Choose Eku Libra 20H and upgrade your sliding & folding door application with dependable heavy-duty engineering.

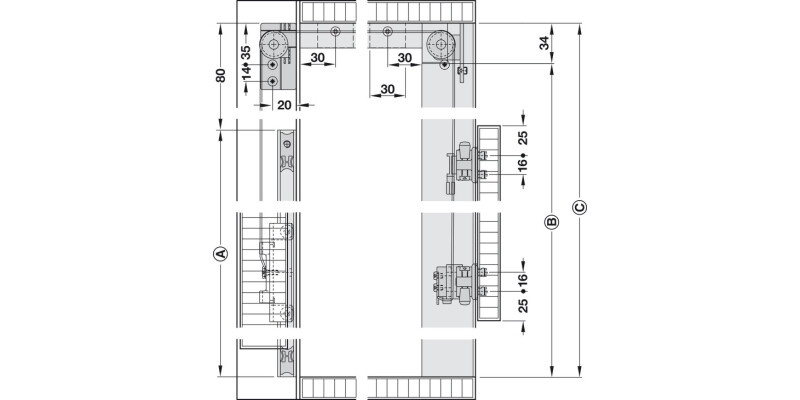

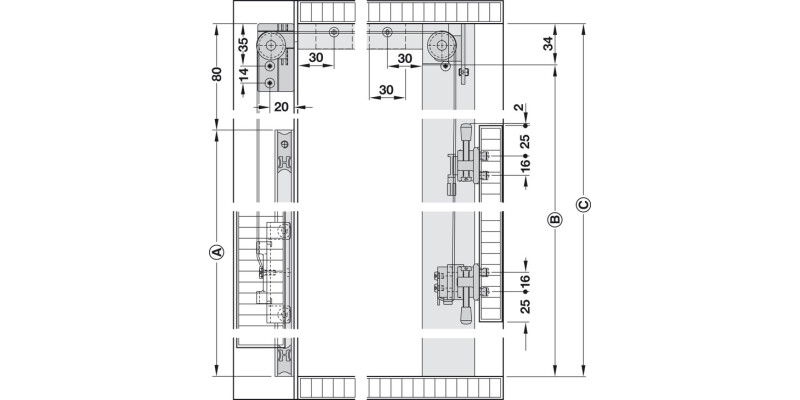

Specifications

For door thickness

≥16 mm

For door width

≤1,600 mm

For door weight

≤20 kg

Running position

Bottom, lateral, top

Number of rollers

1.00

For side panel thickness

min 16 mm

For door material

Wood

Area of application

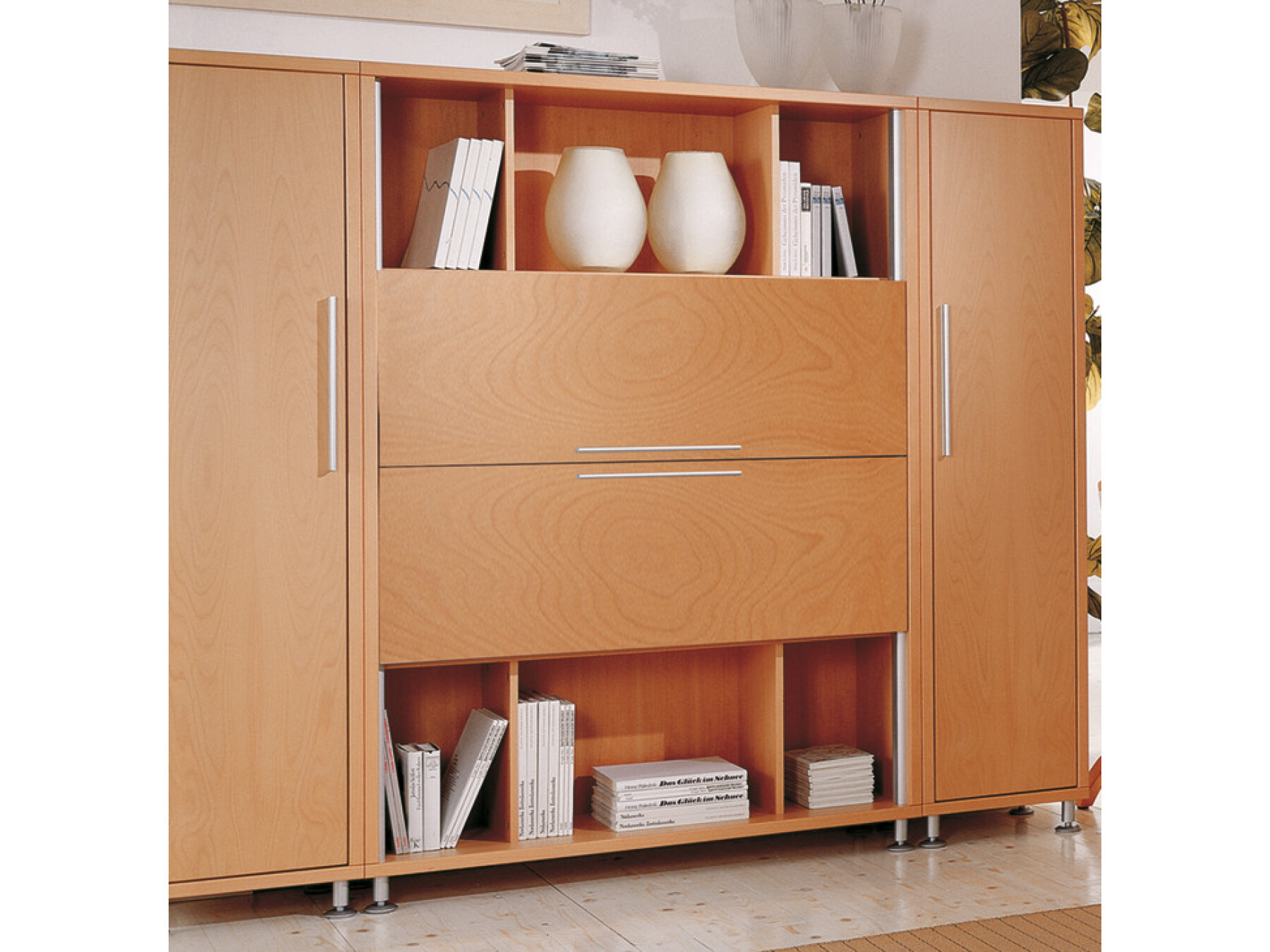

Inset cabinet doors

For door height

≤1,000 mm

Door stopper

Top and bottom stopper, for sliding into single guide track

Material/finish

Rollers: Plastic

Installation

Running gear and guide for screw fixing

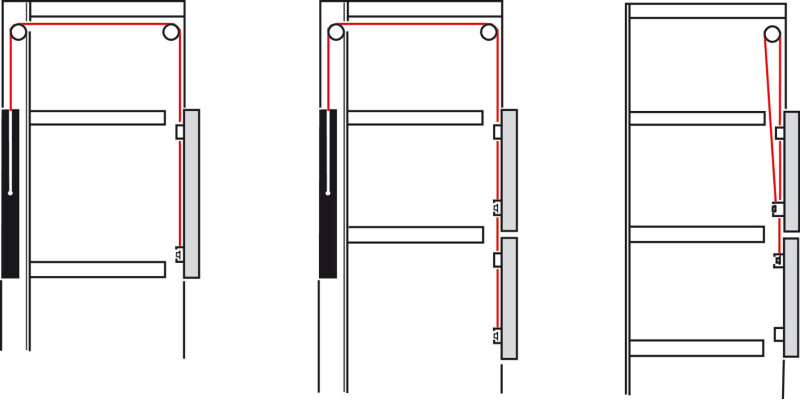

Counterweight

The counterweight must correspond with the door weight, and the height must be smaller than the door height

Set

Set without tracks

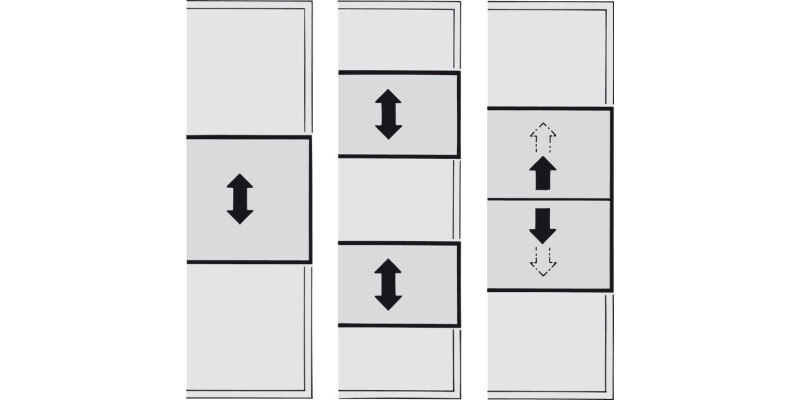

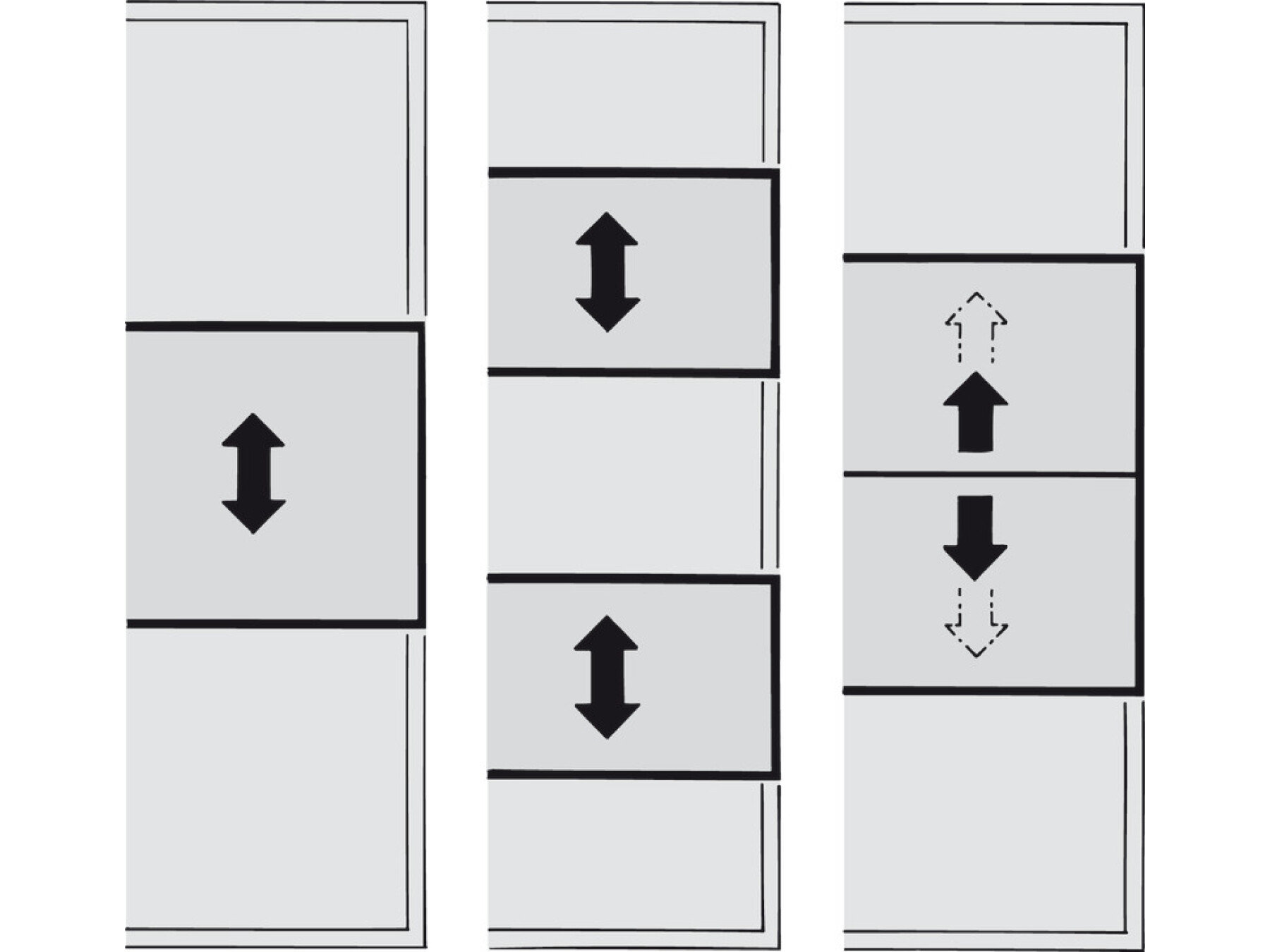

Type of opening

linear

Number of door wings in a system max.

1 to 2

Order reference

Front and rear guide tracks and cover profiles to be ordered separately.
