Fitting Set, for Sliding Cabinet Doors, Hawa-Combino 45 GR FS

Product Details

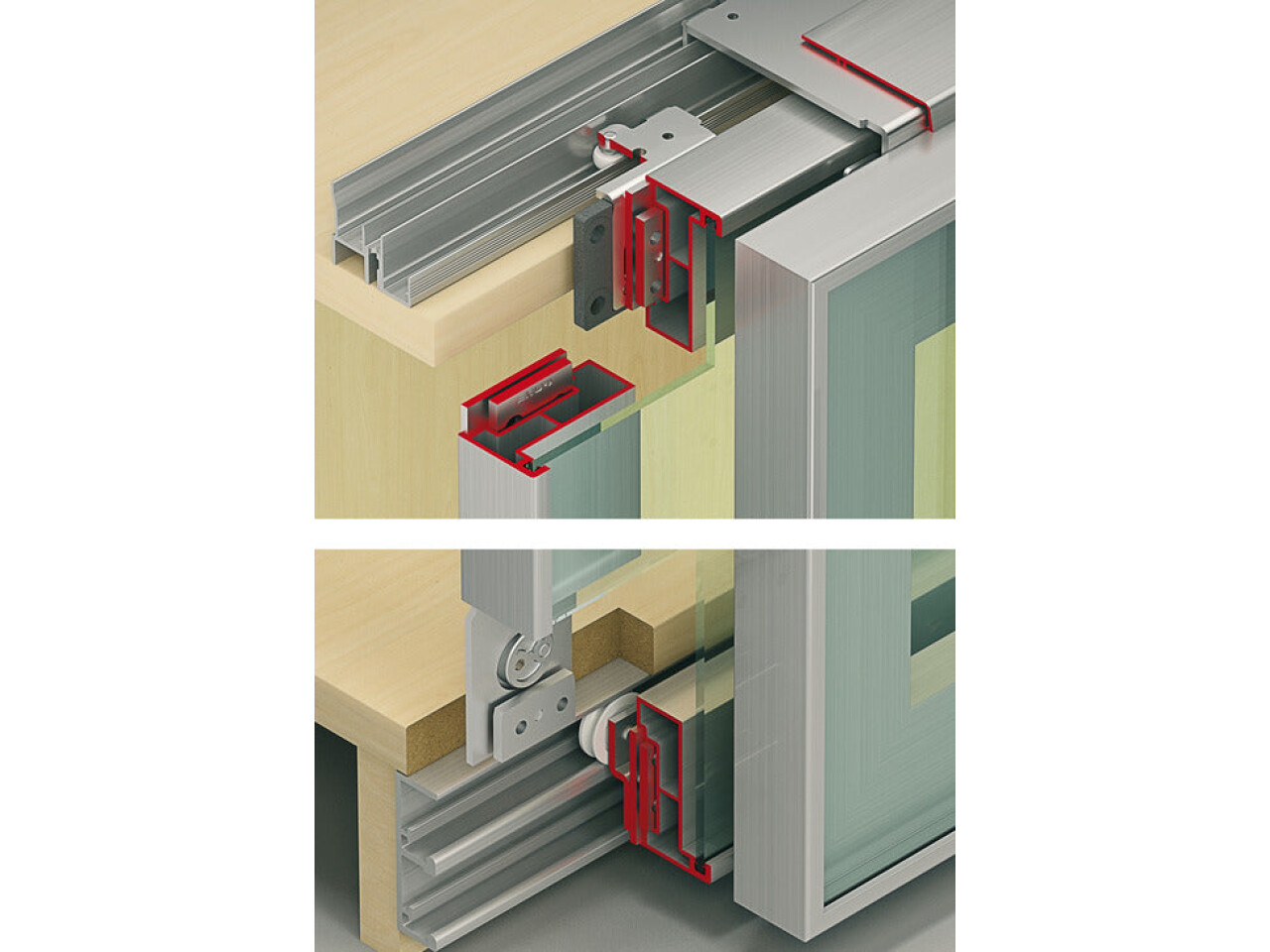

Fitting Set, for Sliding Cabinet Doors, Hawa-Combino 45 GR FS. (Part No: 405.91.263) is a robust, heavy-duty sliding & folding door solution designed for smooth, reliable everyday operation. Built for systems with 3 doors, this bottom rolling system keeps your door movement stable while delivering a clean, streamlined look—ideal for both residential and commercial installations.

Engineered for performance, the Eku Combino 45GR FS FitSet supports glass thickness of 4 mm and is suitable for door thickness up to 35 mm. It’s designed to handle doors up to ≤1,400 mm wide and weighing ≤45 kg—so you can move larger door panels with confidence.

Featuring 1 roller guided by ball bearing, the running gear helps reduce friction for quieter operation and consistent tracking. Installation is straightforward with running gear and guide for screw fixing. Fine-tune your alignment using the height adjustment range of -2 to +4 mm (with height adjustment +4/-2 mm), and control door positioning via an eccentric screw for a precise fit.

This heavy-duty set is intended for bottom running, using top and bottom door stoppers for added security. The cabinet version includes an aluminium frame 60/35, and the system is specified for linear opening.

Set includes: This is a FitSet without tracks. Tracks, profiles, and accessories must be ordered separately (order reference). Upgrade your sliding and folding door system with the dependability of the Fitting Set, for Sliding Cabinet Doors, Hawa-Combino 45 GR FS.—built to last, designed to glide.

Tracks, profiles and accessories to be ordered separately
