Fitting Set, for Sliding Interior Doors, Hawa-Junior 120/B

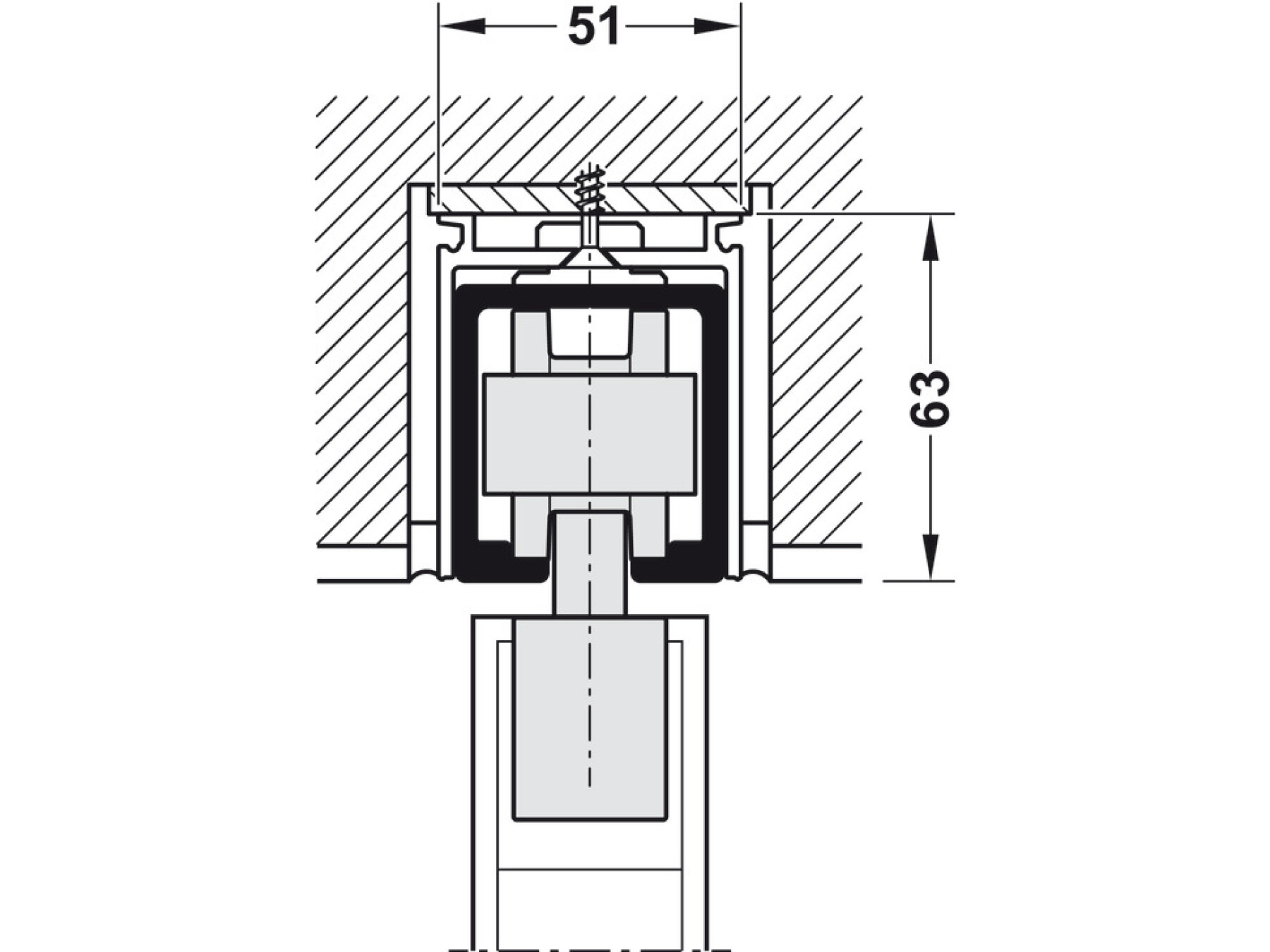

Is the Hawa Junior 120B suitable for a low headroom installation?

Yes. This is a top hung fitting set designed for situations where you have limited headroom. It supports running from the top, so you can keep the overall door opening height more practical.

Will this fitting set work with my single folding or sliding door?

Yes. The set is for one door and is intended for a top running application. If your project involves a single door wing, this is the correct configuration.

What door size and weight limits should I check before ordering?

Please check the limits: the system is for doors up to 120 kg and up to 3,000 mm in width. The door height can be up to 4,000 mm, subject to correct installation.

How thick can the door leaf be?

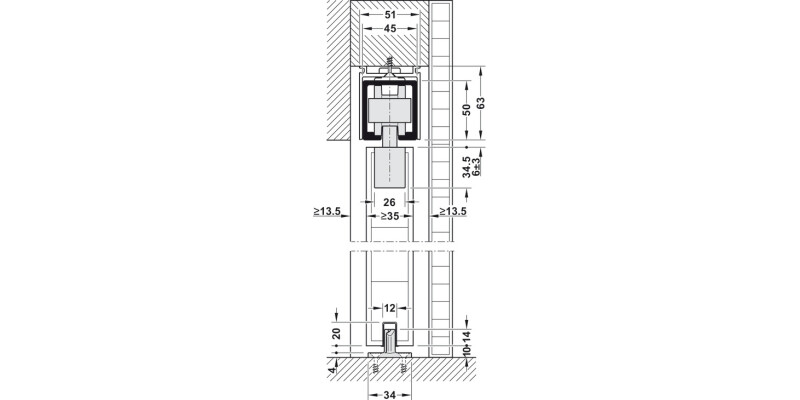

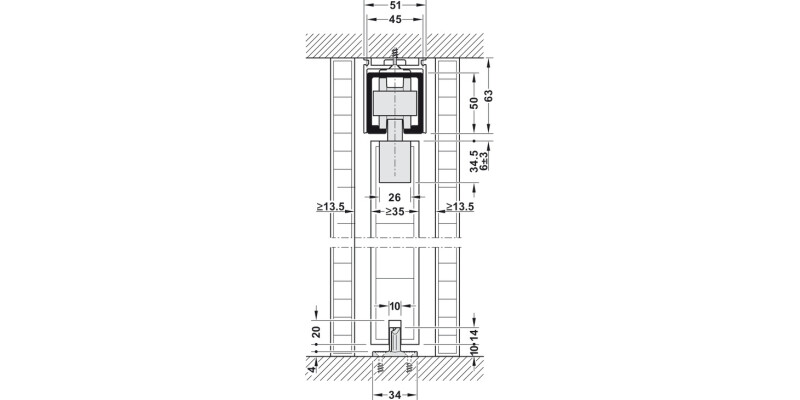

For door thicknesses of 35 to 80 mm. Confirm your door leaf thickness falls within this range so the system can be fitted and adjusted correctly.

Can I install it on the ceiling, on the wall, or both?

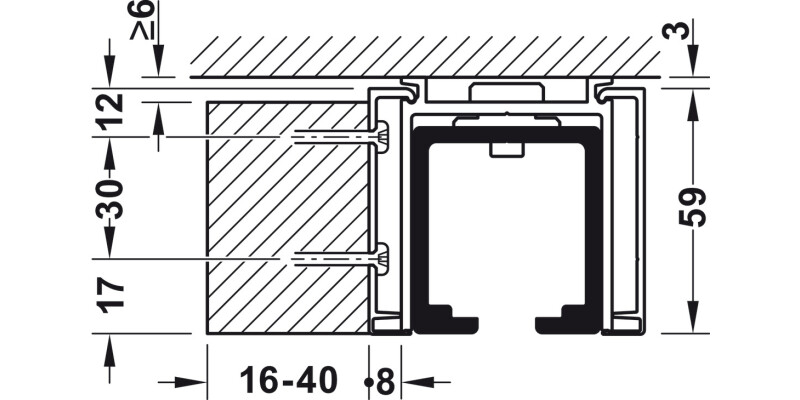

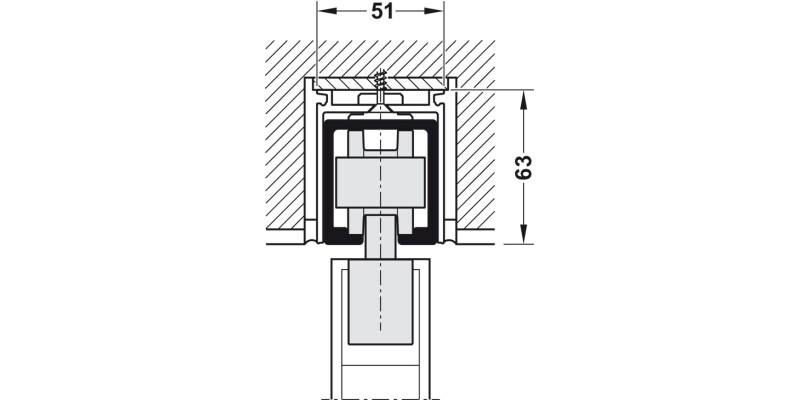

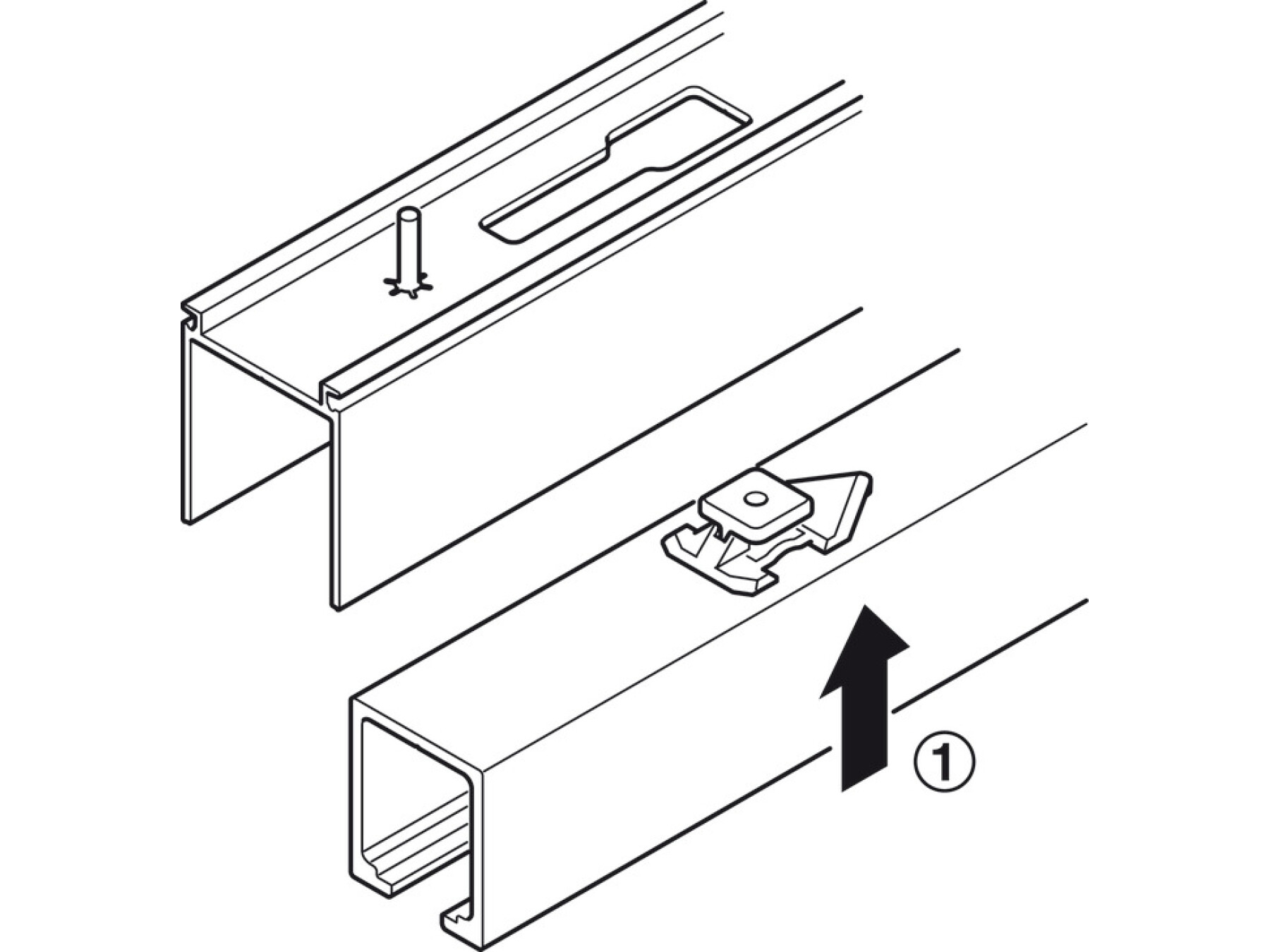

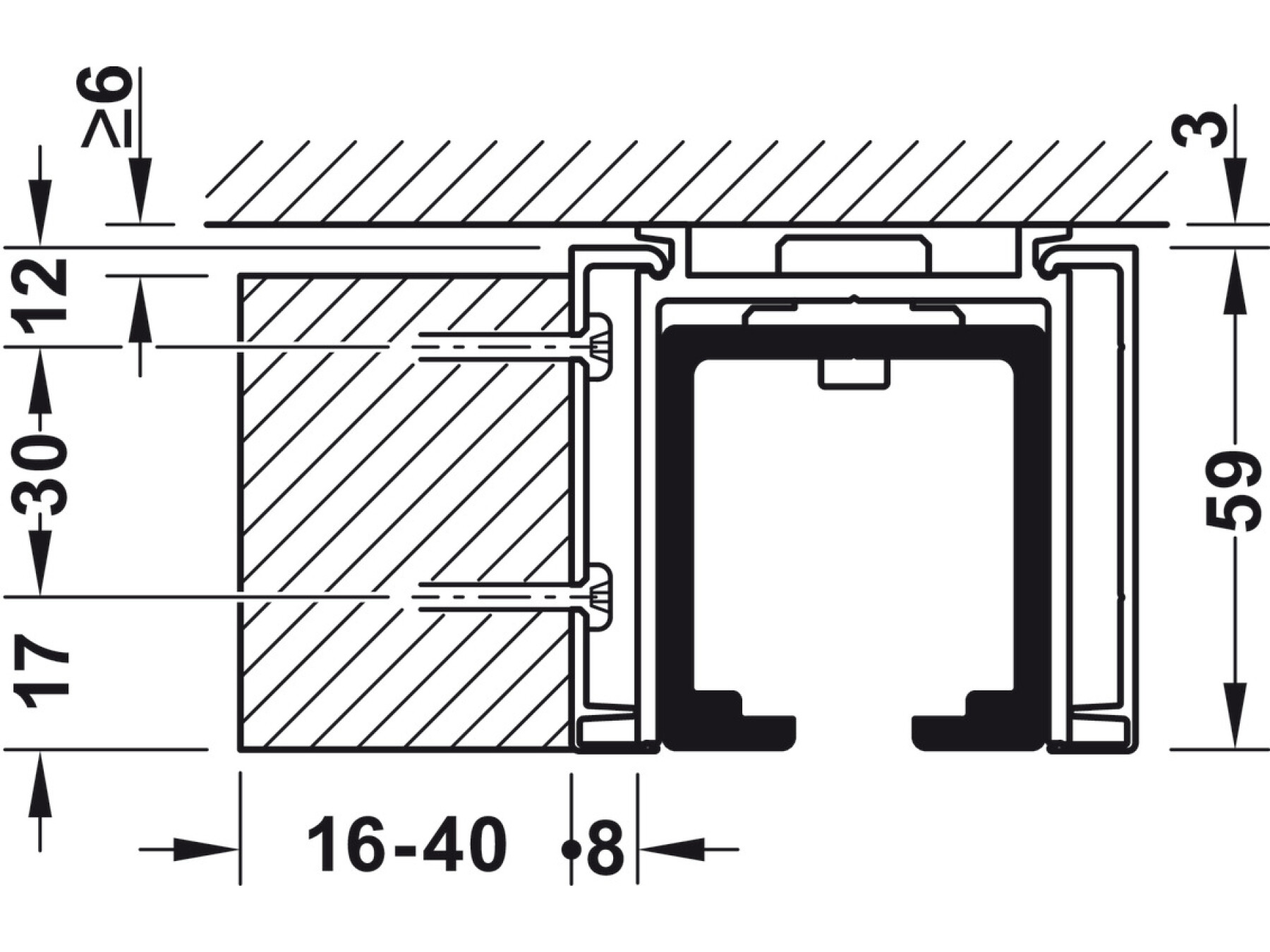

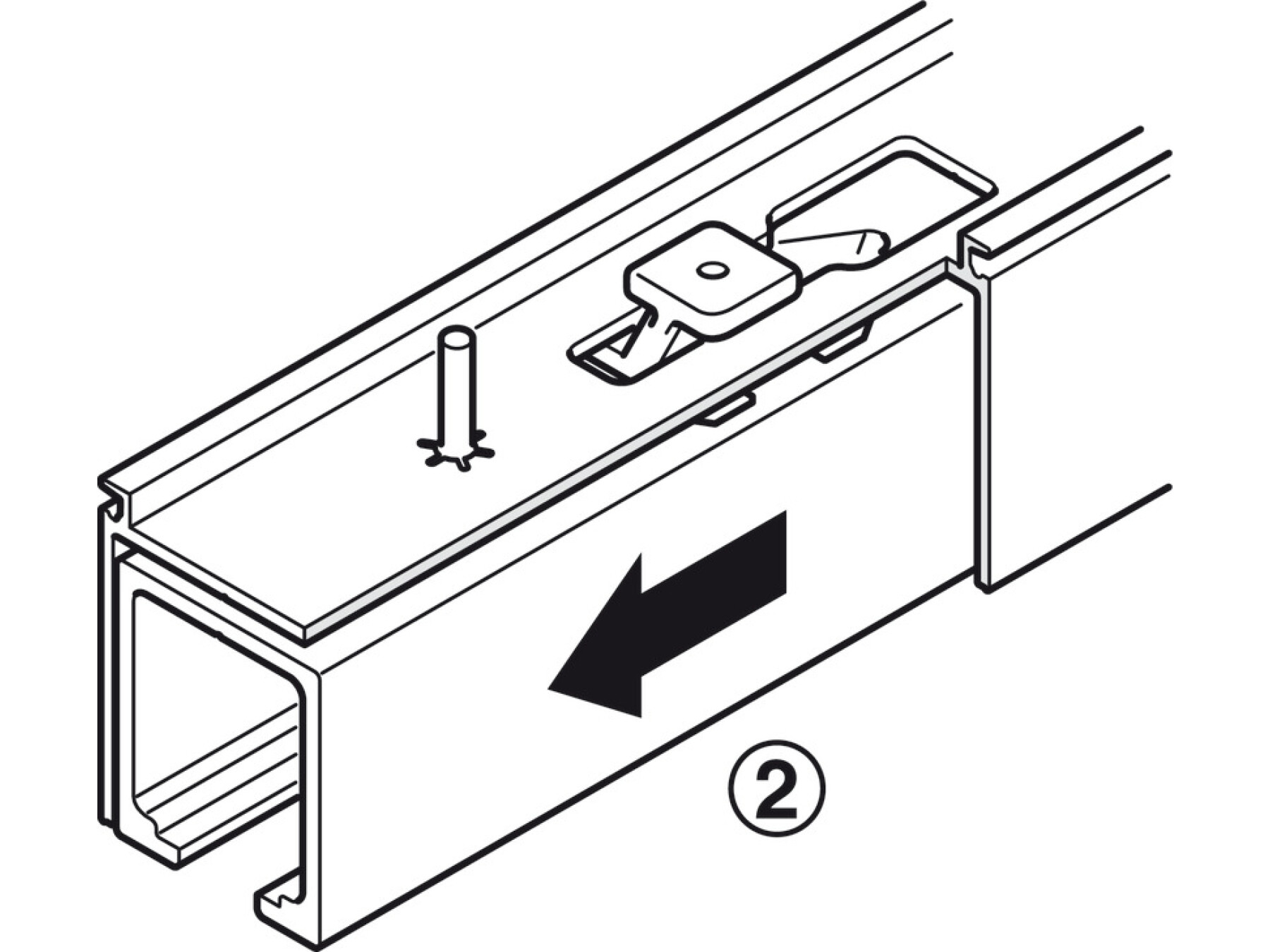

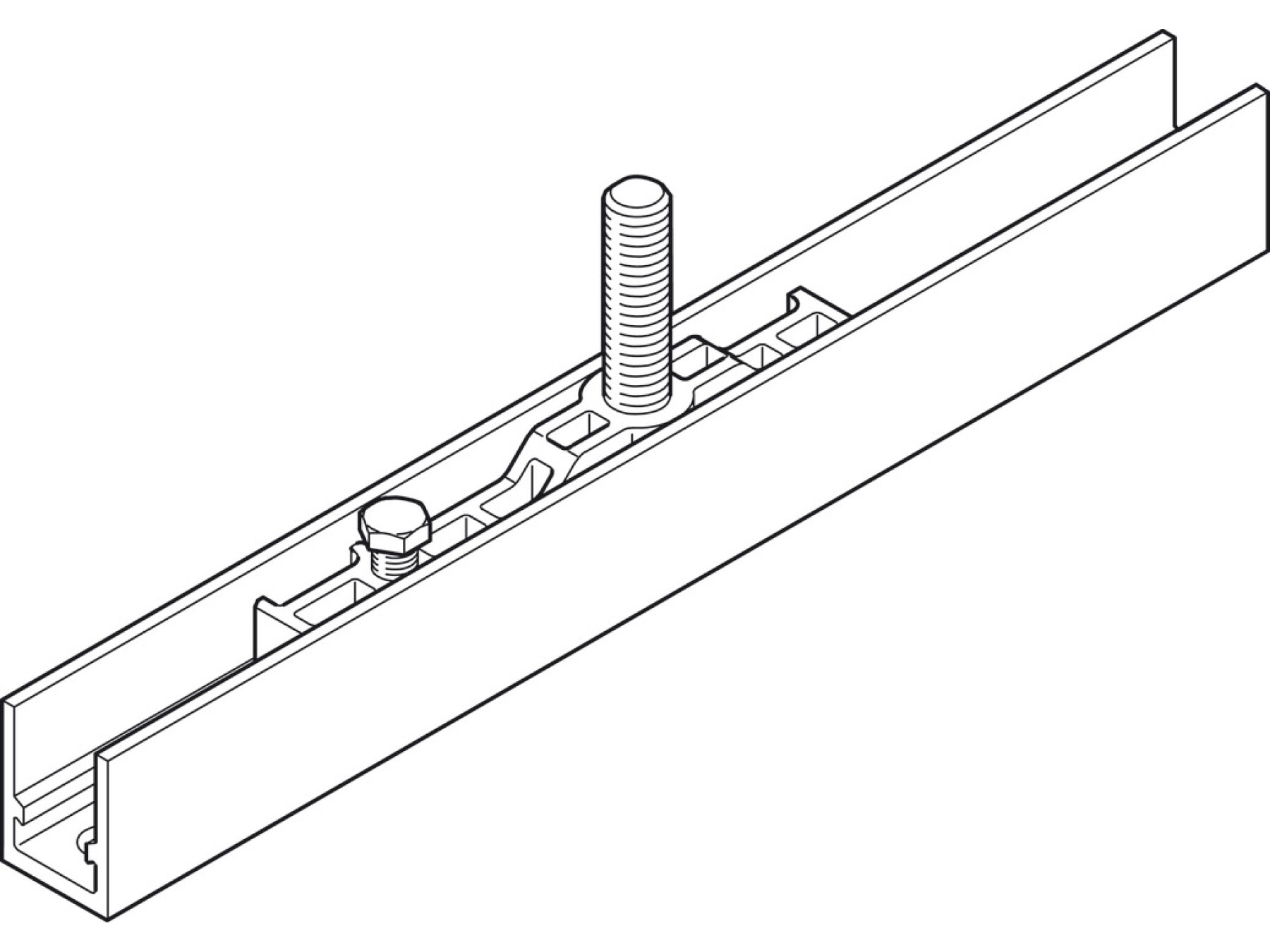

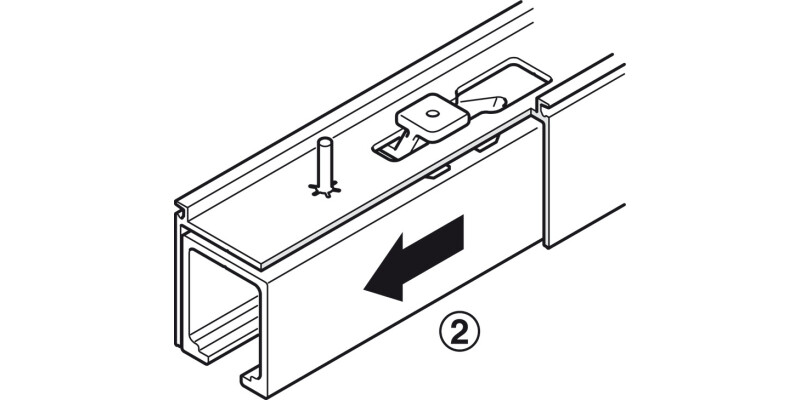

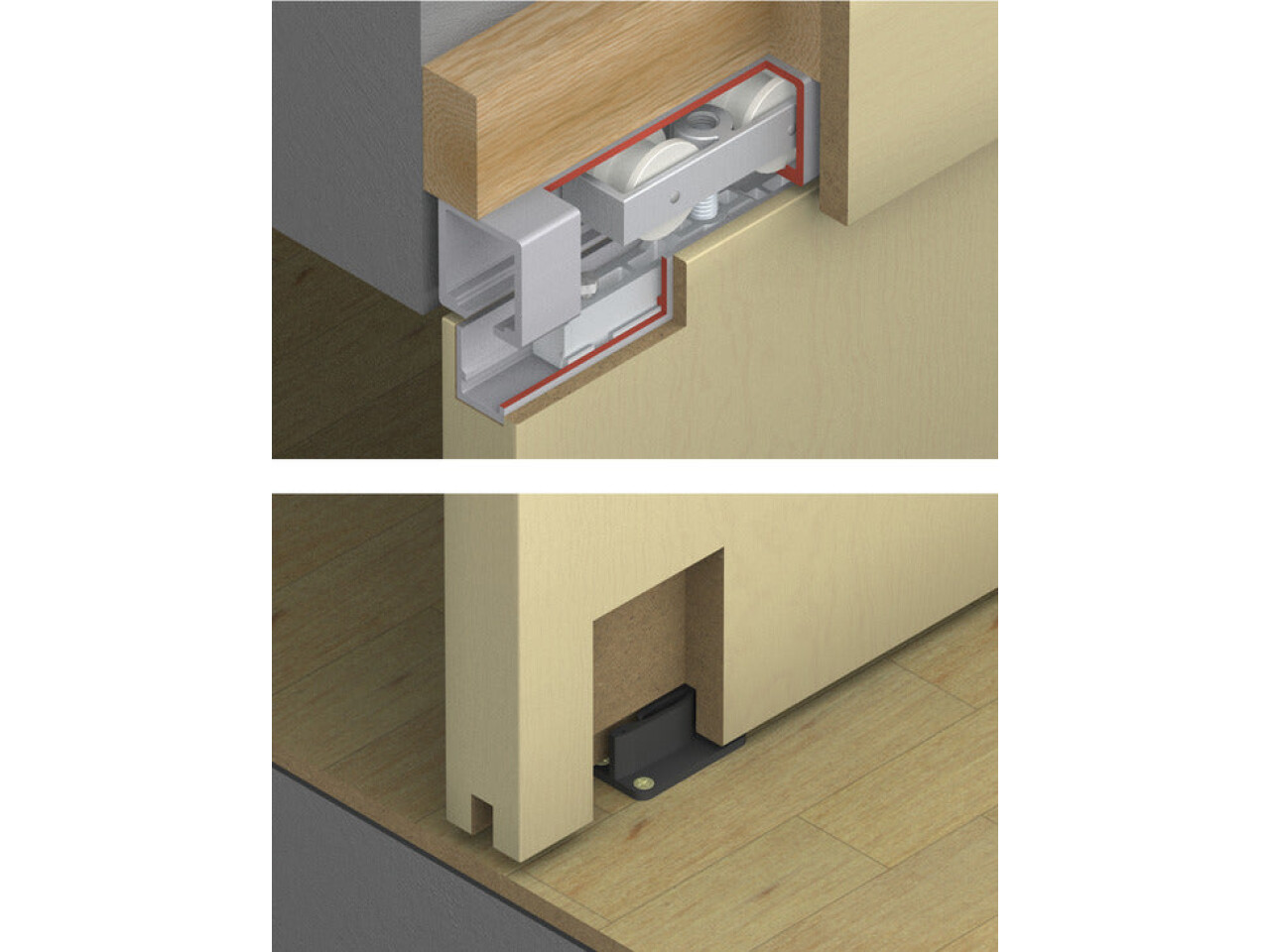

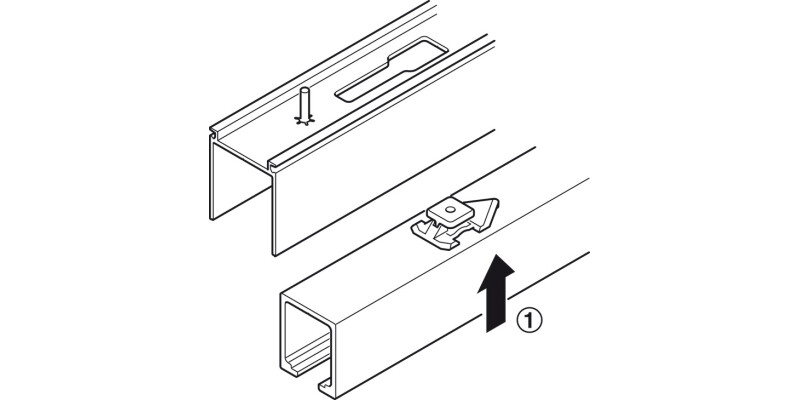

Both are possible depending on the setup. The fitting set supports ceiling installation as well as wall mounting. It is also designed for suspension using a recessed support profile.

Does the system include track buffers and what is the benefit?

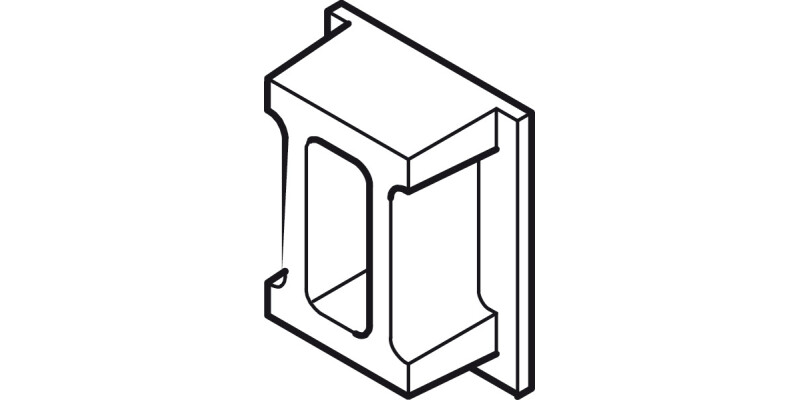

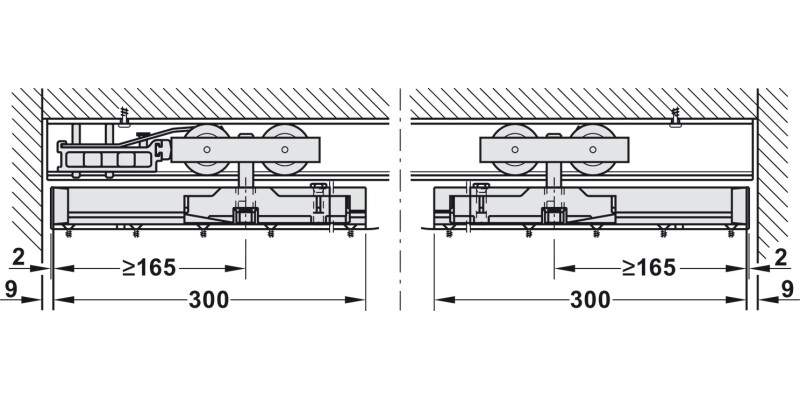

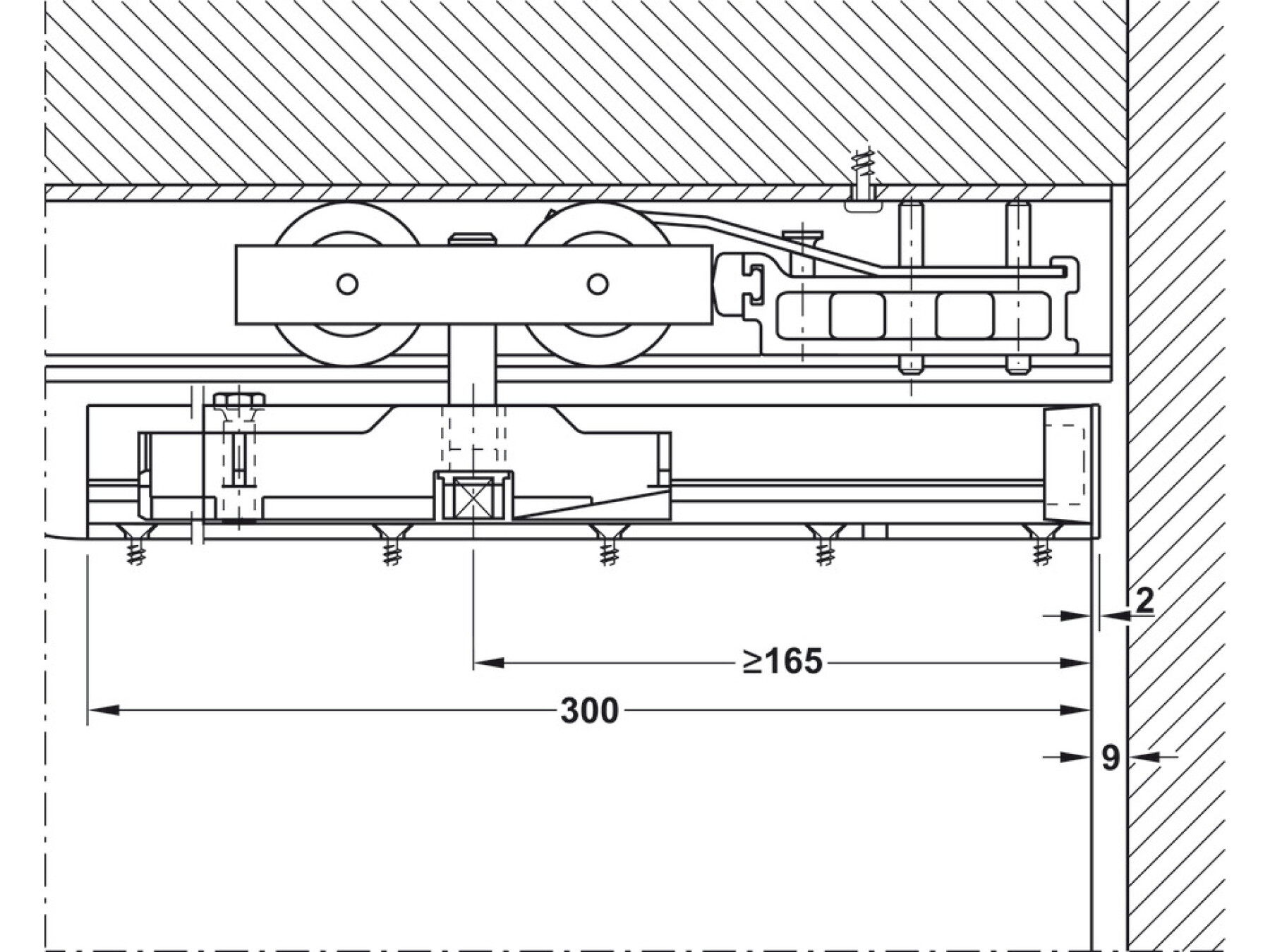

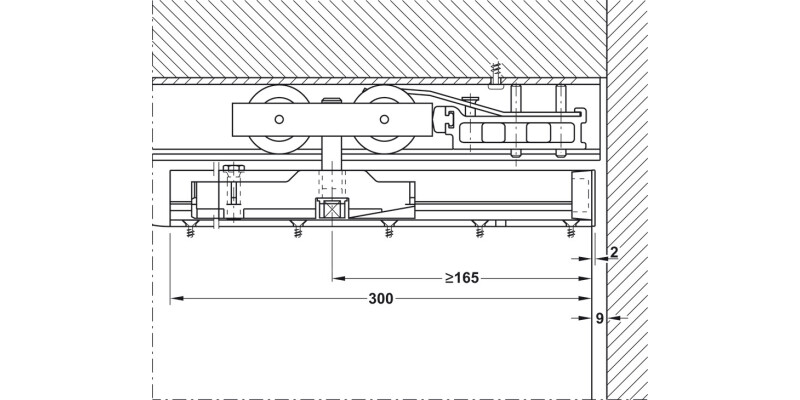

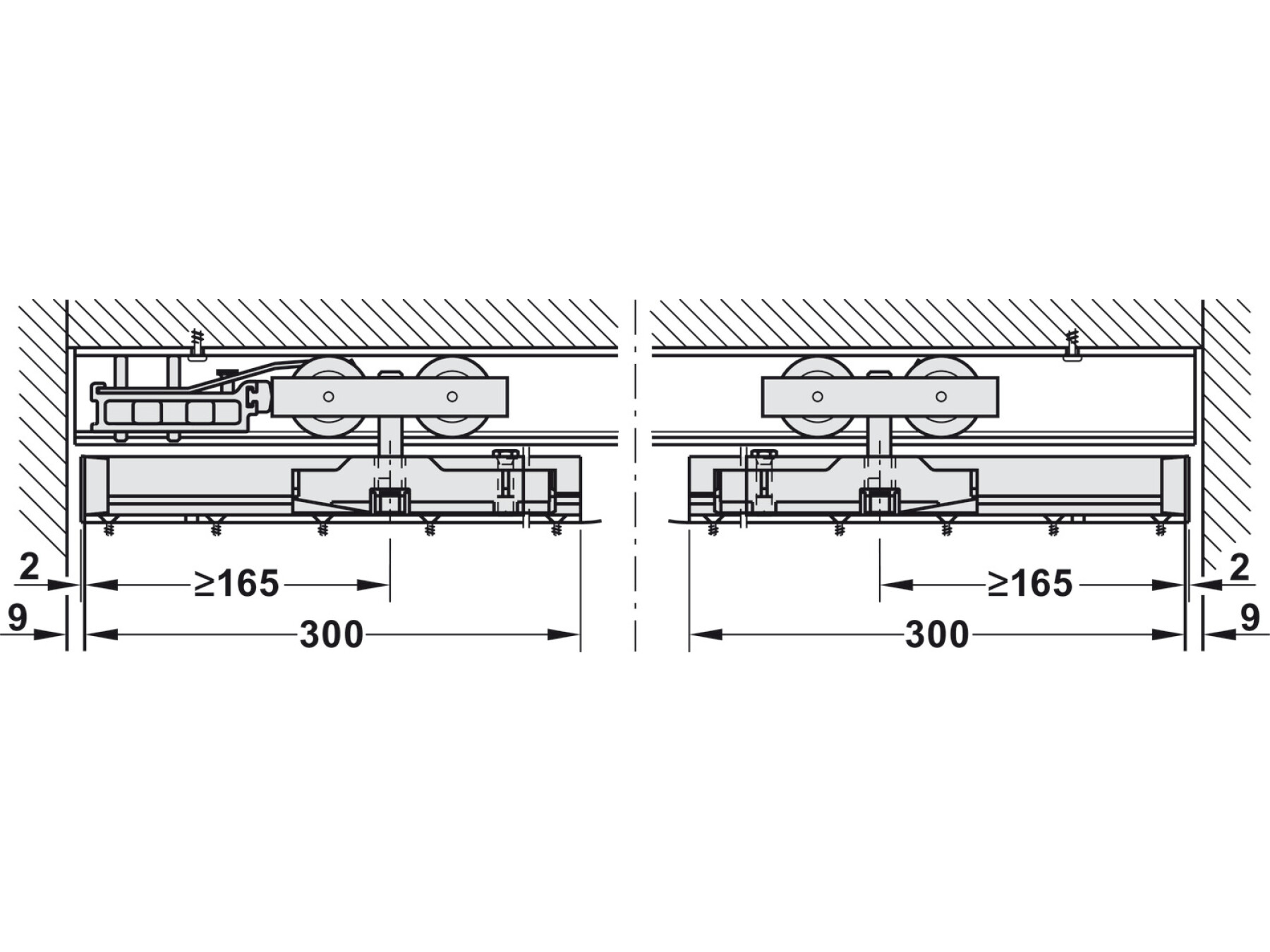

Yes. The version includes track buffers on both sides with an adjustable retaining spring. This helps manage door travel at the ends and improves control during operation.

How much adjustment is available during installation?

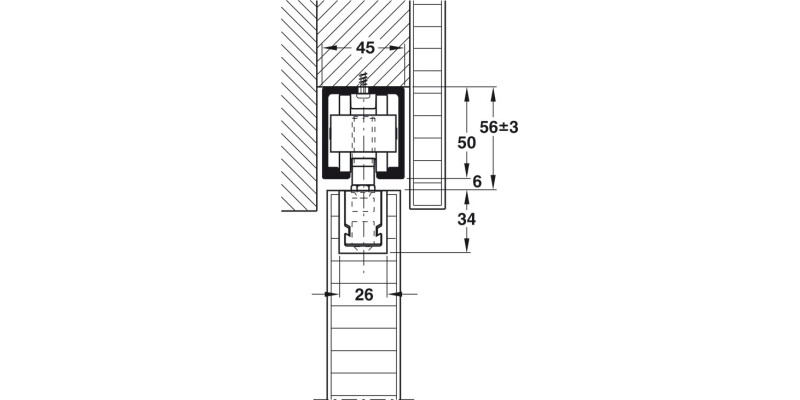

There is height adjustment of minus 3 to plus 3 mm. This allows you to fine tune door alignment after mounting, helping you achieve smooth running and proper closing.

Is this fitting set certified or compliant with standards?

It is certified to EN 1527:2013. This certification helps ensure the product has been assessed to an established European standard, which is useful for specifiers and quality minded installers.
