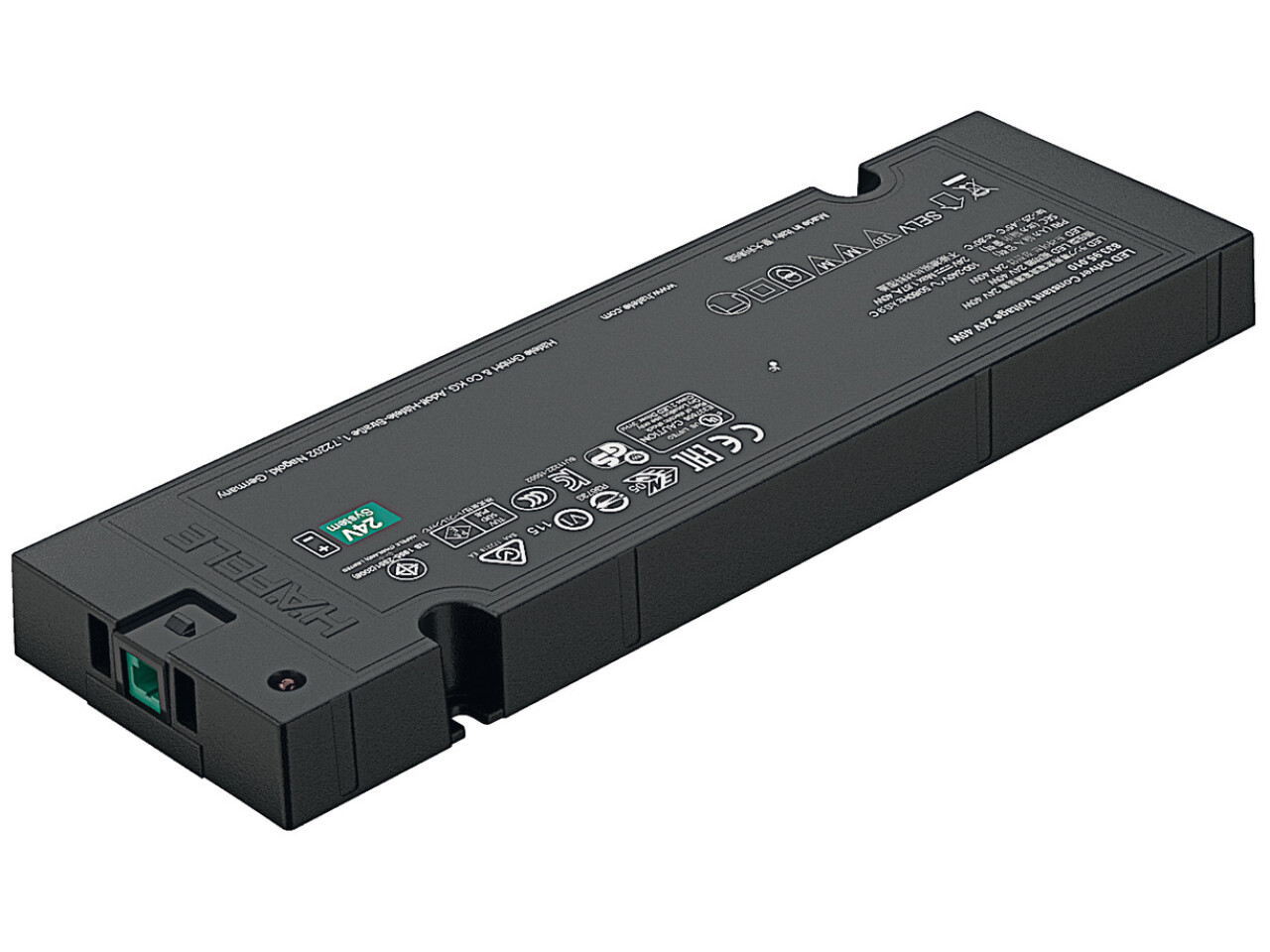

LED Driver 24 V, Constant Voltage, without Mains Lead, Rated IP 20, Loox5

Product Details

LED Driver 24 V, Constant Voltage, without Mains Lead, Rated IP 20, Loox5. (Part No: 833.95.010) is the reliable power solution designed for modern 24V LED installations. This Loox5 LED Driver 24V comes with overload protection and power factor correction, helping your lighting system run efficiently and smoothly—perfect for both professional and home projects.

Engineered for flexible performance, the driver works across a wide mains range of 100–240V with a mains frequency of 50–60 Hz. It delivers a stable 24 V DC output at 40 W, with an output current of 1.67 A. For dependable efficiency, it achieves 88% efficiency at both 115 V and 230 V full load.

Built to last and operate comfortably in demanding spaces, this black driver is rated for ambient temperatures of -25–45 °C. Its version includes with overload protection, and the PFC design (power factor correction) ensures a cleaner electrical load for better overall system performance.

Installation is straightforward with screw fixing. The driver features 1 x socket using a Loox5 2-pin 24V box to box connection, with a parallel connection on the secondary side circuit—ideal for keeping installations neat and scalable. It’s also suitable for a 24 V consumer with Loox plug system.

Hafele Lifetime Guarantee: 7 years. Note: the Loox C7 mains lead must be ordered separately. Supplied with mounting accessories, this is an excellent choice when you want a dependable, efficient LED driver that matches the Loox5 system.

Loox C7 mains lead must be ordered separately

Mounting accessories
