LED Driver 24 V, without Mains Lead, Rated IP 20, Loox5 Eco
Part Number: 833.75.937
With switching function for 1 switch, Length x width x height 292 x 70 x 16 mm, Wattage 0 - 90 W
Price:
£74.70
Per Item
LED Driver 24 V, without Mains Lead, Rated IP 20, Loox5 Eco (Product Part No: 833.75.937) is the smart,... Read More
Product Information
Product Details

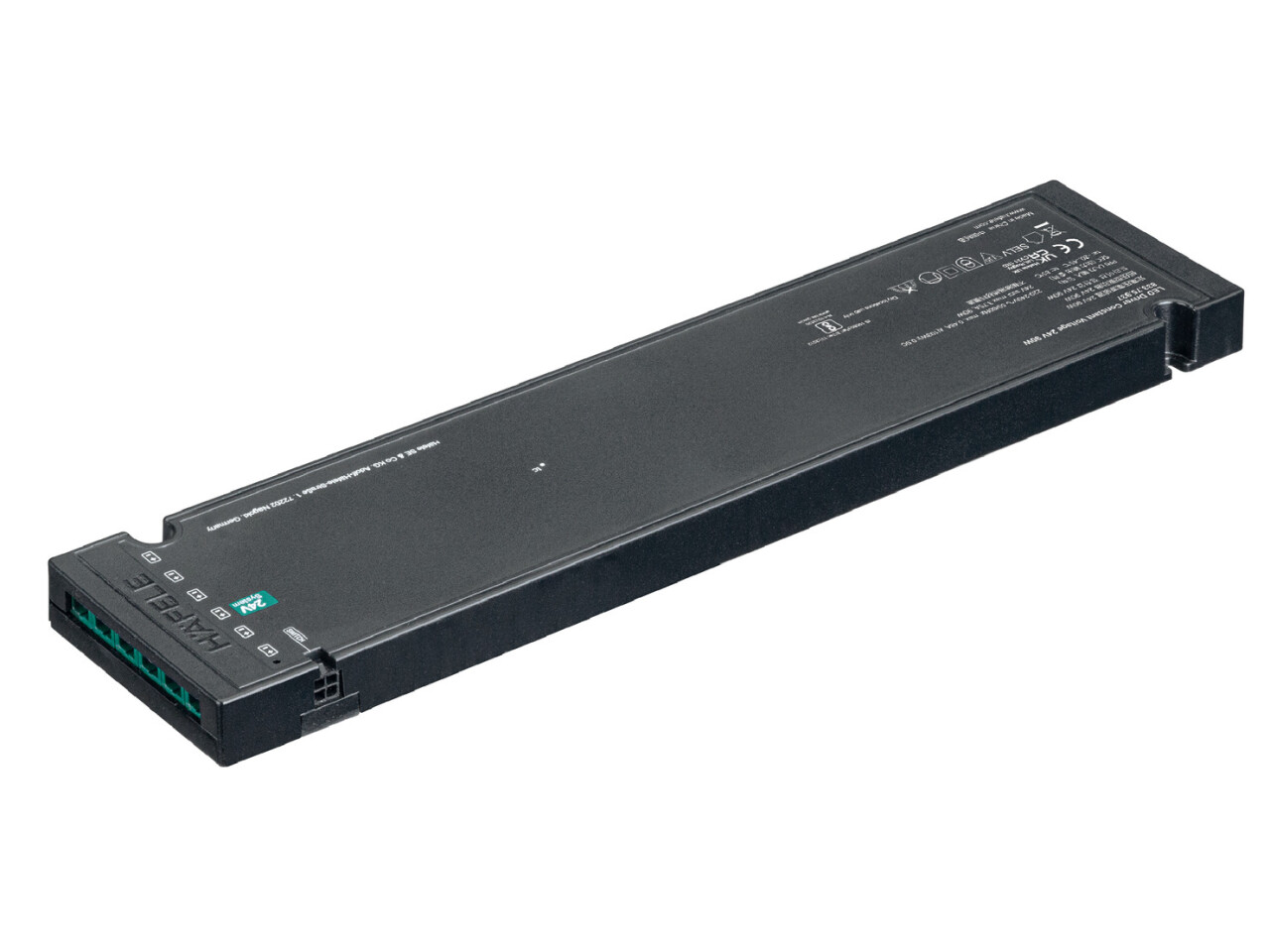

LED Driver 24 V, without Mains Lead, Rated IP 20, Loox5 Eco (Product Part No: 833.75.937) is the smart, energy-conscious power solution for your 24V LED lighting projects. Designed for reliable performance, this compact driver supports a smooth 0–90W range and includes a switching function, making it ideal for applications where you want control via one switch connection.
Powered from a 220–240V mains supply (50–60 Hz), the Eco Driver converts it to 24V DC for LED use only. With an efficiency of 89% at 230V full load, it helps keep energy consumption in check—while maintaining a low 0.50W power draw at no load.
Built for dependable operation, it features overload protection and is rated for ambient temperatures from -25 to 45°C, giving you confidence in a wide range of indoor environments. The driver is made from durable plastic with a sleek black finish for a neat installation.

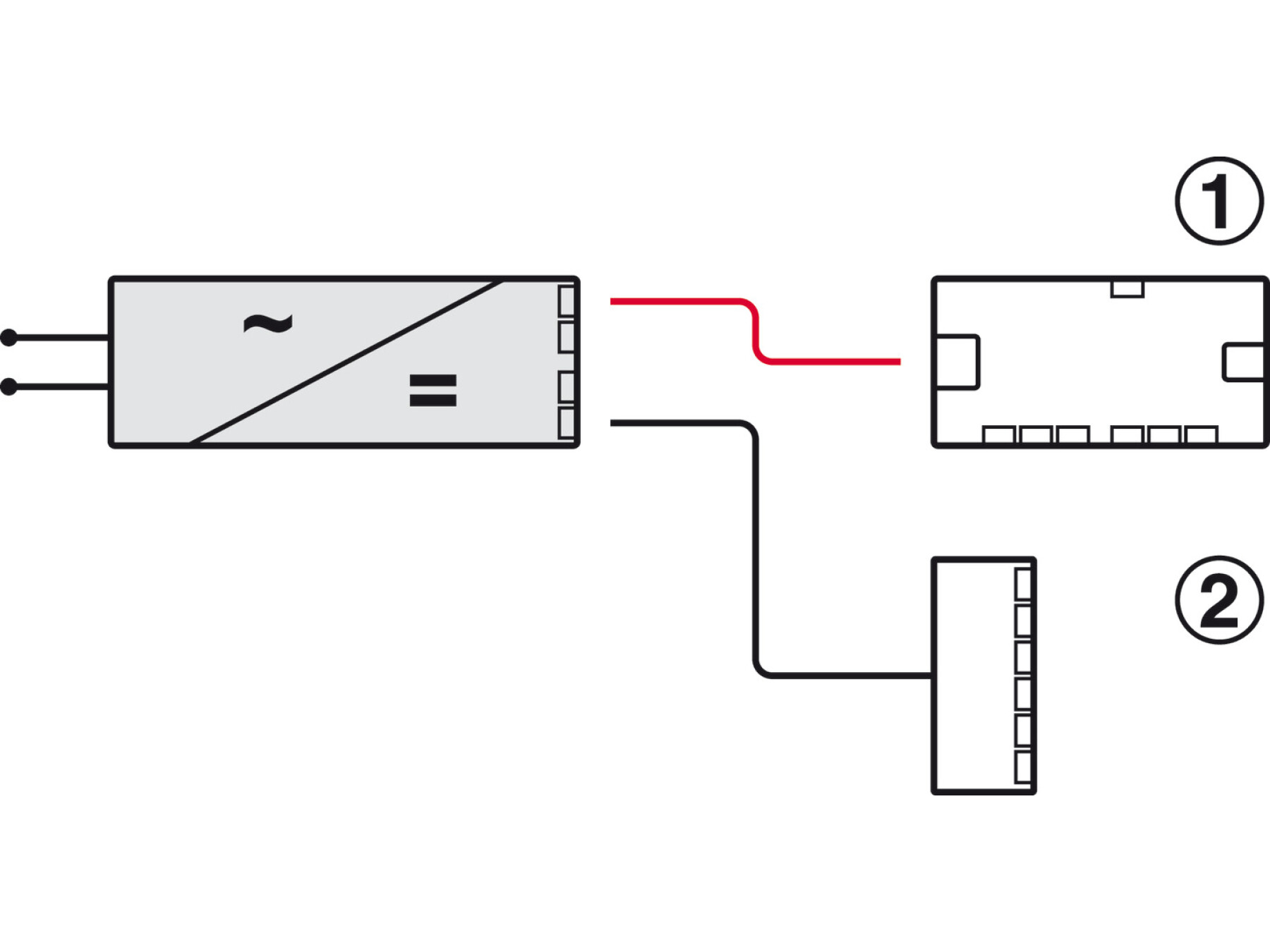

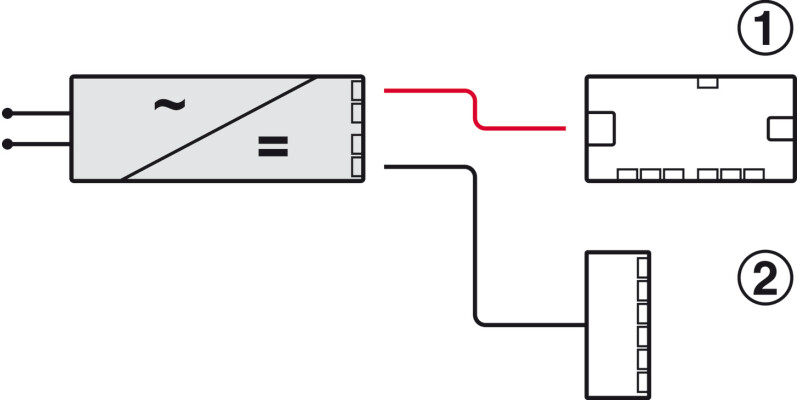

Connectivity is simple and flexible, with 6 x sockets for Loox5 2-pin 24V output and 1 x socket for a Loox switch control input. Installation options include glue fixing or screw fixing, and its compact size (292 x 70 x 16 mm) helps you integrate it cleanly into your setup.
If you’re using a 24V consumer with the Loox plug system, this driver is a great choice—plus, it comes with the Hafele Lifetime Guarantee (7 years). Choose the Loox5 Eco Driver and power your LED lighting efficiently and confidently.
Specifications
Mains voltage
220 – 240 V
Mains frequency
50 – 60 Hz
With switching function
Yes
Ambient temperature
-25–45 °C
Number of switch connections
1.00
Version
With overload protection
Suitable for
220–240 V AC: typical mains voltage e.g. for EU, UK, AU, KR – not US!
Output voltage
24 V DC
Area of application
LED (no other device)
Area of application
For LED lights (not suitable for other devices)
Suitable for
24 V consumer with Loox plug system
Material
Plastic
Colour/finish
Black
Connected output ports
6 x sockets, Loox5 2-pin 24 V
Control input ports
1 x socket, Loox switch
Installation
for glue fixing, Screw fixing
Efficiency at 230 V full load
89 %
Power consumption at 230 V no load
0.50 W
Hafele Lifetime Guarantee
7 years
Output current
3.75 A
Order reference
Loox mains leads must be ordered separately; e.g. 833.89.000
Supplied with
Fixings
FAQ
Product Details
Will this LED driver work with UK 230 V mains?
Yes. The Loox5 Eco Driver w Sckt is designed for 220 to 240 V AC mains, which covers typical UK supply. It converts the mains to 24 V DC for LED loads.
What voltage and power can I expect from the driver?
It outputs 24 V DC and is suitable for LED loads up to 90 W. The driver is designed to run LED systems within the stated range for reliable performance.
Does it include a switching function for lighting control?
Yes. This driver has a built in switching function for one switch connection. You can wire it so the LED load turns on and off using a compatible switch in your installation.
How many 24 V output connections does it have?
It provides 6 x Loox5 2 pin 24 V sockets for connecting LED runs using the Loox5 plug system. This makes it straightforward to connect compatible 24 V consumer components without hardwiring.
Is the switch input pre configured, and how do I connect it?
It includes one Loox switch control input socket intended for use with the Loox switch connection. When planning your wiring, make sure you use compatible Loox switch components so the switching function operates as intended.
What mains leads and accessories do I need to order separately?
Mains leads must be ordered separately. For example, a suitable order reference is 833.89.000 (use the correct lead for your setup). This driver package includes fixings to assist with installation.
Where can this driver be used, and what environment rating should I consider?
It is for LED use only and is not intended for powering other device types. It is suitable for ambient temperatures of minus 25 to 45 C, making it appropriate for many indoor and controlled outdoor lighting applications.
