LED Driver 24 V, Constant Voltage, without Mains Lead, Rated IP 20, Loox5
Part Number: 833.95.012
With power factor correction, Output power 240 W (2 x 120 W)
Price:
£105.28
Per Item
LED Driver 24 V, Constant Voltage, without Mains Lead, Rated IP 20, Loox5 (Product Part No: 833.95.012) is the... Read More
Product Information
Product Details

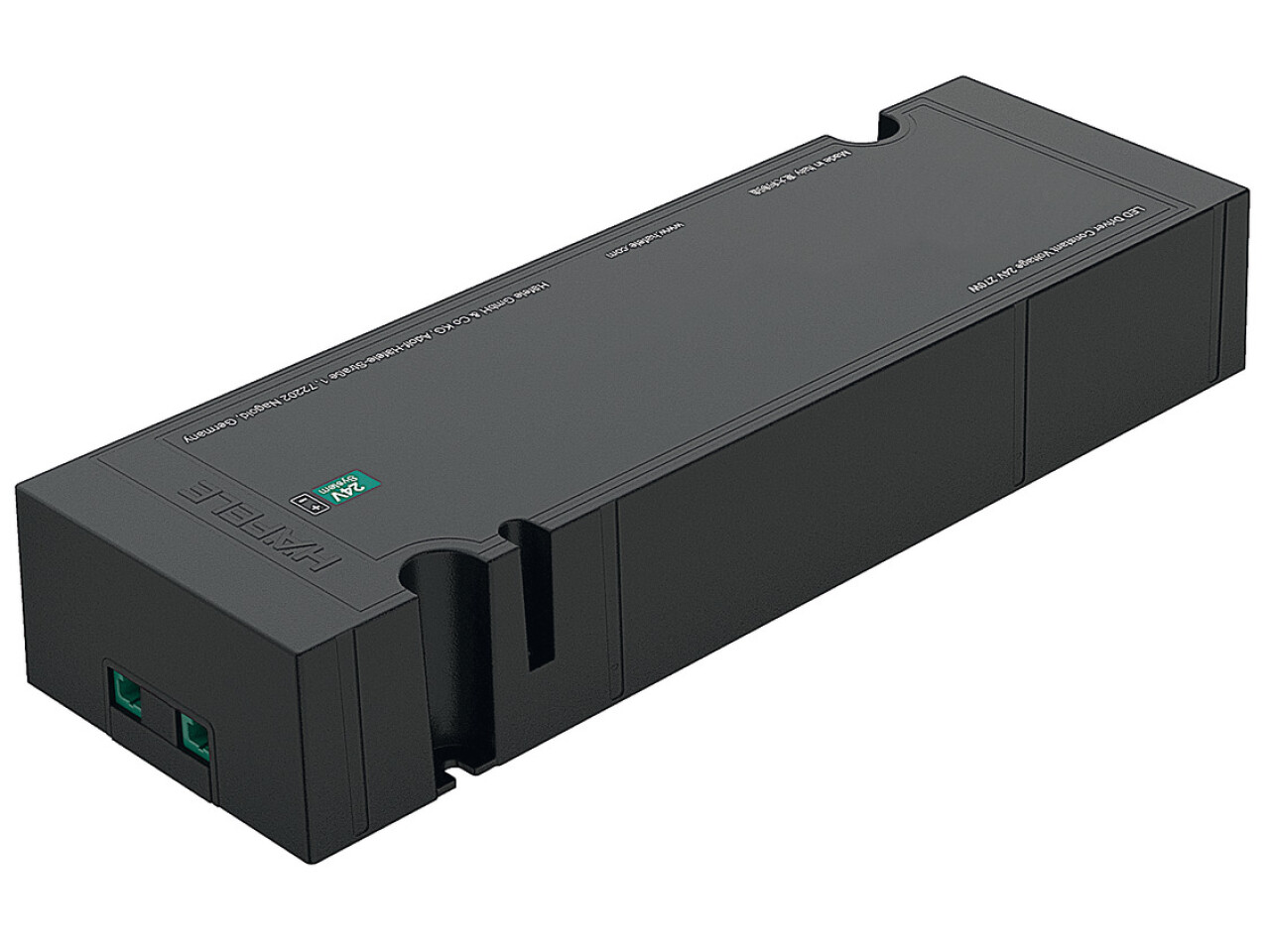

LED Driver 24 V, Constant Voltage, without Mains Lead, Rated IP 20, Loox5 (Product Part No: 833.95.012) is the reliable power solution designed for professional-quality 24V LED installations. Backed by a 7 years Hafele Lifetime Guarantee, this compact black driver delivers steady performance with intelligent protection and high energy efficiency—ideal for making your lighting system look great and run smoothly for years.
Built with power factor correction (PFC), the driver helps ensure efficient power usage and performance across a wide mains range. It features Output power 240 W (2 x 120 W), giving you the flexibility to run multiple LED circuits while keeping everything stable and controlled.
Compatible with 24 V consumer setups with the Loox plug system, the Loox5 driver includes 1 x C14 3-pin mains input and 2 x 24V output sockets (Loox5 2-pin), using a parallel connection on the secondary side. Installation is straightforward with screw fixing.
For dependable operation, it supports 200–240 V mains voltage at 50–60 Hz and operates within an ambient temperature range of -25–45 °C. At 230V full load it reaches 94% efficiency, and it uses only 0.42 W standby power—so you can enjoy a more efficient lighting setup without unnecessary energy draw.
Choose the Loox5 24V/240W LED driver to complete your lighting design with confidence—compact dimensions, overload protection, and a clean black finish that blends neatly into modern installations.
Specifications
Mains voltage
200 – 240 V
Mains frequency
50 – 60 Hz
Plug mains voltage
C14 3-pin
Output power
240 W, (2 x 120)
Standby power consumption
0.42 W
Efficiency factor correction (PFC)
yes
Ambient temperature
-25–45 °C
Dim. (L x W x H)
234 x 75 x 38 mm
Version
With overload protection
Output voltage
DC
Area of application
LED
Suitable for
24 V consumer with Loox plug system
Colour/finish
Black
Input ports
1 x socket, Non-heating appliances
Output ports
2 x sockets, Loox5 2-pin 24 V
Secondary side circuit
Parallel connection
Installation
Screw fixing
Efficiency at 230 V full load
94 %
Power consumption at 230 V no load
0.42 W
Weight
568.00 g
Hafele Lifetime Guarantee
7 years
Output current
5.00 A
Supplied with
Mounting accessories
FAQ
Product Details
```htmlWill this LED driver work with my 24 V Loox plug system?
Yes. The Loox5 LED Driver 24 V is suitable for a 24 V consumer with the Loox plug system. It provides two 24 V output sockets for Loox5 2 pin connections, making it straightforward to power compatible LED fittings.
What output power does the driver supply?
Up to 240 W total. The driver is rated at 240 W split as 2 x 120 W output channels. This is helpful when you want to run two compatible LED circuits from the same driver.
Does it support power factor correction?
Yes. This driver includes power factor correction (PFC), which helps the driver operate more efficiently and supports improved electrical performance compared with non PFC designs.
How much power does it use when the LEDs are off?
Low standby draw. At no load it consumes about 0.42 W. If you are using it for regularly used lighting, this can help keep background energy use minimal.
Is it safe to install in normal indoor environments?
It is designed for a wide ambient range of approximately minus 25 to plus 45 C, and it also features overload protection. For best results, ensure it is installed where it can cool naturally and avoid blocking ventilation around the unit.
How is the driver wired and mounted?
Simple screw fixing and connection. The driver is designed for screw fixing and has a mains input with a C14 3 pin connector, plus two Loox5 2 pin 24 V outputs for parallel connection. This makes it convenient for tidy installation in Loox compatible lighting setups.
What electrical input supply does it accept?
UK mains compatible. It works with mains voltage roughly in the range of 200 to 240 V and 50 to 60 Hz, so it is suitable for typical UK electrical supplies when installed correctly.
