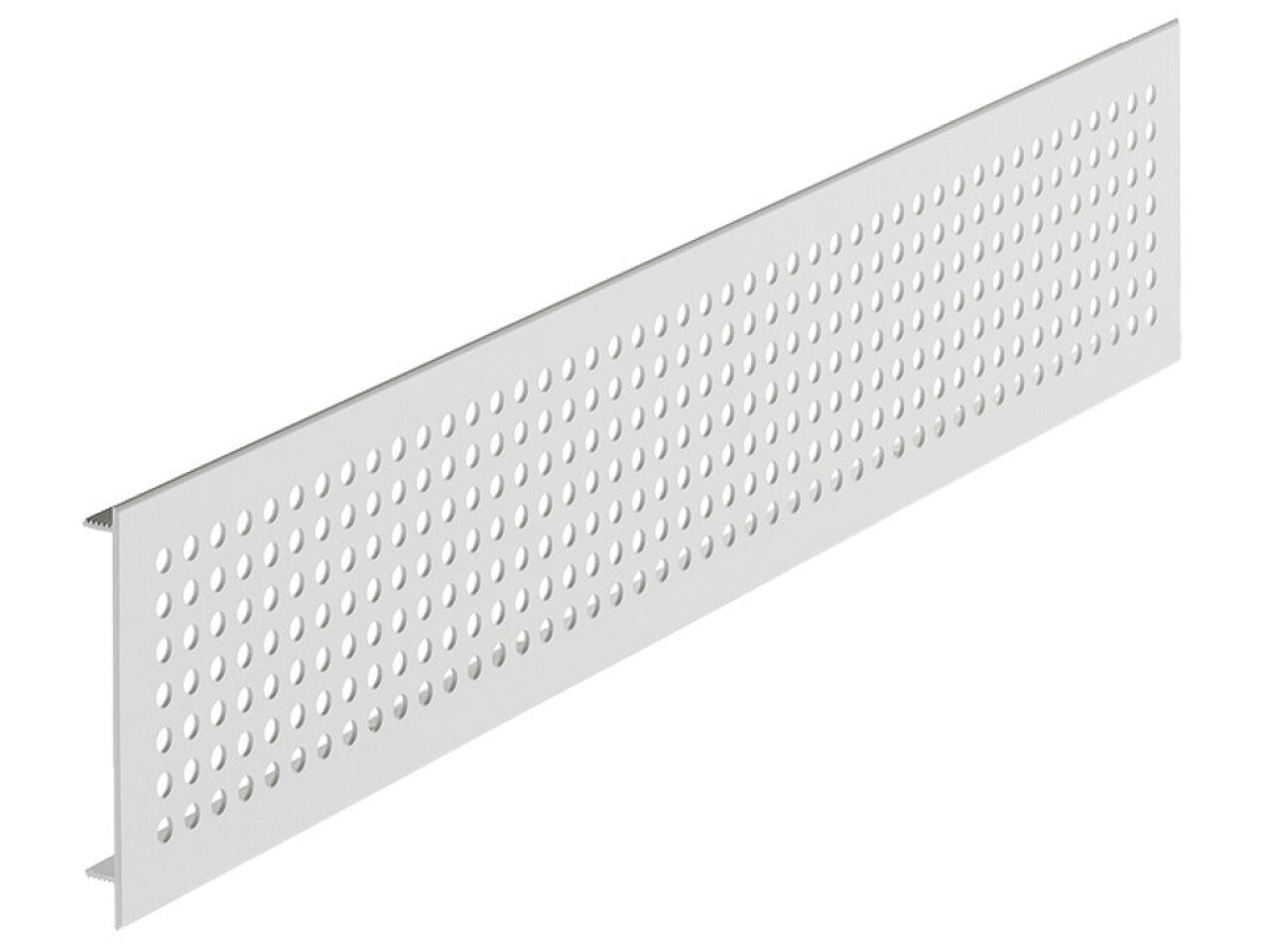

Ventilation Grille, for Press Fitting, with Round Holes

Product Details

Is this ventilation grille suitable for a continuous run along a kitchen duct or wall?

Yes. The Vent Grille PF Rnd 2000x100mm is designed as a long, straight edged grille for installation where a larger ventilation opening is needed. The listed max installation dimensions of 1985 x 85 mm help you plan for a clean, close fit.

What ventilation area does the grille provide?

The ventilation area is 370.4 cm2. This is the effective opening designed to support airflow in kitchen ventilation applications where grilles are required.

Will this grille fit if my cutout or opening is slightly smaller than the stated length and width?

It is intended for use with max installation dimensions of 1985 x 85 mm. If your opening is within that limit, you can typically achieve a more accurate fit with the grille’s press fitting design.

How is the PF Rnd grille installed and does it require screws?

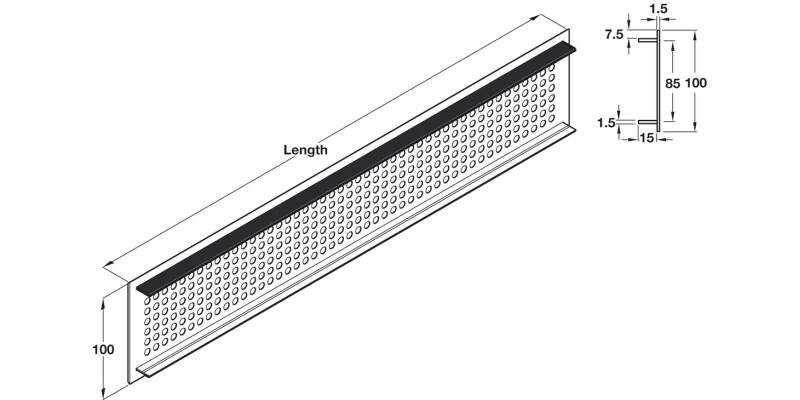

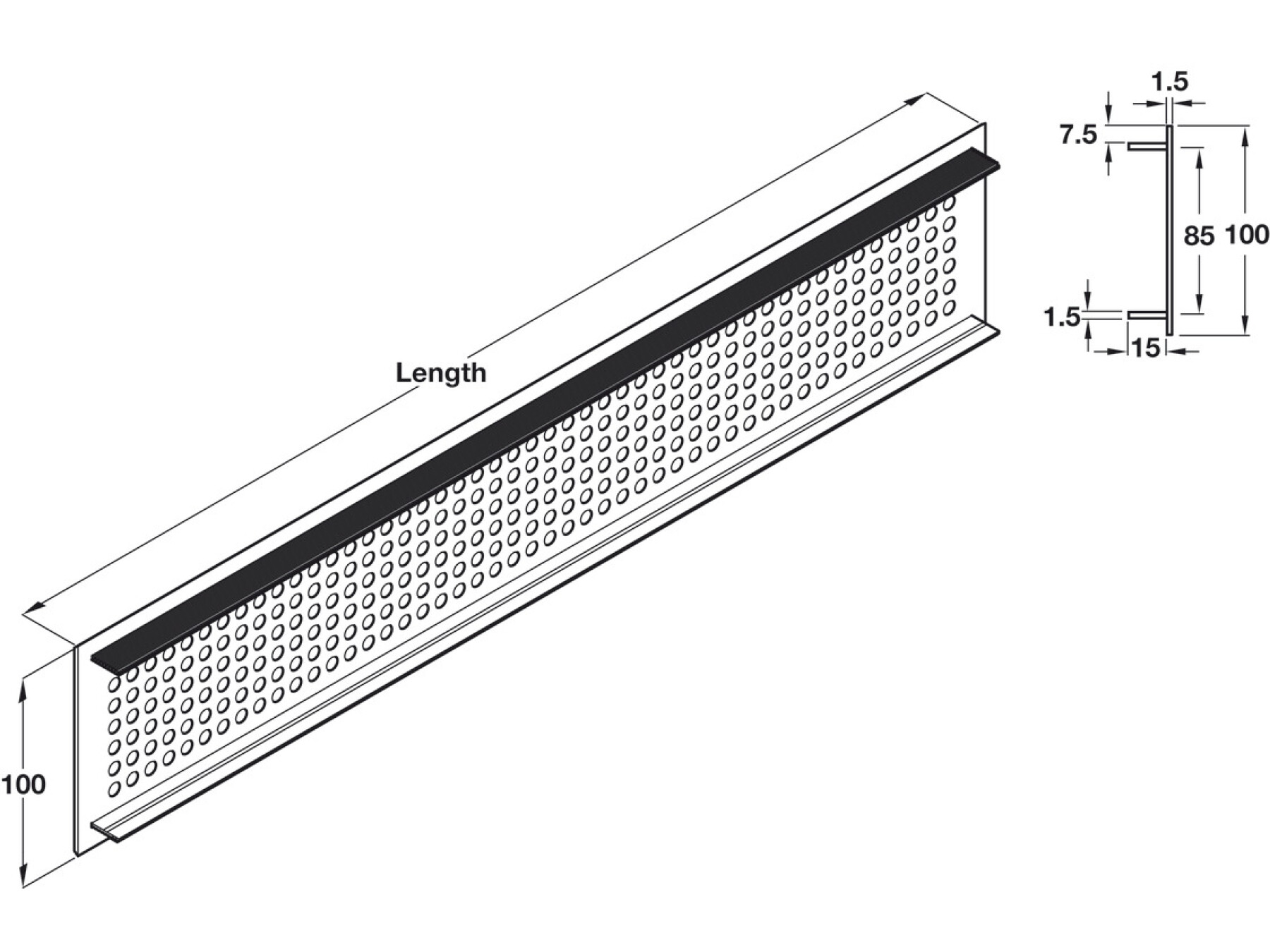

This model is for press fitting, using ribbed flanges. The flange detail includes 7.5 mm straight notched sections on both sides, which are designed to help secure the grille during installation without relying on fixings like screws.

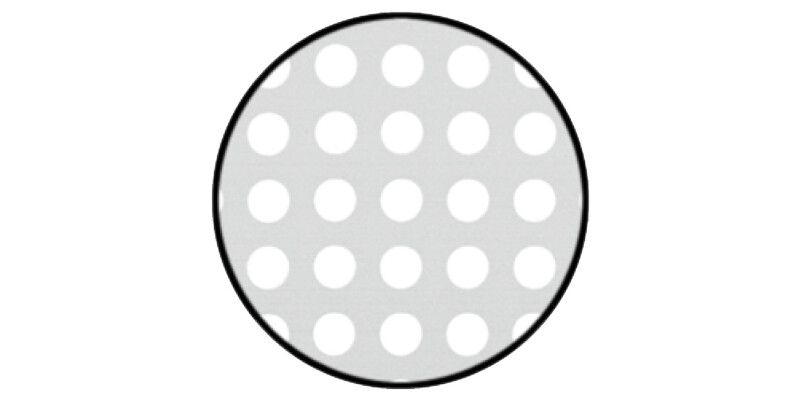

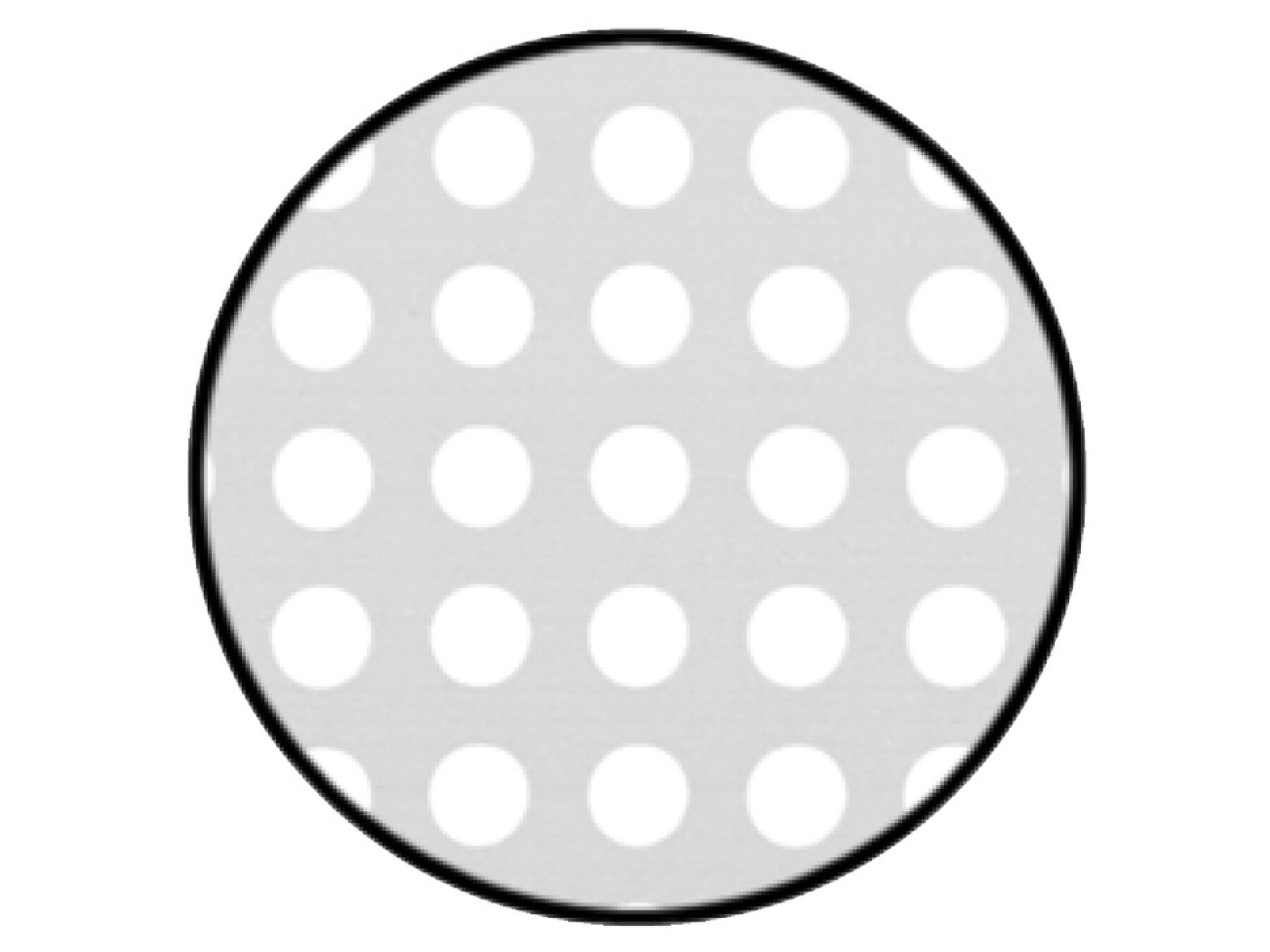

Are the grille holes round, and what size are they?

Yes. The grille features round holes with a diameter of 6 mm. This hole pattern is intended to provide ventilation while still giving a neat, uniform finish.

What is the finish and will it suit a modern kitchen look?

The grille is finished in matt silver F1 with an anodized surface. With its straight edged profile and matt appearance, it is a good match for contemporary kitchen ventilation setups.

Which part number should I quote when ordering or checking compatibility?

The product part number is 575.26.936. Quoting this helps ensure you receive the exact Vent Grille PF Rnd sized for 2000 x 100 mm and the correct installation specification.
