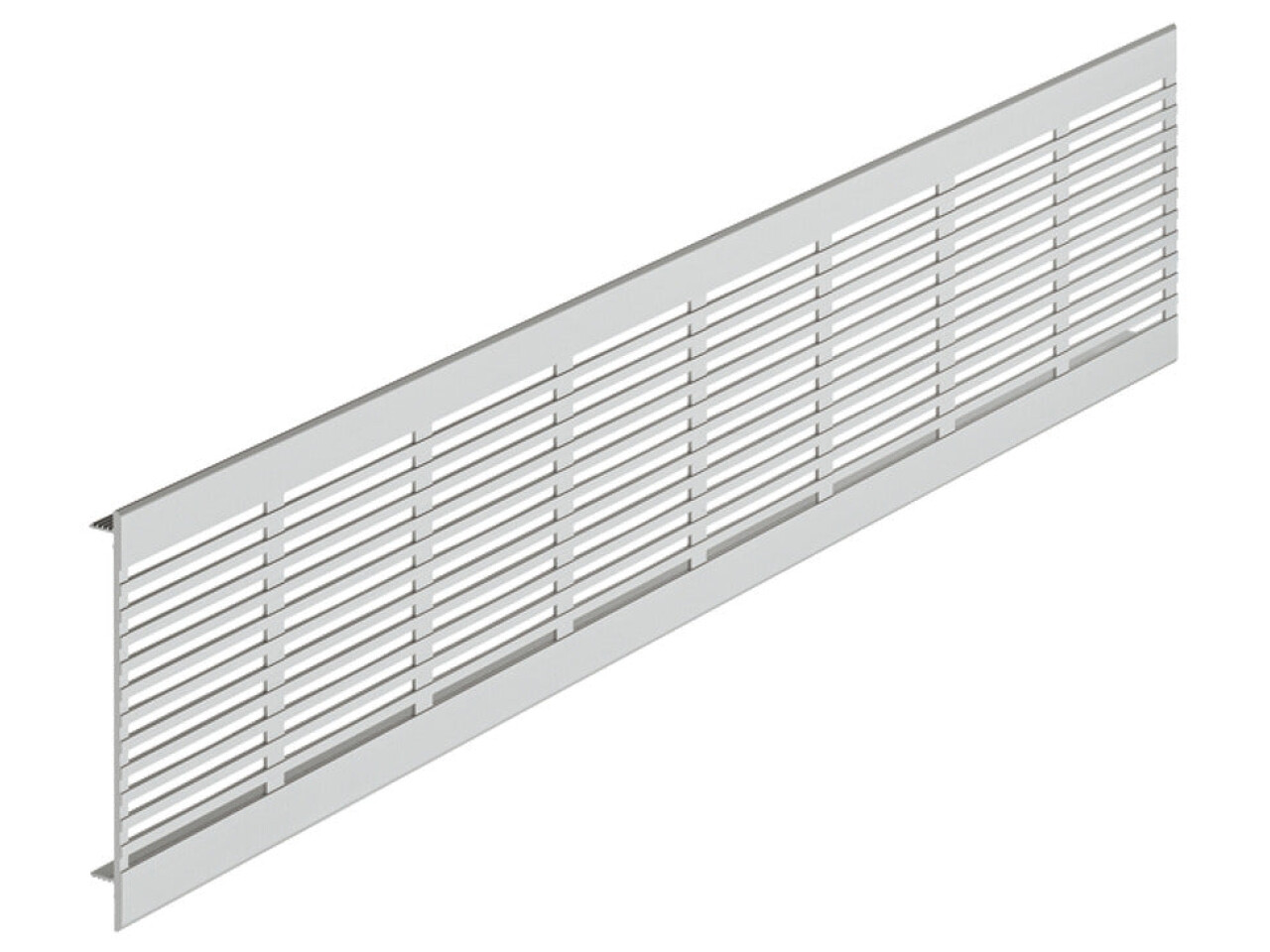

Vent Grille PF Slot 500x100mm AA Slv F1
Part Number: 575.28.934
Straight-edged, Ventilation area 157.2 cm2, dimensions (L x W): 500 x 100 mm, max. installation dims. 485 x 85 mm, silver F1
Price:
£28.84
Per Item
Technical data Dim. (L x W) 500 x 100 mm 1000 x 100 mm 2000 x 100 mm Cut-out (L x W) 486 x 85 mm 986 x 85... Read More
Product Information
Product Details

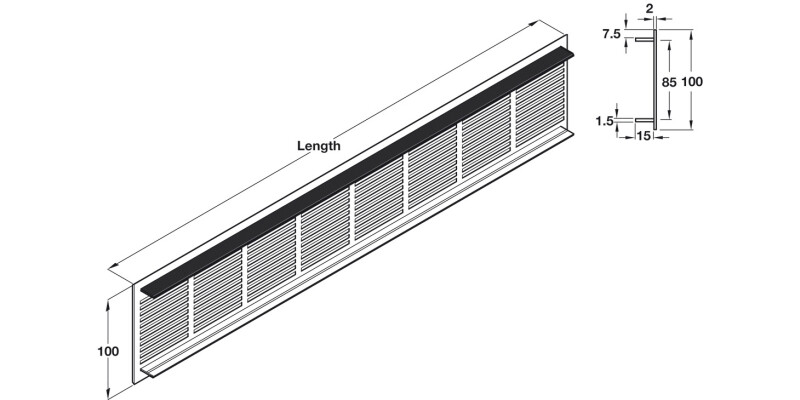

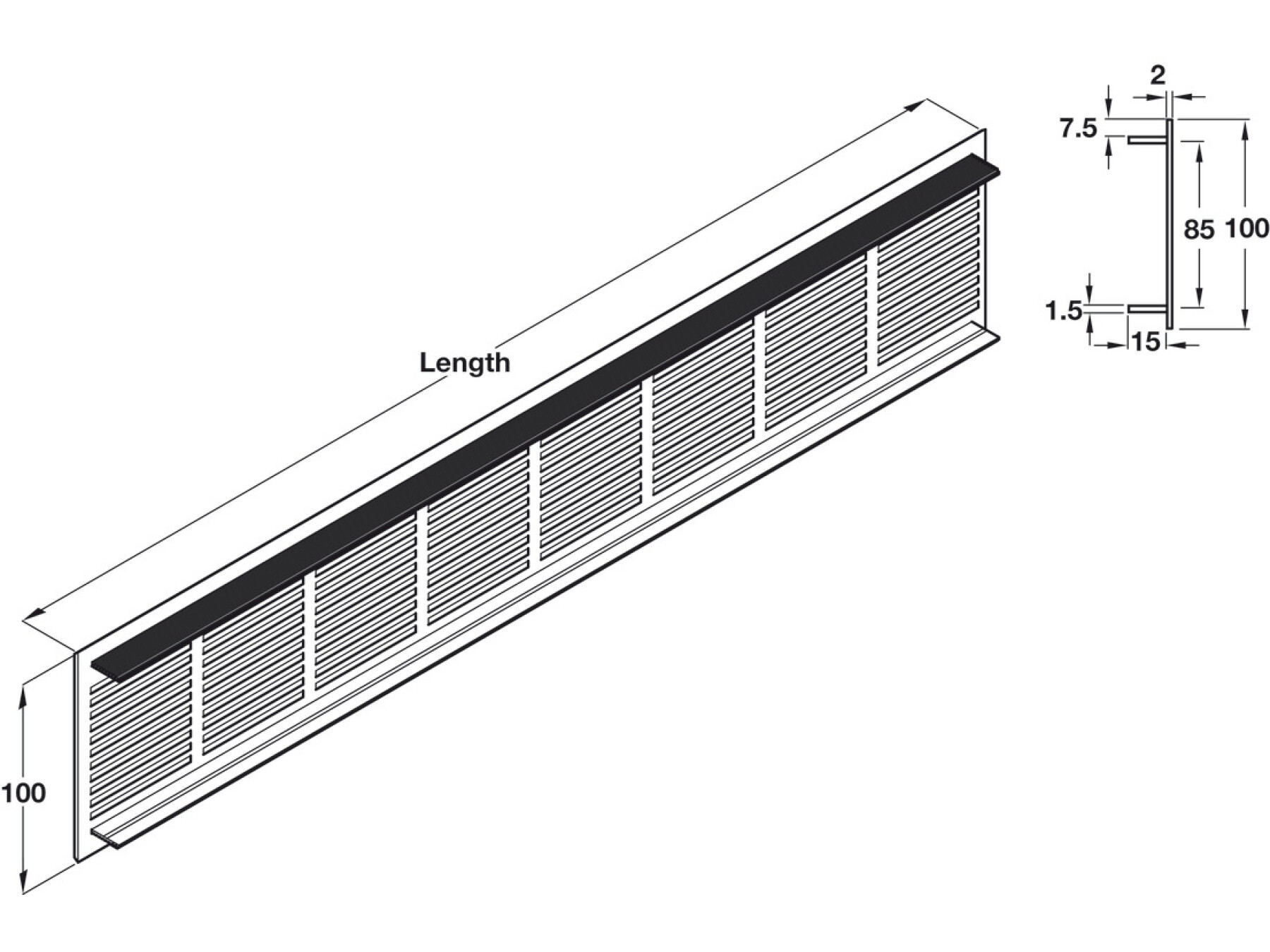

| Technical data | |||
|---|---|---|---|
| Dim. (L x W) | 500 x 100 mm | 1000 x 100 mm | 2000 x 100 mm |
| Cut-out (L x W) | 486 x 85 mm | 986 x 85 mm | 1986 x 85 mm |
| Apertures (L x W) | 54,6 x 3 mm | 54,6 x 3 mm | 54,6 x 3 mm |
| Flange width | 15 mm | 15 mm | 15 mm |
| Ventilation Area | 157.2 cm² | 314.4 cm² | 628.9 cm² |
| Thickness | 2 mm | 2 mm | 2 mm |
Specifications
Material
Aluminium
Thickness
2.00 mm
Colour/finish
Silver coloured, anodized F1
Version

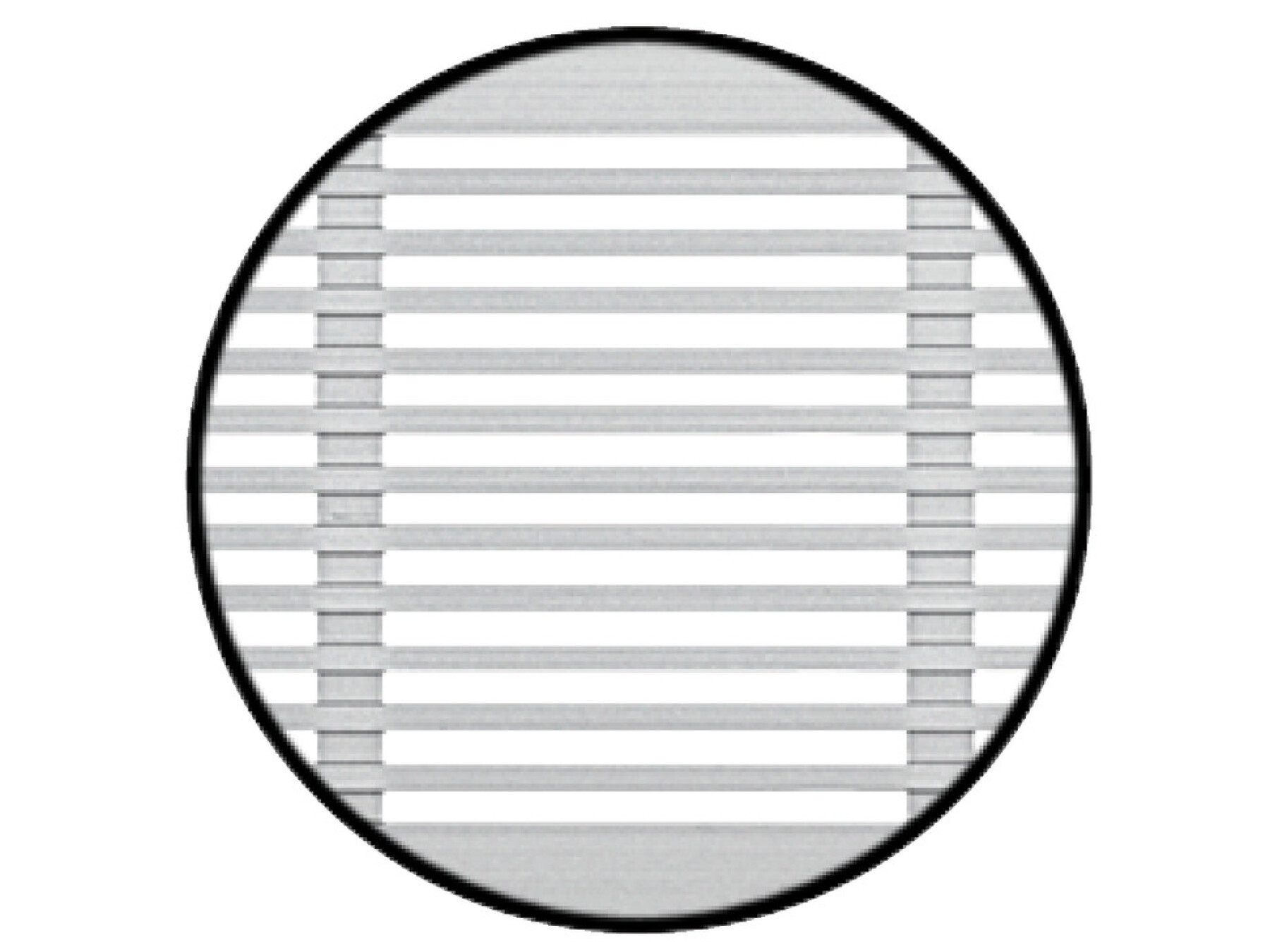

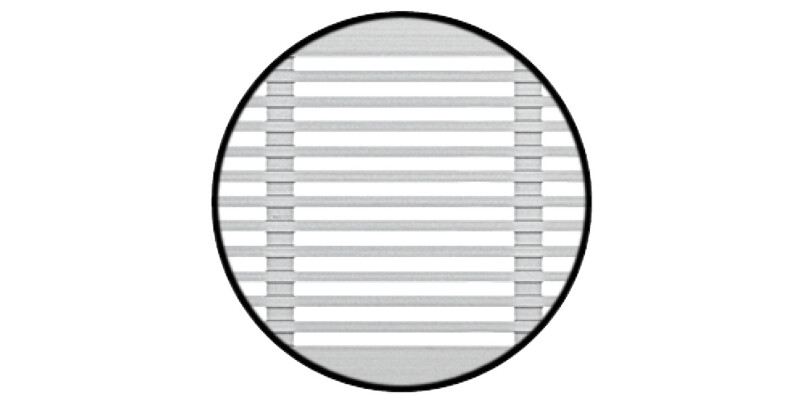

With slots
Installation
With straight notched 7.5 mm ribbed flanges on both sides for press fitting
