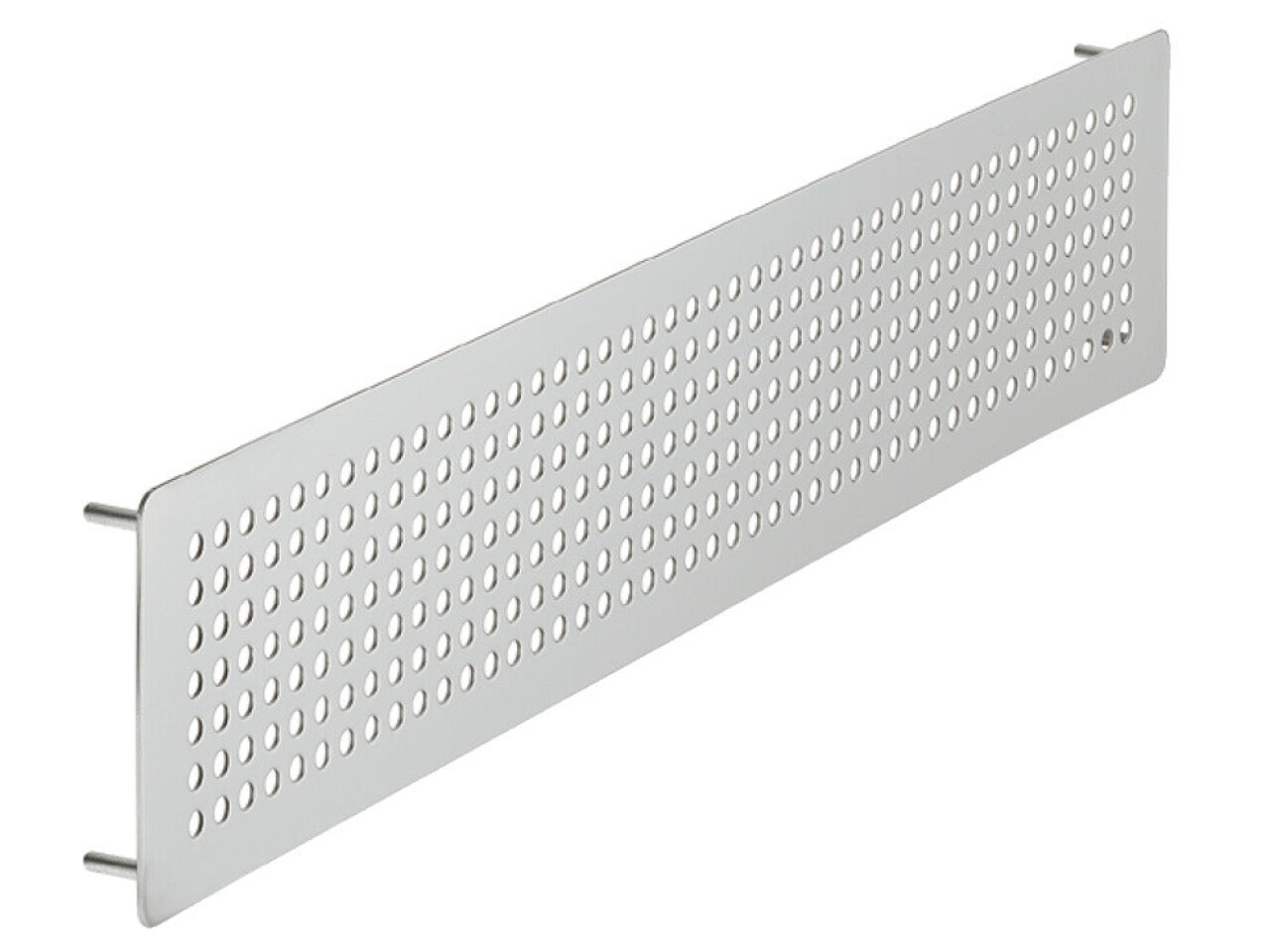

Vent Grille Rnd Holes 500x100mm BSS
Part Number: 575.42.034
Straight-edged, Ventilation area 90 cm2, length 500 mm, cut out dims. 485 x 85 mm
Price:
£68.85
Per Item
Technical data Dim. (L x W) 500 x 100 mm 1000 x 100 mm 2000 x 100 mm Cut-out (L x W) 485 x 85 mm 985 x 85... Read More
Product Information
Product Details

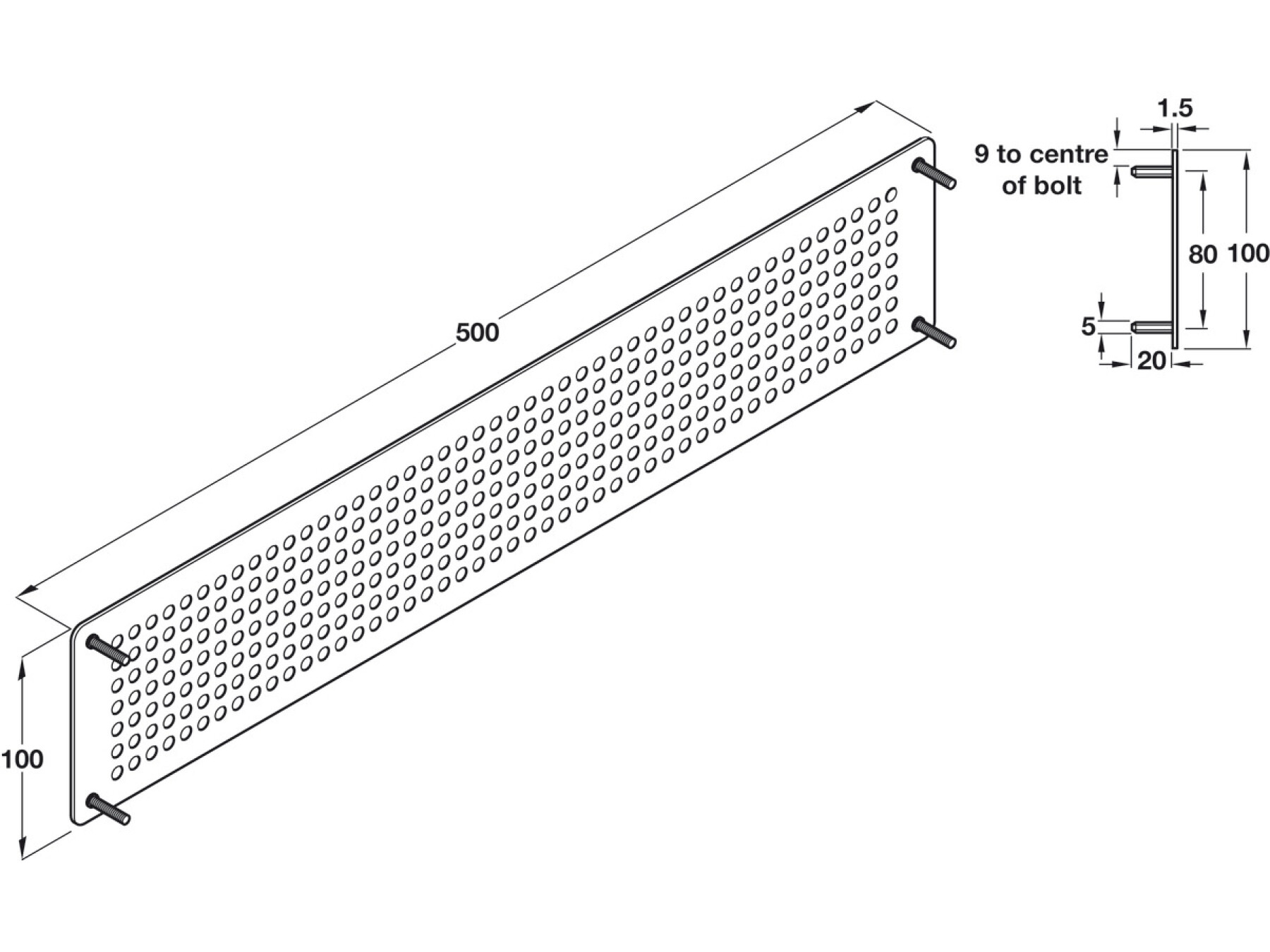

| Technical data | |||
|---|---|---|---|
| Dim. (L x W) | 500 x 100 mm | 1000 x 100 mm | 2000 x 100 mm |
| Cut-out (L x W) | 485 x 85 mm | 985 x 85 mm | |
| Aperture diameter | 6 mm | 6 mm | 6 mm |
| Flange width | 20 mm | 20 mm | 20 mm |
| Ventilation Area | 90 cm² | 183.1 cm² | 183.1 cm² |
| Thickness | 1.5 mm | 1.5 mm | 1.5 mm |
Specifications
Material
Stainless steel
Dim. (L x W)
500 x 100 mm
Thickness
1.50 mm
Cut-out (L x W)
485 x 85 mm
Colour/finish
matt brushed
Ventilation Area
90.00 cm²
Version

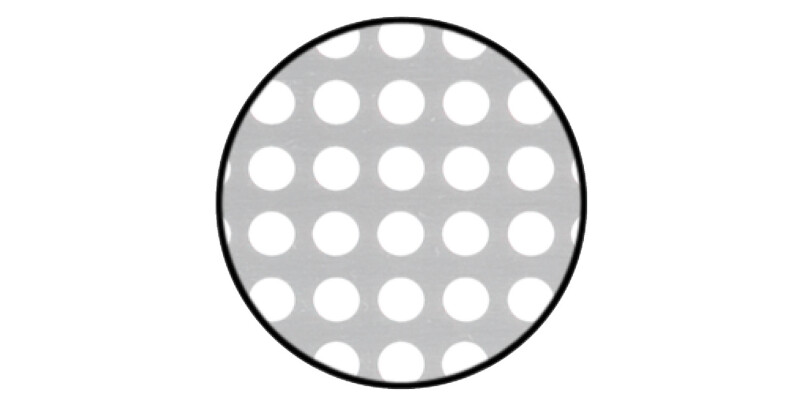

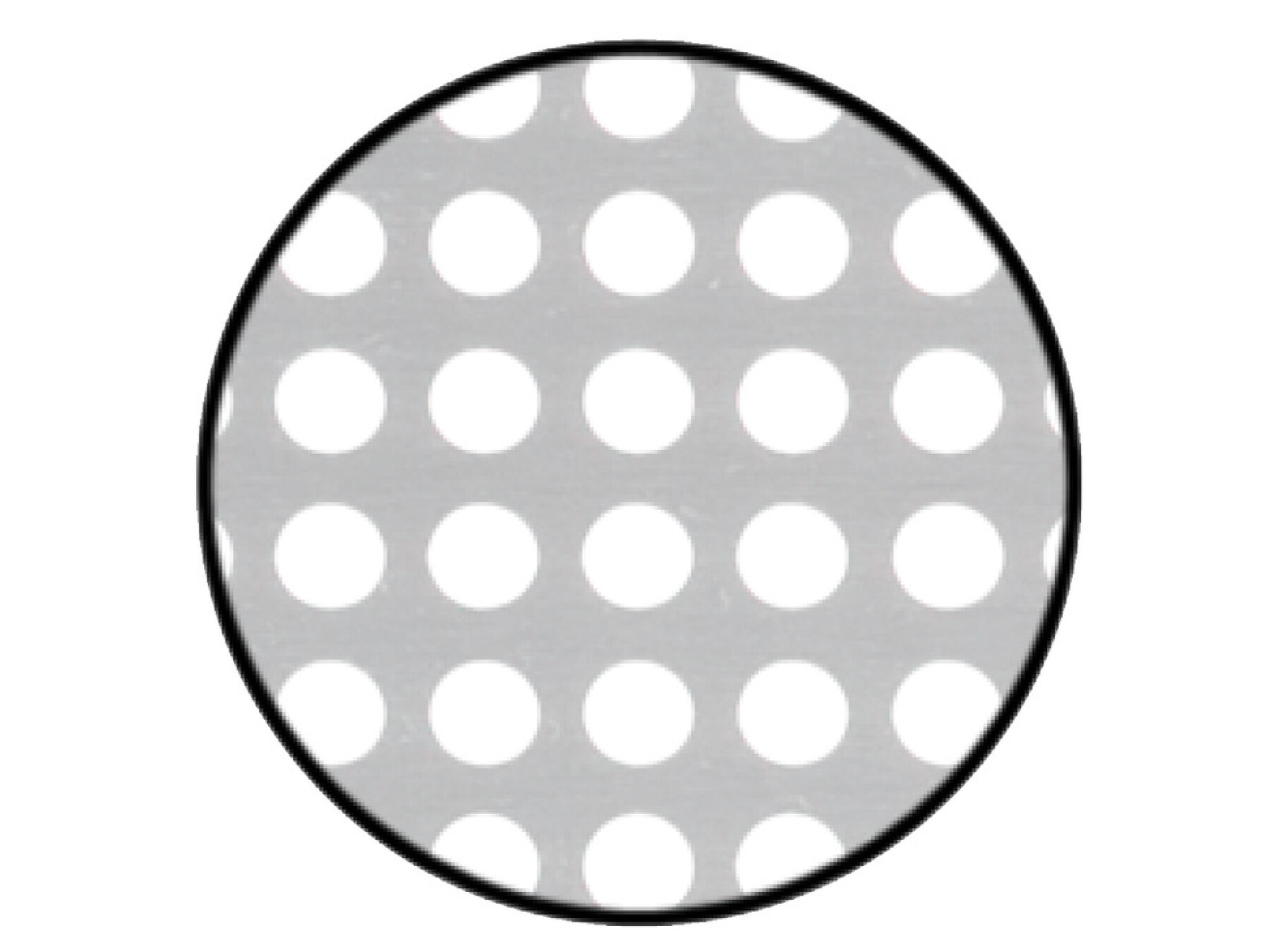

With round holes ∅ 6 mm
Installation
For mounting with grub screws
