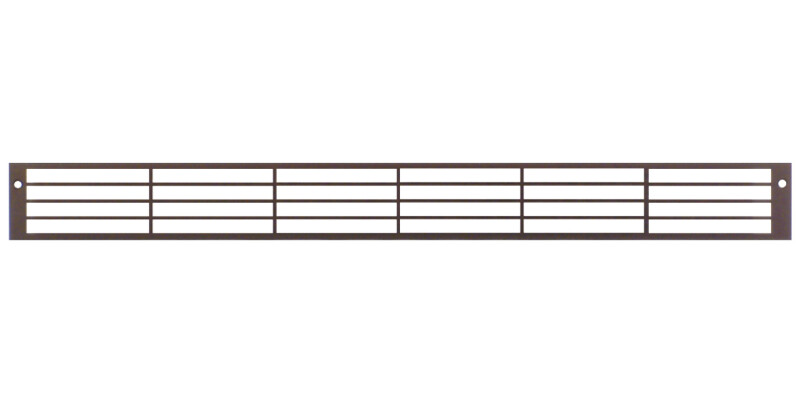

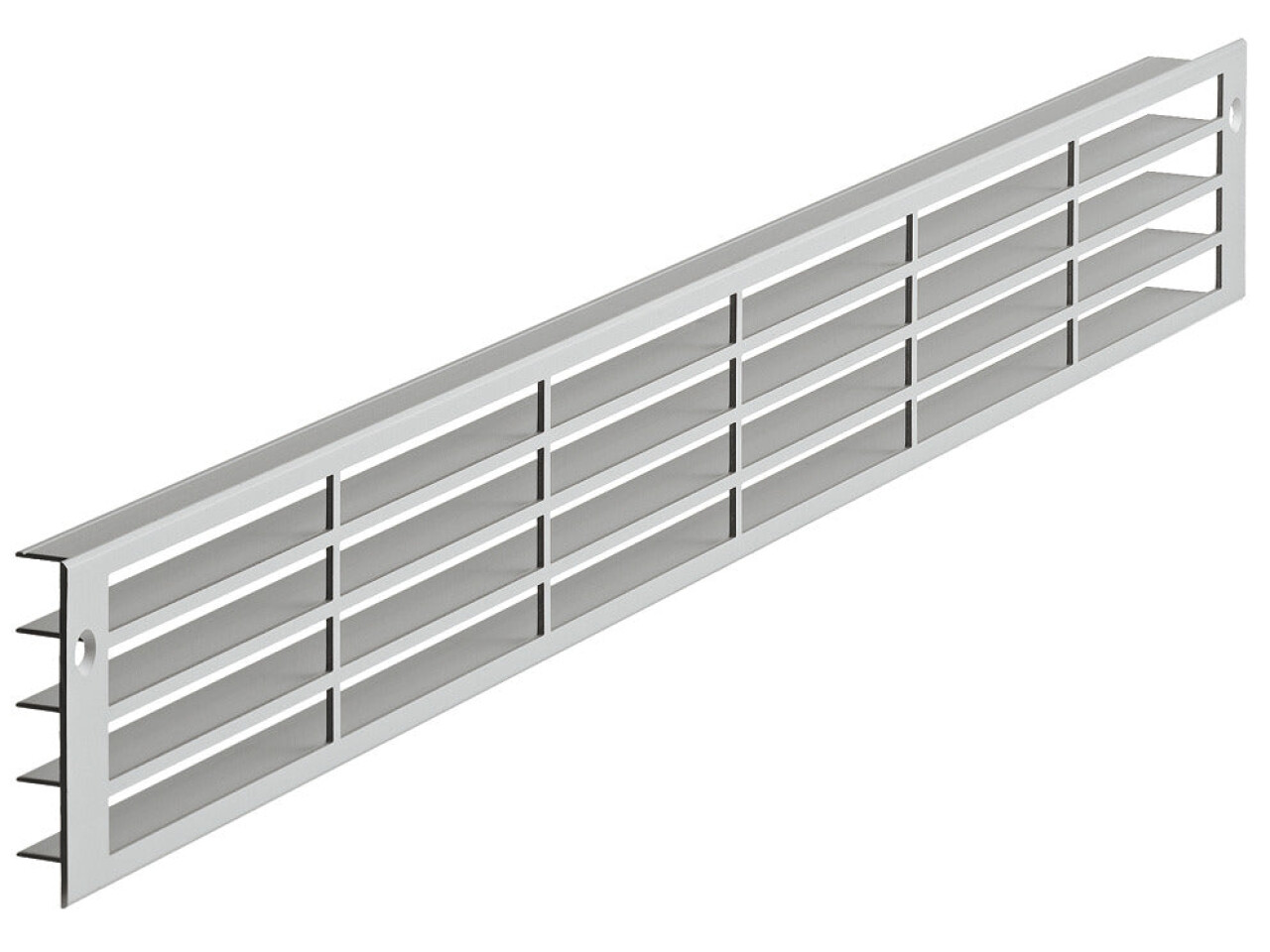

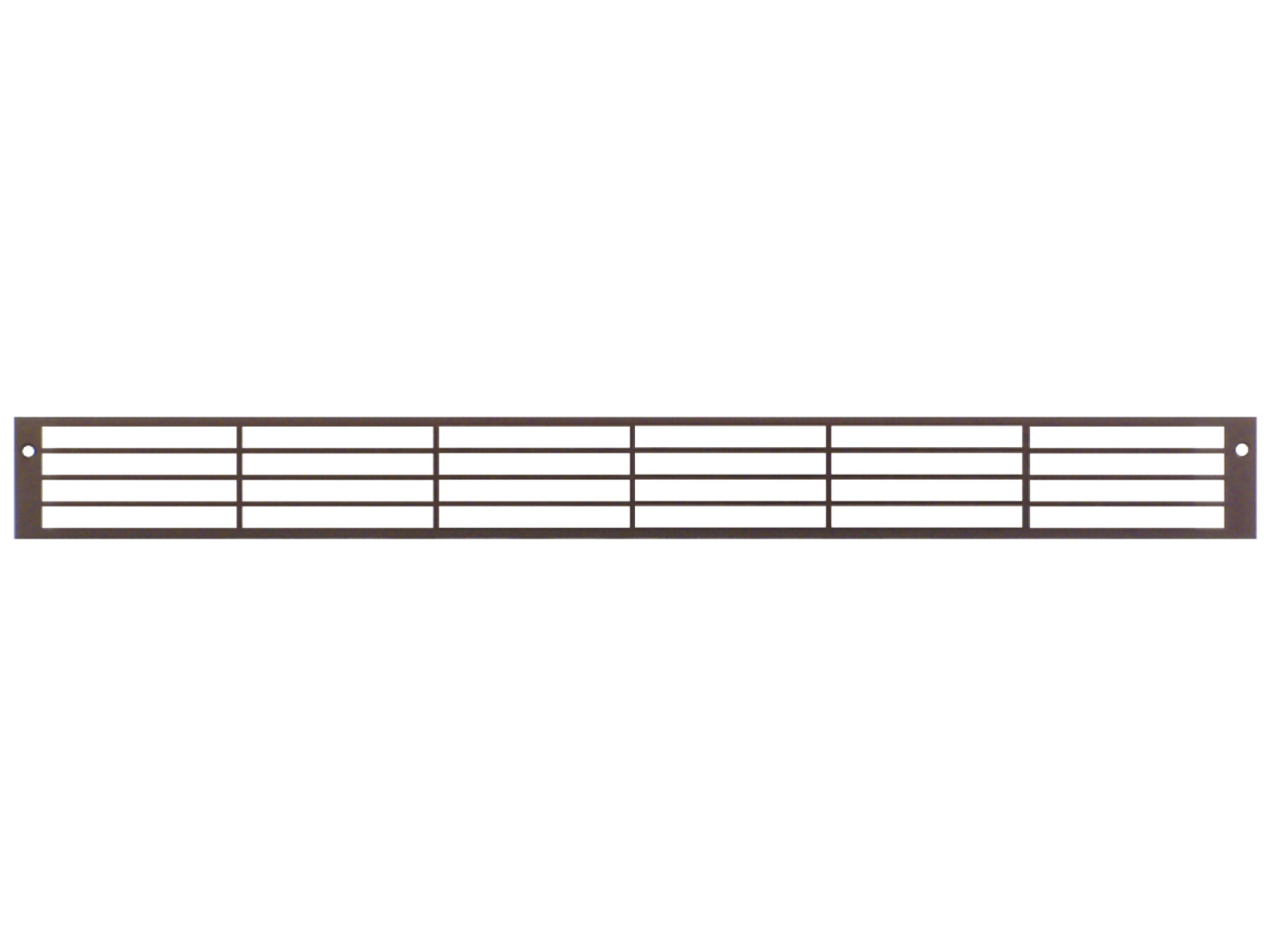

Vent Grille RM 570x57mm Alu Slv F1
Part Number: 575.24.900
570 x 57 mm, Ventilation area 200 cm2, recessed length 540 mm, matt silver F1
Price:
£20.77
Per Item
Meets refrigerator manufacturer requirements Technical data Dim. (L x W) 570 x 57 mm Cut-out (L x W) 540 x... Read More
Product Information
Product Details
Meets refrigerator manufacturer requirements
| Technical data | |
|---|---|
| Dim. (L x W) | 570 x 57 mm |
| Cut-out (L x W) | 540 x 51 mm |
| Apertures (L x W) | 87,5 x 9.5 mm |
| Flange width | 17.5 mm |
| Ventilation Area | 200 cm² |
| Thickness | 17.5 mm |
Specifications
Material
Aluminium
Dim. (L x W)
570 x 57 mm
Thickness
17.50 mm
Cut-out (L x W)
540 x 51 mm
Ventilation Area
200.00 cm²
Version
With mounting holes
Installation
For recess mounting, screw fixing
