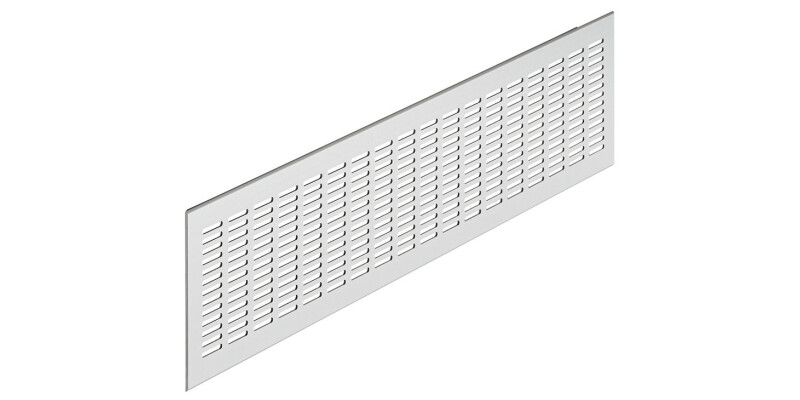

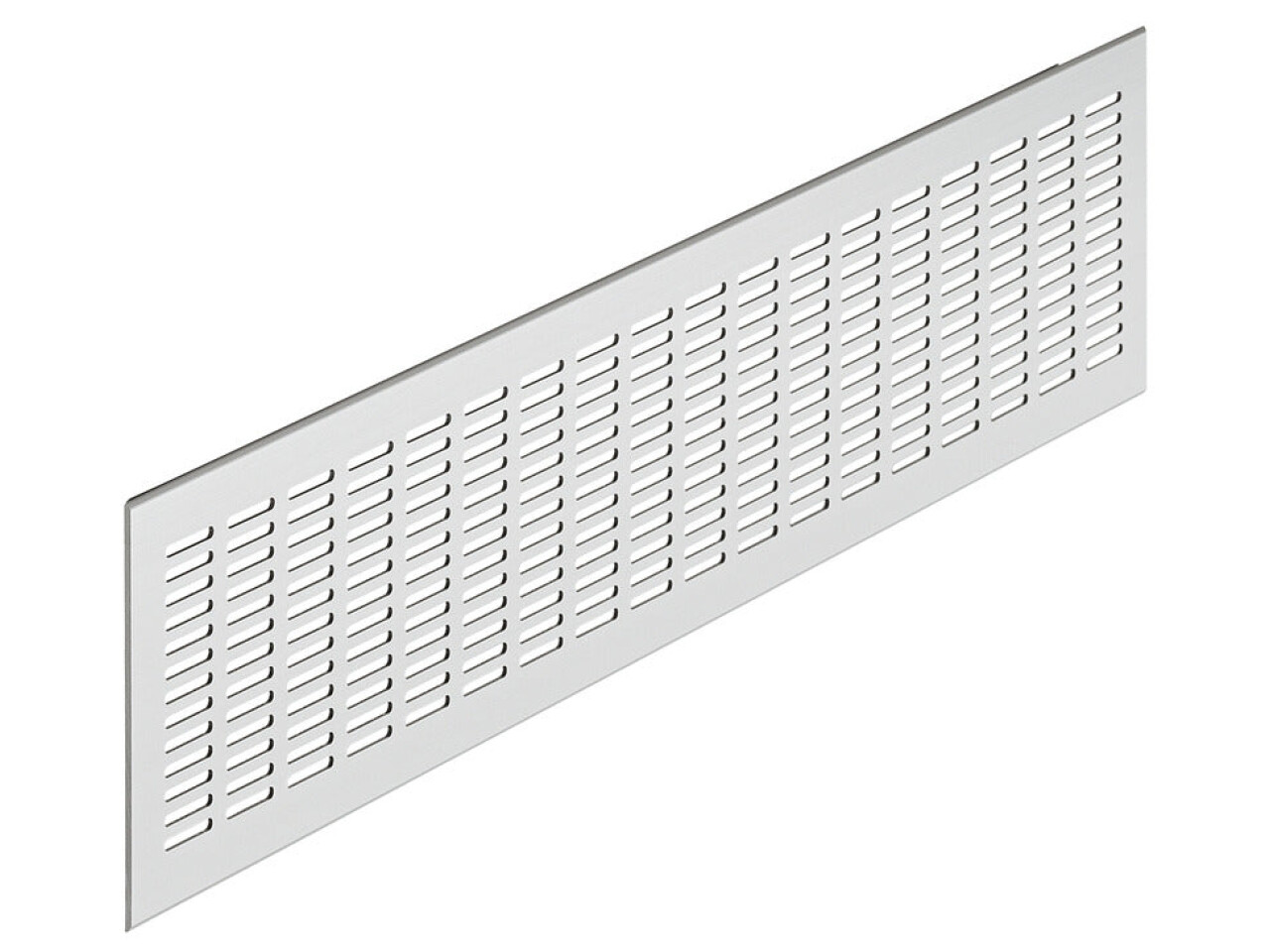

Vent Grille RM 480x80mm AA Slv
Part Number: 575.05.923

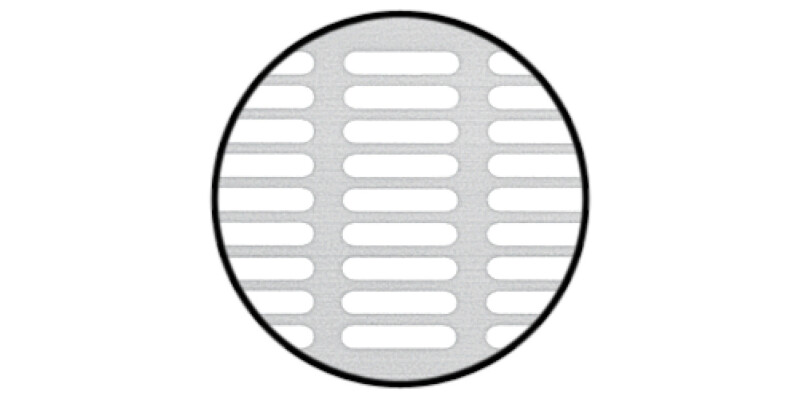

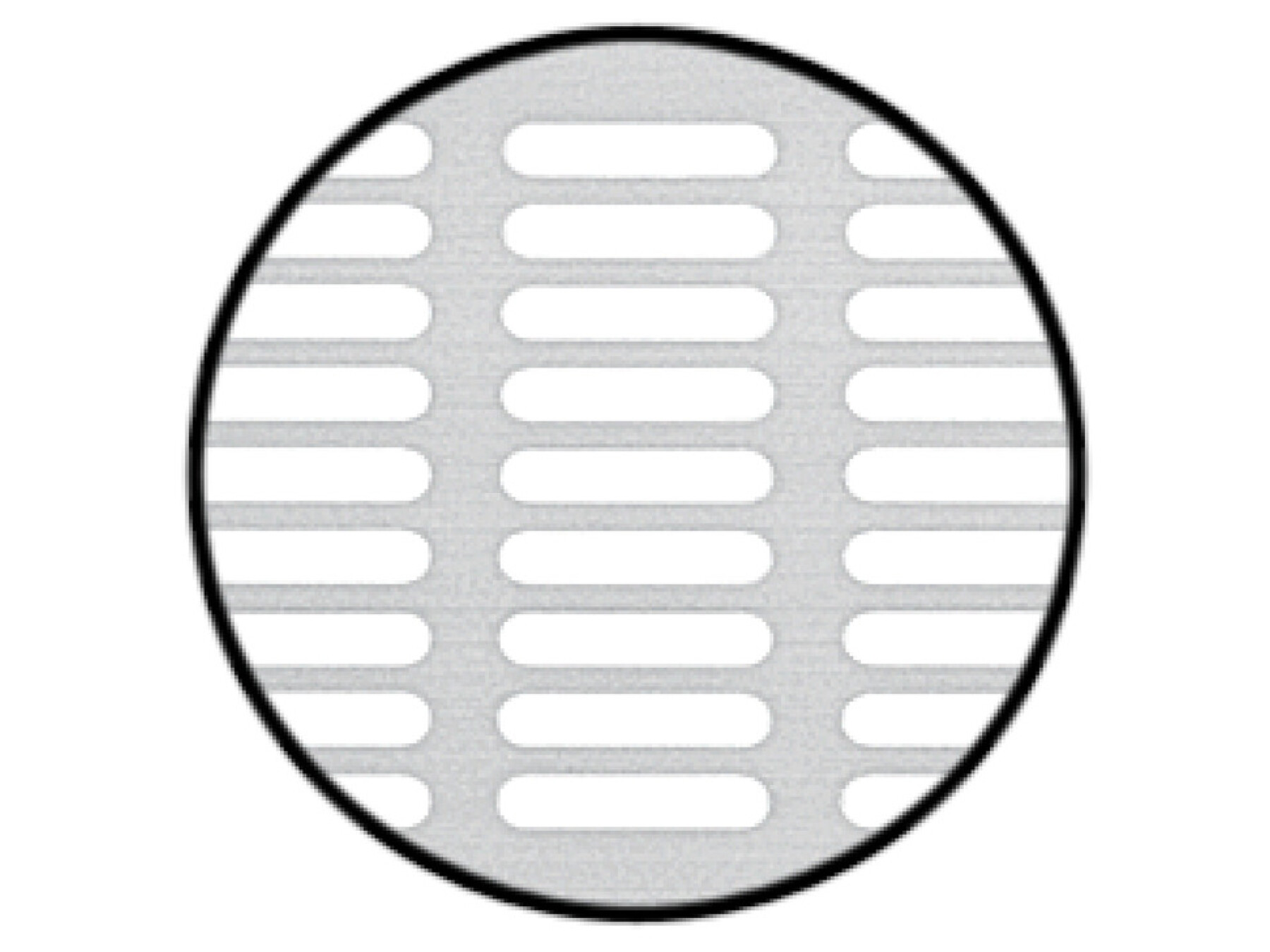

With 20 x 3 mm Oval Slots Arranged in Parallel, Ventilation area 100.2 cm2, height 80 mm, flange height 65 mm, silver
Price:
£17.13
Per Item
Technical data Dim. (L x W) 480 x 80 mm 480 x 100 mm Cut-out (L x W) 458 x 65 mm 458 x 85 mm Apertures... Read More
Product Information
Product Details

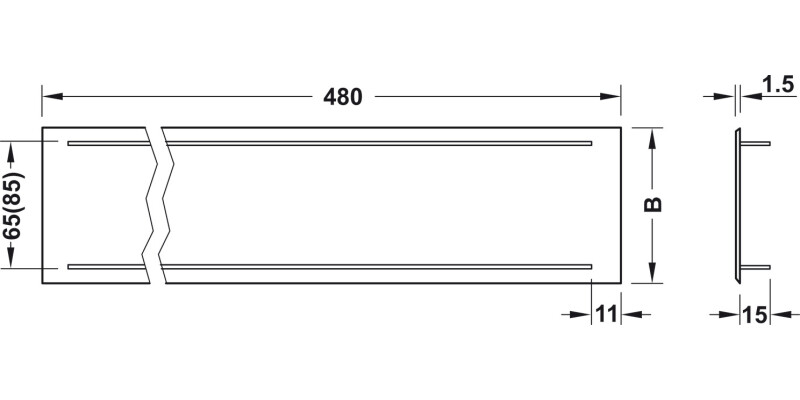

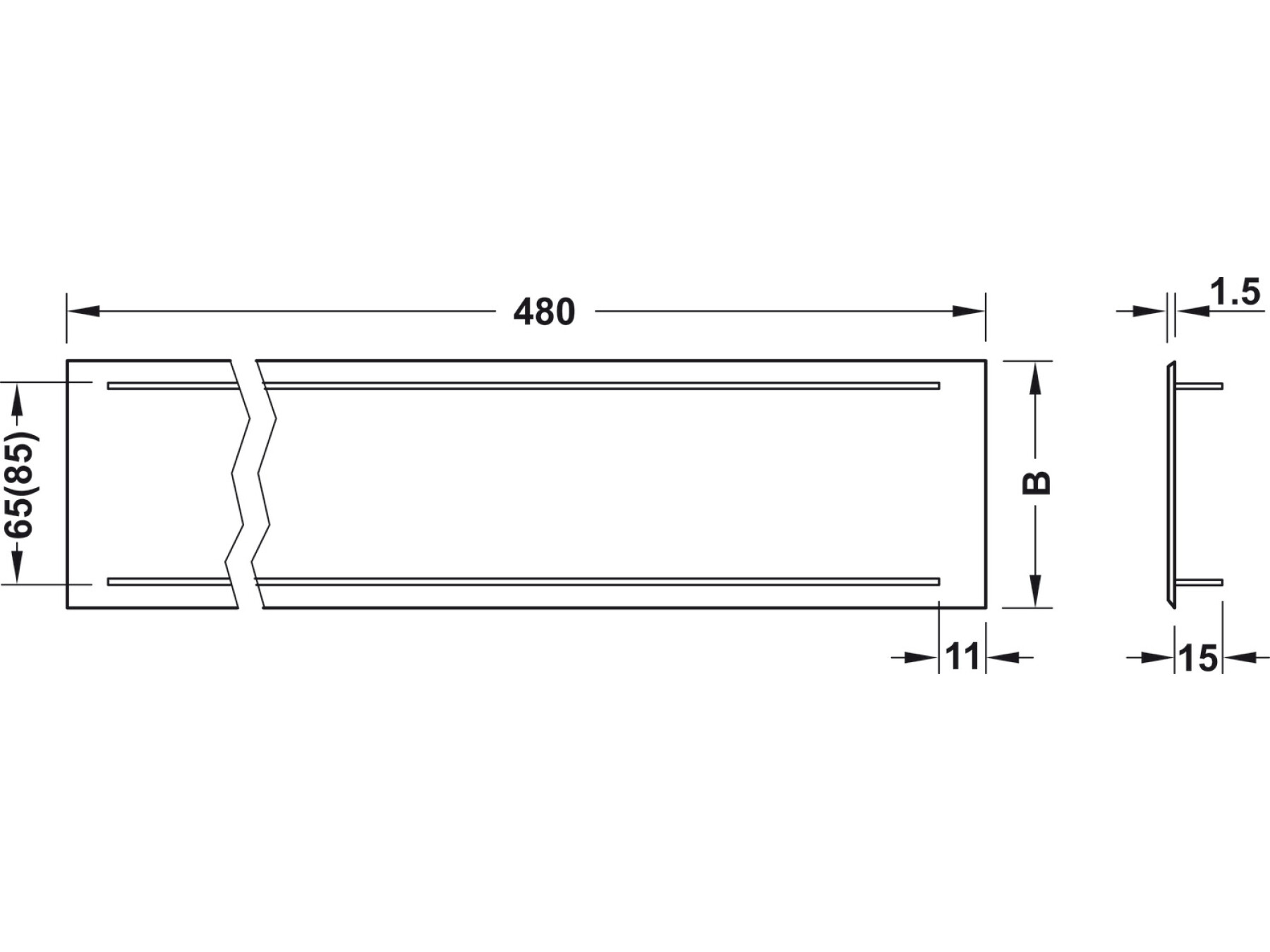

| Technical data | ||
|---|---|---|
| Dim. (L x W) | 480 x 80 mm | 480 x 100 mm |
| Cut-out (L x W) | 458 x 65 mm | 458 x 85 mm |
| Apertures (L x W) | 20 x 3 mm | 20 x 3 mm |
| Flange width | 15 mm | 15 mm |
| Ventilation Area | 88.7 cm² | 135.7 cm² |
| Thickness | 1.5 mm | 1.5 mm |
Specifications
Material
Aluminium
Thickness
1.50 mm
Version
Front edges bevelled all around
Installation
For press fitting
