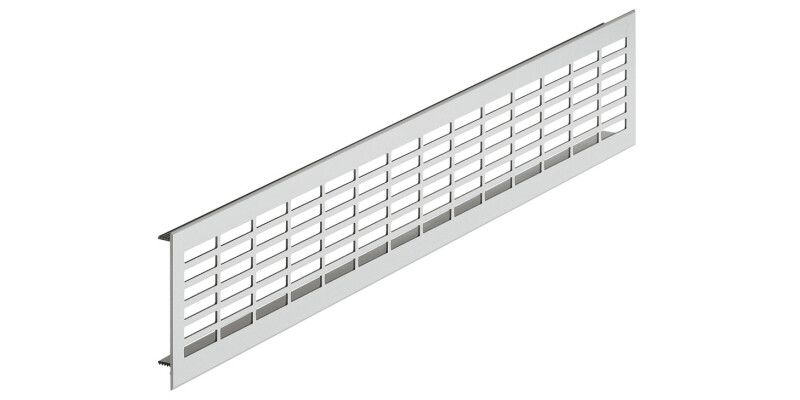

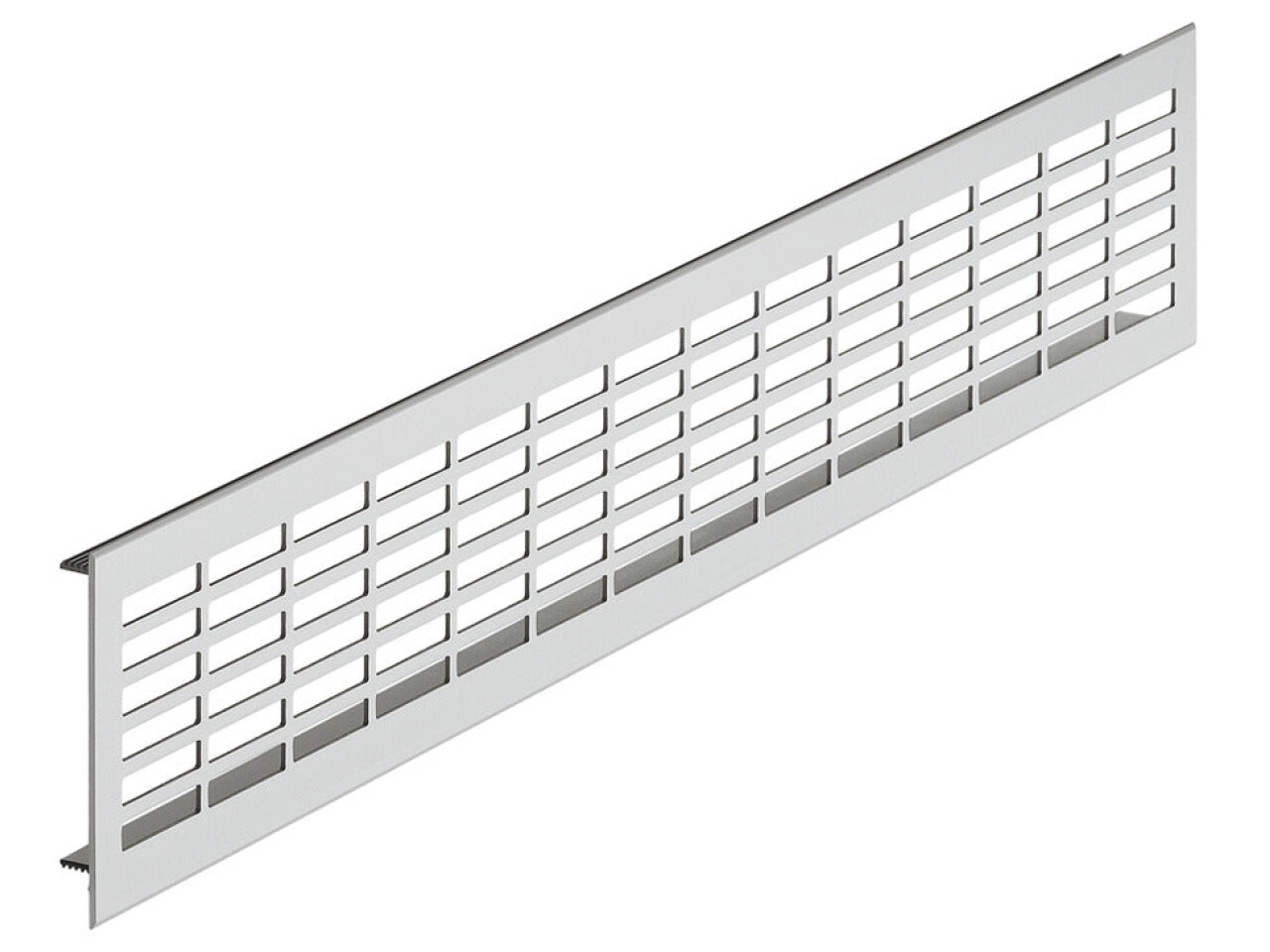

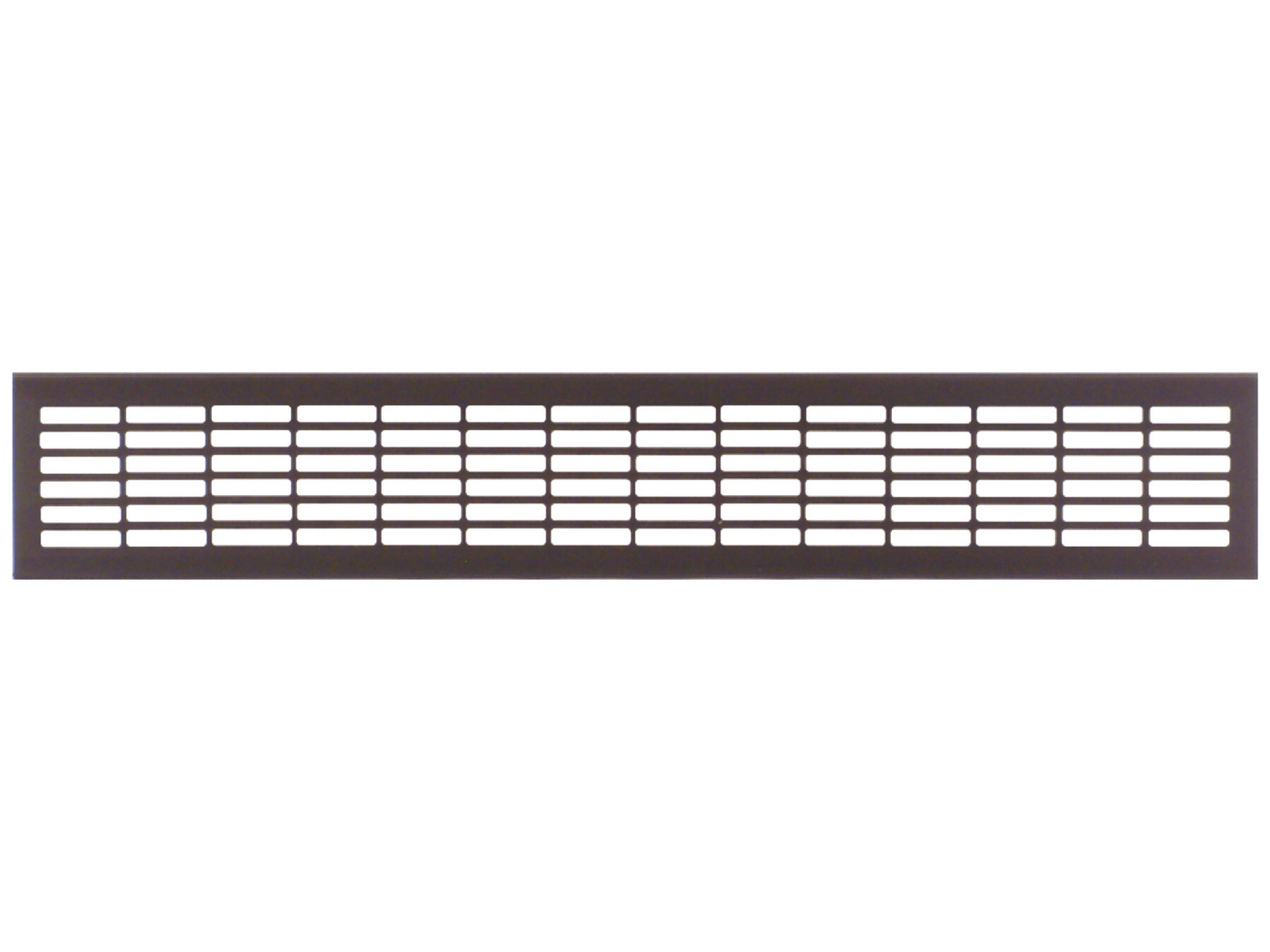

Vent Grille RM 480x80mm AA M.Slv F1
Part Number: 575.04.917
480 x 80 mm, Ventilation area 150.4 cm2, recessed length 460 mm, silver matt F1
Price:
£18.49
Per Item
Technical data Dim. (L x W) 480 x 80 mm Cut-out (L x W) 460 x 65 mm Apertures (L x W) 30 x 6 mm Flange... Read More
Product Information
Product Details

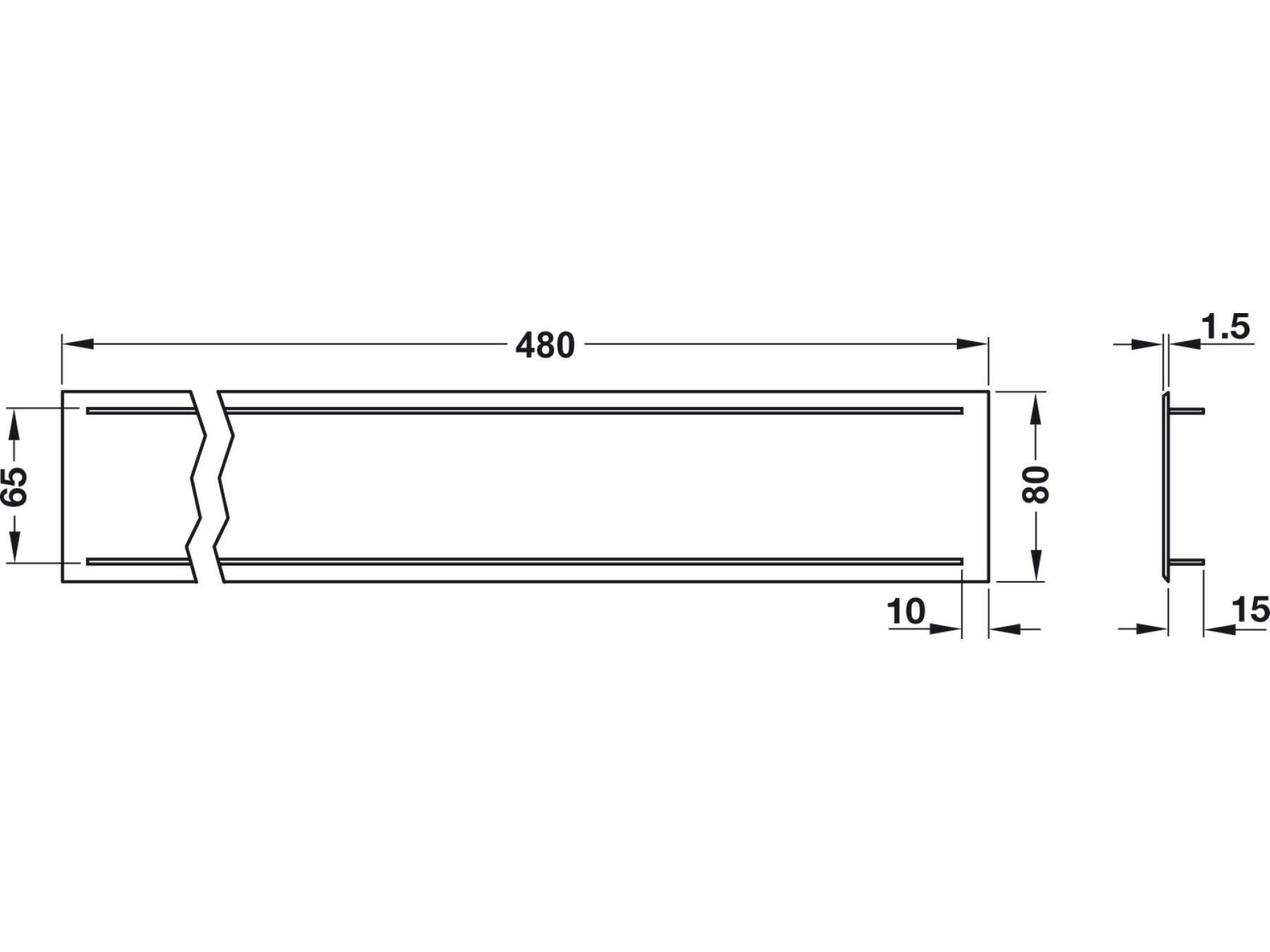

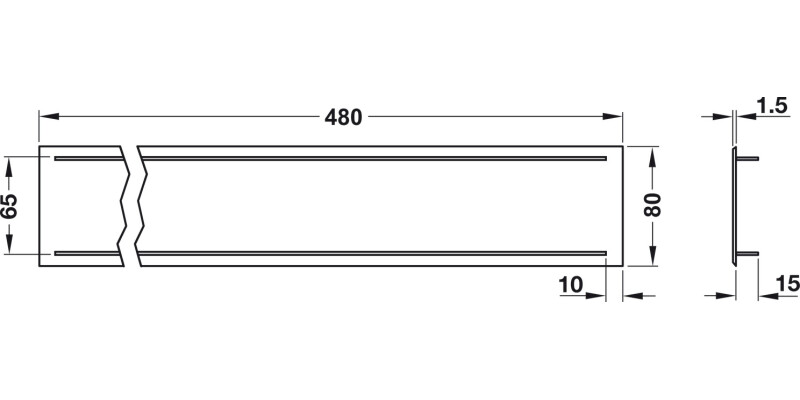

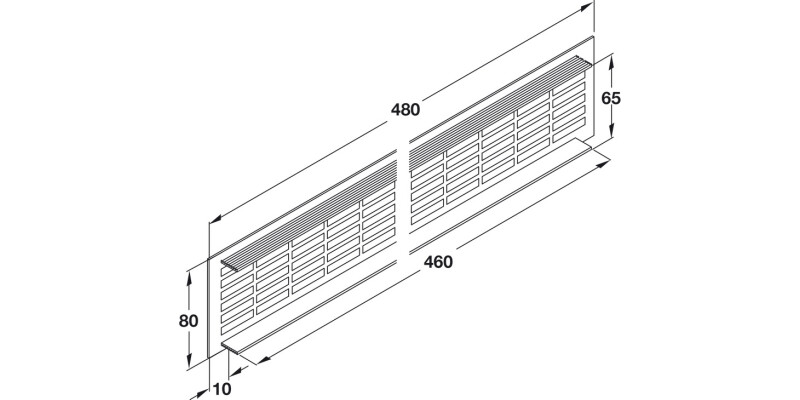

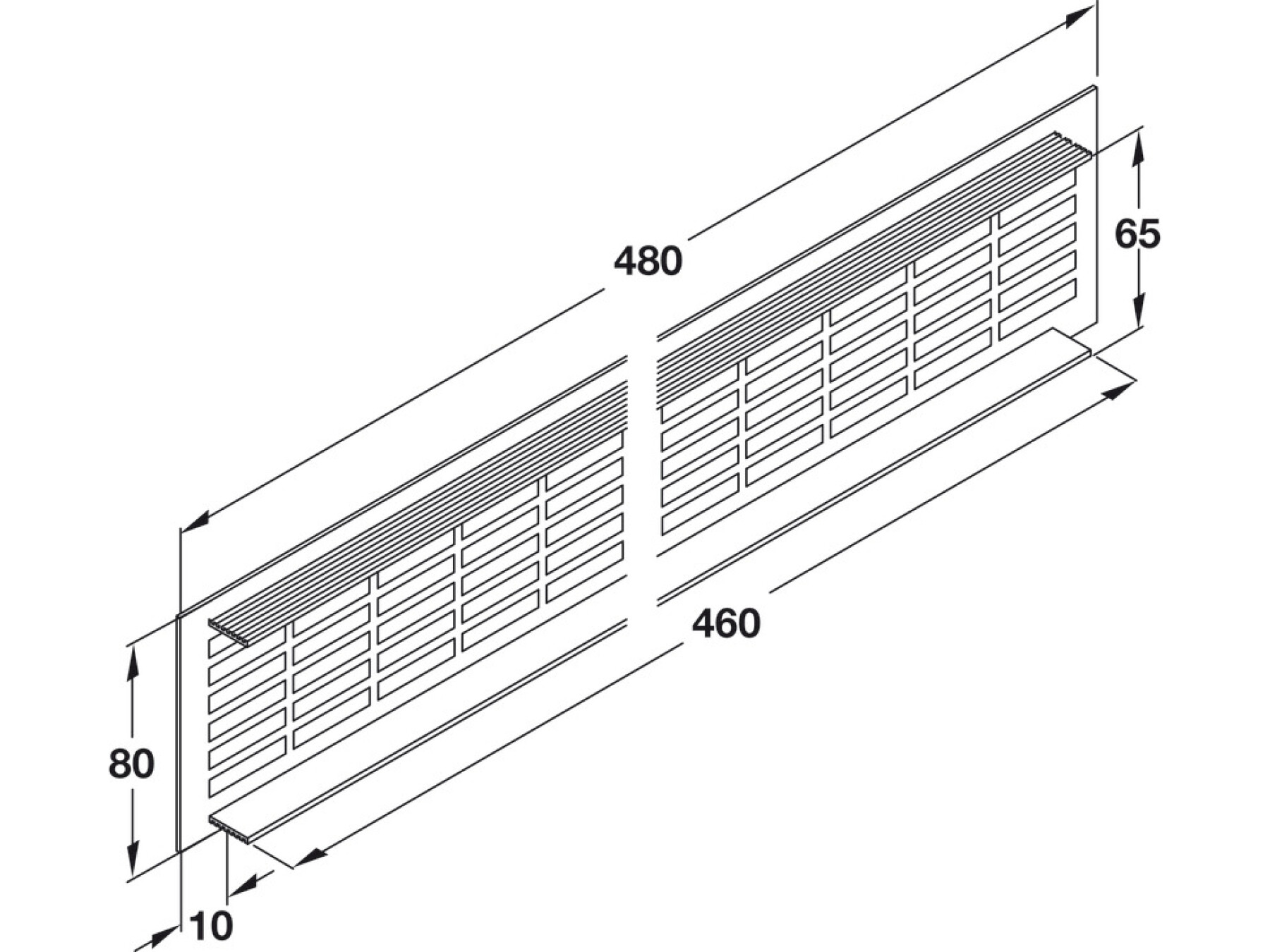

| Technical data | |
|---|---|
| Dim. (L x W) | 480 x 80 mm |
| Cut-out (L x W) | 460 x 65 mm |
| Apertures (L x W) | 30 x 6 mm |
| Flange width | 15 mm |
| Ventilation Area | 150.4 cm² |
| Thickness | 1.5 mm |
Specifications
Material
Aluminium
Dim. (L x W)
480 x 80 mm
Thickness
1.50 mm
Cut-out (L x W)
460 x 65 mm
Ventilation Area
150.40 cm²
Version
Ribbed flanges for press fitting

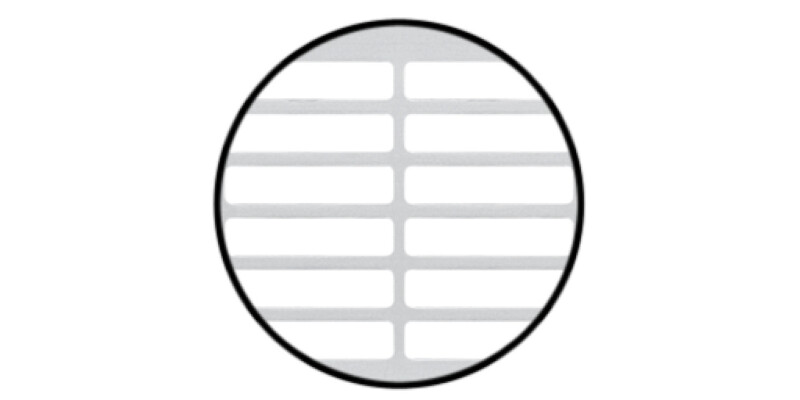

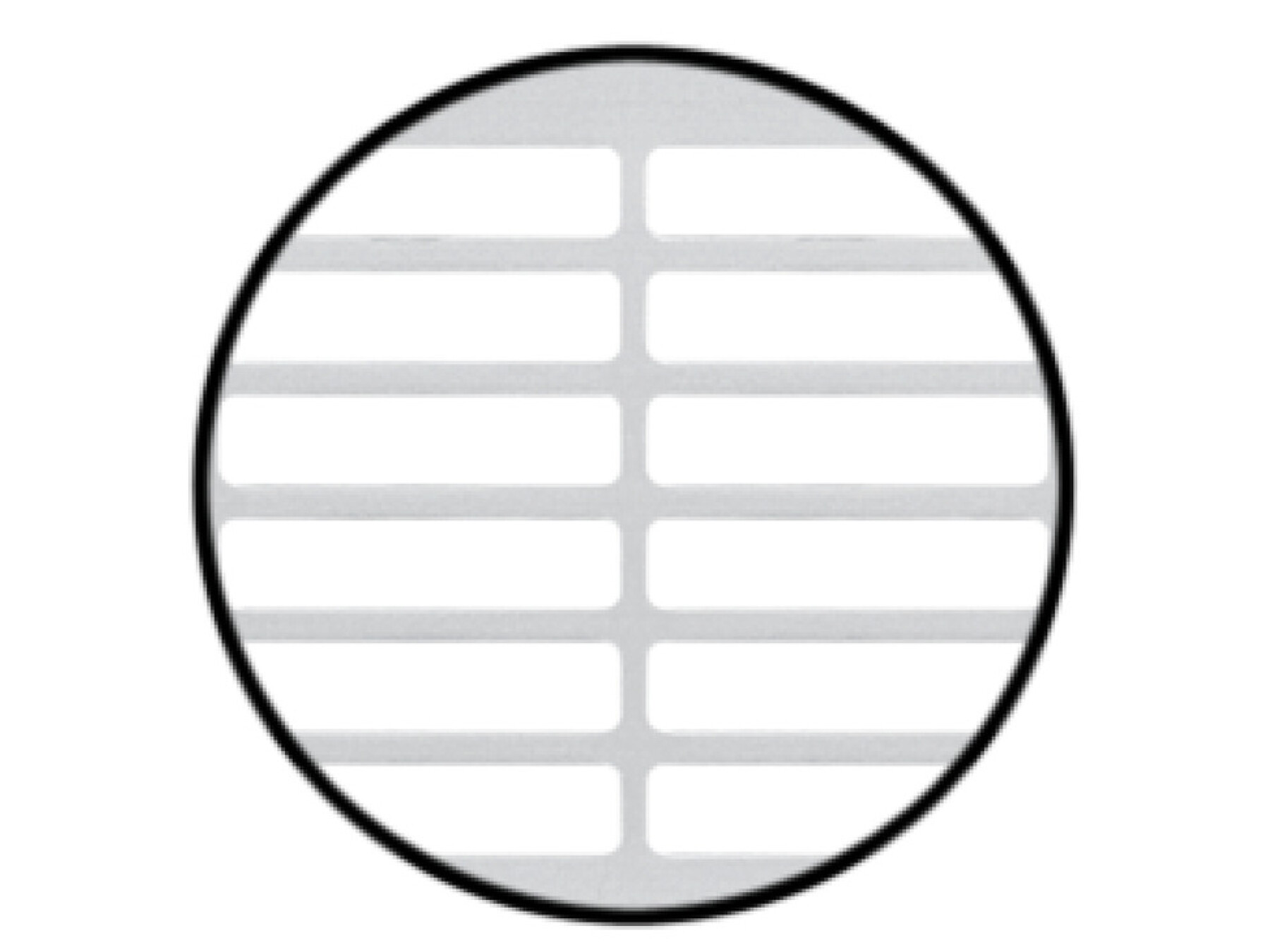

With 30 x 6 mm rectangular slots arranged
in parallel
Installation
For recess mounting, ribbed flanges for press fitting
Order reference
