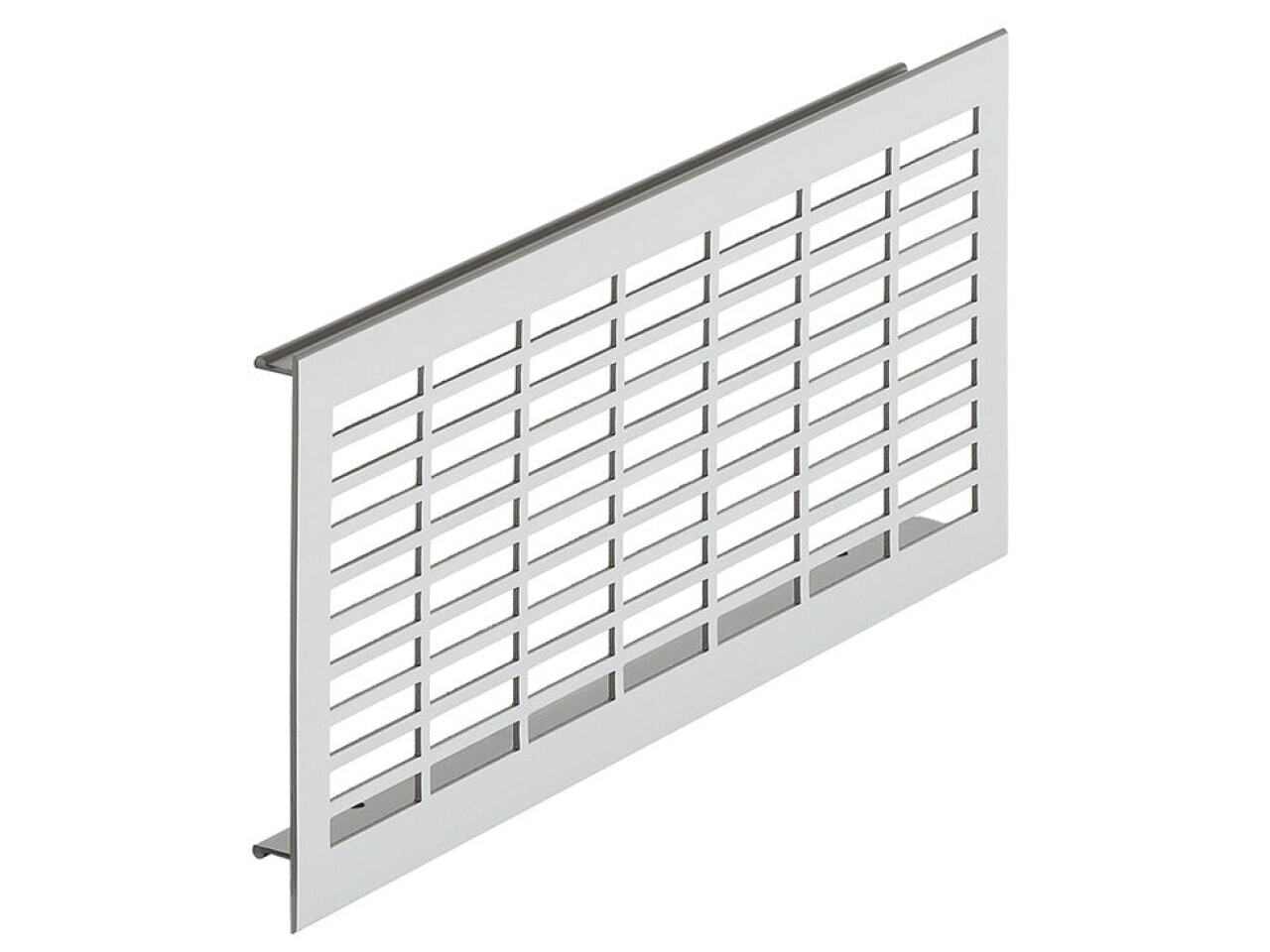

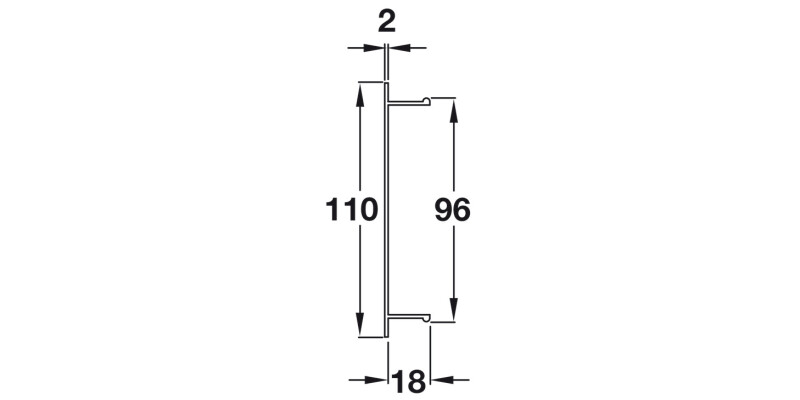

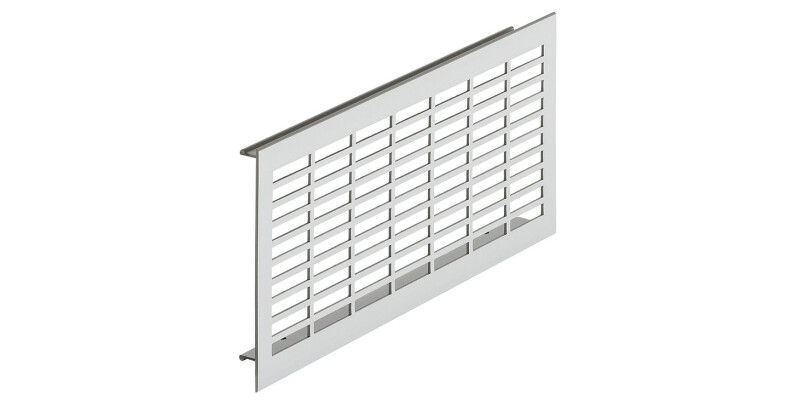

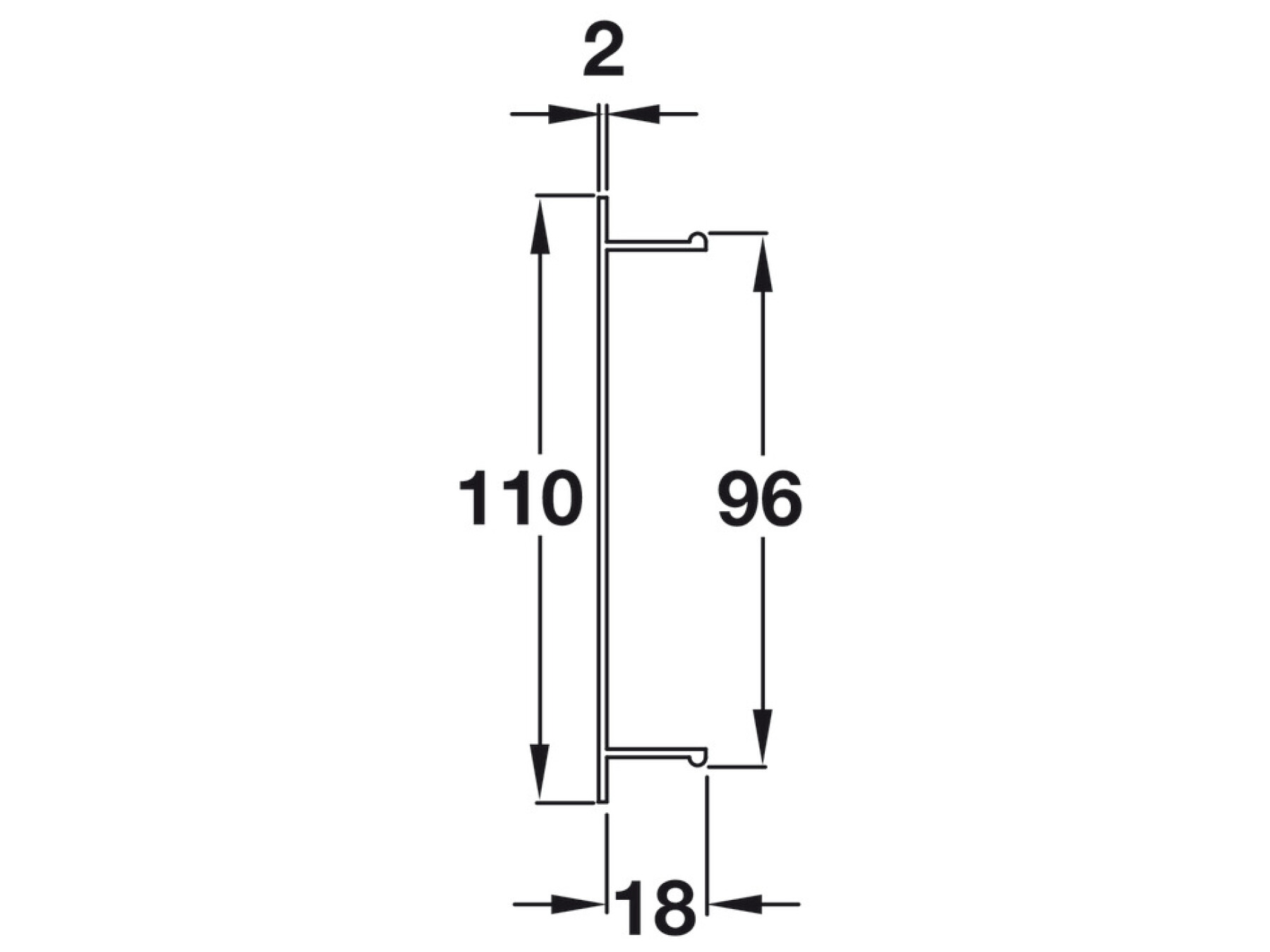

Ventilation Grille, for Recess Mounting, Height 110 mm, Recessed Height 96 mm, F

Product Details

How do the rectangular slots affect airflow?

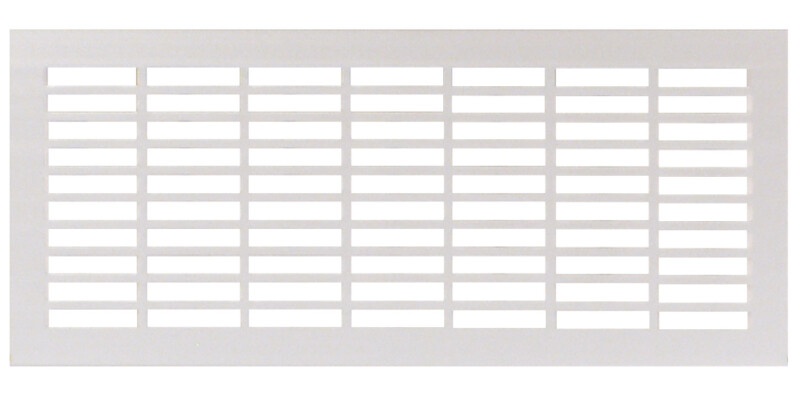

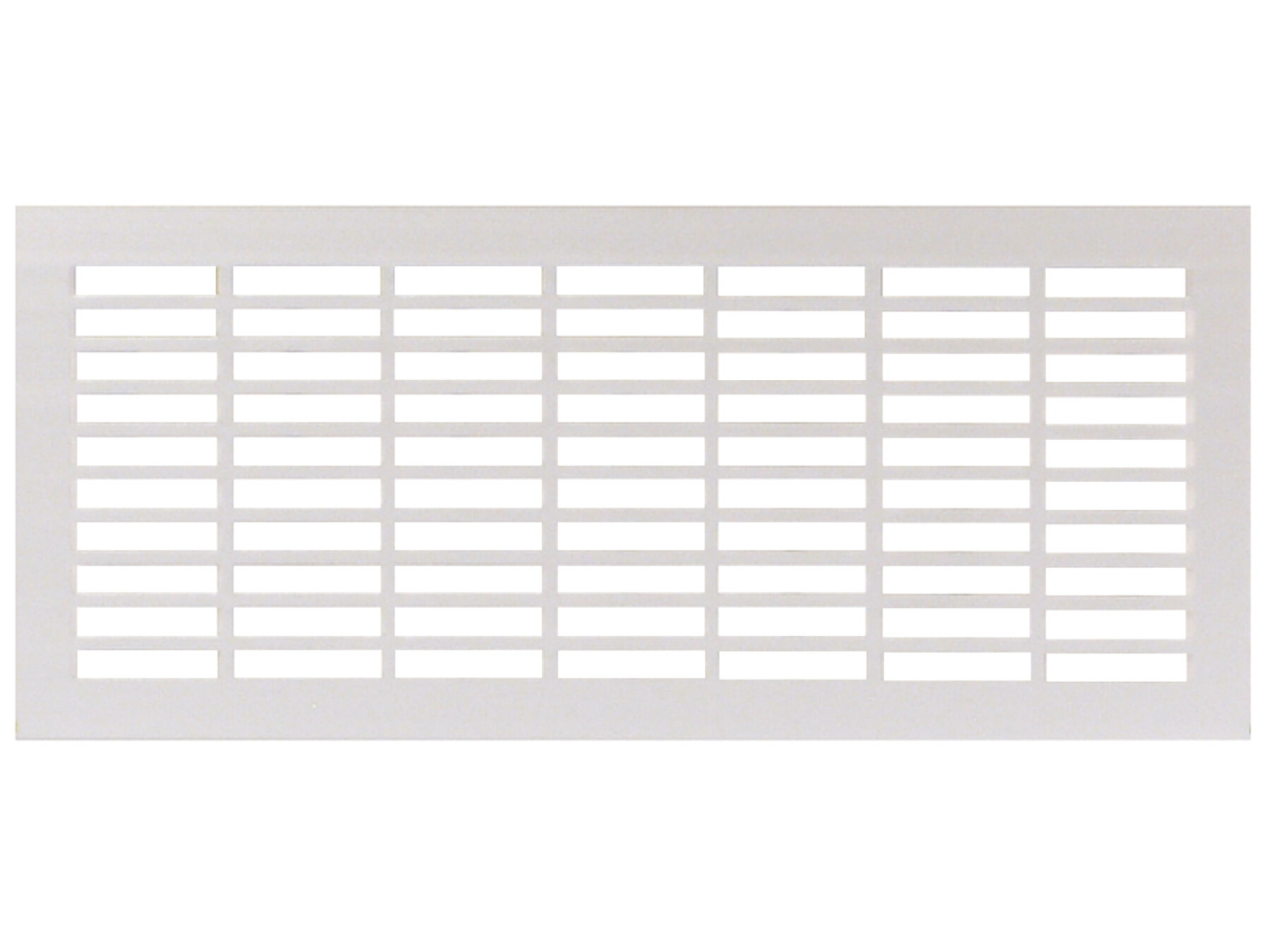

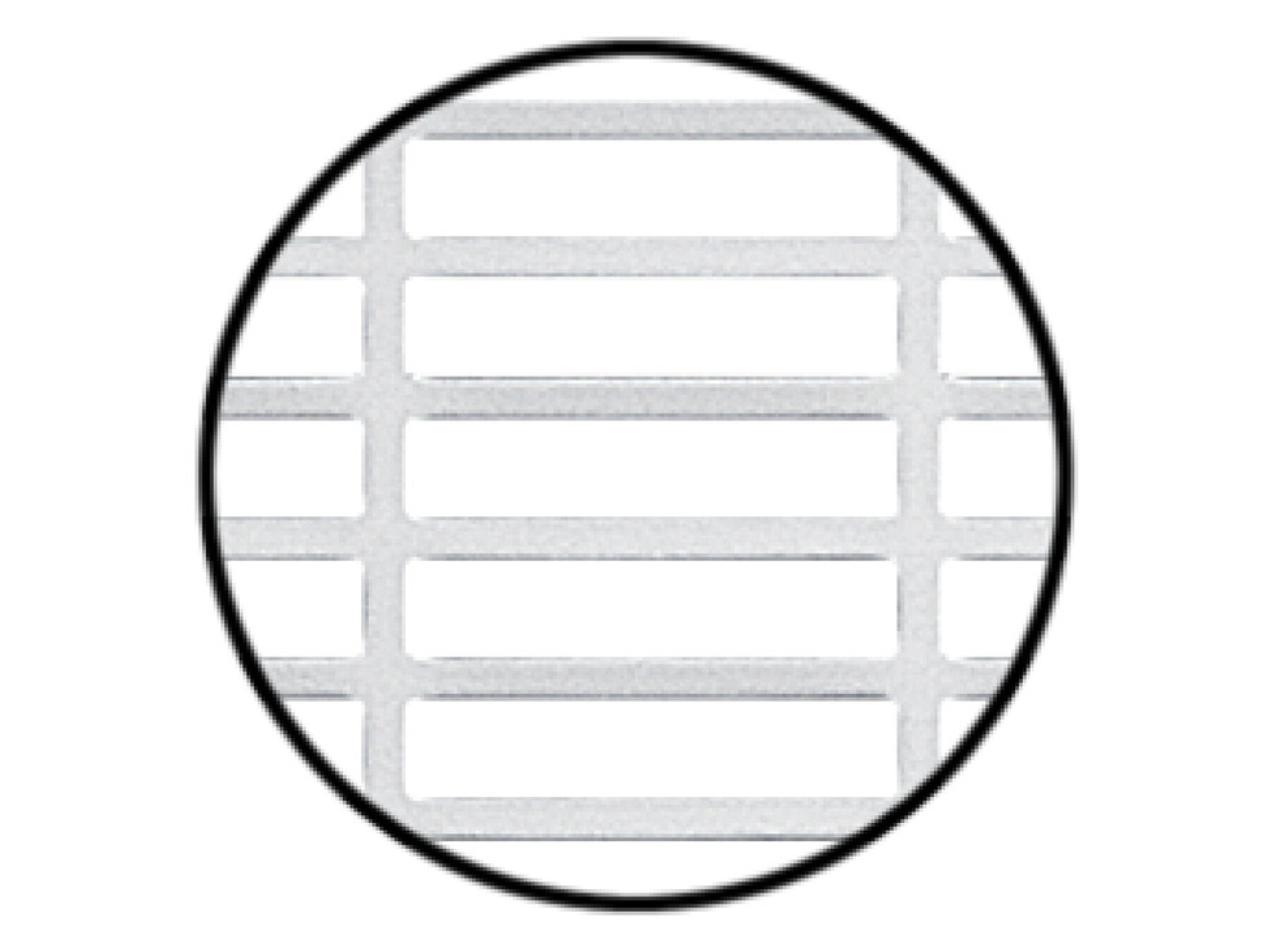

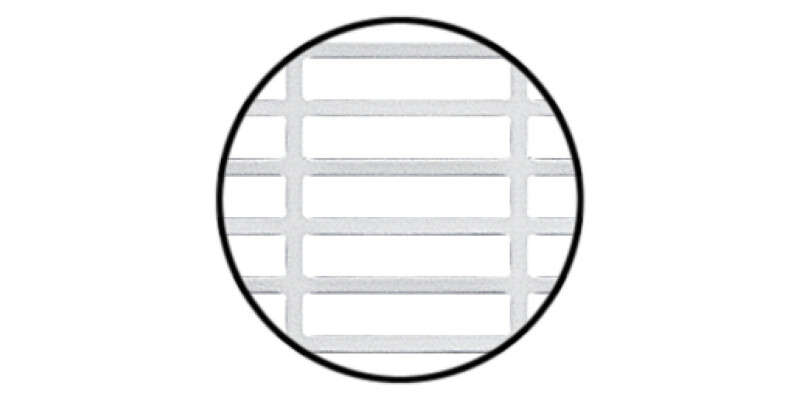

The Vent Grille RM features 30 x 6 mm rectangular slots arranged in parallel to encourage steady, controlled airflow. With a ventilation area of 126 cm2, it is designed to help ventilate kitchen spaces while keeping the opening covered by a neat grille.

What are the grille dimensions, and will it fit my opening?

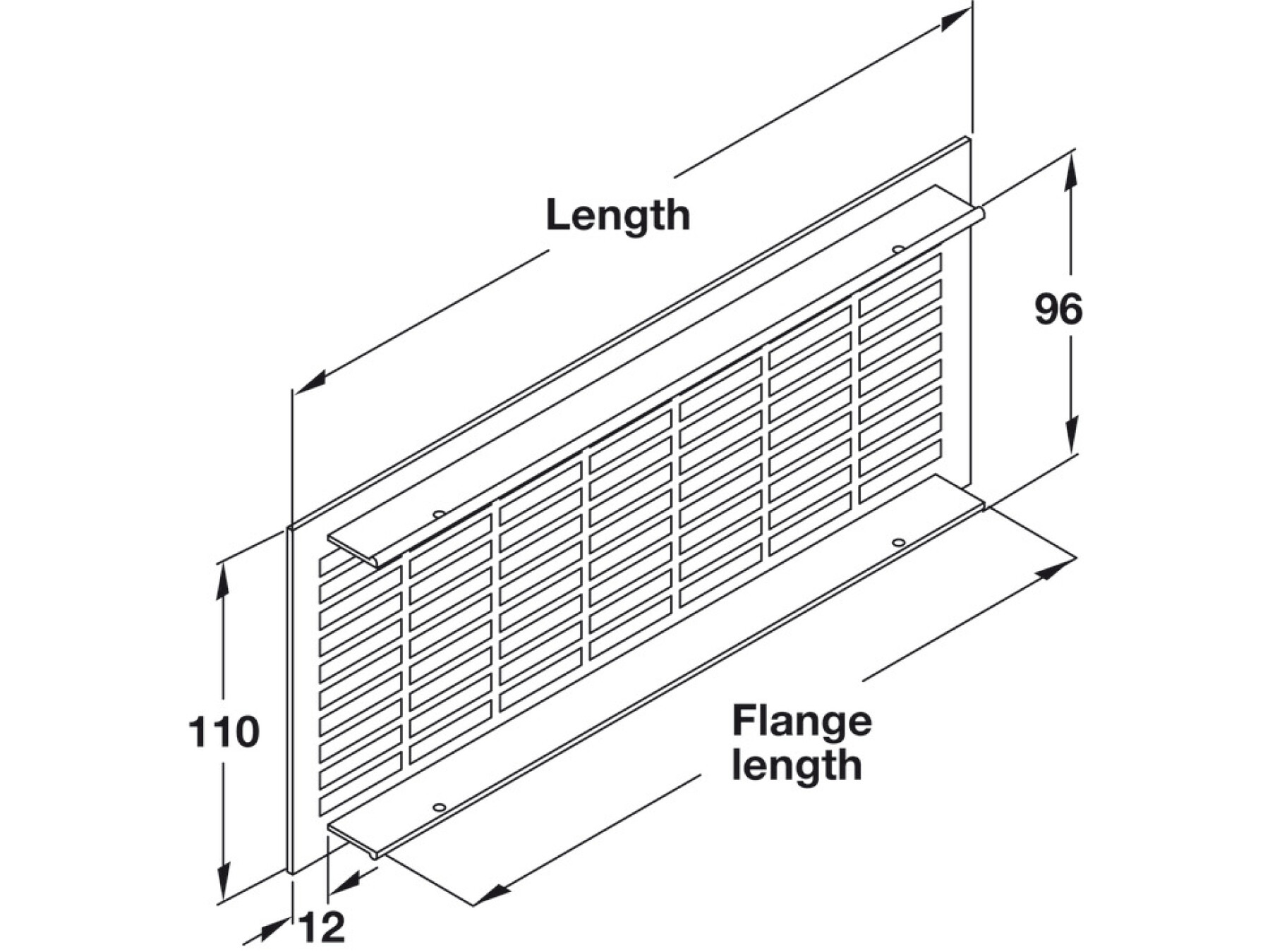

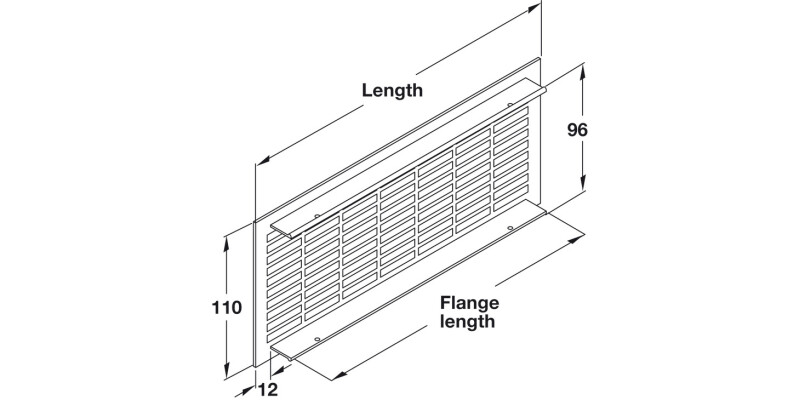

The overall grille length is 250 mm, with a flange length of 226 mm. Check your mounting opening and flange space against these measurements to confirm compatibility before ordering.

How is the grille installed?

This grille is designed for practical mounting. The flanges are ribbed and drilled for press fit and screw mounting, making it suitable for situations where you want a secure fit without complex tooling.

Is the finish suitable for kitchens?

Yes. The grille is finished in matt silver using an anodized E6/EV1 process, which helps provide a durable surface that suits typical kitchen environments.

What material and thickness should I expect?

The Vent Grille RM is made from aluminium with a 1.50 mm thickness. This combination supports a lightweight grille with a rigid feel for everyday ventilation use.

Will it stay in place securely over time?

The mounting design is built for stability. With ribbed and drilled flanges intended for press fit and screw mounting, it is created to hold its position firmly, helping the grille sit straight and remain properly aligned.

Does the grille front have any special edge details?

Yes. It has a long front edges bevelled design, which gives a cleaner fit and finish at the front of the ventilation opening.

Can I use this grille as a replacement part?

If you are replacing a similar ventilation grille, the key items to match are the 250 mm length, 226 mm flange length, and the slot configuration that provides a 126 cm2 ventilation area. If these align with your existing grille, this part should be a strong fit.
