Slido Cls 40IFC FitSet 2Dr w SC

Part Number: 402.33.027
Top hung system, For 2 doors, with soft close
Price:
£101.77
Per Item
VAT excluded

High quality system for straight sliding top hung doorsFor domestic or commercial furniture Note on door width... Read More

Product Information

Product Details

High quality system for straight sliding top hung doors
For domestic or commercial furniture

Note on door width

Min. 370 mm with soft closing mechanism on one side
Min. 550 mm with soft closing mechanism on both sides

Order reference

Please order running and guide tracks separately.
For cabinets with 3 doors, please order the following sets: 1 set for 1 door and 1 set for 2 doors.

Supplied with

4 x Housing, for screw fixing, grey plastic, 2x Running gear, with friction bearing, for clip fixing into housing, grey plastic, 2 x Running gear, with soft and self closing and friction bearing, grey plastic, 2x Clip in door stopper, for top track, grey plastic, 2 x Door stopper, for soft and self closing mechanism, for top track, grey plastic, 2 x Guide, for press fitting, grey plastic, 1 x Stop bracket, with buffer, galavanised steel, 1 x Mounting aid, for track installation, red plastic

Warranty/Guarantee information

This product is covered under Häfele’s Lifetime Guarantee.
All products covered under the Häfele Lifetime Guarantee have met our quality standards and have been tested according to the relevant industry certification.
All products under this guarantee are covered for normal use of the products in a domestic environment - for commercial environments our standard 12 month guarantee would apply.

For more information go to:
Services > Customer Support > Häfele Lifetime Guarantee

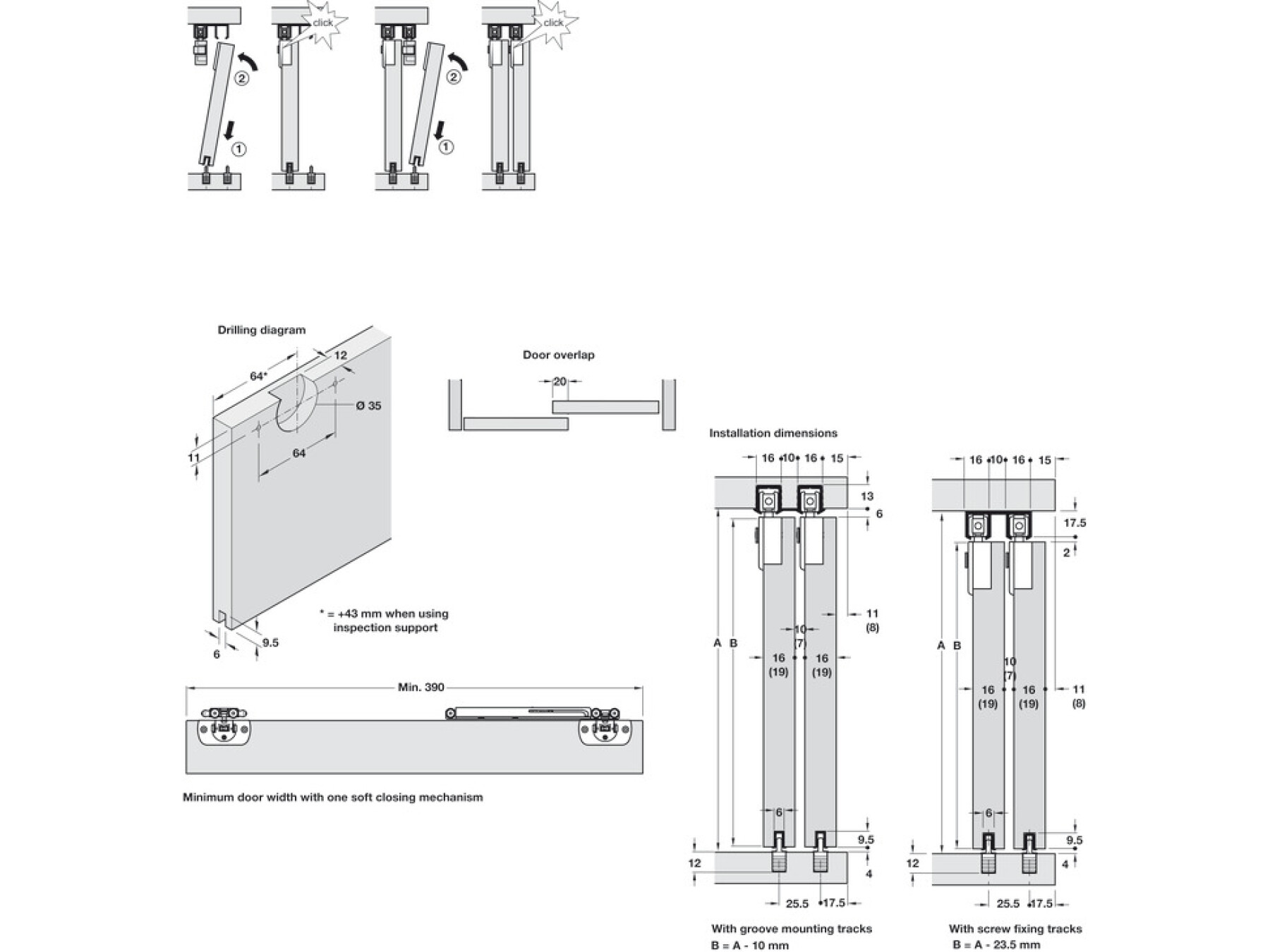

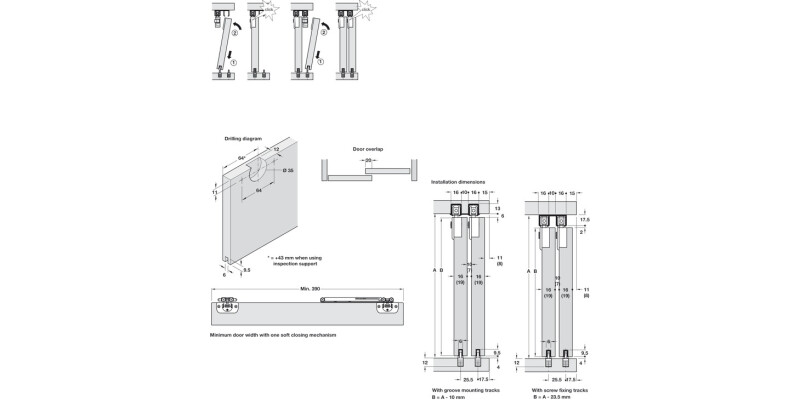

Pitch length of running gears must be min. 245 mm with soft closing mechanism on one side and min. 425 mm with soft closing mechanism on both sides.
Inspection support cannot be used in combination with running gear with soft and self closing mechanism.

Specifications

Number of door leaves per set

2.00

For door thickness

16 – 19 mm

For door width

≥370 mm

For door weight

21 – 40 kg

Running position

Top

Number of rollers

4.00

Running gear guided by

Ball bearing

For door material

Wood

Height adjustable

Cabinet version

with thin cabinet top panels

Area of application

For 2 doors

Note on door weight

We recommend that you adhere to the minimum door weight.

Door stopper

Top clip-in door stopper or as soft and self closing mechanism, for sliding into running track

Material/finish

Housing: Zinc alloyRunning gear: Zinc alloyGuide: PlasticRollers: PlasticAxis: Steel

Adjustment facility

Height adjustment ±2 mm

Door adjustment via

adjusting wheel

Installation

Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

Hafele Lifetime Guarantee

10 years

Type of opening

linear

Number of door wings in a system max.

1 to 3
