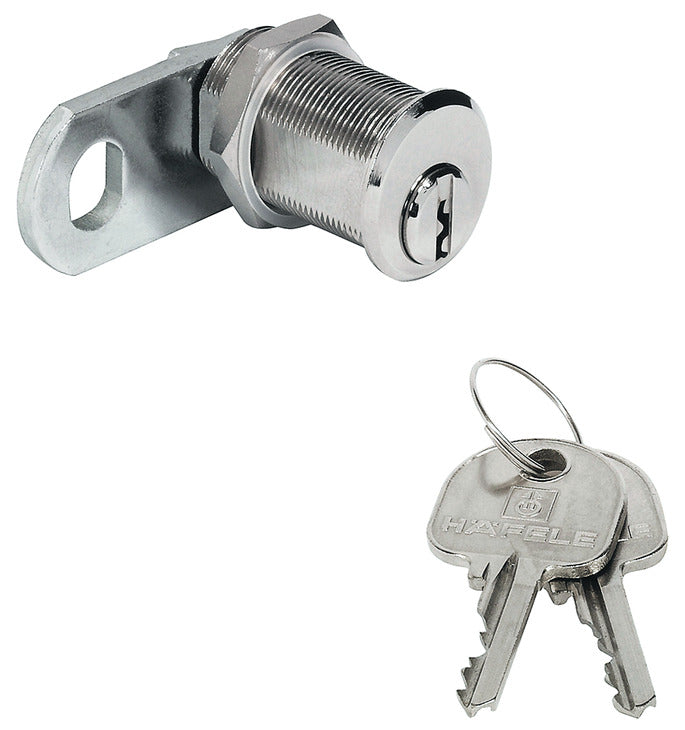

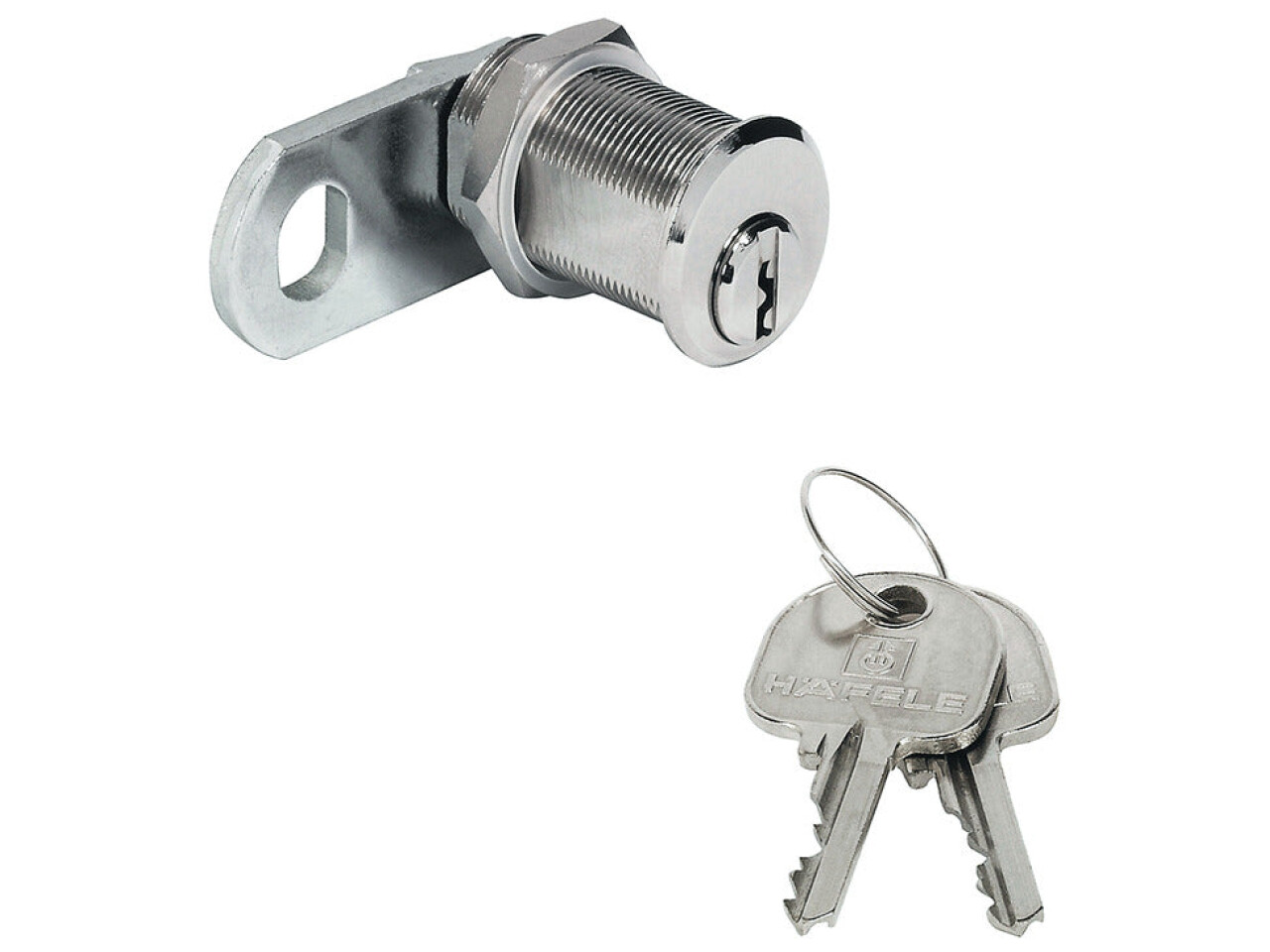

Cylinder Cam Lock, with Straight Cam and Nut Attachment, Thread Max. 21 mm

Product Details

Cylinder Cam Lock, with Straight Cam and Nut Attachment, Thread Max. 21 mm. (Product Part No: 235.92.814) is a reliable, secure choice for wardrobes, office cabinets, and furniture that needs a neat, professional locking solution. Built around a smooth, straight-locking cam, this lock helps you achieve a clean closure action with dependable engagement every time.

Designed for convenience and flexibility, the closure direction is 90° (reversible, with key trap) (Dir. A: D, F, G). This means the locking cam can be configured to suit your door setup while still keeping the cylinder comfortably protected with a key trap for added peace of mind.

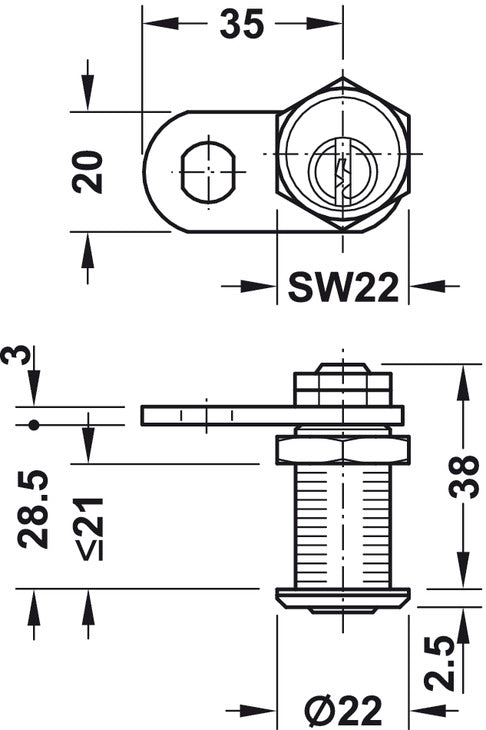

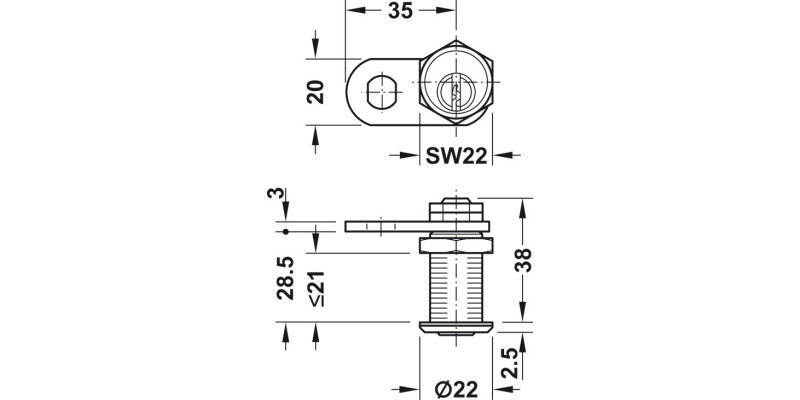

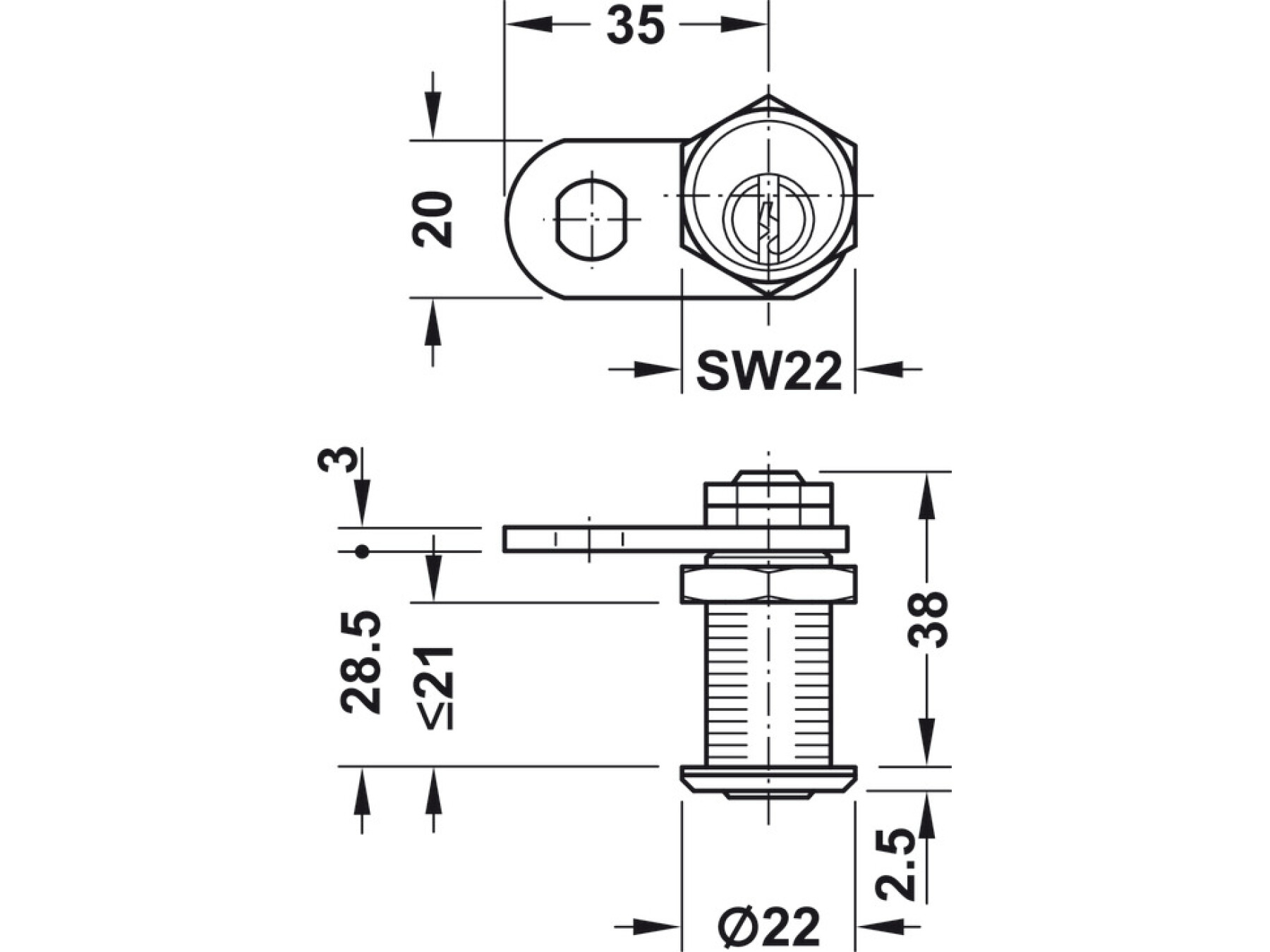

With a fit for door thicknesses up to 21 mm, the lock’s thread length L is 21.00 mm, making it an ideal match for many standard cabinet applications. The lock features a nickel plated, polished finish that delivers an attractive, durable surface—perfect for both living and commercial environments.

For confident security, the cylinder uses a 5 pin tumbler locking system and comes with a key. It’s also keyed alike with key change H1, making it a smart option when you’re matching multiple locks across a single furniture range or site.

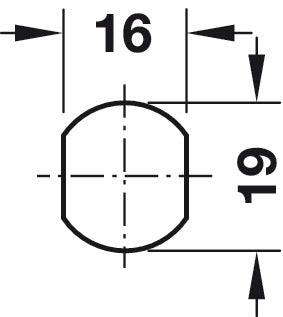

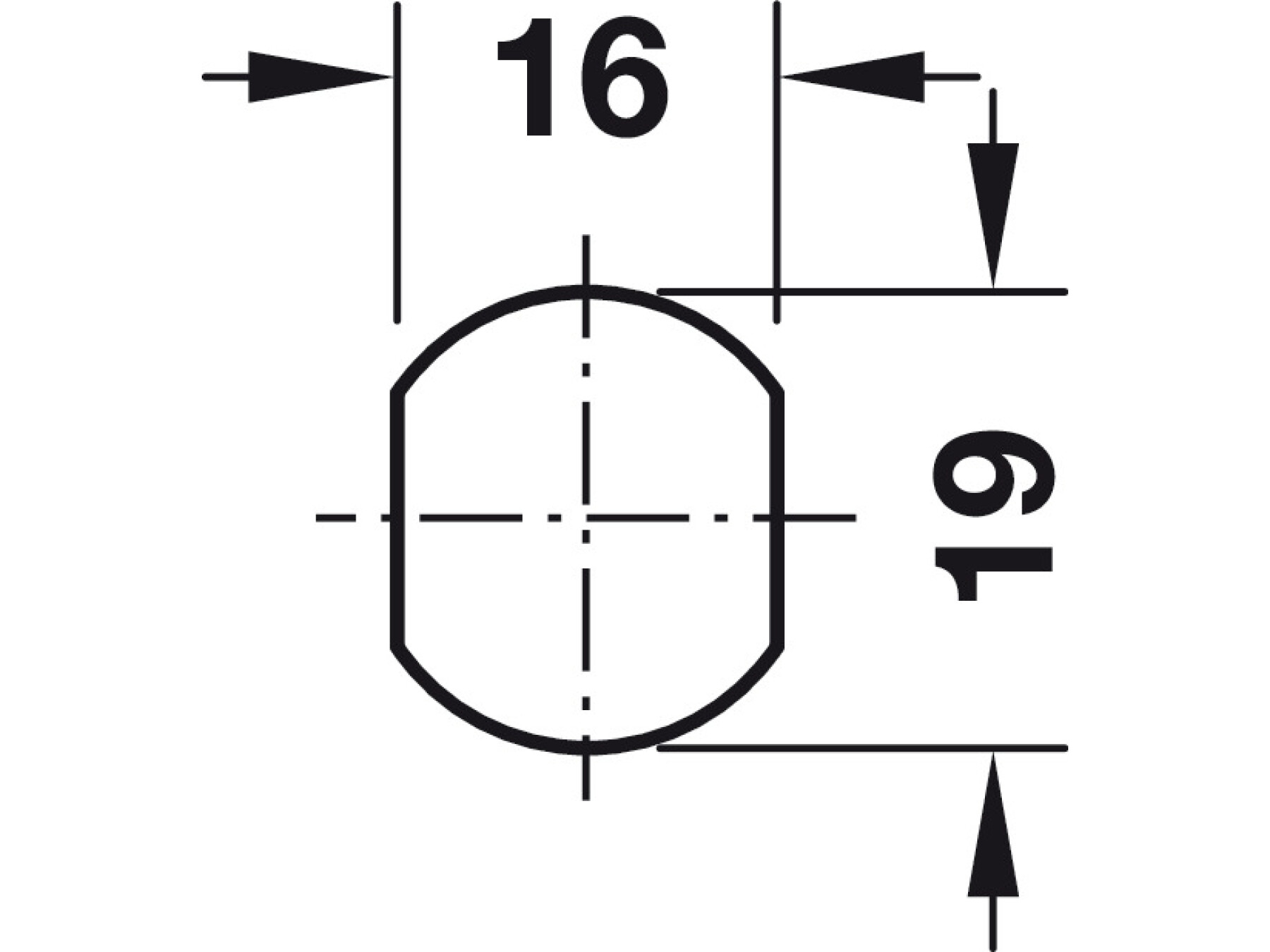

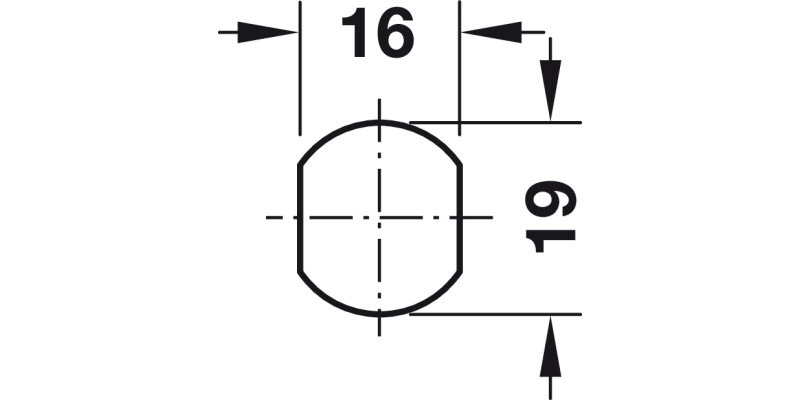

Easy installation: screw fixing with hexagonal nut (aperture pattern 19 x 16 mm). Please note the order reference: order spacer bushes and anti-twist washer separately for complete fitting.

Upgrade your cabinets and furniture with the Cylinder Cam Lock, with Straight Cam and Nut Attachment, Thread Max. 21 mm.—a compact lock that combines smooth operation, a refined finish, and dependable security.

Order spacer bushes and anti-twist washer separately
