Cylinder Cam Lock, without Key Trap, Ø 18 mm Cylinder

Product Details

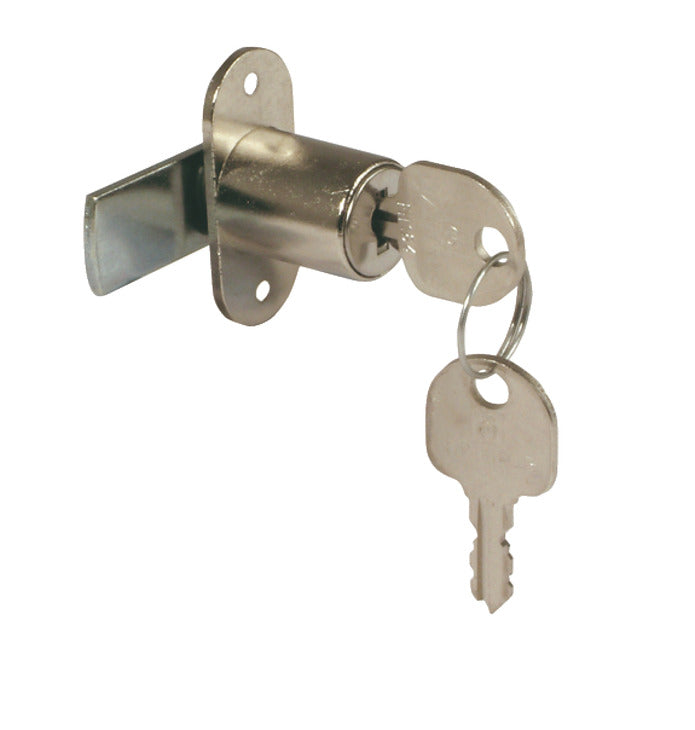

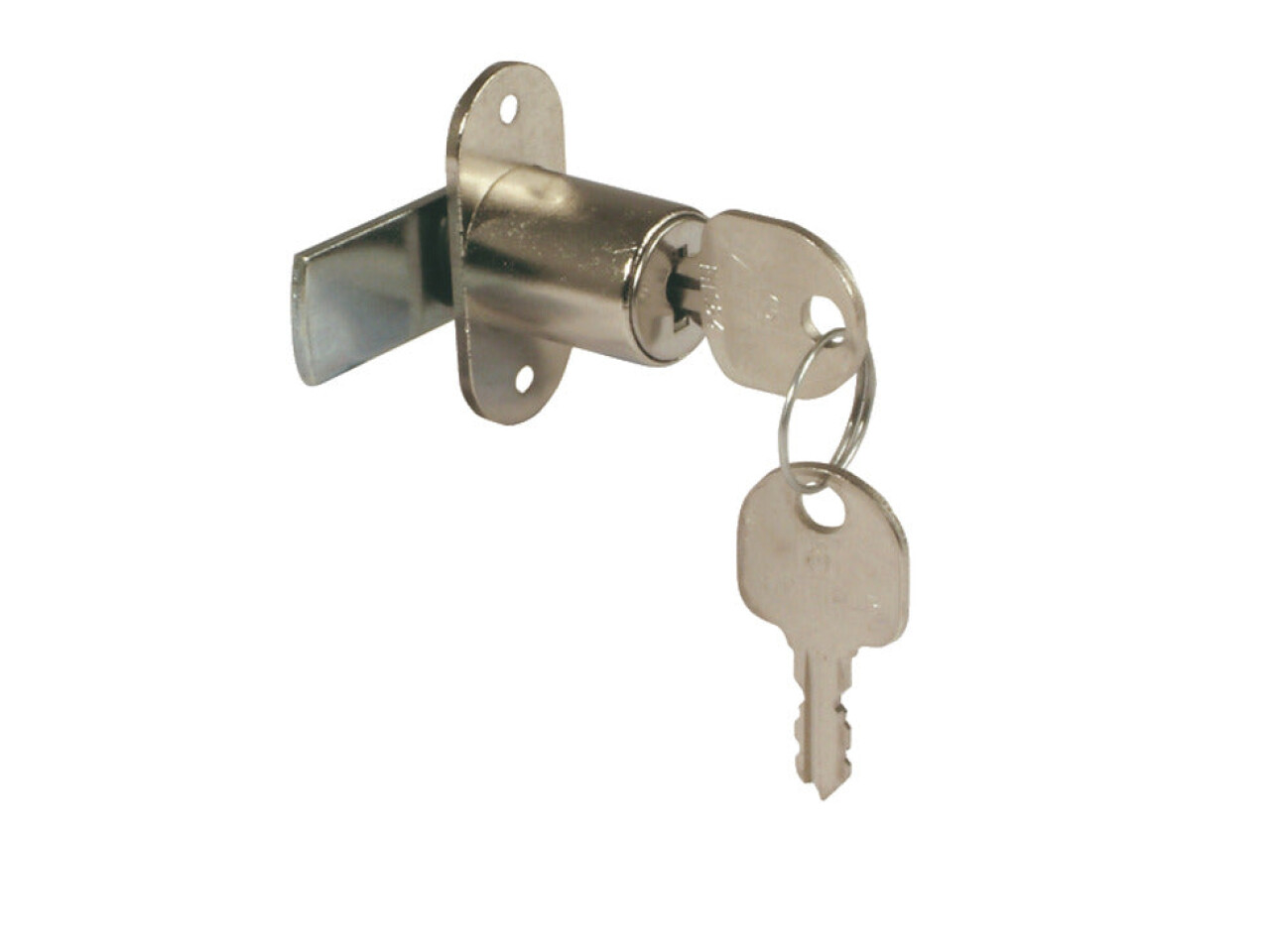

Cylinder Cam Lock, without Key Trap, Ø 18 mm Cylinder. (Product Part No: 235.04.814) is a reliable, space-saving locking solution designed for use with cabinets and furniture hardware systems. Built for smooth operation and a secure closure, this cam lock helps you protect stored items while keeping the look of your furniture clean and professional.

Featuring the Closure direction 90° A (D,F,G), this lock delivers a precise 90° cam travel for dependable latching performance. The keyed-alike option Keyed alike: key change FH1 makes it easy to manage matching keys across compatible installations—ideal for commercial fit-outs, offices, and shared storage areas.

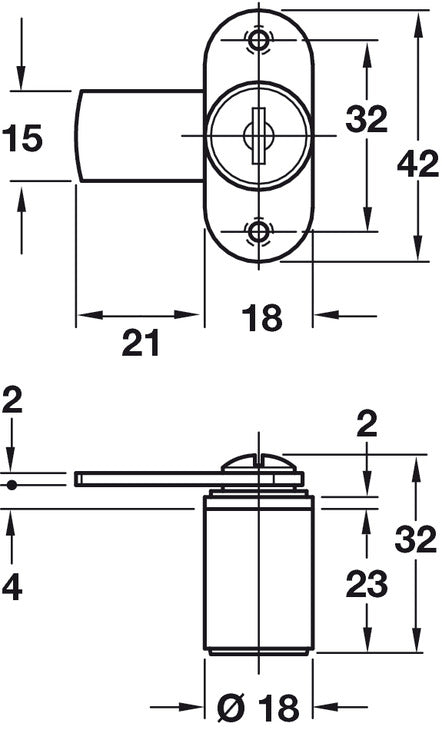

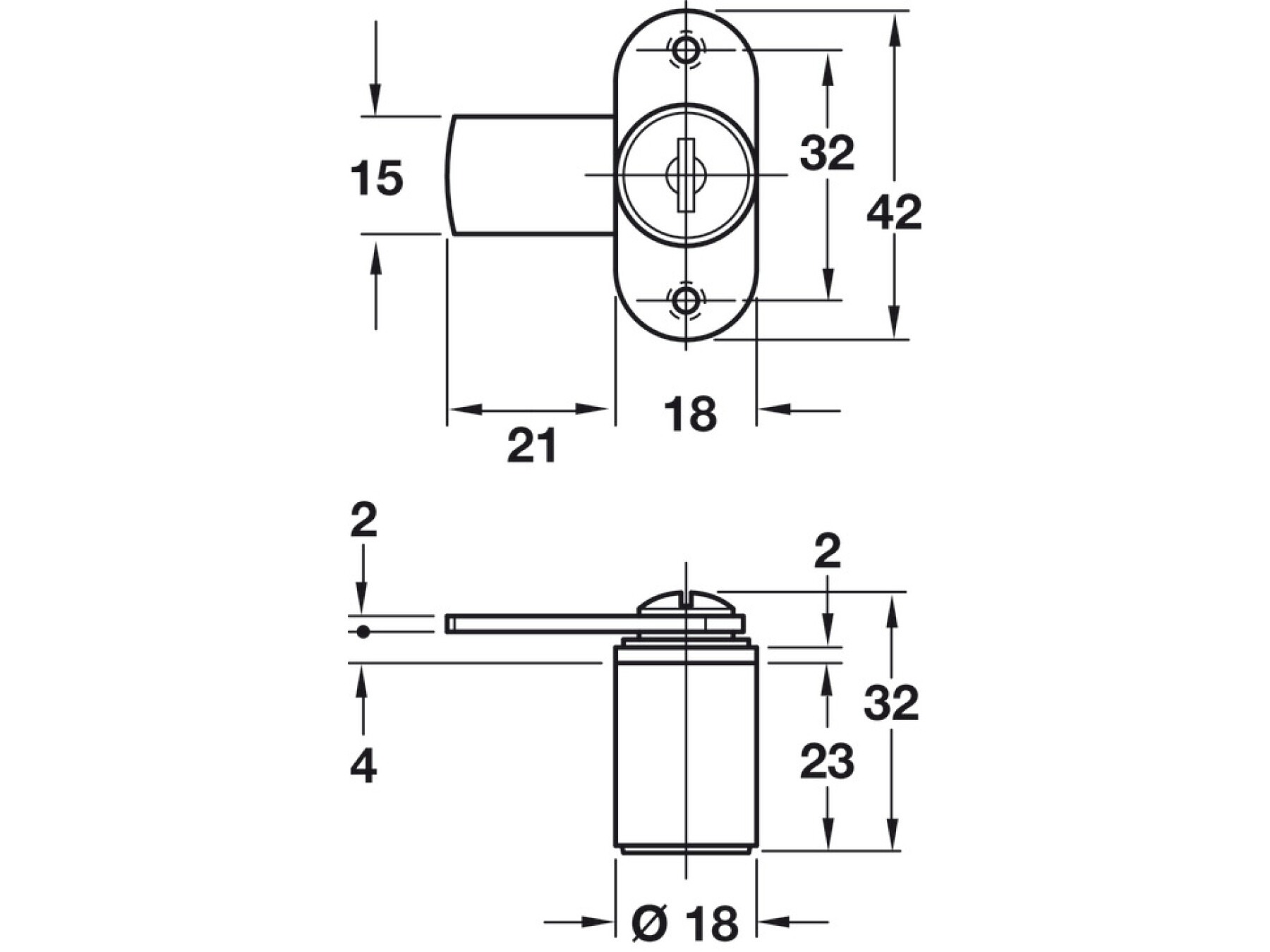

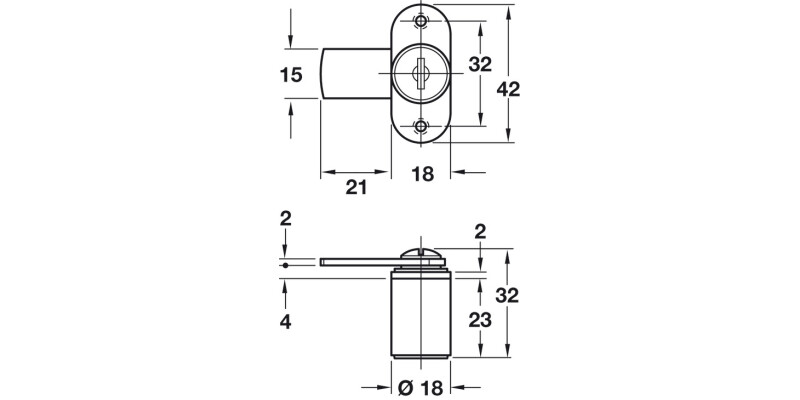

With a cylinder diameter of 18.00 mm and a cylinder housing length of 23.00 mm, it’s made to fit confidently within standard cabinet lock applications. The locking system includes 5 plate levers, supporting stable engagement for everyday durability.

Finished in a premium matt nickel plated appearance on the mounting plate and cylinder, the lock blends well with modern interiors. The mounting plate is crafted from zinc alloy, while the cylinder is also zinc alloy and the lever uses galvanized steel for dependable strength.

Installation is straightforward with vertical mounting. The package includes 2x keys and 1x locking lever. Please note: the cylinder rosette must be ordered separately.

Upgrade your cabinet security with the Cylinder Cam Lock, without Key Trap, Ø 18 mm Cylinder.—a practical choice for lasting performance and a polished finish.

Cylinder rosette to be ordered separately

2x Keys
1x Locking lever
