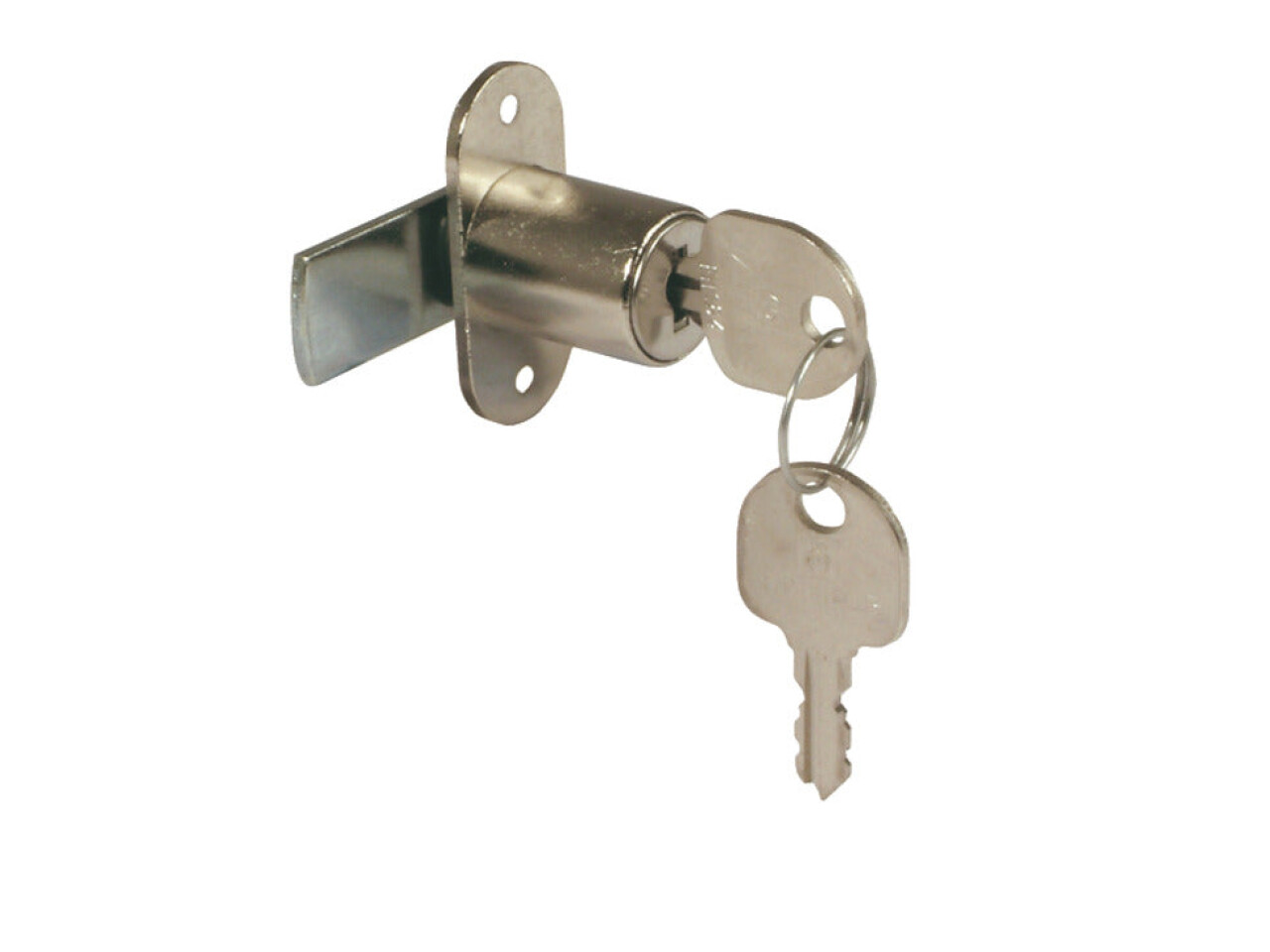

Cylinder Cam Lock, without Key Trap, Ø 18 mm Cylinder

How far does the lock travel when closing?

Closure travel is 90 degrees. This means the locking lever turns through a quarter turn to engage the cam lock, helping provide a consistent closure feel on cabinets and furniture applications.

What does the closure direction 90 degrees B (C,E,H) mean?

The lock is suitable for closure direction 90 degrees B. The code B with options C, E and H indicates compatibility with common cabinet handle and lever positions, so the cam action aligns correctly with your furniture layout.

Is this cam lock suitable for vertical mounting?

Yes, it is designed for vertical installation. This helps ensure the lever movement and cam engagement work as intended when fitted to typical cabinet doors or furniture panels.

Can I reuse a cylinder rosette, or do I need to order one separately?

A cylinder rosette must be ordered separately. This rosette covers and finishes the cylinder opening, so check your current hardware against the lock requirements before purchasing.

Does it come with keys, and are the keys keyed alike?

It is supplied with 2 keys. The lock is also keyed alike: key change FH1, which is helpful if you want multiple locks to share the same key change option.

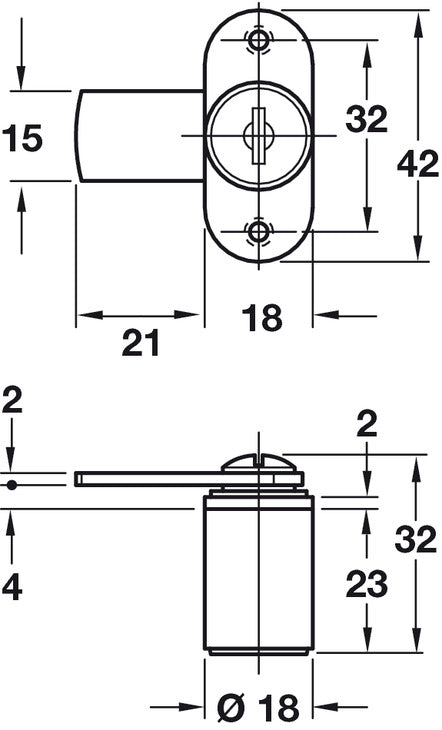

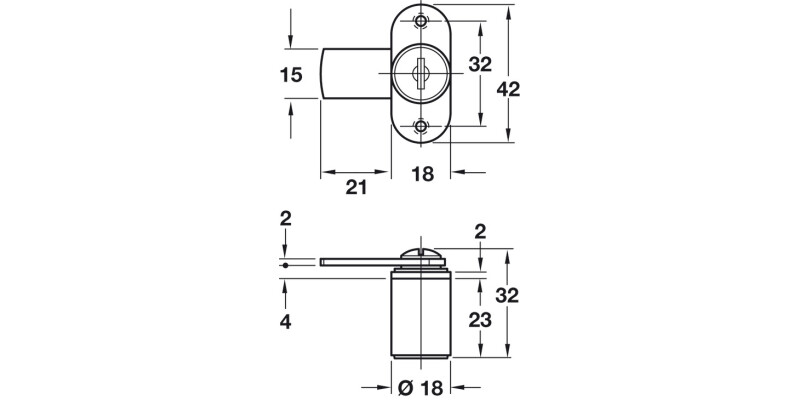

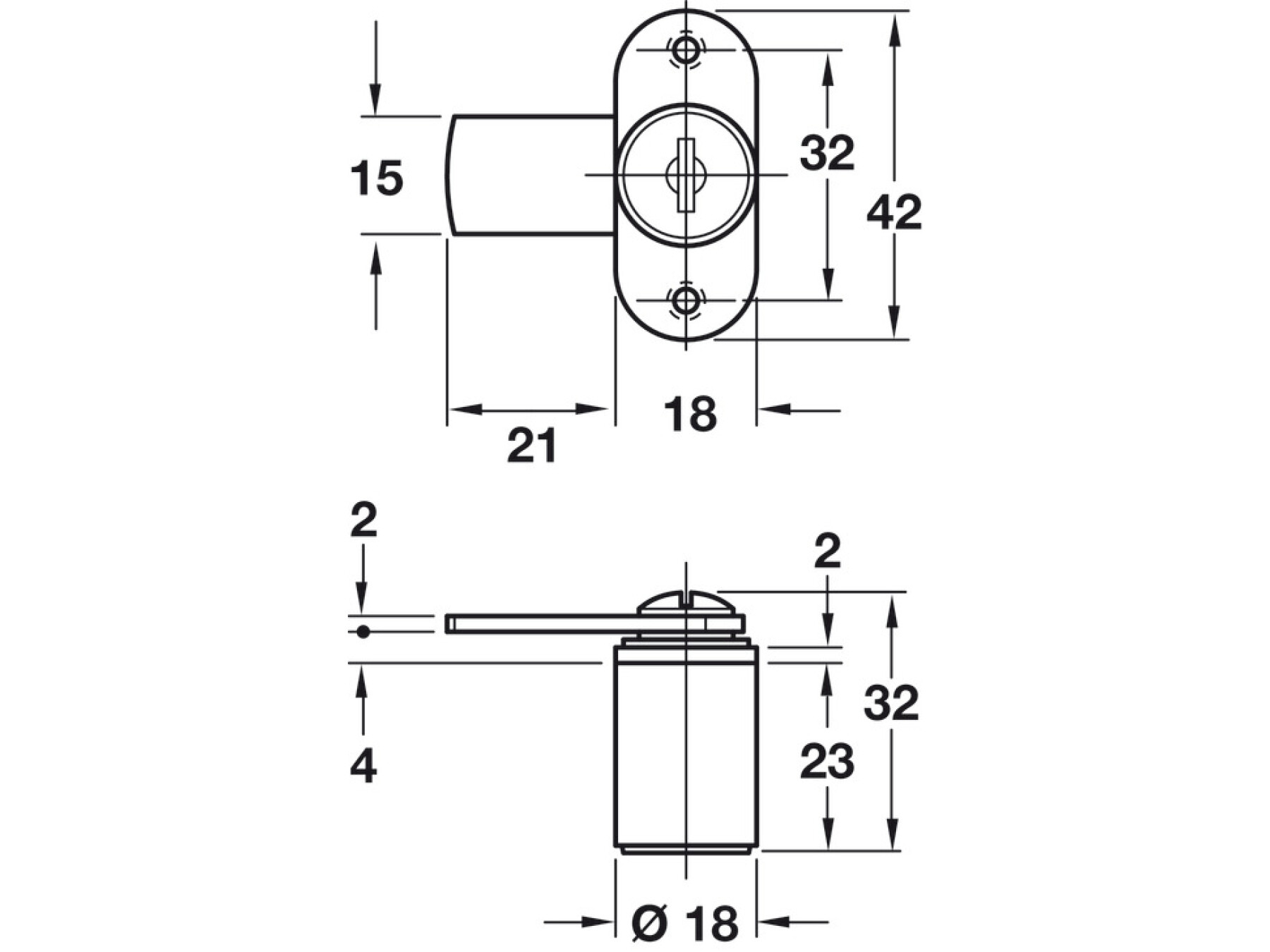

What size is the cylinder, and will it fit my furniture?

The cylinder diameter is 18 mm with a cylinder housing length of 23 mm. These dimensions are key for compatibility with existing cut outs and plates, so it is worth checking them against your door or furniture spec.

What parts are included in the box?

Supplied with 2 keys and 1 locking lever. This gives you the core components needed to fit the cylinder cam lock to the door, with the rosette handled separately as noted.
