Cylinder Cam Lock, with Straight Cam and Nut Attachment, Thread Max. 21 mm

Product Details

Cylinder Cam Lock, with Straight Cam and Nut Attachment, Thread Max. 21 mm (Product Part No: 235.92.716) is a reliable, professional-grade cabinet locking solution designed for smooth daily use and secure closure. Ideal for living and commercial furniture applications, this cabinet cam lock delivers a clean, space-saving fit while keeping your doors firmly in place.

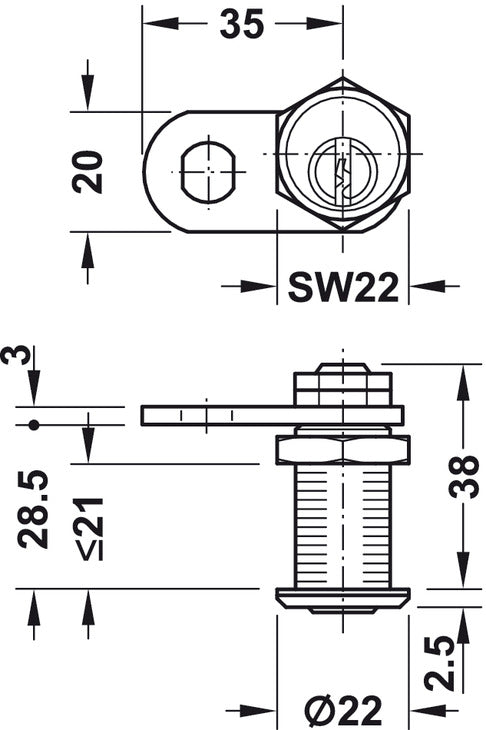

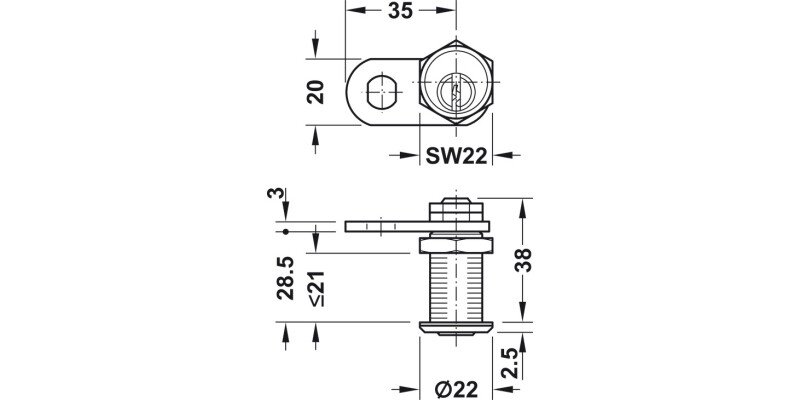

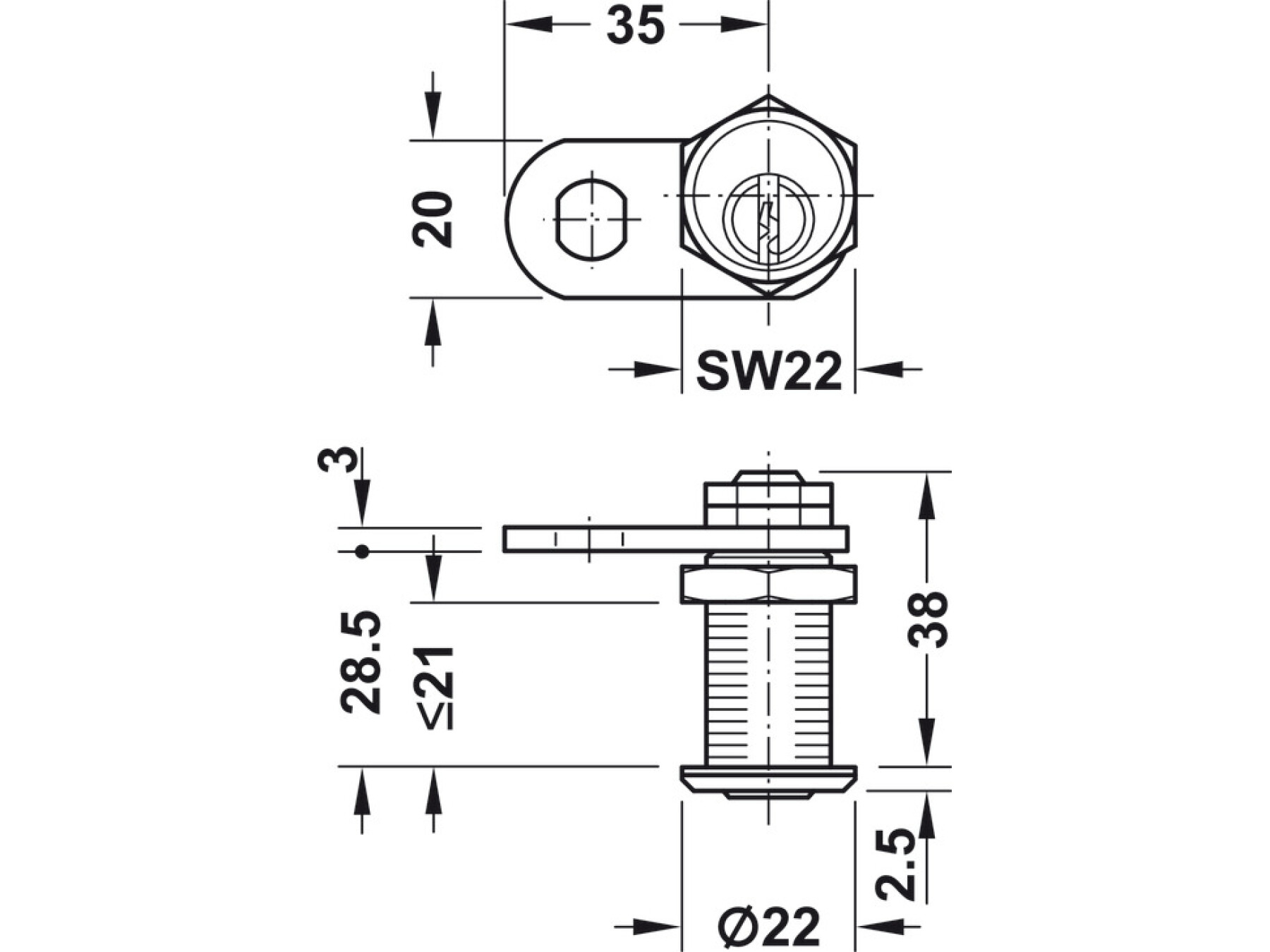

With straight locking cam and a closure direction of 90° (reversible, with key trap), the Cylinder Cam Lock, with Straight Cam and Nut Attachment, Thread Max. 21 mm makes it easy to align installation with your cabinet’s opening style—perfect for configurations identified as A (D, F, G). The lock is engineered for door thicknesses up to 21 mm, helping you achieve a neat, accurate fit on compatible furniture doors.

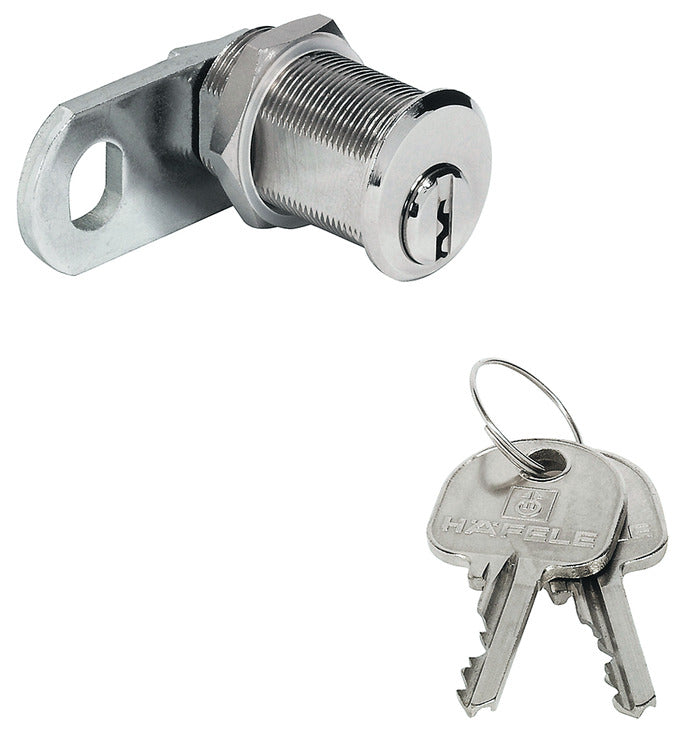

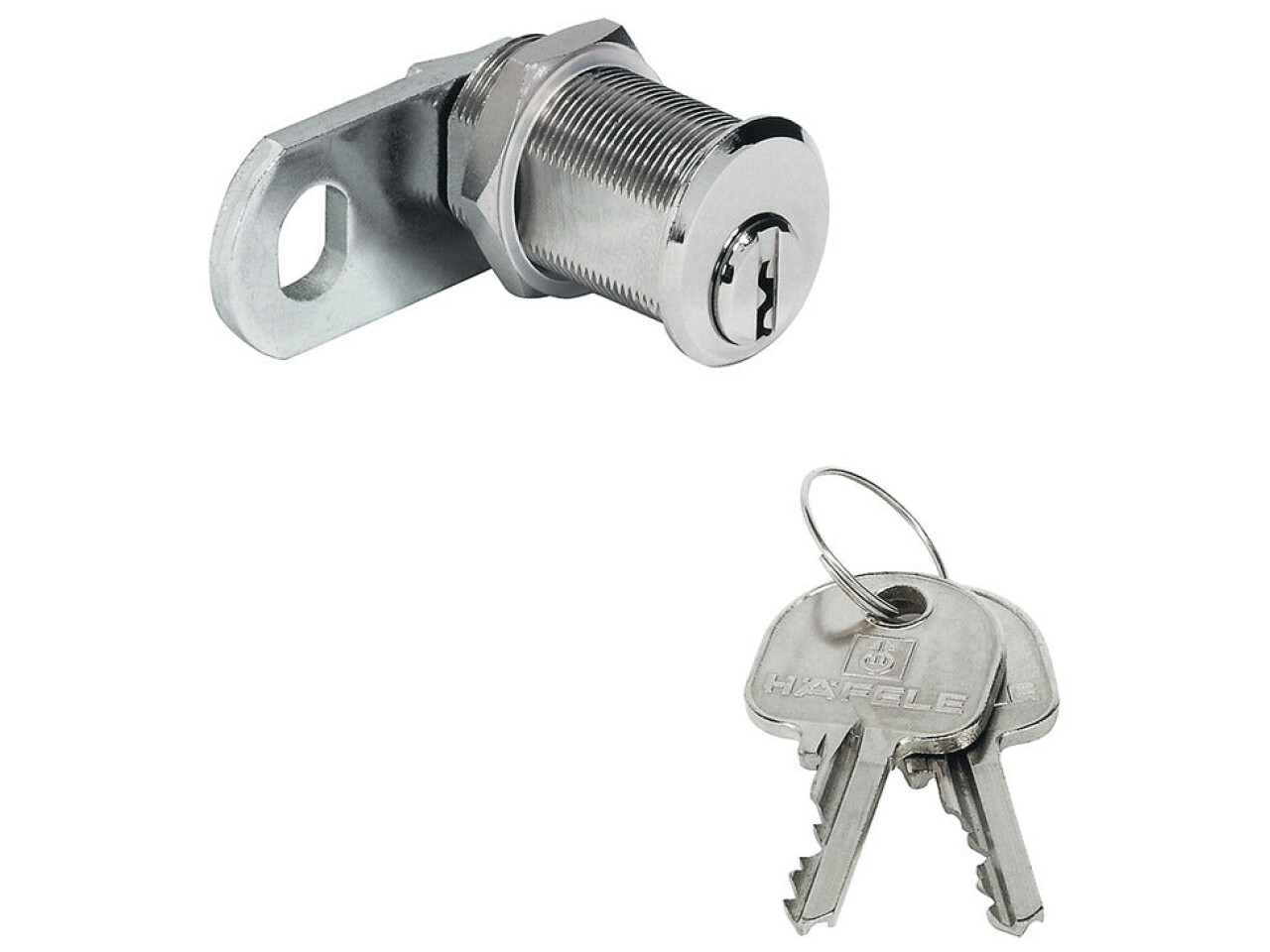

Built for strength and a refined appearance, the cam lock features a brass construction with a round cylinder, finished in nickel plated, polished style. Inside, it uses a high-security locking system with 5 pin tumblers for dependable key control. A key is included, so you can install with confidence right away.

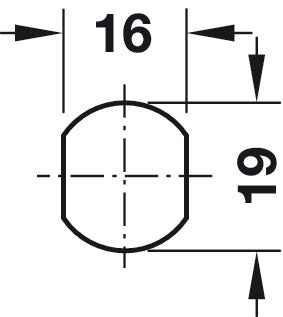

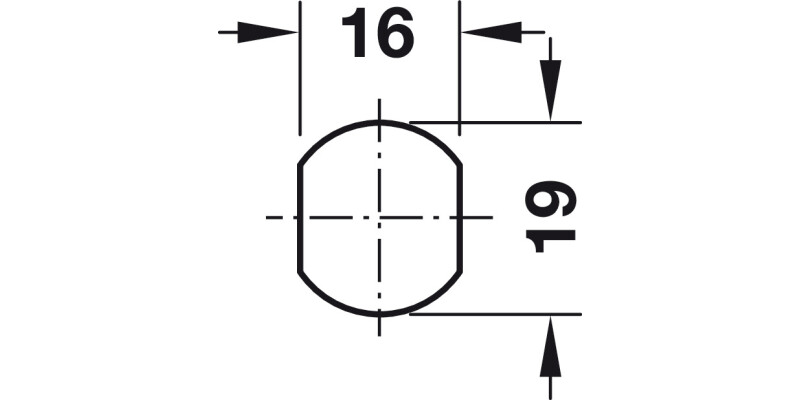

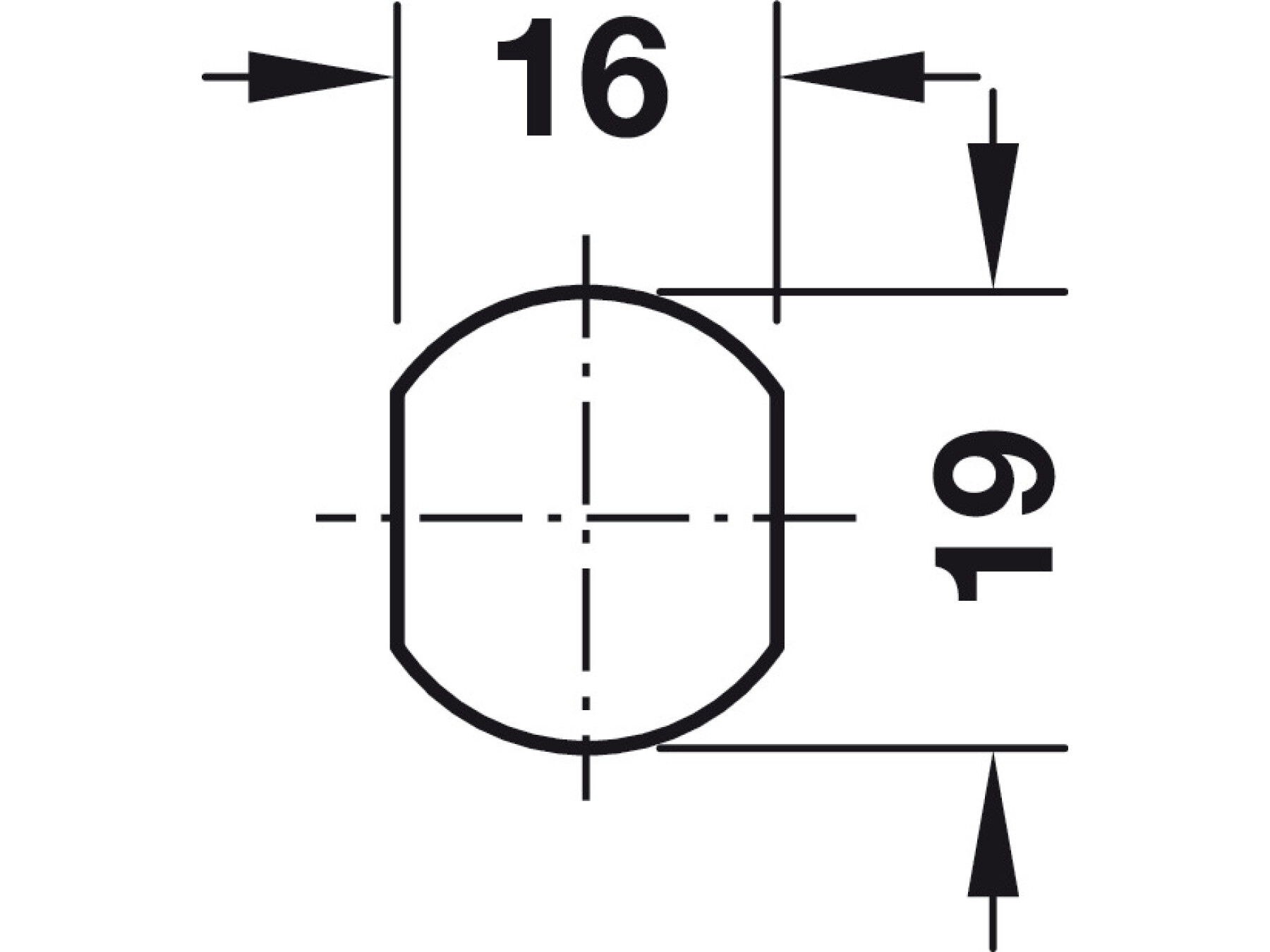

Installation is straightforward: screw fixing with a hexagonal nut (aperture pattern 19 x 16 mm). The cam lock also includes a thread length L of 21.00 mm, supporting a stable, secure mount.

Upgrade your cabinet security today. For the full, correct assembly, please note the order reference: order spacer bushes and anti-twist washer separately. Choose Cylinder Cam Lock, with Straight Cam and Nut Attachment, Thread Max. 21 mm for a smart combination of secure locking, quality materials, and tidy installation.

Order spacer bushes and anti-twist washer separately
