Cylinder Cam Lock, with Cranked Cam and Nut Attachment

Product Details

Is the 180° closing travel reversible, and does it avoid key trap?

Yes. The closure travel is set to 180° and is reversible, and it is designed to avoid key trap during normal operation. This makes it easier to align the lock with your cabinet or furniture installation.

Will this cylinder cam lock suit my door thickness?

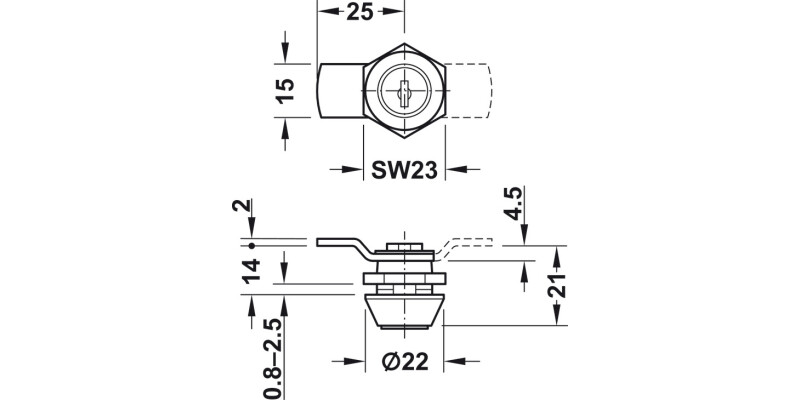

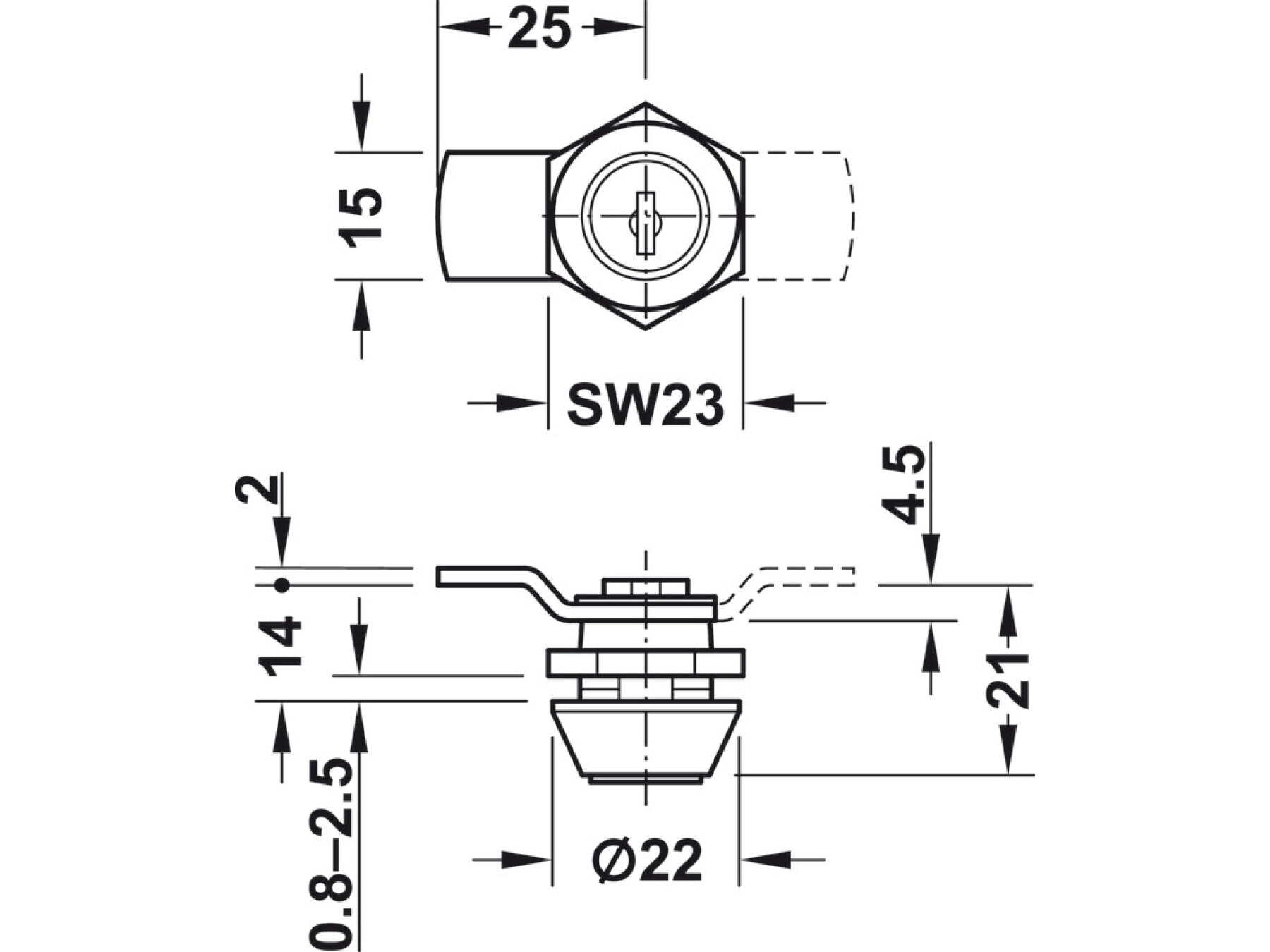

This lock is suitable for door thicknesses from 0.8 mm to 2.5 mm. If your cabinet door is within this range, the cam lock and fixing pattern should fit as expected.

How is it installed, and what fixing hardware is required?

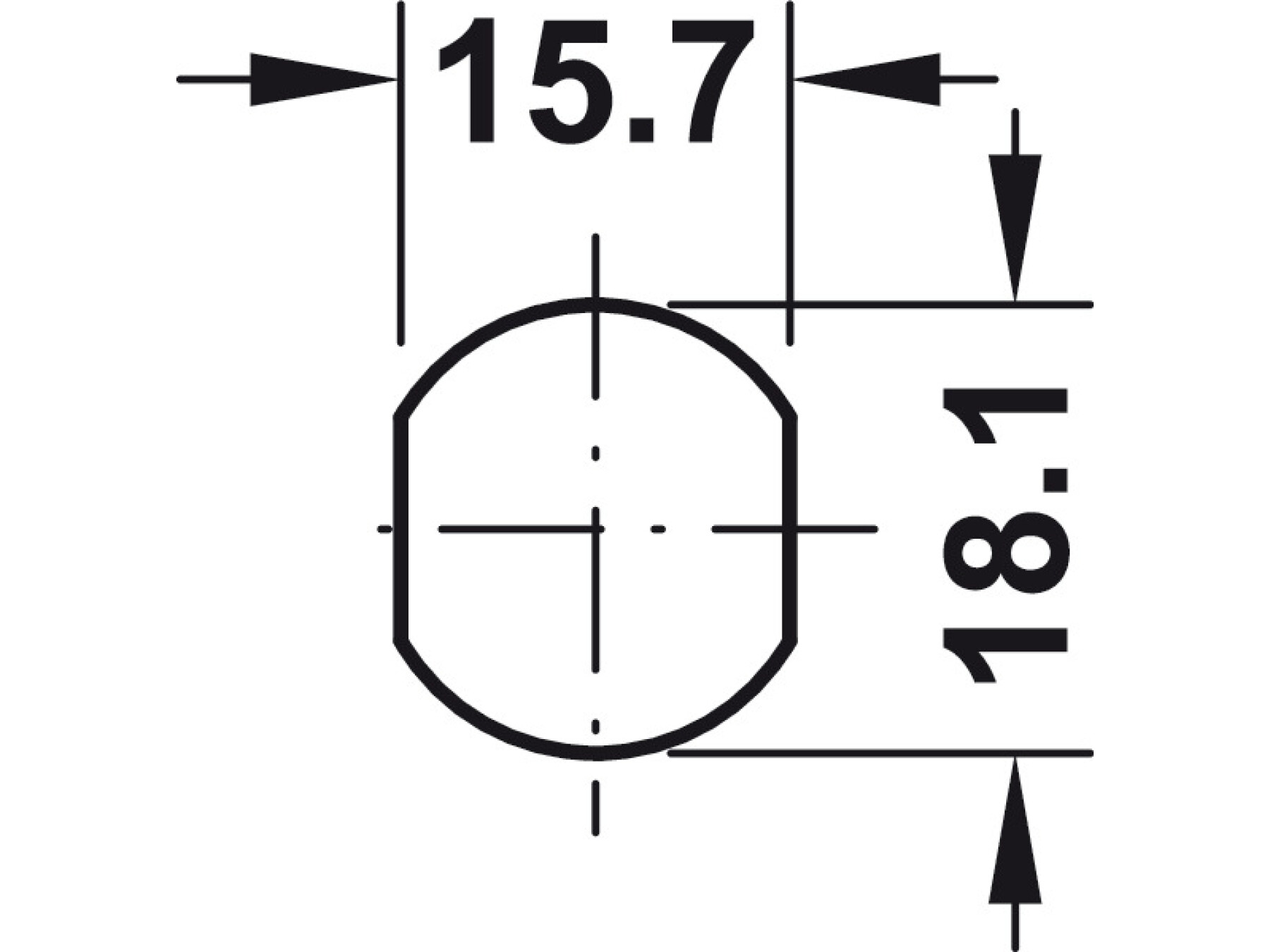

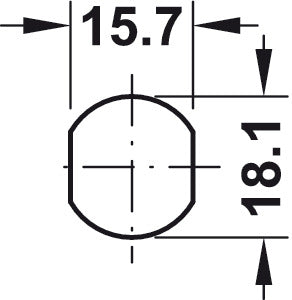

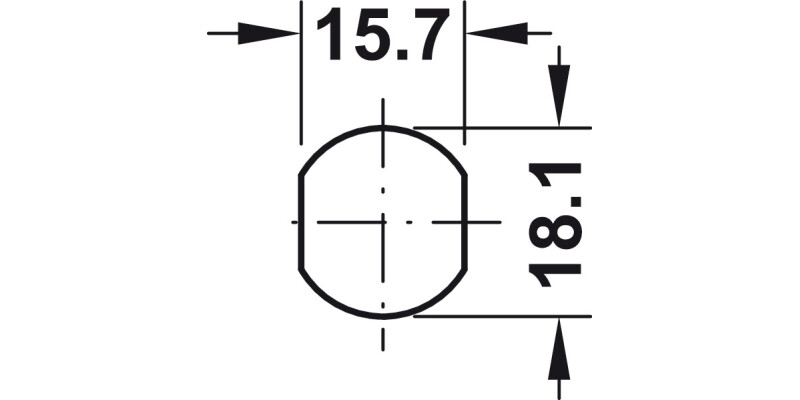

It is designed for screw fixing with a hexagonal nut. The installation uses an aperture pattern of 18.1 x 15.7 mm, and includes a lock washer and hexagonal nut in the supply.

Can the cam lock be mounted with the correct closing direction for my cabinet?

The lock supports closure direction 1 (2 to 8) and features an arrangement described as reversible without key trap. If you are matching an existing lock position, it is worth checking your furniture layout against the required closing direction before fitting.

What is included in the box, and how many keys do I get?

You receive 1 cam lock and 2 keys, plus a pre mounted locking cam, hexagonal nut and lock washer. This is typically enough for day to day use while keeping a spare key.

What finish does the lock have, and is it suitable for visible furniture fittings?

The visible components are offered in a chrome plated, polished finish. This helps the lock blend with many modern cabinet and furniture hardware styles, including those that use chrome plated elements.

Is the locking cam fixed plate, and does it use a crank cam mechanism?

Yes. This version is supplied with a fixed plate cylinder and a cranked locking cam. The cranked cam is commonly used to achieve a reliable latch alignment in cabinet and furniture applications.
