Rim Lock Case, Short Bolt Travel, Backset 23 mm, Symo 3000

Product Details

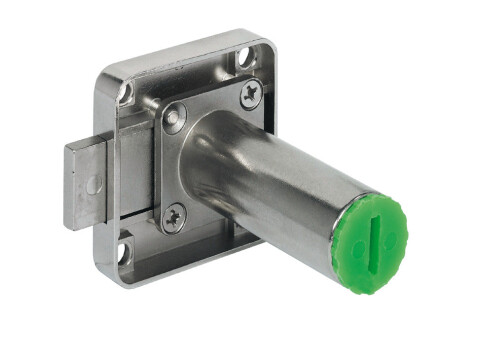

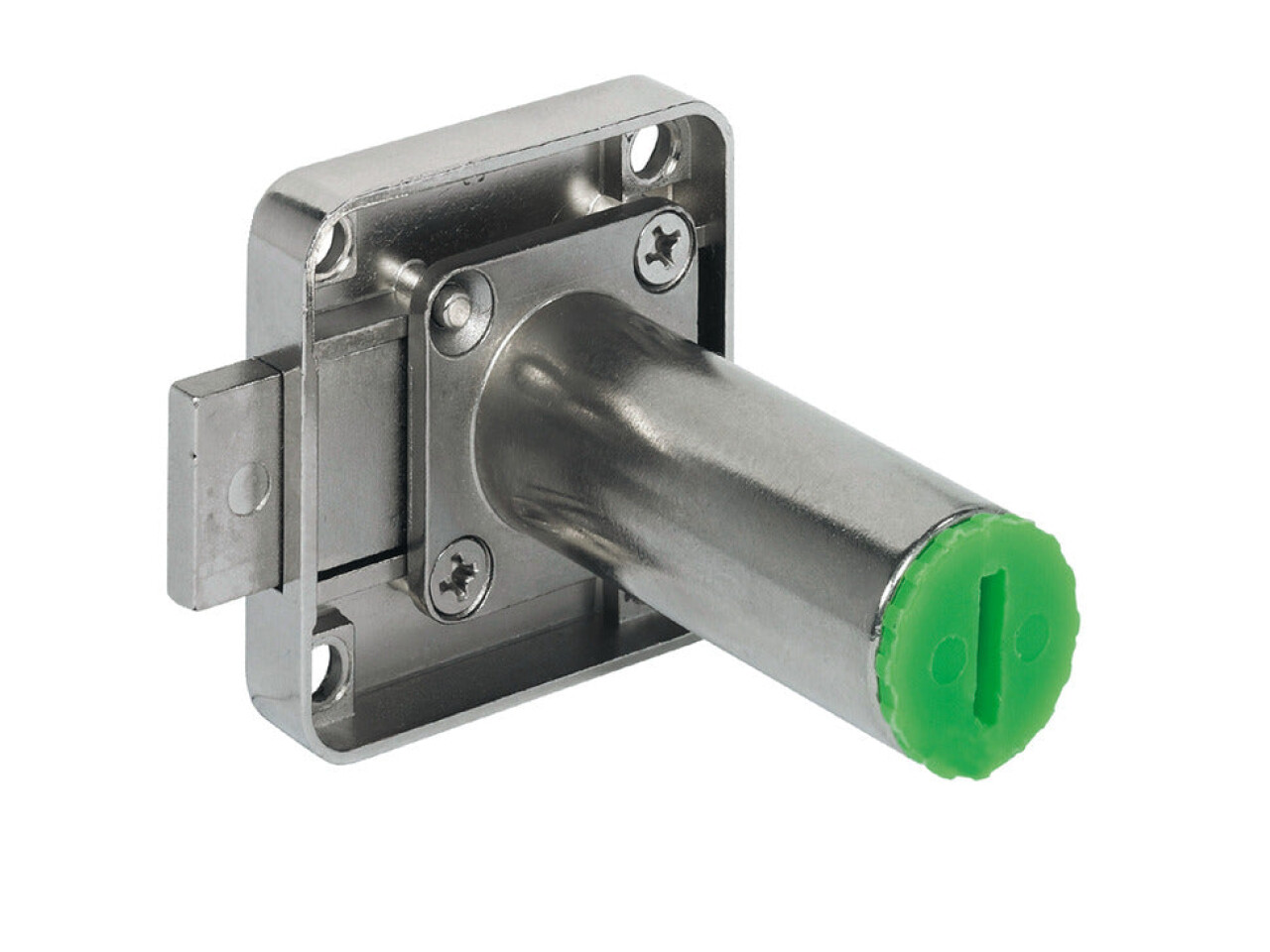

Rim Lock Case, Short Bolt Travel, Backset 23 mm, Symo 3000. (Part No: 232.26.602) is a premium right-hand deadbolt rim lock designed for reliable security on furniture doors and drawers. Built for customers who want a clean, professional finish without sacrificing strength, this rim lock pairs seamlessly with a Symo cylinder removable core—making it an excellent choice for modern living and commercial installations.

Featuring durable zinc alloy construction and a sleek nickel plated finish, the lock is engineered for everyday durability while maintaining an elegant appearance. The design includes an extended cylinder housing, giving the lock a compact, well-fitted look and helping support an easy, controlled installation on-site.

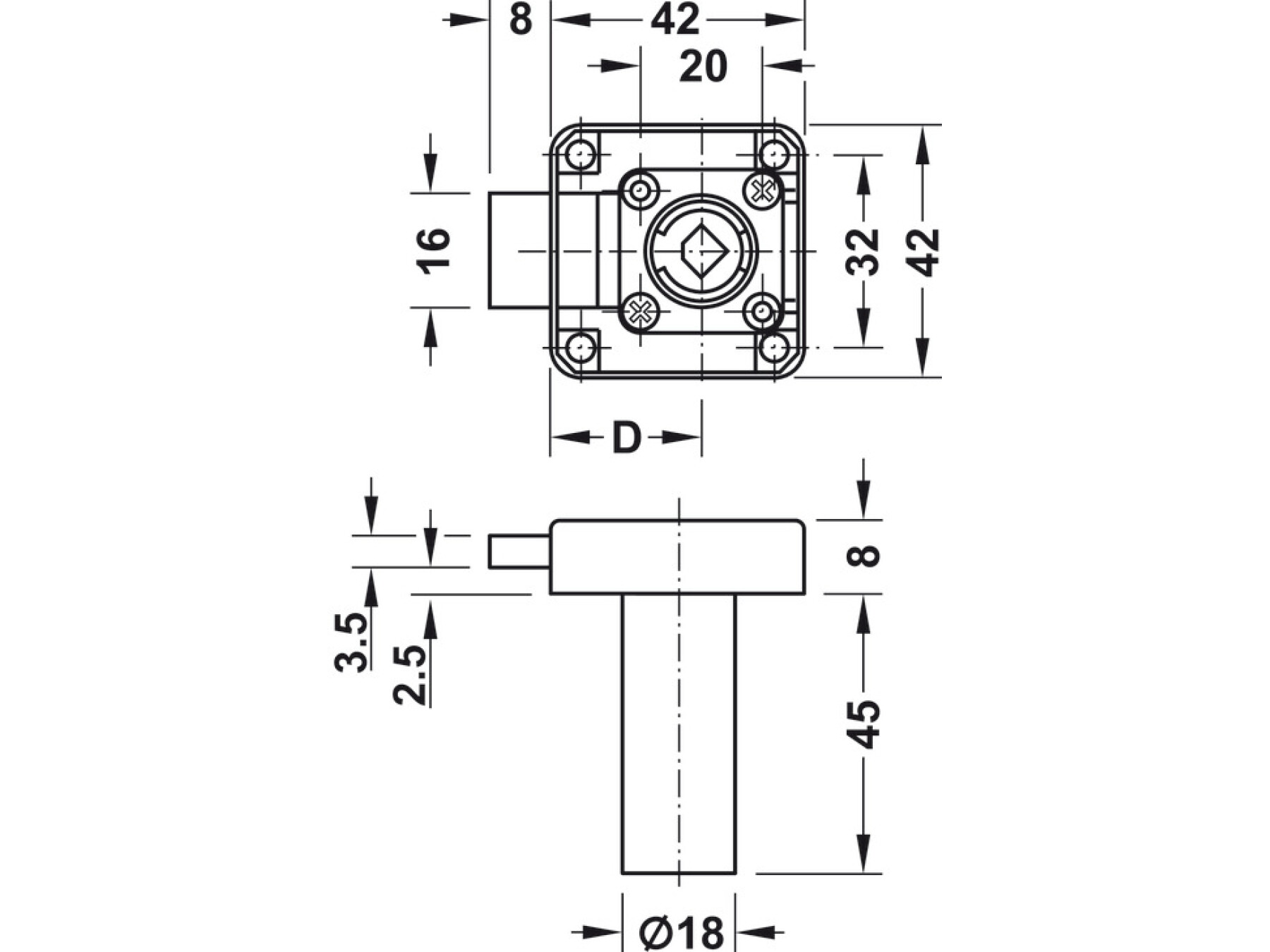

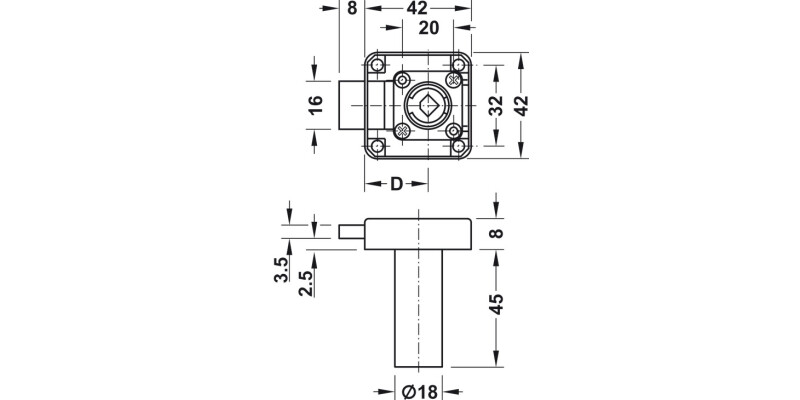

With a forend type of 25.00 mm and a cylinder housing length of 45.00 mm, this lock is ideal when you need the right proportions for smooth operation and secure engagement. The backset (D) is 25.00 mm, and the deadbolt throw dimension is 8.00 mm for dependable latching performance.

For compatibility and installation flexibility, the cylinder is prepared for a round cylinder with a cylinder diameter of 18.00 mm. The lock is right-hand (RH), and it is intended for on-site installation of cylinder cores, making upgrades or maintenance straightforward.

Order reference: order the lock handle 232.26.699 separately, and the cylinder rosette and Hospa Ø 3.5 mm screws separately—so you can complete your Symo security setup quickly and correctly.

Order lock handle 232.26.699 separately
Order cylinder rosette and Hospa Ø 3.5 mm screws separately
