Dead Bolt Rim Lock, with Ø 18 mm Cylinder, Backset 25 mm

Product Details

Is the Symo Rim Lock suitable for drawers as well as cabinets?

Yes. This is the drawer version, designed for standard furniture applications and particularly useful for mass production of furniture. It is a rim lock format that is commonly chosen where a neat, surface mounted locking solution is required.

What cylinder length does this rim lock use?

The product is built with a 22 mm cylinder length. Combined with the specified 18 mm cylinder diameter, it is intended to fit correctly with the matching furniture lock components and rosette supplied.

Will it match other locks if I want keys to be the same?

Keyed alike is supported. This model is supplied with keyed alike coding 0001, meaning locks set to this arrangement can be operated using the same key set. It is ideal when you are fitting multiple items across one furniture range.

How is the lock installed and what parts are included?

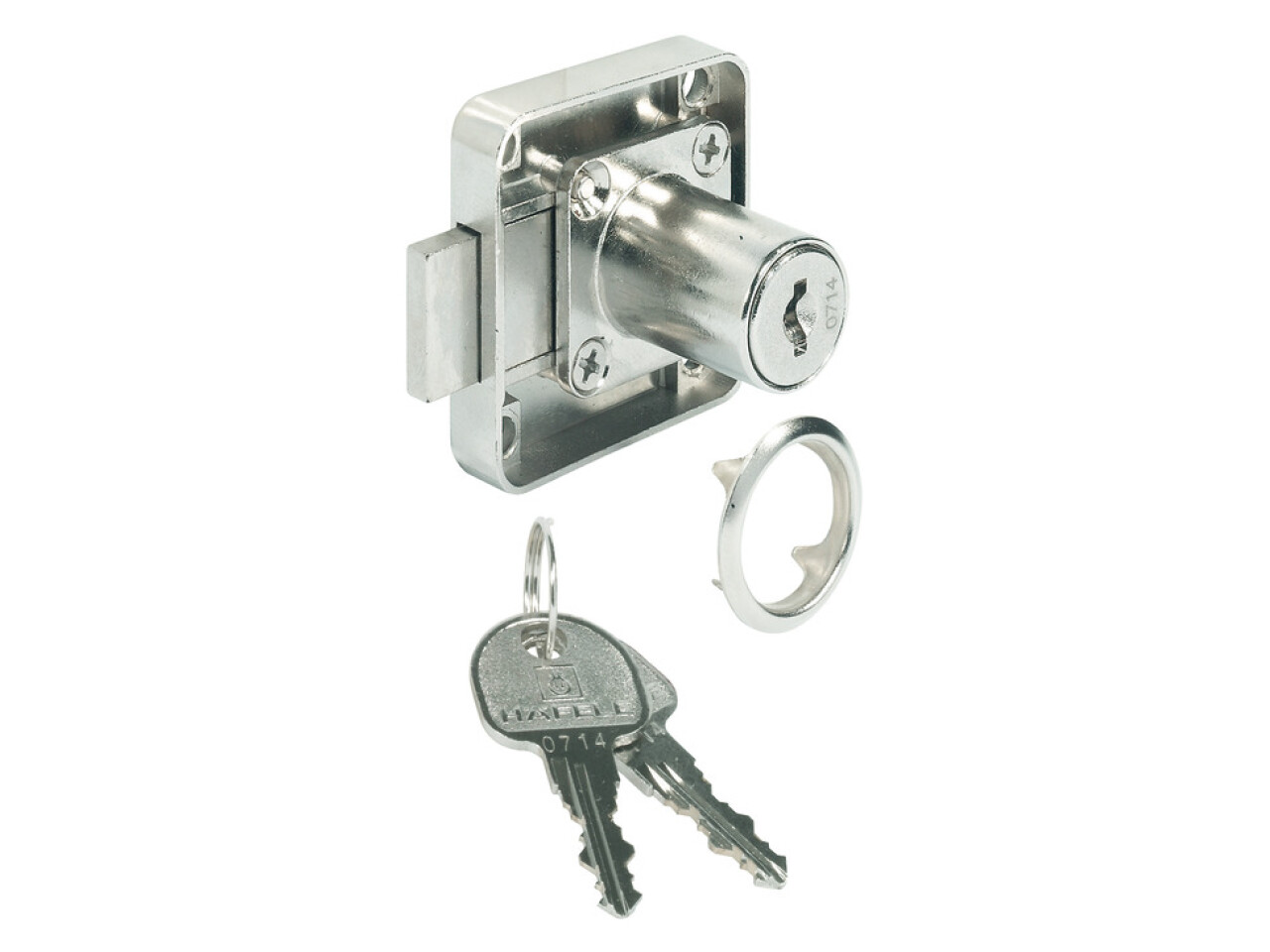

Installation is designed for a deadbolt rim lock setup in furniture applications. In the box you receive 1 deadbolt rim lock, 2 keys, and 1 cylinder rosette, so you have the core components needed to complete the fit.

What finish and colour is available?

This lock features a nickel plated appearance with a matt finish. The matt nickel style is a common choice for modern cabinet furniture because it blends well with many hardware finishes.

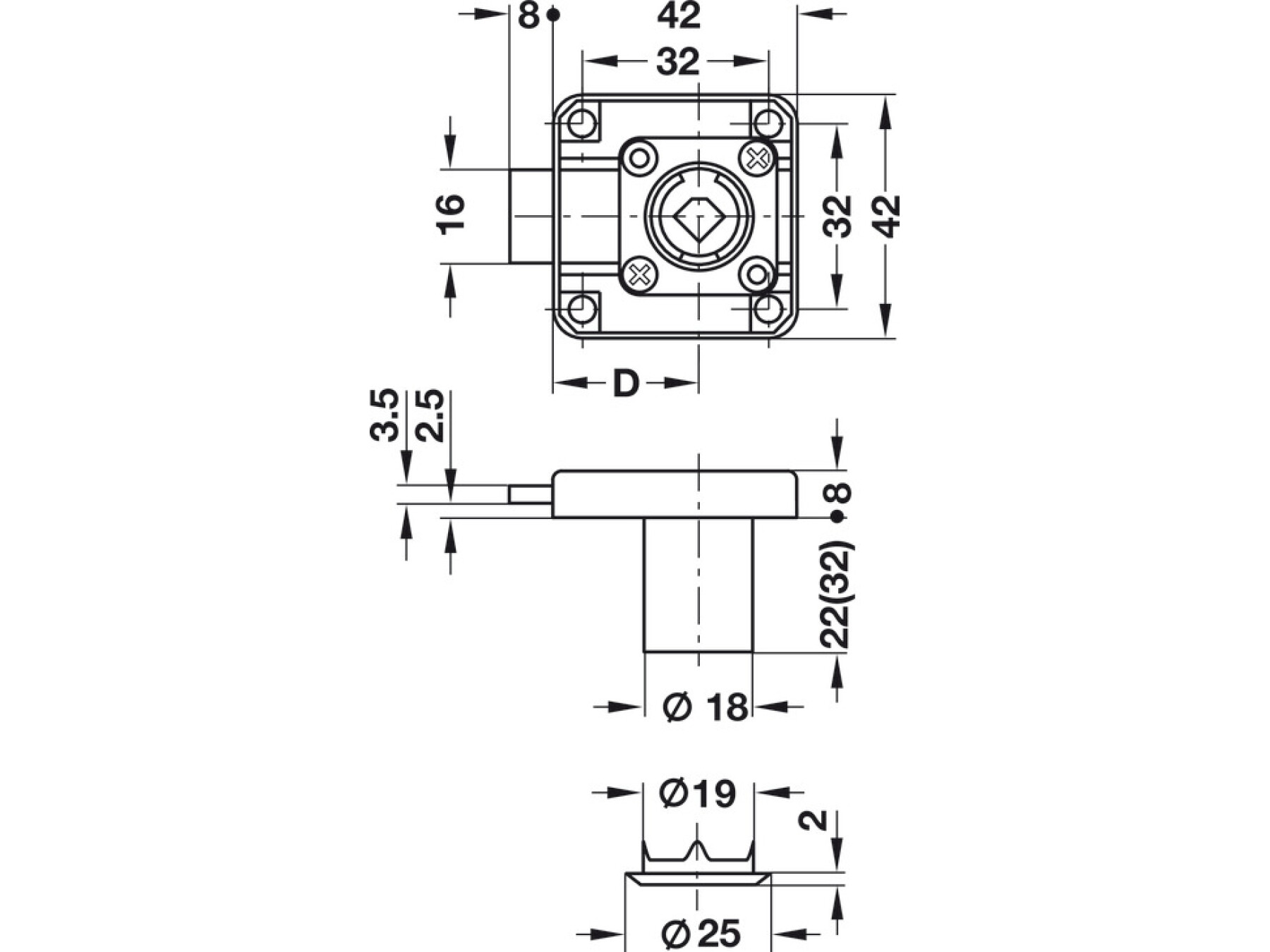

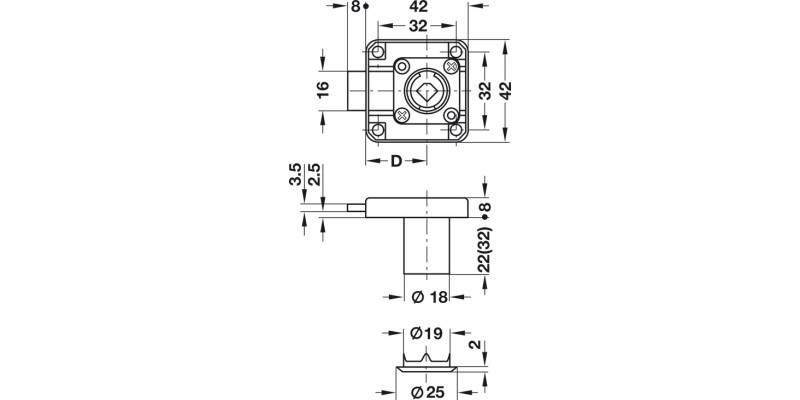

What backset and deadbolt throw does it provide?

The lock has a 25 mm backset D and a deadbolt throw dimension of 8 mm. These measurements affect alignment and performance when the corresponding strike area is prepared on the furniture frame.
