Dead Bolt Rim Lock, with Adjustable Backset, Symo 3000

Product Details

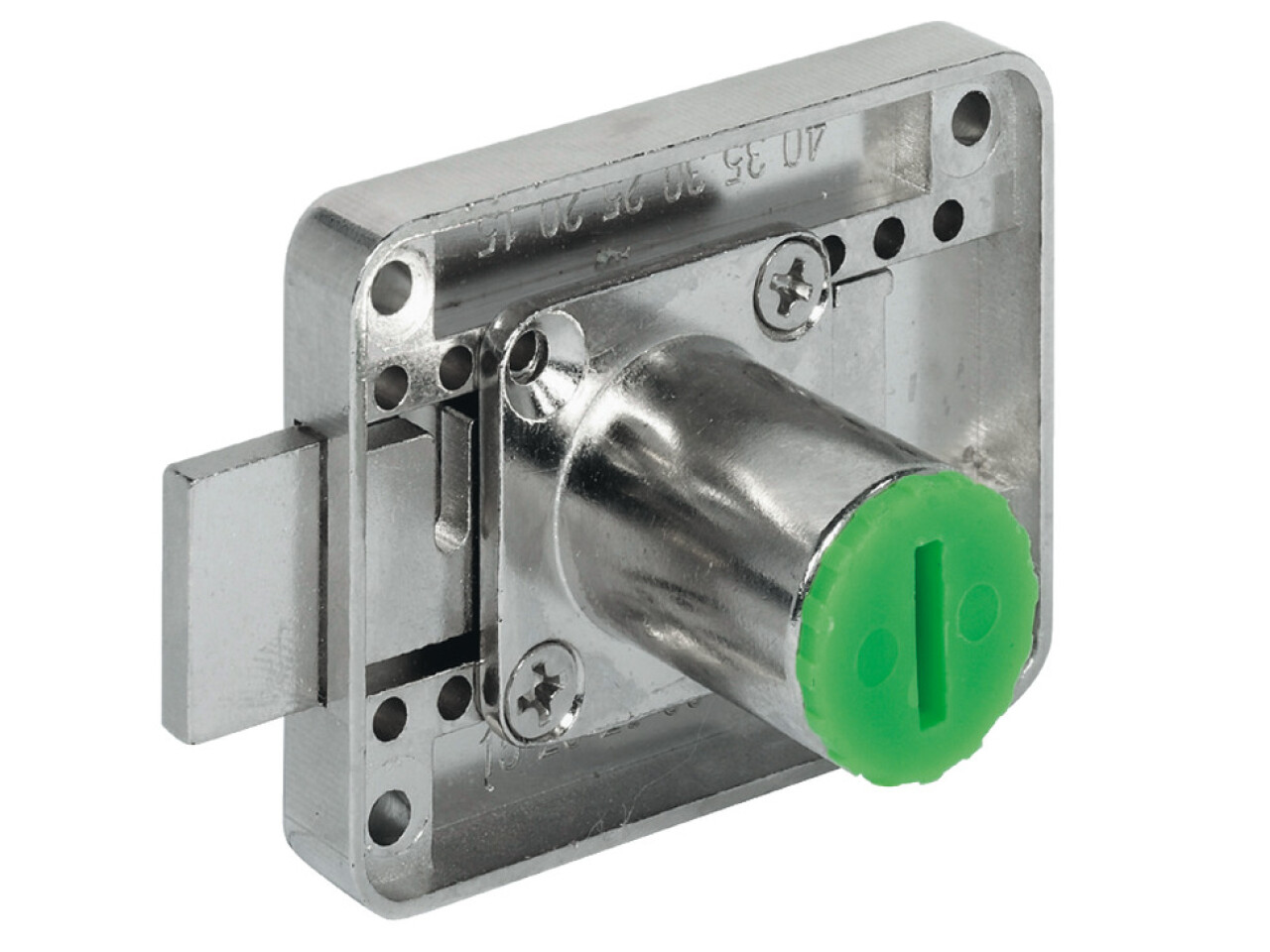

Dead Bolt Rim Lock, with Adjustable Backset, Symo 3000 (Part No: 232.26.690) is a precision-built deadbolt rim lock designed for smooth, secure cabinet and furniture applications. If you’re looking for a reliable locking solution that’s easy to specify and install, this lock delivers the performance you need with a clean, professional finish.

Built from zinc alloy and finished in nickel plated, the Symo3000 Ddbolt Rim Lock blends durability with a modern look. The lock is engineered for combination use with Symo cylinder removable core, making it ideal for projects where you want flexible core options and practical on-site fitting.

This model supports your layout preferences with a left hand, right hand or drawer version, so you can match the lock to the way your furniture opens. Installation is designed for cylinder cores that are inserted from the front on site, helping streamline setup and reducing complexity during installation.

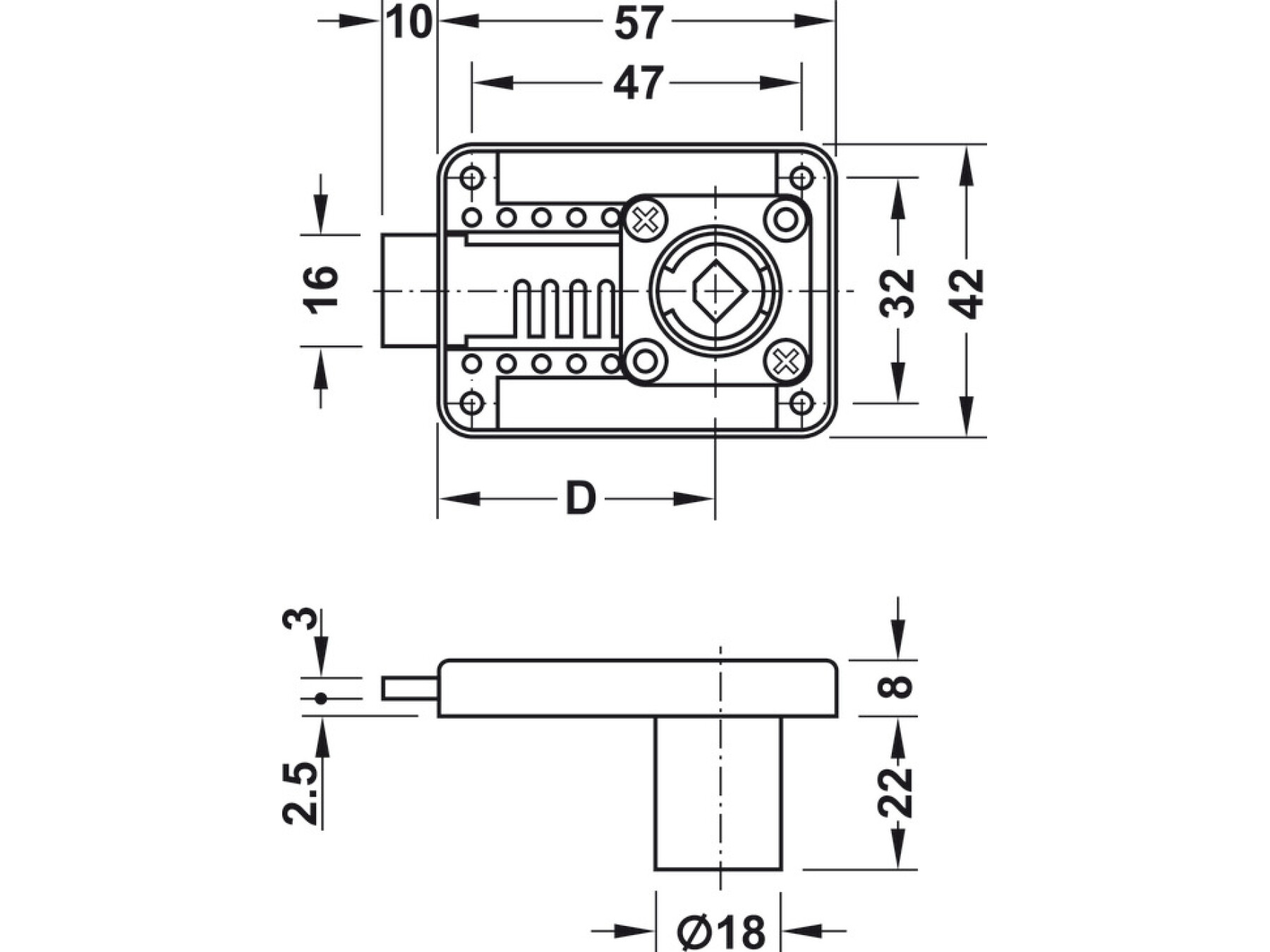

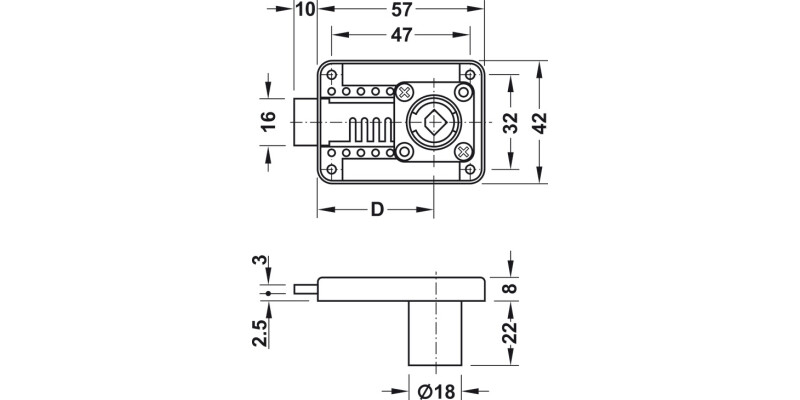

With an adjustable configuration, the backset is adjustable in steps of 5 mm, helping you achieve a precise fit across different cabinet designs. It accommodates a cylinder housing length of 22.00 mm and is prepared for a round cylinder with an 18.00 mm diameter.

Forend opening range is 15–40 mm, and the deadbolt throw is 10.00 mm for dependable engagement. Choose Symo3000 Ddbolt Rim Lock for confident security, adaptable installation, and a neat nickel finish that complements both living and commercial furniture.

Note: this rim lock is with key: No (compatible with the Symo cylinder removable core).
