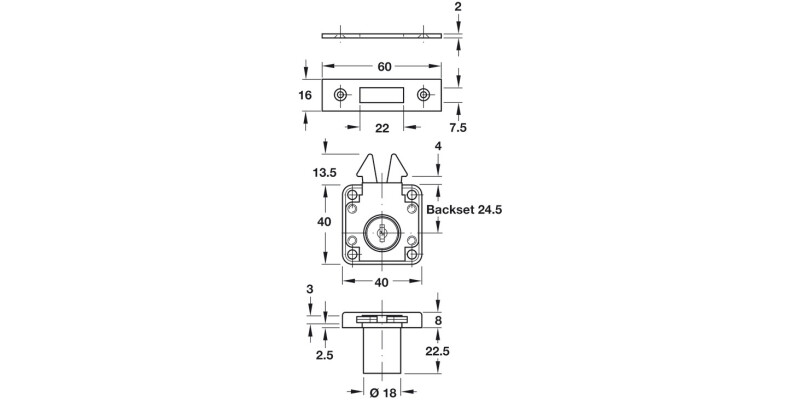

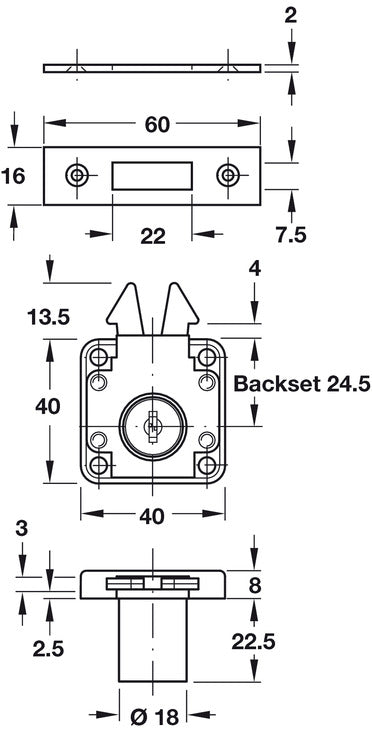

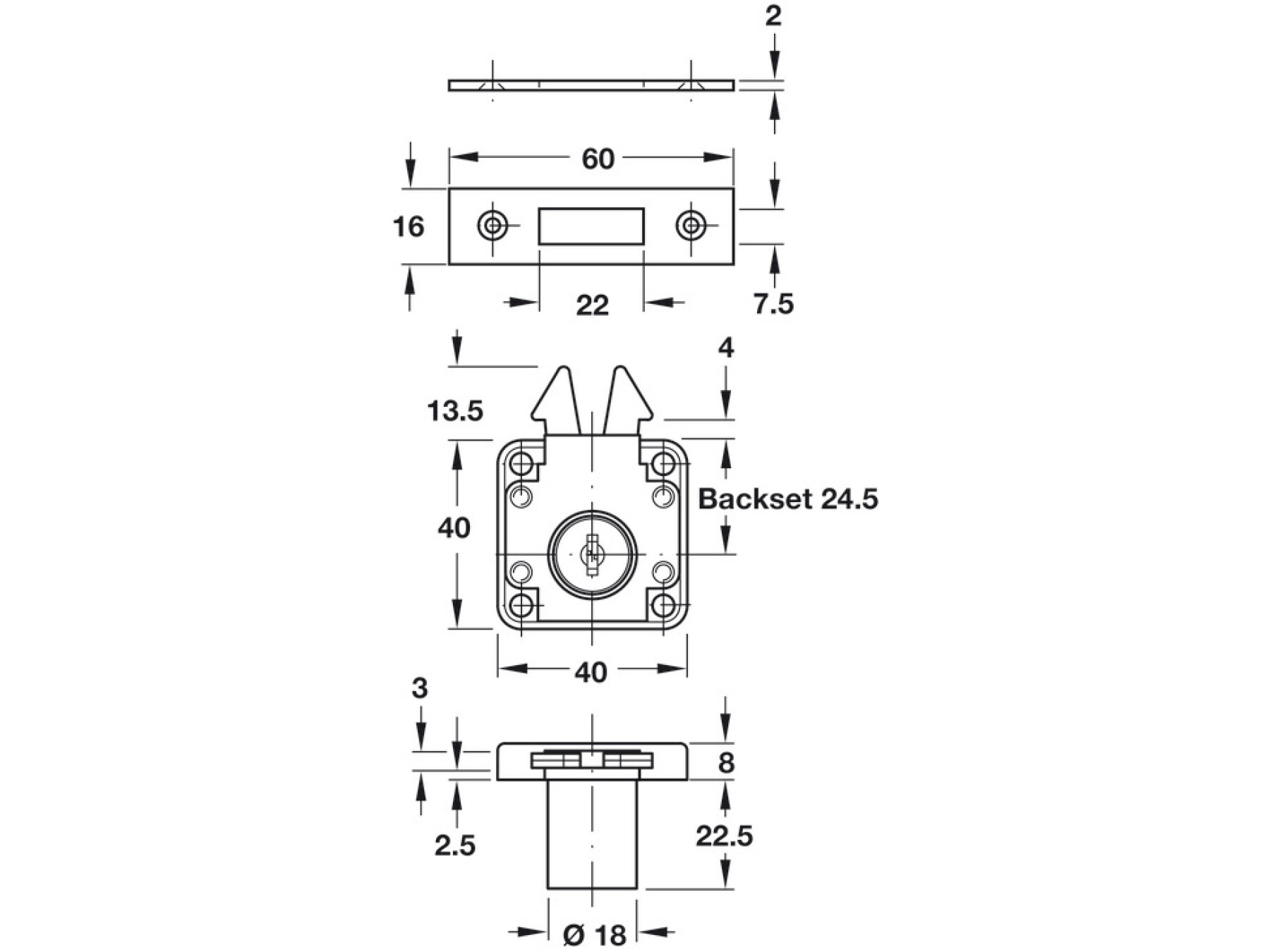

Rim Lock, for Roller Shutters, Ø 18 mm Cylinder, Backset 24.5 mm

Product Details

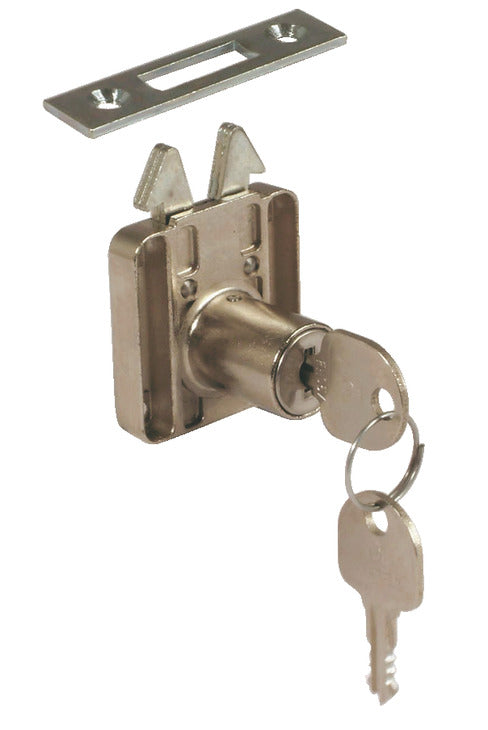

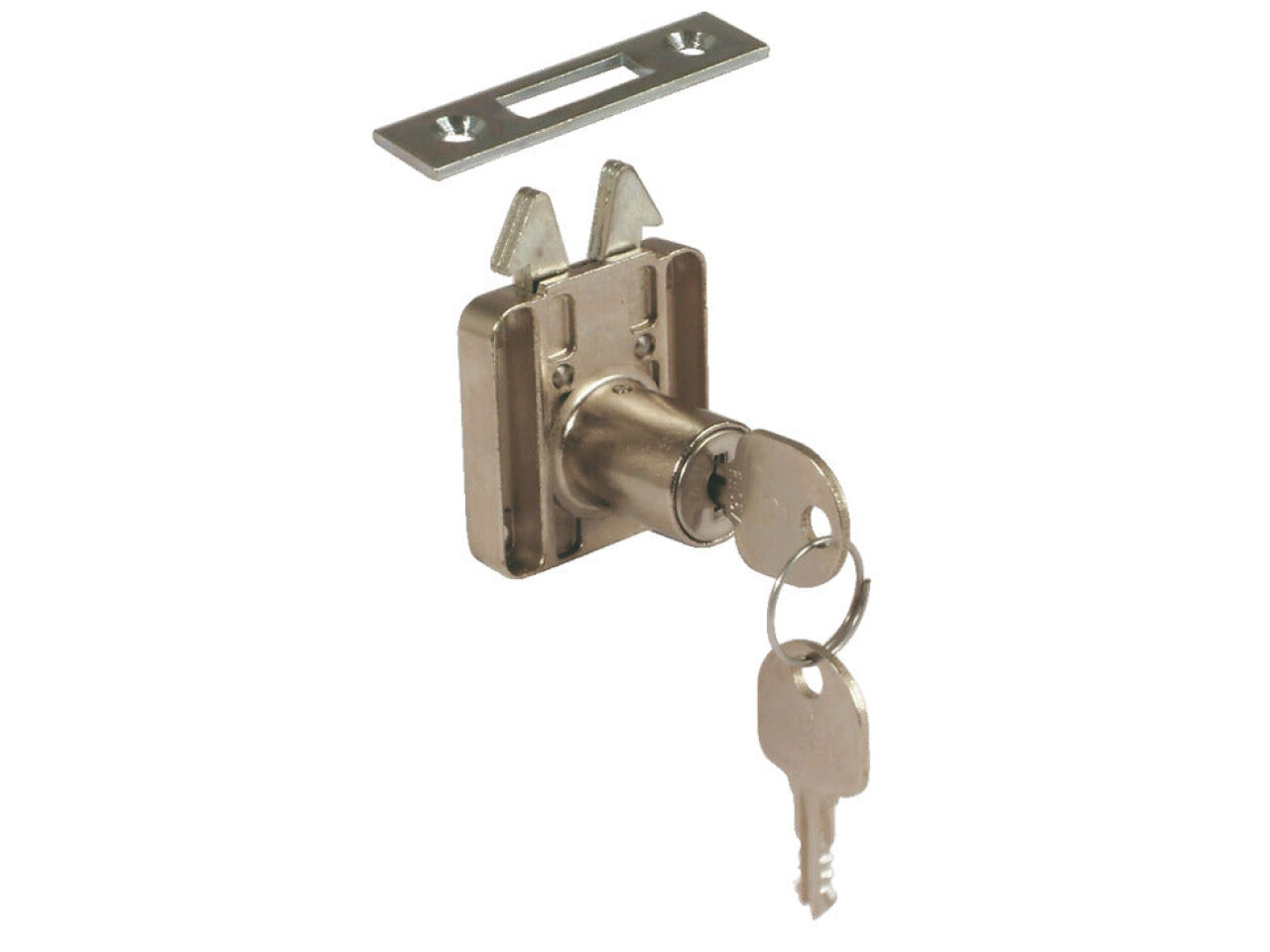

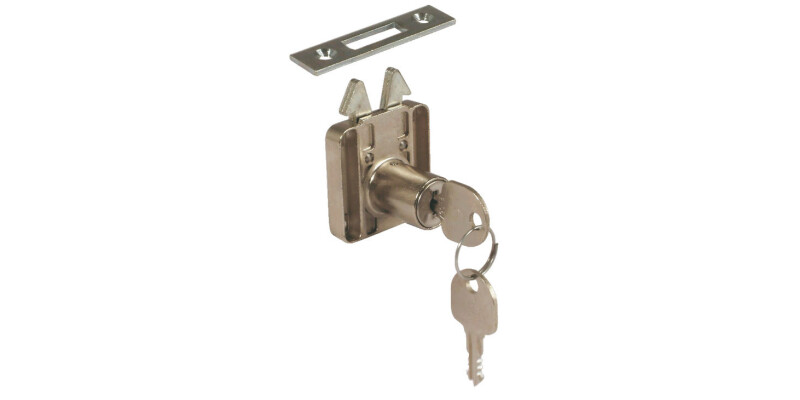

Rim Lock, for Roller Shutters, Ø 18 mm Cylinder, Backset 24.5 mm (Product Part No: 232.07.614) is a reliable, professional locking solution designed specifically for roller shutters. Built for secure everyday use, this rim lock combines a smooth keyed operation with a durable construction that stands up to regular handling and long-term installation.

Finished in a modern matt nickel plated look, the lock not only enhances the appearance of your shutter system but also supports long-lasting performance in demanding environments. Its robust build features a zinc alloy case and cylinder, complemented by a galvanized steel striking plate for added strength where it counts.

With a cylinder diameter of 18.00 mm, this lock is part of a dependable locking system that uses 5 plate levers—ideal for controlled access and practical security. It’s engineered for roller shutter applications, making it a great choice for residential and commercial installations where strong, straightforward locking is essential.

Keyed alike: key change FH1 means you can simplify access management, especially if you’re matching keys across multiple locks. The installation is also flexible, with 200 possible key changes available to help you meet your specific requirements.

Supplied with 2 x keys and 1 x striking plate, this product is ready for installation. Please note: cylinder rosettes must be ordered separately (Order reference guidance: Cylinder rosettes to be ordered separately).

Upgrade your roller shutter security with the Rim Lock, for Roller Shutters, Ø 18 mm Cylinder, Backset 24.5 mm—a smart choice for secure access, quality materials, and a clean, professional finish.

Cylinder rosettes to be ordered separately

2 x keys
1 x striking plate
