Part No: L754 001
RIM BUDGET LOCK L754/0754 (LEFT OR RIGHT HAND) - 83MM
£6.6
(excl. VAT)

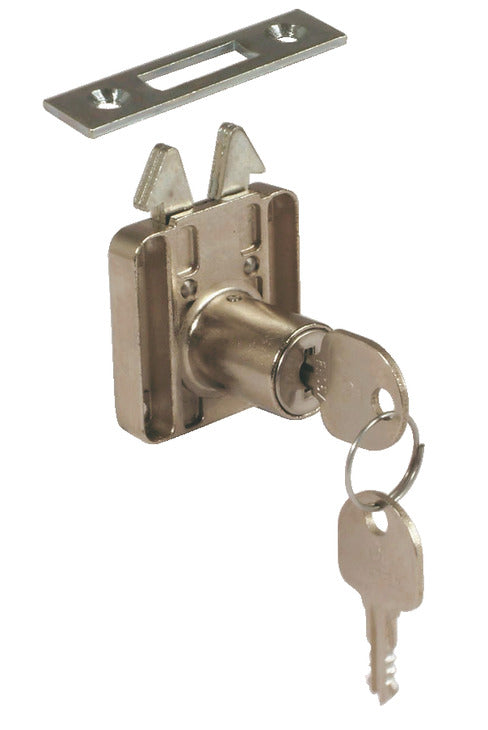

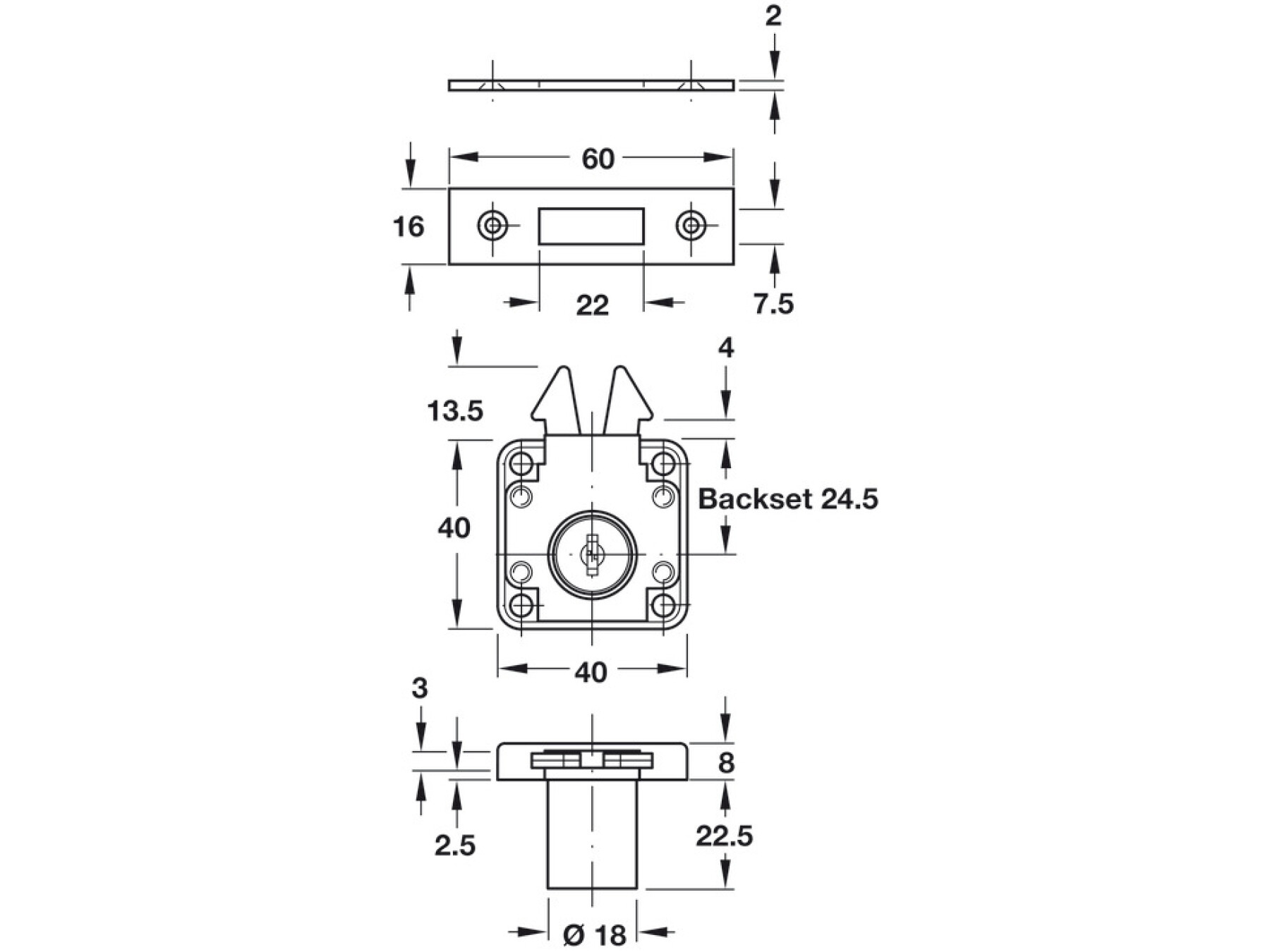

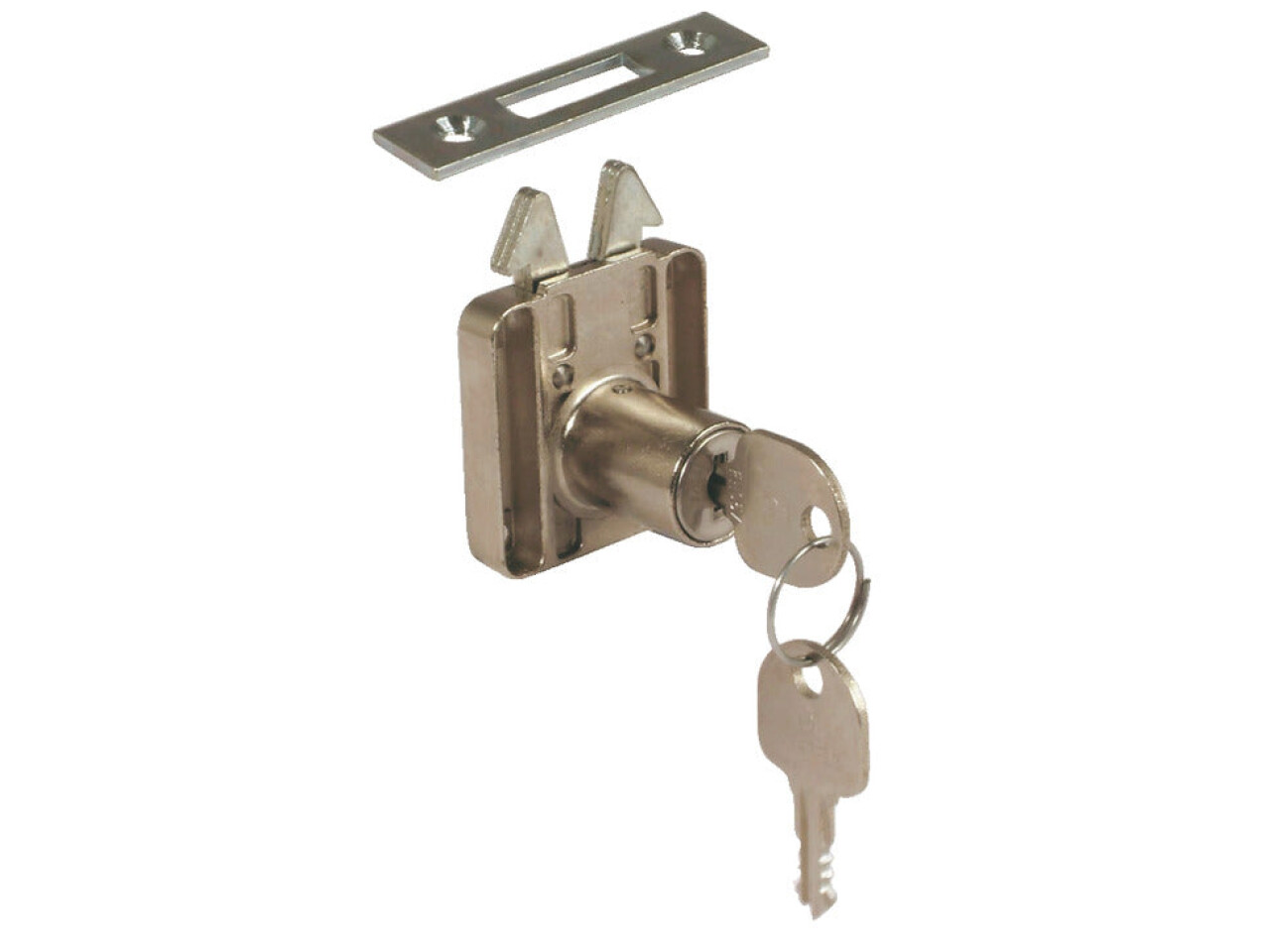

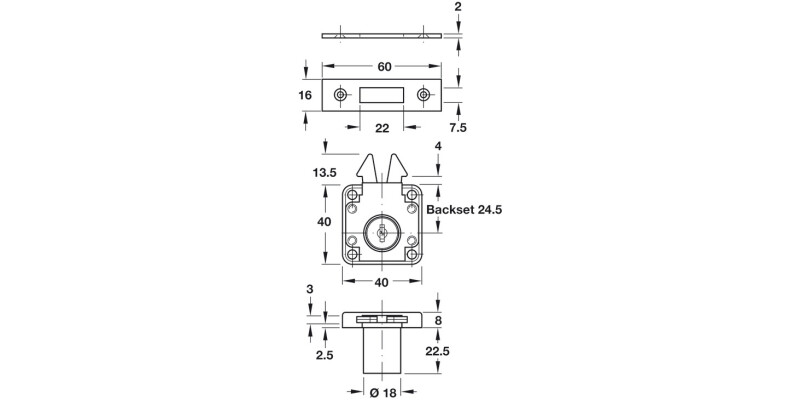

Rim Lock, for Roller Shutters, Ø 18 mm Cylinder, Backset 24.5 mm
Part Number: 232.07.605
Random key changes
Price:
£13.99
Per Item
Rim Lock, for Roller Shutters, Ø 18 mm Cylinder, Backset 24.5 mm is the ideal security upgrade for roller... Read More
Product Information
Product Details
Rim Lock, for Roller Shutters, Ø 18 mm Cylinder, Backset 24.5 mm is the ideal security upgrade for roller shutters, combining durable materials with smooth, reliable locking performance. Part of our Cabinet Locks & Systems collection, this rim lock is designed for practical everyday use—whether for commercial storage, workshops, or living space access points that demand dependable protection.
Built with a robust zinc alloy case and cylinder, the lock is engineered to stand up to daily handling and long-term exposure. The striking plate is made from galvanized steel, helping provide a strong contact point for secure closure. Finished in an elegant matt nickel plated look, it delivers a clean, professional appearance that suits a wide range of shutter styles.
This model features an 18.00 mm cylinder diameter and a locking system with 5 plate levers for dependable engagement. Ideal for controlled access, it offers random key changes—meaning you can benefit from 200 possible key changes, supporting flexible keying options for different installations or user groups.
Order reference: cylinder rosettes must be ordered separately to complete the fit. Supplied with: 2 x keys and 1 x striking plate (Product Part No: 232.07.605).
Choose the Rim Lock, for Roller Shutters, Ø 18 mm Cylinder, Backset 24.5 mm for a secure, stylish, and confidence-inspiring locking solution—order today to upgrade your roller shutter system.
Specifications
Material
Case and cylinder: Zinc alloy
Striking plate: Galvanized steel
Colour/finish
Matt nickel plated
Area of application
For roller shutters
Cylinder Diameter
18.00 mm
Locking system
with 5 plate levers
Installation note
200 possible key changes
Finish
Matt nickel plated
Order reference
Cylinder rosettes to be ordered separately
Supplied with
2 x keys
1 x striking plate
FAQ
Product Details
Is this roller shutter rim lock suitable for roller shutters?
Yes. This rim lock is designed for roller shutters, providing a secure rim fixing option that helps protect access points. It is a suitable choice for commercial and living applications where a robust locking solution is required.
How many different key changes are available with this lock?
Up to 200 possible key changes are available. This means the lock cylinder can be configured with a range of key options, supporting separation between keys for different shutters and properties.
What size cylinder does the Roller Shutter Rim Lock use?
This model uses an 18.00 mm cylinder diameter. Before ordering, you should check that your roller shutter door and cylinder rosettes are compatible with this size.
Does the lock include the striking plate and keys?
Yes. The package includes 2 x keys and 1 x striking plate, so you have the key components needed for normal installation.
Are cylinder rosettes included, or do I need to order them separately?
Cylinder rosettes are not included and must be ordered separately. The order reference for compatible rosettes is listed separately, so it is worth checking the correct rosette type before purchase to avoid delays.
How does the locking mechanism work on this rim lock?
The locking system features 5 plate levers. These levers interact with the key, helping provide a reliable locking action suitable for everyday security needs.
