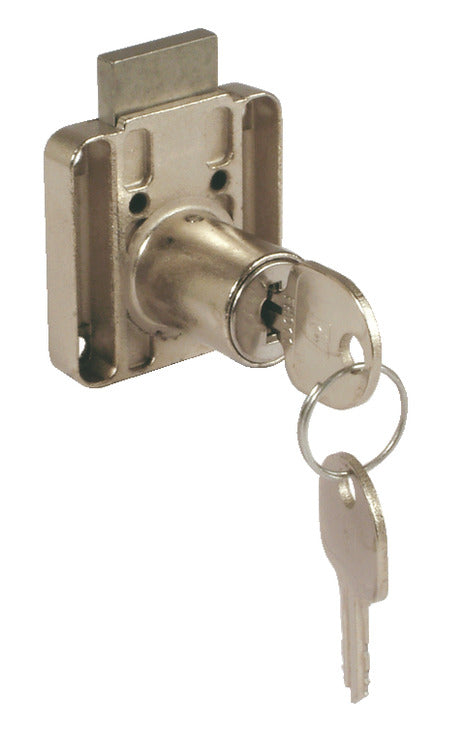

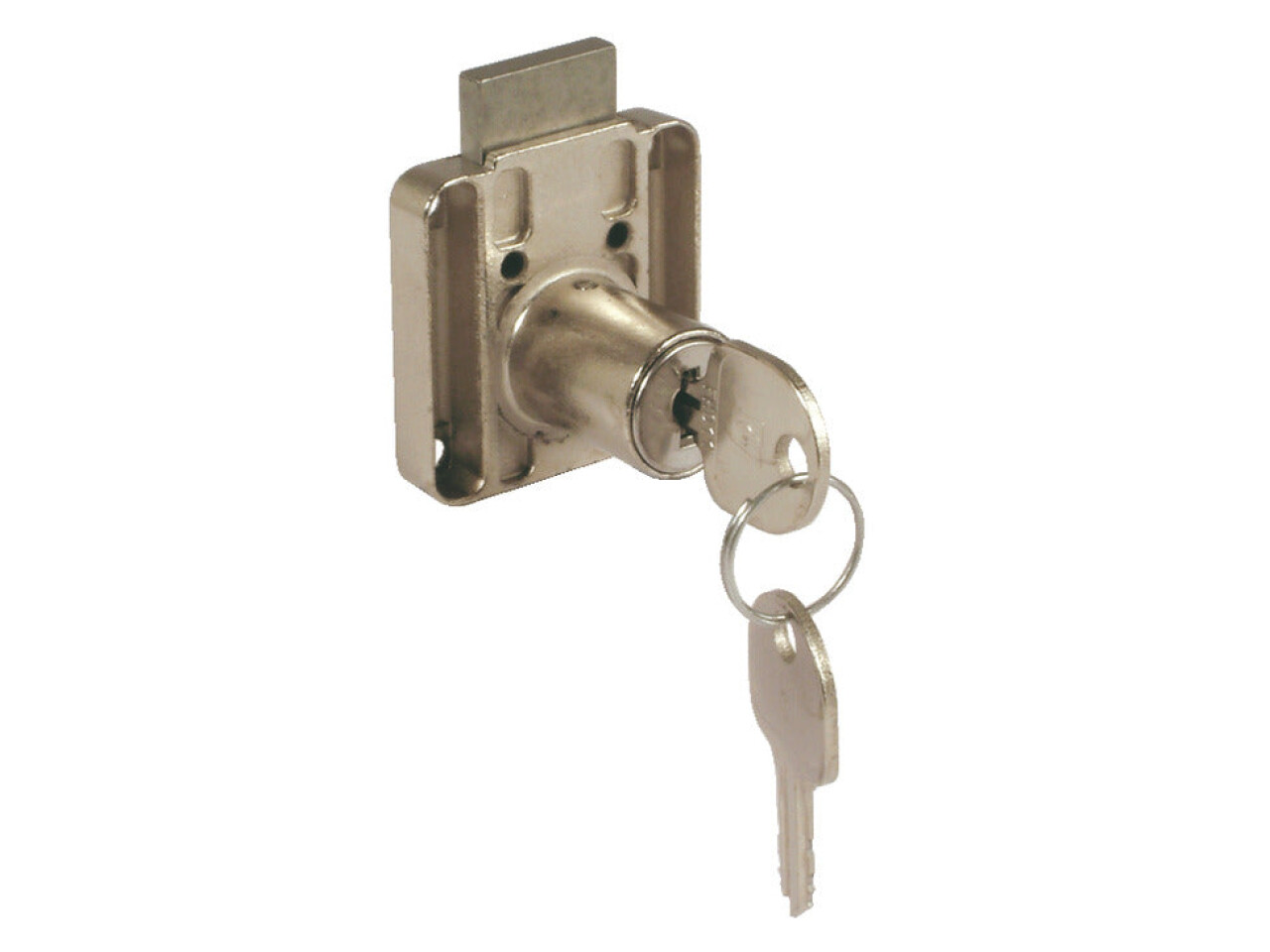

Rim Lock, with Ø 18 mm Cylinder, Drawer Version

Product Details

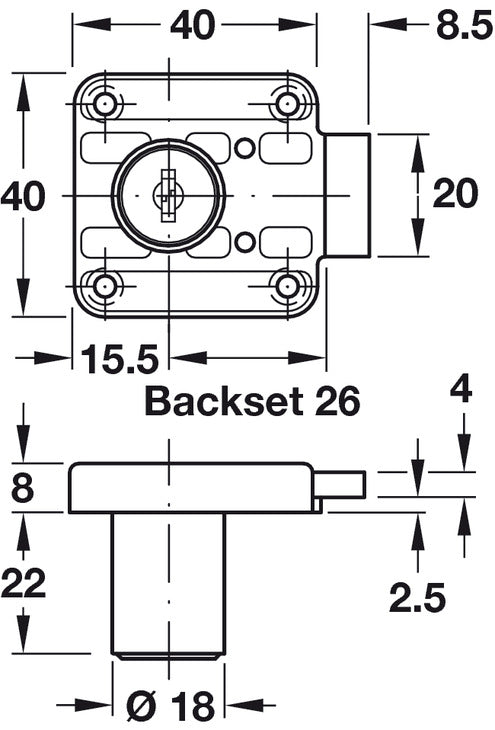

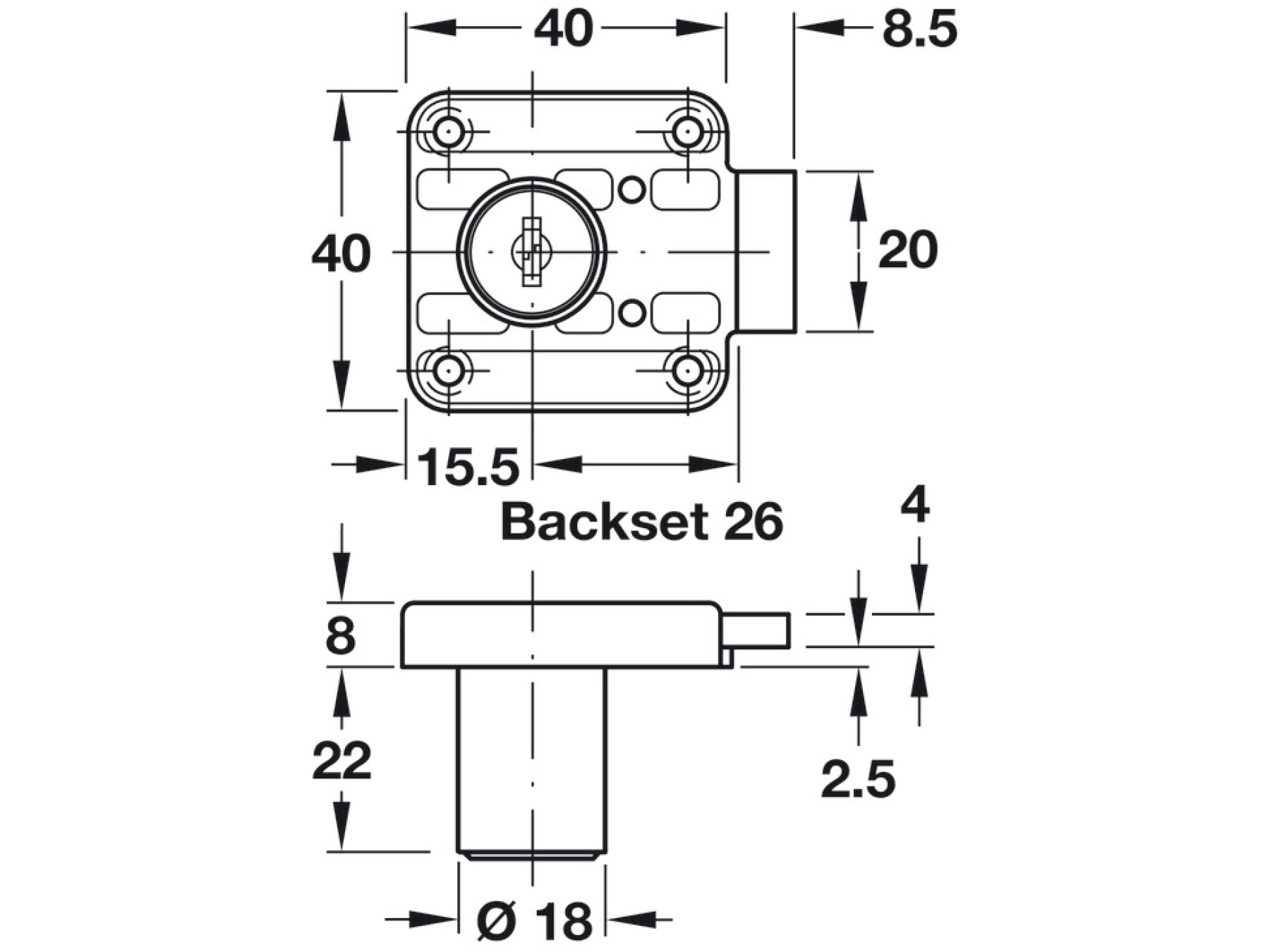

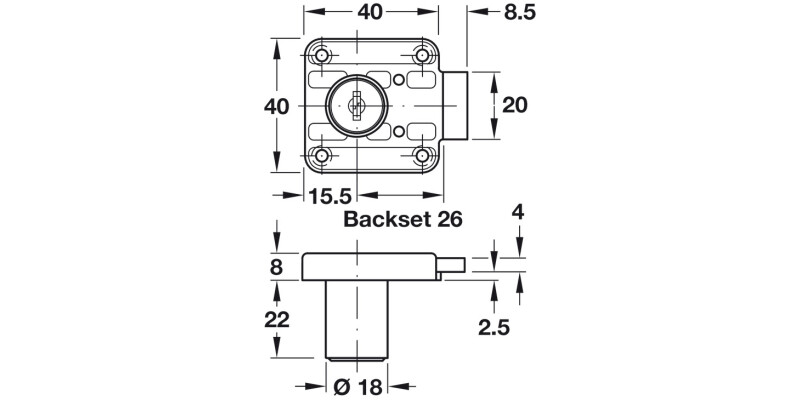

Rim Lock, with Ø 18 mm Cylinder, Drawer Version. (Part No: 232.04.622) is a premium drawer rim lock designed for secure, reliable locking in both living and light commercial settings. Ideal when you want smooth operation, a modern look, and dependable access control, this rim lock is made to fit drawer versions with a practical backset of 26 mm.

Crafted with a zinc alloy case and cylinder, the lock delivers strength and durability for everyday use. The cylinder diameter of 18.00 mm and forend type size of 26.00 mm make it a great choice for compatible drawer installations, while the locking system with 5 plate levers adds an extra layer of security and confident locking performance.

Designed for convenience and control, the random key changes feature helps reduce the risk of repeat keys across orders, supporting better management of access. Finished in matt nickel plated, it offers an elegant, understated appearance that blends well with a wide range of cabinetry styles.

Installation note: this lock is a drawer version, and no master key is possible. Please note that the cylinder rosette must be ordered separately. The set is supplied with 2 x keys for immediate use.

If you’re upgrading drawer security or planning a new installation, choose the Rim Lock, with Ø 18 mm Cylinder, Drawer Version. for a dependable lock solution with a refined finish and smart keying options.

Cylinder rosette to be ordered separately

2 x keys
