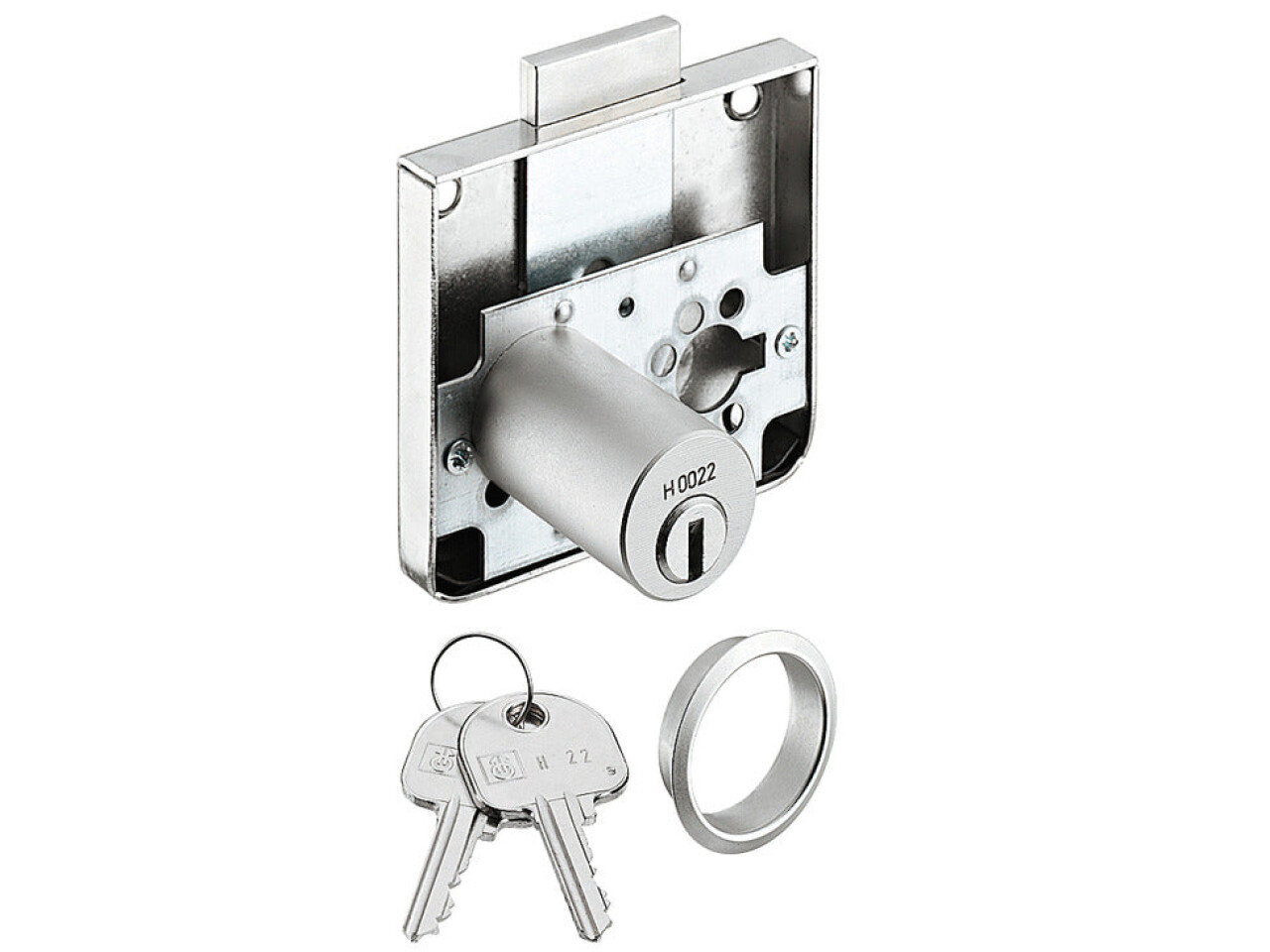

Rim Lock, with Ø 22 mm Extended Cylinder, Backset 37 mm

Product Details

Is the Ext Rim Lock 22mm suitable for thicker drawers?

Yes. This rim lock is designed for drawer versions and is suitable for thicker drawer applications. It can be adapted for left or right hand use, making it easier to fit into different cabinet layouts.

Will this lock fit drawers and what is the mounting style?

It is a drawer version. The lock is intended for cabinet drawers where a rim lock style is appropriate, rather than a surface mounted or mortice configuration. The cylinder housing length is sized to match typical drawer fitting requirements for this system.

How many keys are included, and does it come with a master key option?

Two keys are supplied. It also includes the required documentation for master key systems, such as a security pass and a locking map, so the lock can be coordinated with a wider keying scheme if needed.

What type of cylinder does it use and how secure is it?

It uses a pin tumbler cylinder. The locking system is specified as with 5 pin tumblers, which is a common configuration used in rim and cabinet locks to provide controlled key operation.

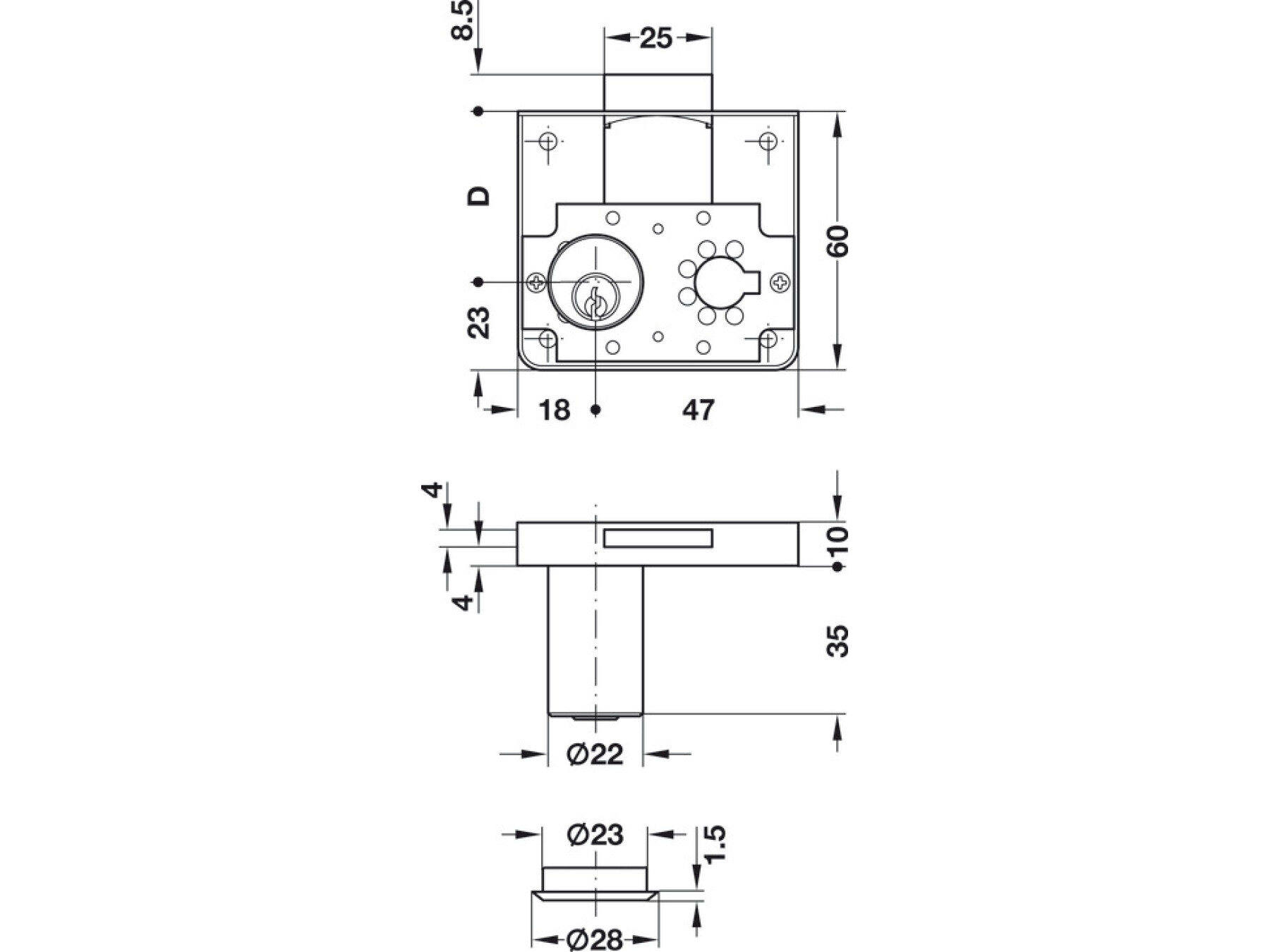

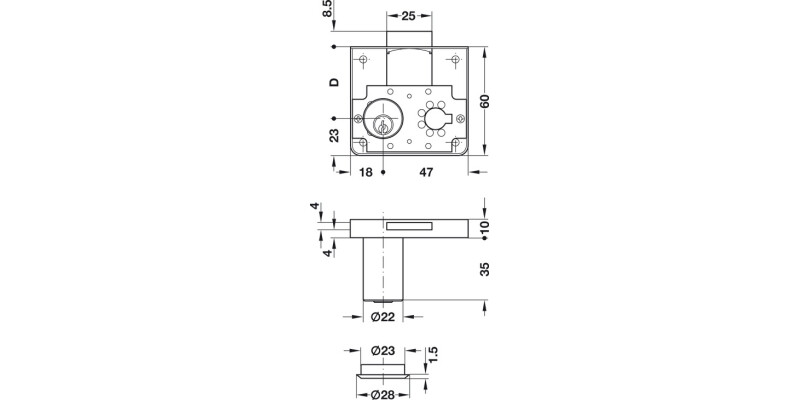

What is the cylinder size and deadbolt throw?

Cylinder diameter is 22mm. The deadbolt throw is 8.5mm, helping provide reliable engagement for typical cabinet and drawer locking applications.

Does the lock support left or right hand installations?

Yes. This model is made for drawer use and can be adapted for left or right hand installation, allowing you to match the lock orientation to your cabinet design.

What finish is provided and does the look suit both furniture and commercial settings?

It is finished in nickel tones. The housing is bright nickel plated and the cylinder is matt nickel plated. This combination gives a neat, durable appearance that works well for both living and light commercial furniture fitting needs.
