Rim Lock, with Ø 22 mm Extended Cylinder, Backset 37 mm

Product Details

Rim Lock, with Ø 22 mm Extended Cylinder, Backset 37 mm (Product Part No: 230.01.501) is a premium keyed alike rim lock designed for dependable security and a clean, professional fit on compatible furniture and drawers. If you’re upgrading cabinet locks or selecting a robust solution for living and commercial applications, this drawer rim lock delivers confident locking performance without fuss.

Built for everyday durability, the lock features a steel case paired with a brass cylinder. The pin tumbler cylinder is engineered with 5 pin tumblers to help resist unauthorised access, while the deadbolt provides a throw of 8.50 mm for secure engagement.

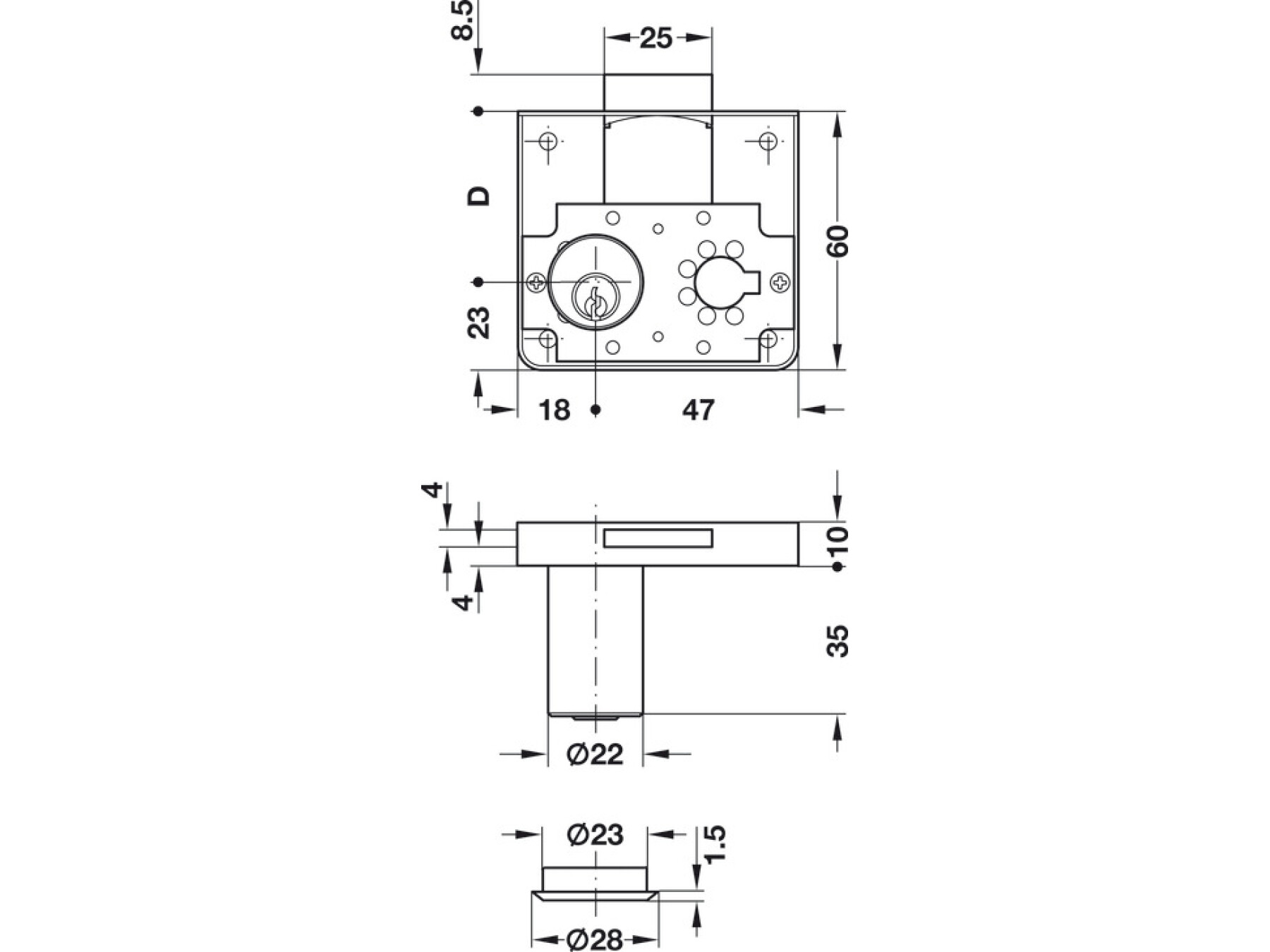

This version is tailored as a drawer version, making it ideal for installations where a compact rim locking design is needed. With a cylinder diameter of 22.00 mm and a housing length of 35.00 mm, it’s well-suited for drawer applications. The forend type is 37.00 mm, and the backset D is 37.00 mm to support a stable mounting and reliable alignment.

Keyed alike: key change H1 means you can manage keying efficiently when coordinating locks across multiple units. The finish combines a bright nickel plated housing with a matt nickel plated cylinder for an attractive look that suits modern interiors.

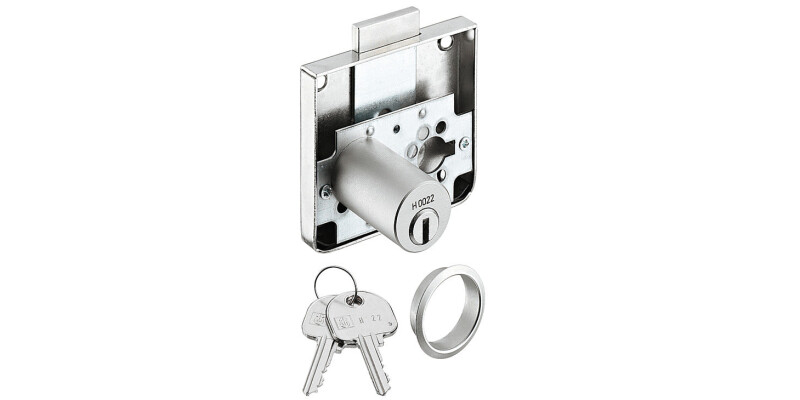

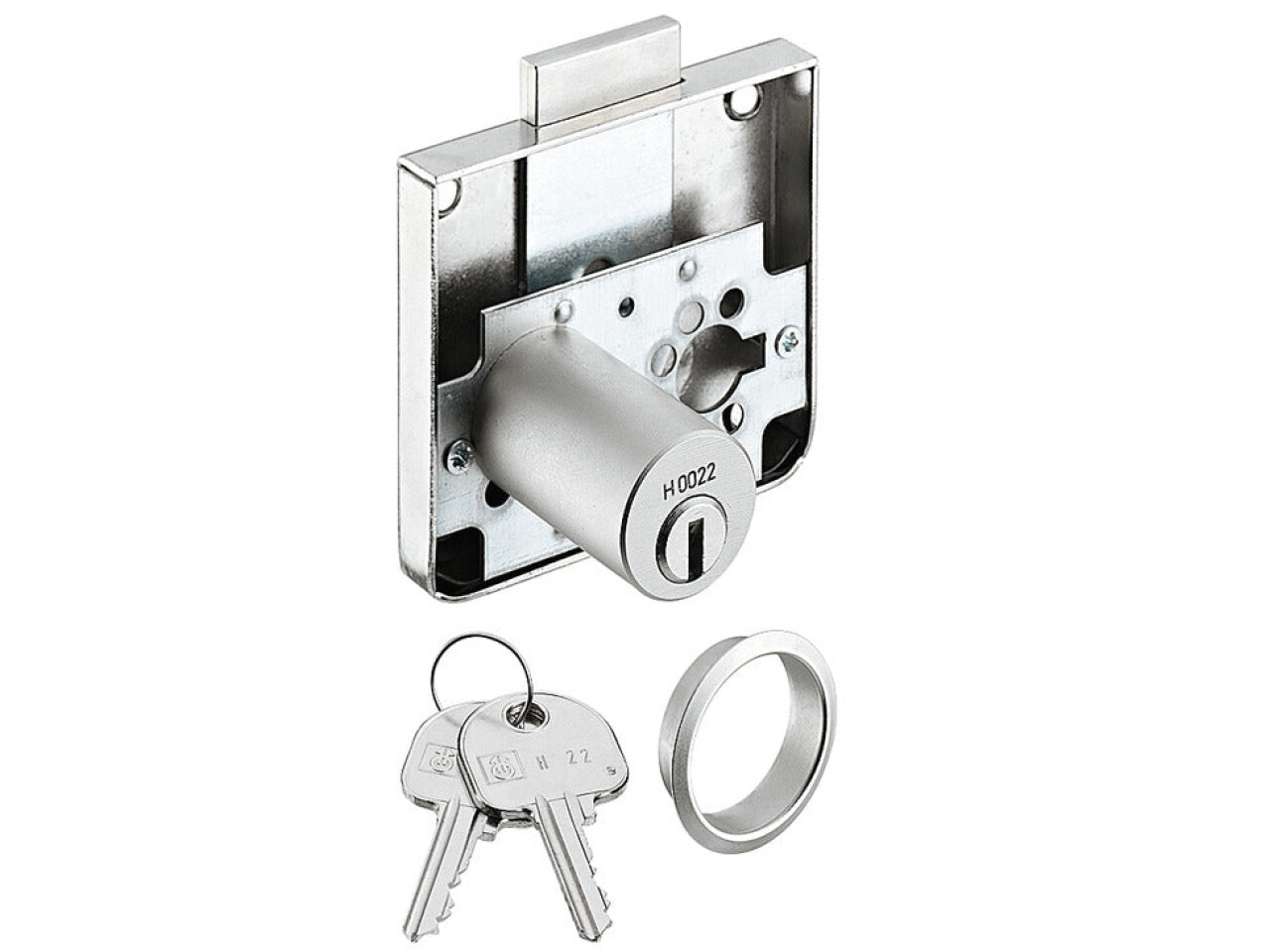

Supplied with 1 deadbolt rim lock, 2 keys, 1 cylinder rosette, and documentation for master key systems (including security pass and locking map). Choose Rim Lock, with Ø 22 mm Extended Cylinder, Backset 37 mm for a smart, secure upgrade you can trust.

1 deadbolt rim lock
2 keys
1 cylinder rosette
Security pass and locking map with master key systems
