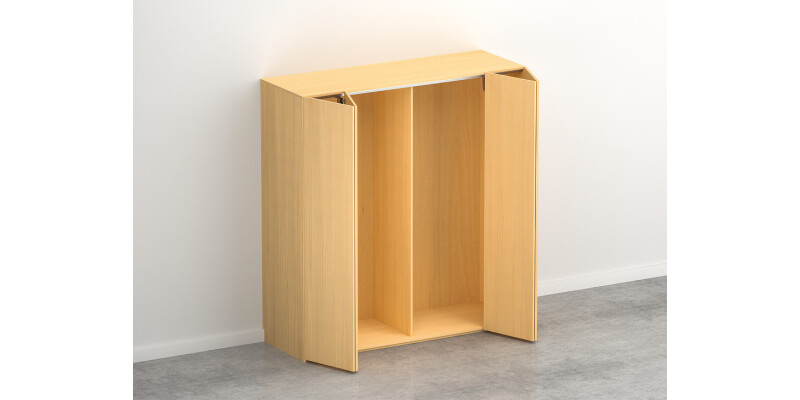

Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A
Part Number: 409.36.047
Top hung system, With adjustable panel to panel hinge with white cover cap, right, door weight 50 kg
Price:
£74.87
Per Item
Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A (Part No: 409.36.047) is a heavy-duty solution... Read More
Product Information
Product Details
Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A (Part No: 409.36.047) is a heavy-duty solution designed for high-performance sliding & folding doors. Built for a clean, space-saving operation, this top hung system includes an adjustable panel-to-panel hinge with a white cover cap for a neat, professional finish. If you’re planning overlay cabinet doors that need reliable strength and smooth movement, this right-hand running gear set from the Fold 25/50 series is made for the job.
Engineered for durability, the system is suitable for door weights up to 50 kg per door pair (12.5/25 kg per pair up to the lower setting). It’s compatible with door thicknesses of ≥16 mm and supports maximum door widths of up to 600 mm for 50 kg. Ideal for wood and aluminium frame doors, with roller running elements made from plastic for controlled, consistent travel.
This set features 4 rollers and is guided by ball bearings to help reduce friction for a smoother experience over time. For fine-tuning, hinge adjustment allows you to achieve the right alignment during installation—an essential advantage when you want precise panel behavior.
What’s included: 1 running gear with 2 concealed hinges for the right door, 4 adjustable concealed hinges, and 1 cover cap.
Important: this set is without tracks. Running tracks and concealed hinges for side attachment are not included. Backed by the Häfele Lifetime Guarantee (10 years), the Fitting Set, for Folding Cabinet Doors, Slido F-Fold61 25/50A is a smart upgrade for robust, stylish folding door installations.
Specifications
Set
Set without tracks
Colour/finish
Area of application

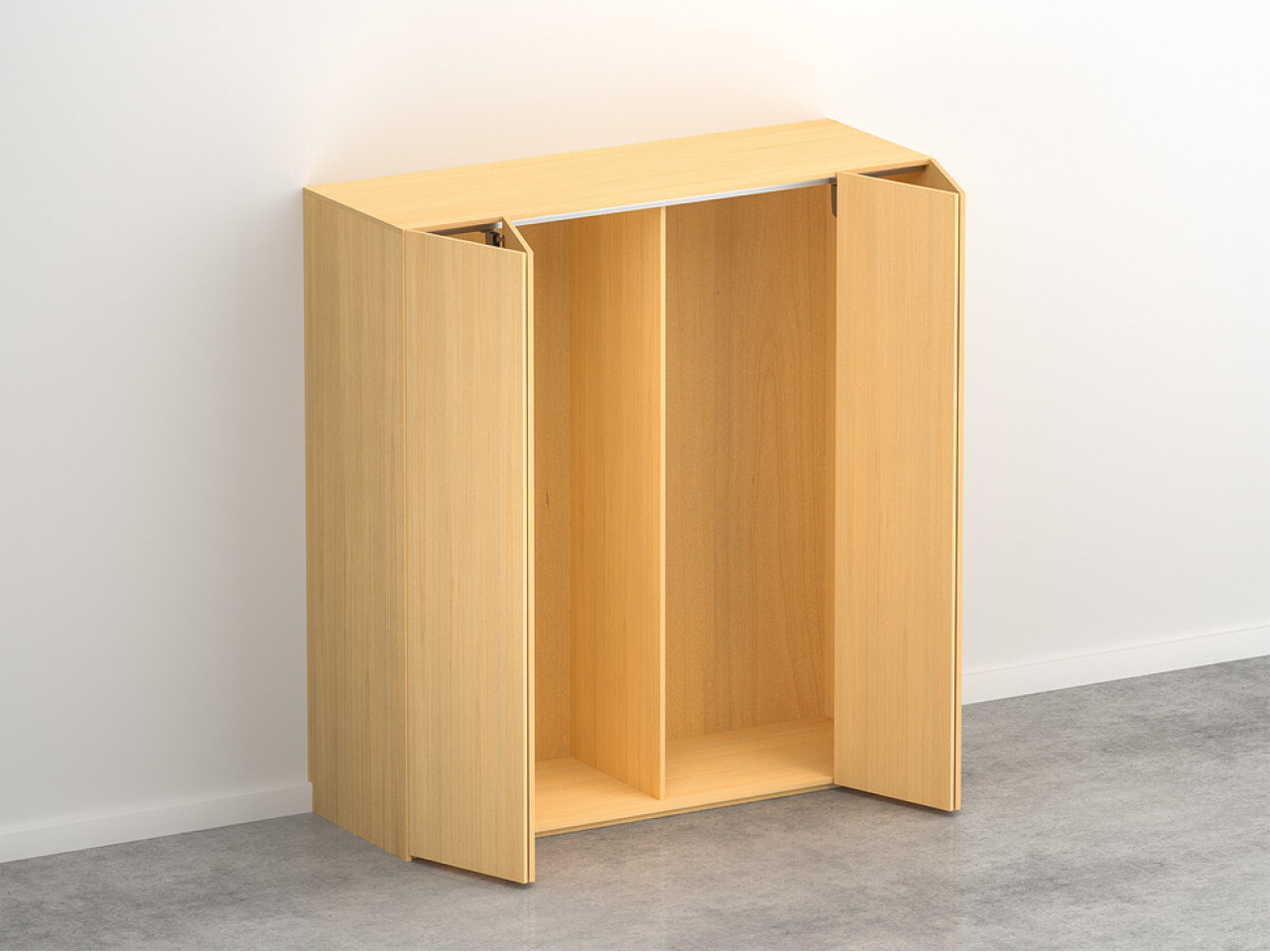

Overlay cabinet doors
For door material
Wood, Aluminium frame

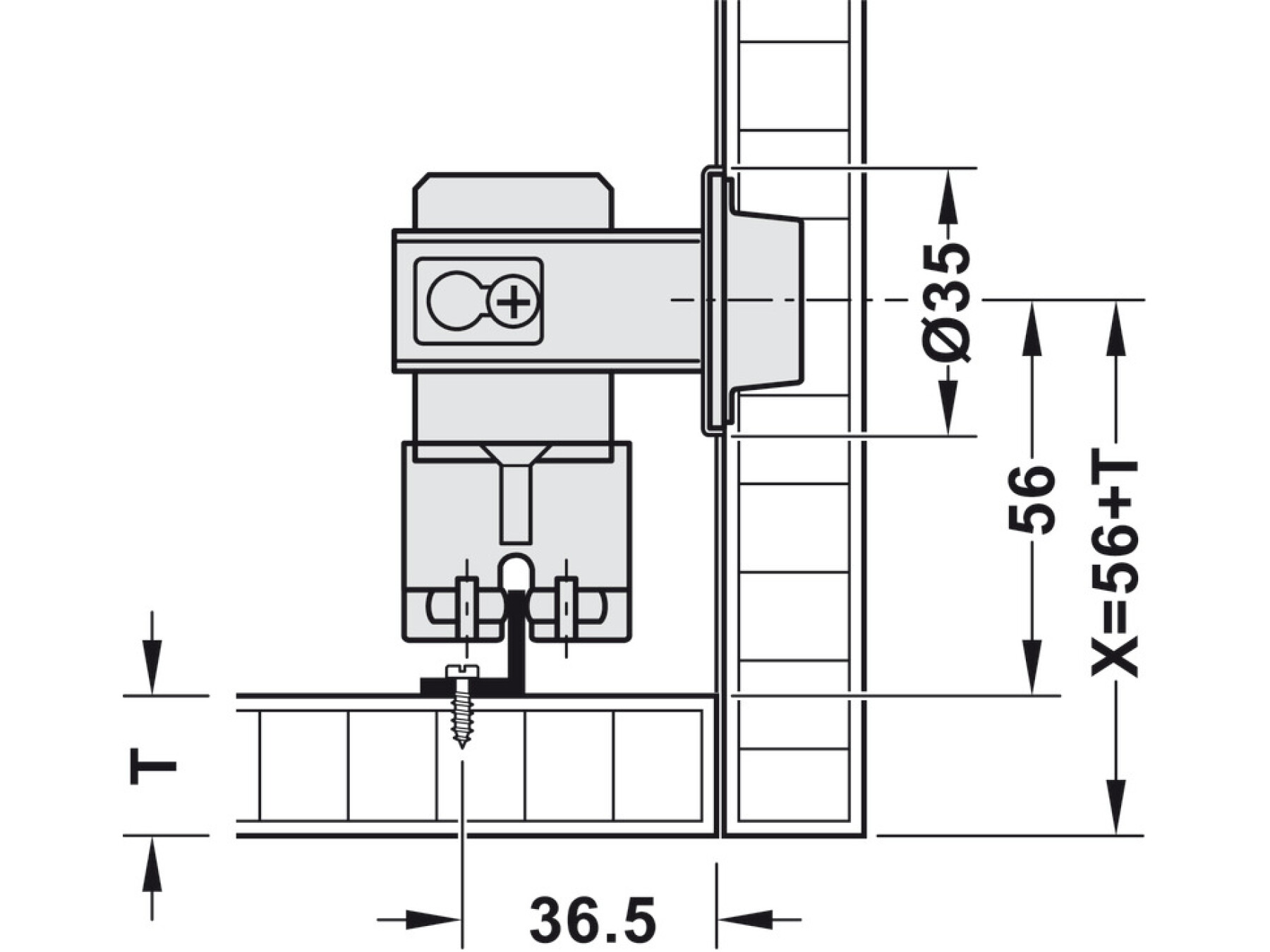

For door thickness
≥16 mm
Note on door weight
12.5/25 kg (25/50 kg per pair of doors)

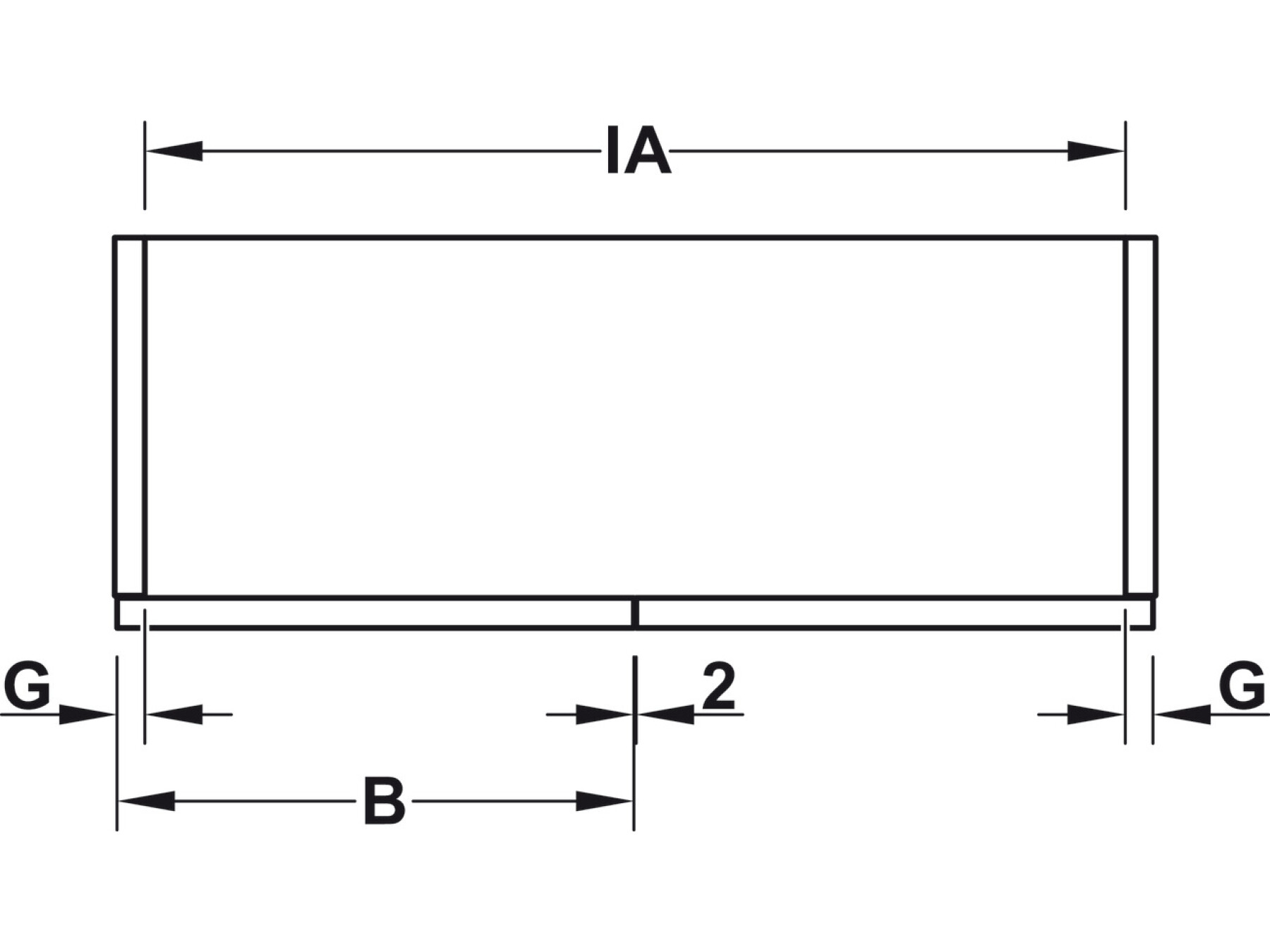

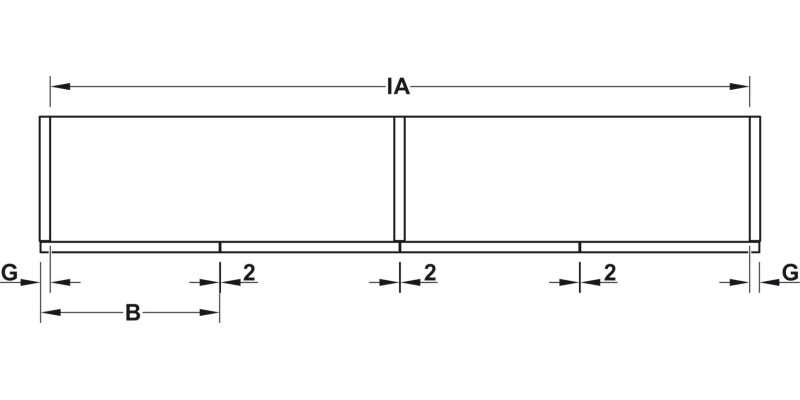

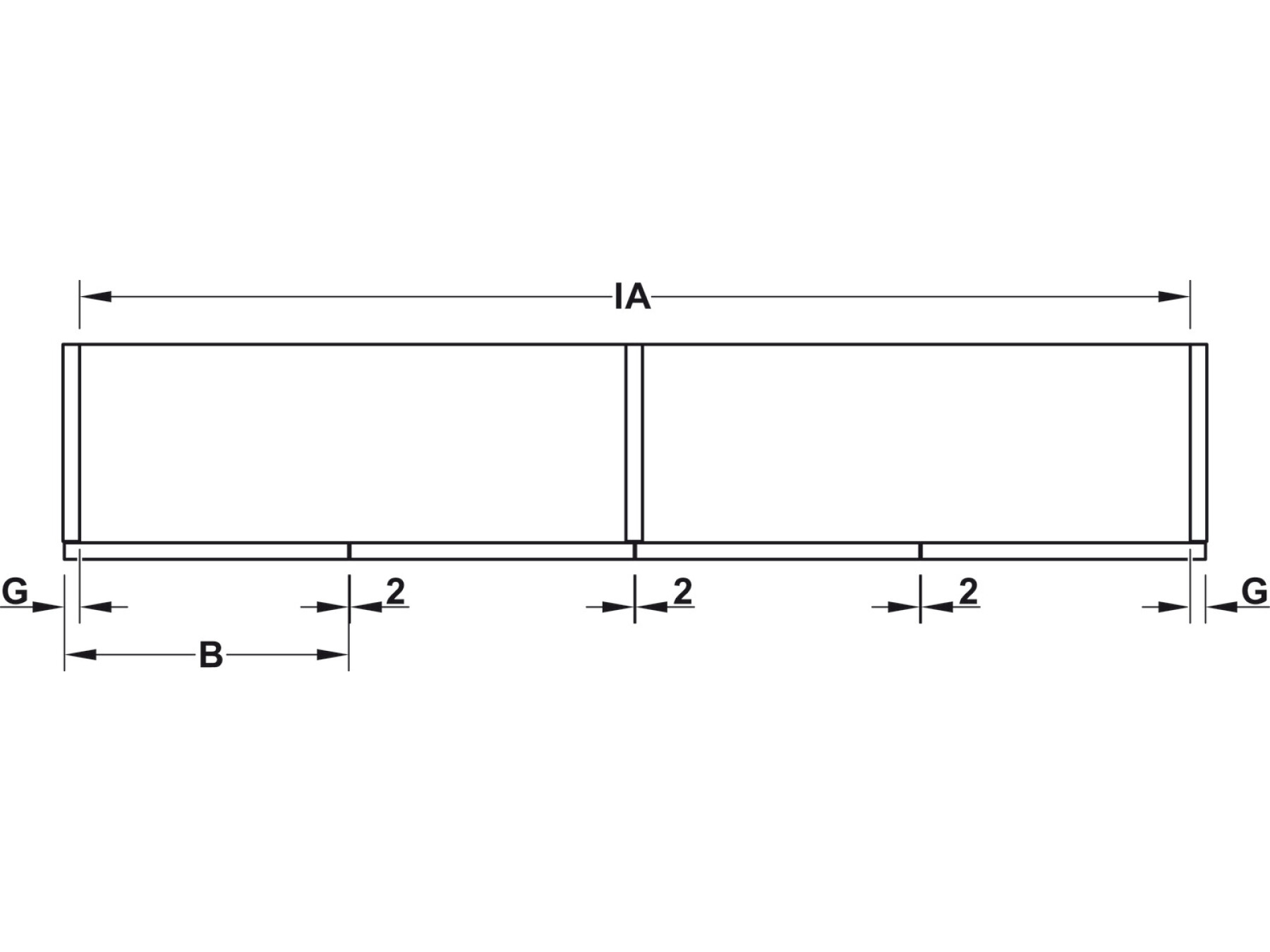

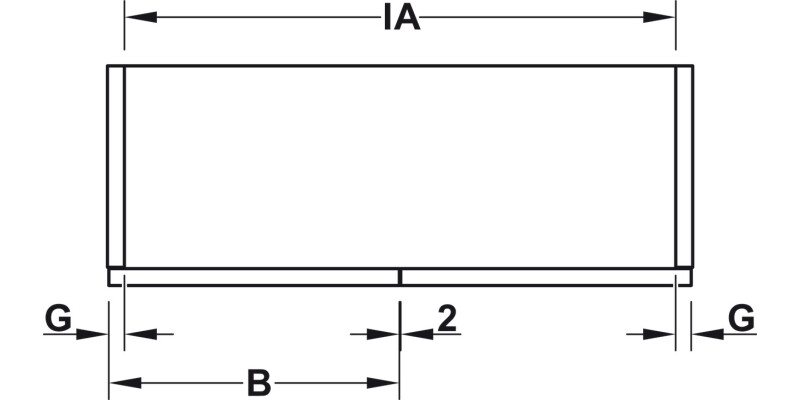

Note on door width
25 kg: Max 550 mm
50 kg: Max 600 mm
Material/finish
Rollers: Plastic
Running gear version
4 rollers
Running gear guided by
Ball bearing
Adjustment facility
Adjustable via hinges
Door adjustment via
Hinges
Installation
Right
Model series
Fold 25/50
Hafele Lifetime Guarantee
10 years
Order reference
Running tracks and concealed hinges for attachment at the side are not included in the set.
Supplied with
1 running gear with 2 concealed hinges for right door
4 adjustable concealed hinges
1 cover cap
FAQ
Product Details
Is this top hung sliding and folding door fitting suitable for a right hand door?
Yes. Slido F FOLD61 50A Adj Hinge w Cov RH is specified for right hand installation, with 1 running gear and 2 concealed hinges for the right door, plus additional adjustable concealed hinges.
What door weight and size range can it handle?
It is rated for up to 50 kg per pair of doors (12.5 kg to 25 kg depending on configuration). For 50 kg doors, the maximum door width is 600 mm.
Does the set include tracks and concealed side hinges for attachment?
No. This set is supplied without tracks and without the running tracks and concealed hinges required for side attachment. It is designed to be used as part of a complete top hung sliding and folding door system.

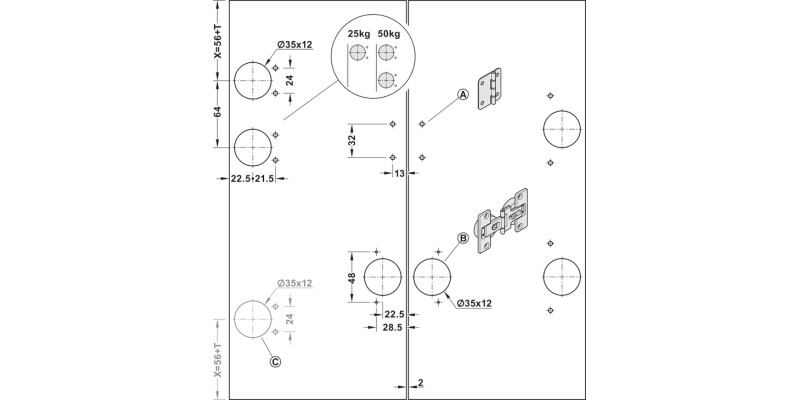

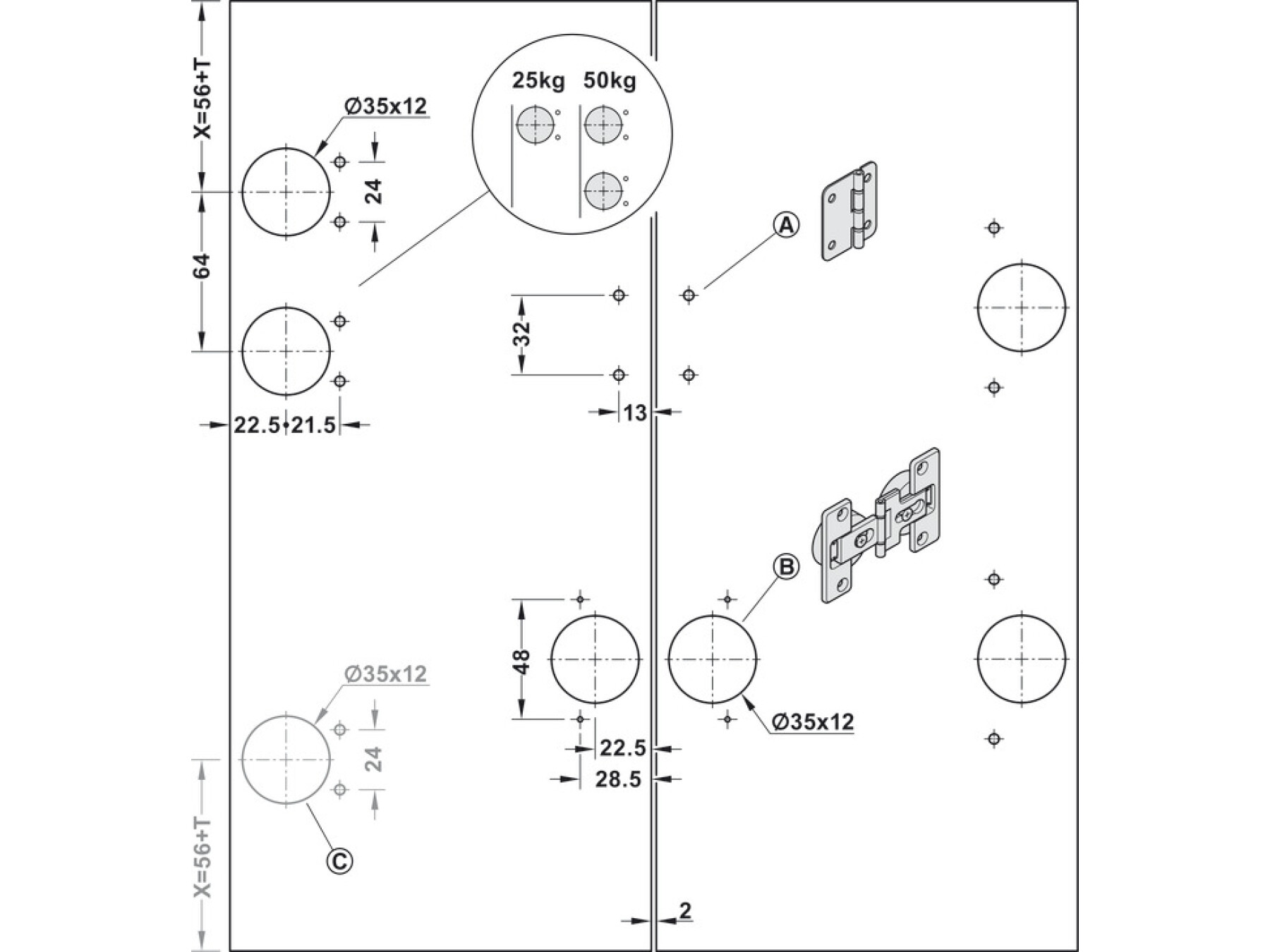

How does the adjustment work once the hinges are fitted?
Adjustment is via the hinges. The system provides adjustable concealed hinges so you can fine tune the door alignment during installation and setup.
What door materials and thickness does it work with?
Suitable for wood and aluminium frame doors with a door thickness of at least 16 mm. This helps ensure the hinge mounting points and door strength are compatible with the hardware.
Is a cover cap included, and what is it for?
Yes, a cover cap is included. The white cover cap is used to conceal the hinge area for a cleaner finish once the system is installed.
How many rollers and bearings are used in the running gear?
The running gear uses 4 rollers and is guided by ball bearings, supporting smoother operation for heavy duty sliding and folding door applications.
What warranty or guarantee is provided for this fitting set?
Hafele Lifetime Guarantee. The product carries a 10 years guarantee, helping give confidence for long term performance when installed correctly.
