Fitting Set, for Folding Interior Doors, Slido W-Fold32 100T

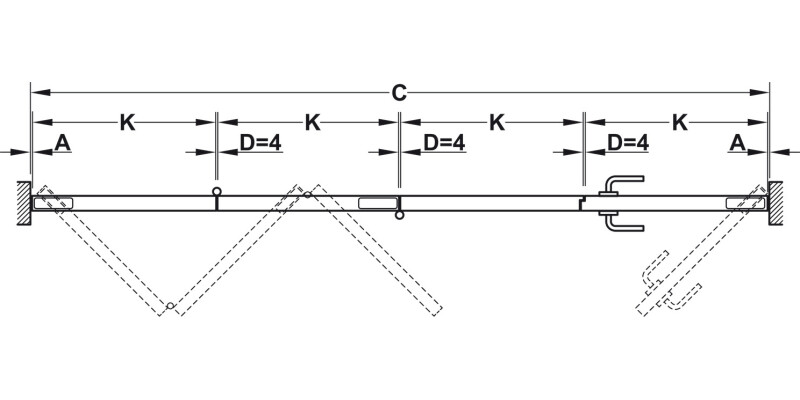

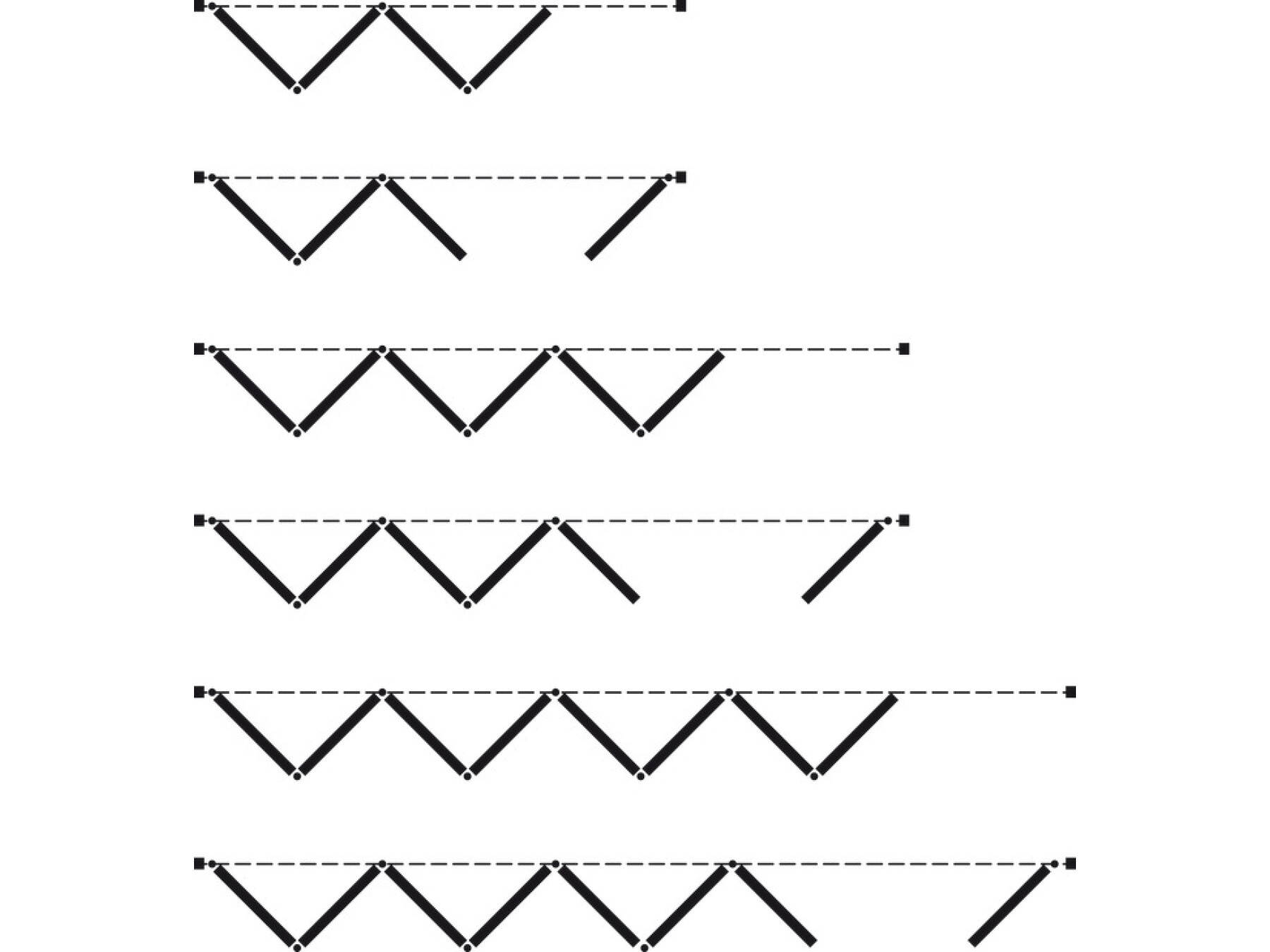

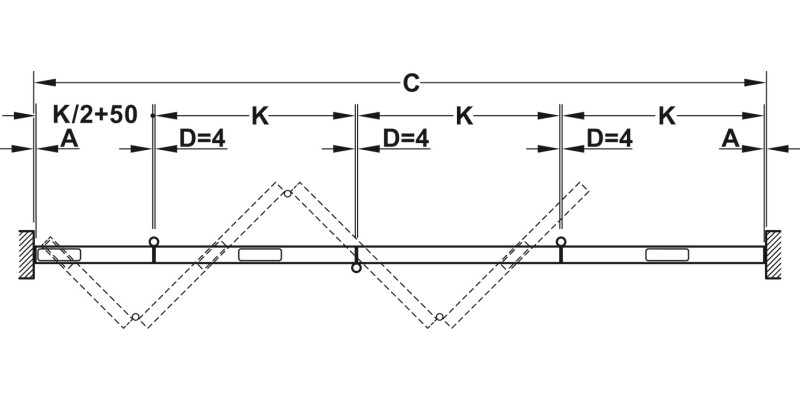

Is SlidoFold 100T FitSet suitable for a top hung sliding and folding door without a bottom track

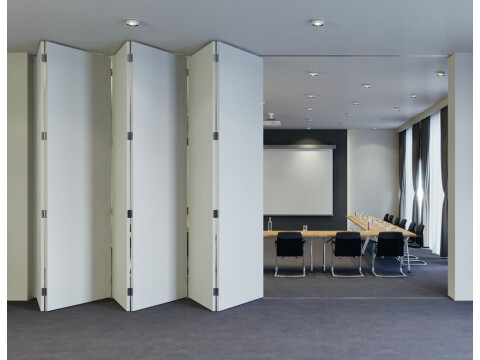

Yes. SlidoFold 100T FitSet Add wo Btm Trk is designed for systems without bottom track and uses a top hung running system. This makes it a practical choice for flexible room or visual separation setups where you want to keep the floor clear.

What door sizes and weight can this fitting set handle

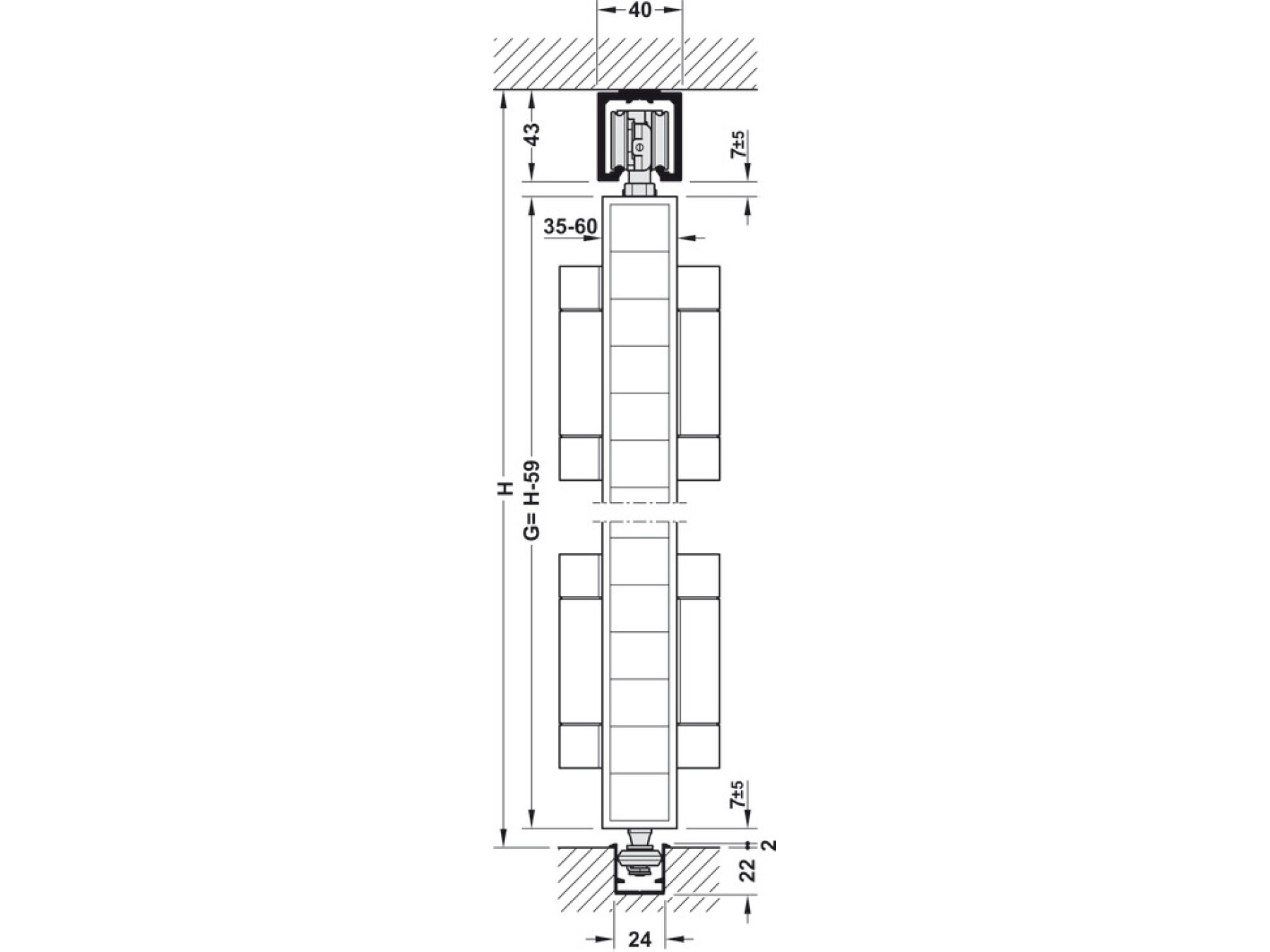

This set is suitable for doors with height up to 3,500 mm, width from 500 to 1,000 mm, and weight up to 100 kg. It is also intended for door thickness of 35 to 60 mm, helping ensure smooth operation within the designed load range.

Can it be used with wooden doors

Yes. SlidoFold 100T FitSet Add wo Btm Trk is intended for wood doors. Using this fitting set with the specified door thickness range helps you maintain secure mounting and reliable performance.

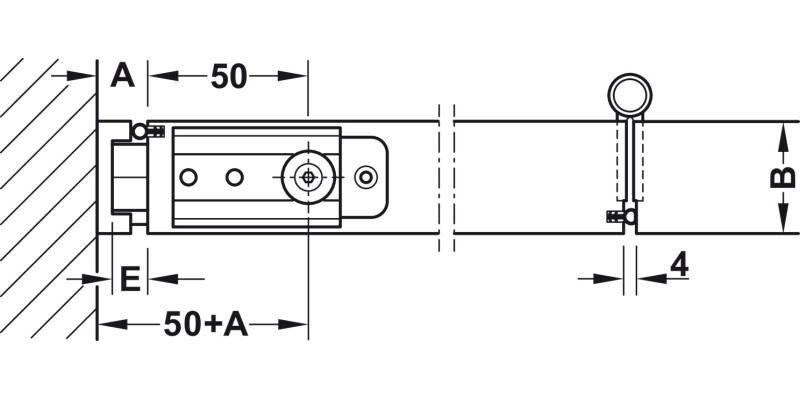

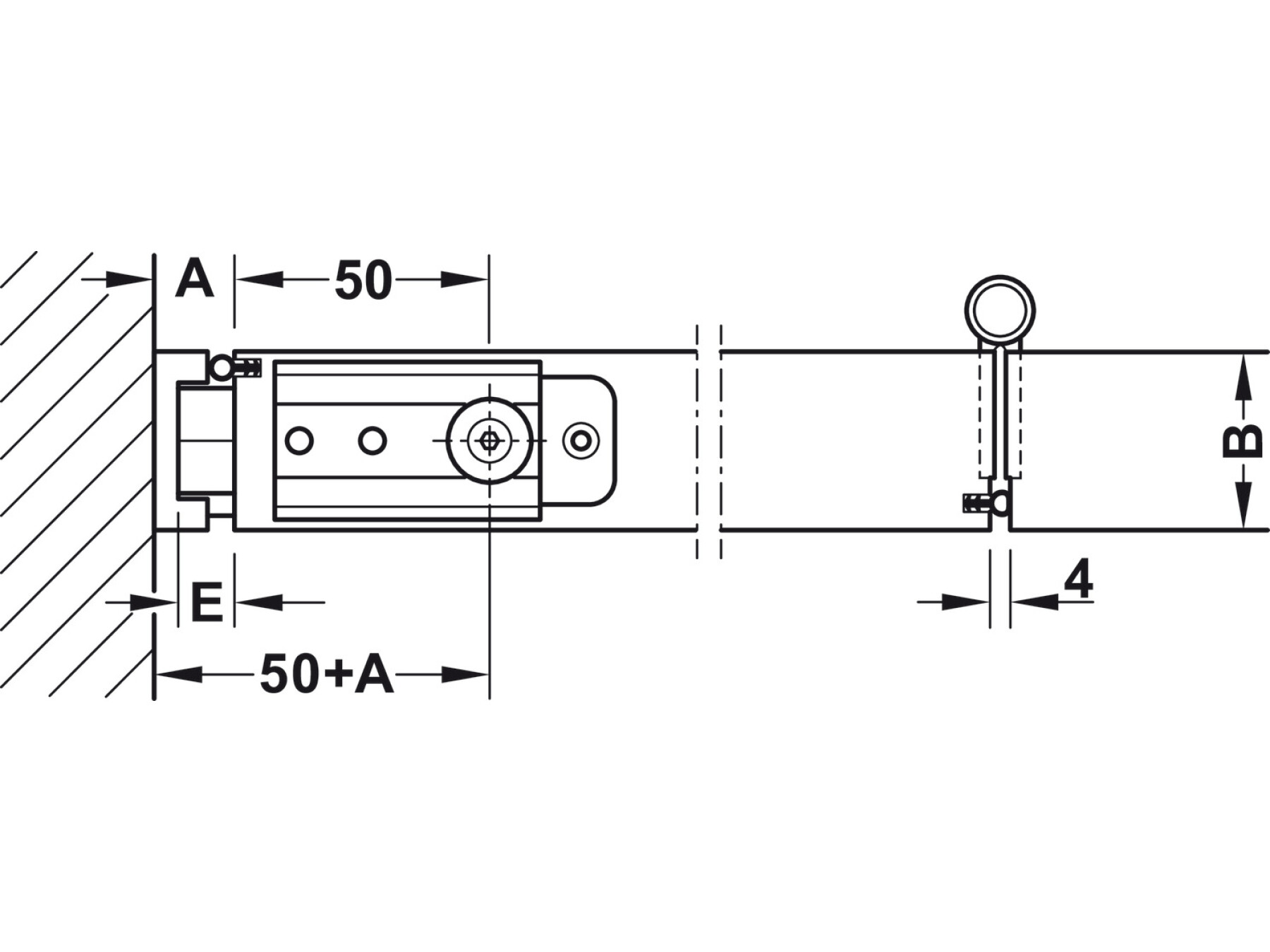

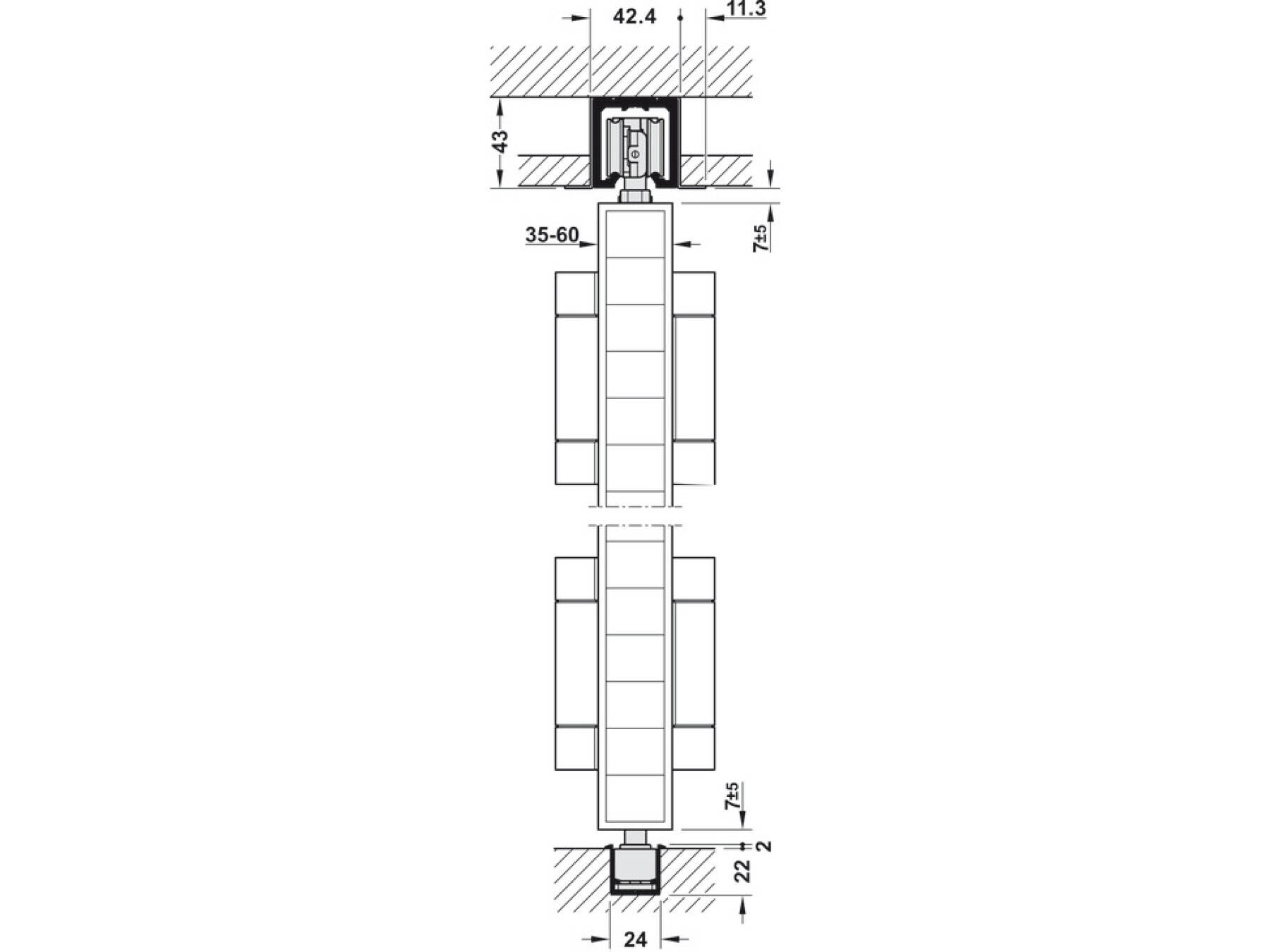

How is the system mounted and does it require ceiling installation

The running system is intended for ceiling installation. The door is then guided by the concealed in track arrangement, which typically keeps the hardware more discreet compared with exposed bottom track systems.

What adjustments are available during installation

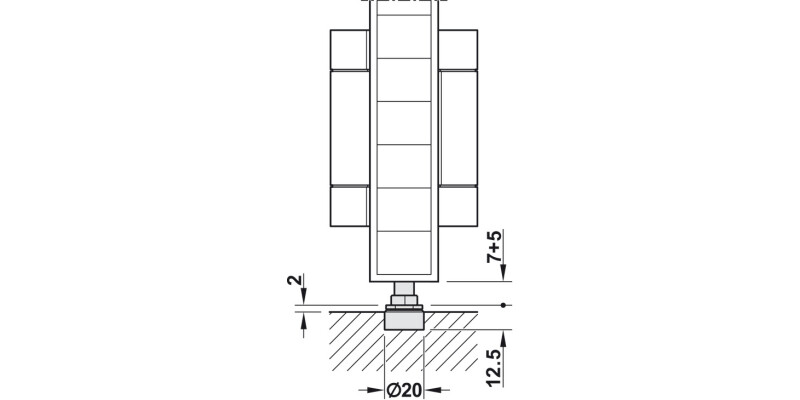

You get installation adjustment facilities including height adjustment from minus 5 to plus 5 mm. This can be especially helpful for fine tuning the door position after mounting, so the door aligns properly for day to day use.

What is included in the box with part number 943.55.006

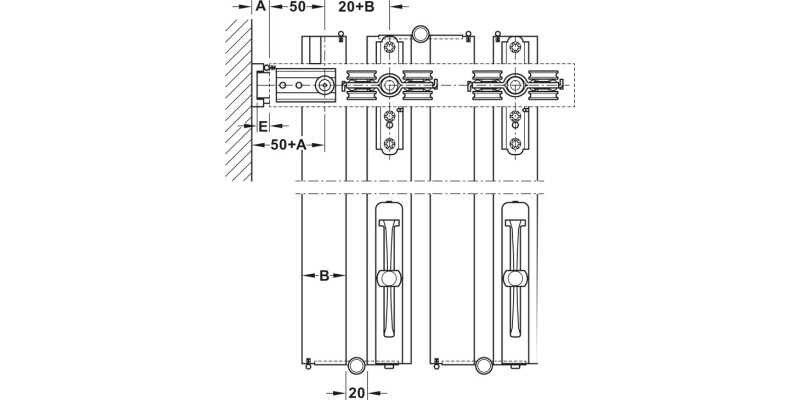

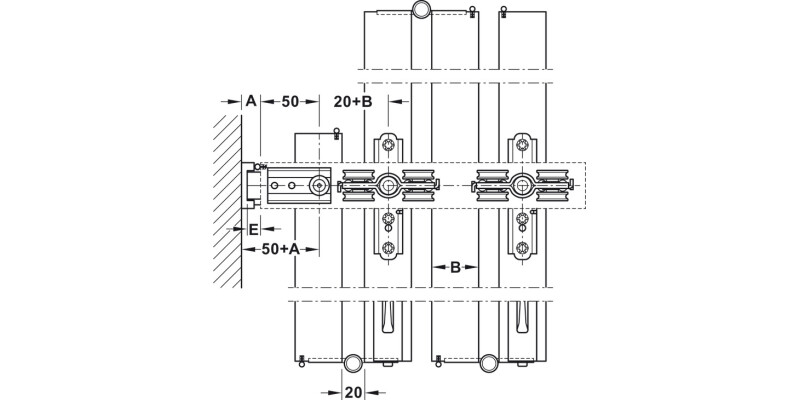

The set is supplied with 1x running gear and 4x rollers with a support flange, plus 1x centring set for the door and fixing materials. This covers the key components normally needed to set up a top hung sliding and folding arrangement without a bottom track.

Will I get a guarantee for this top hung gear

Yes. SlidoFold 100T FitSet comes with the Hafele Lifetime Guarantee for 10 years. This is a useful reassurance for customers choosing heavy duty sliding and folding door hardware.
