Vent Grille SM Hit/Miss 289x269mm Pl Wht
Part Number: 571.81.705

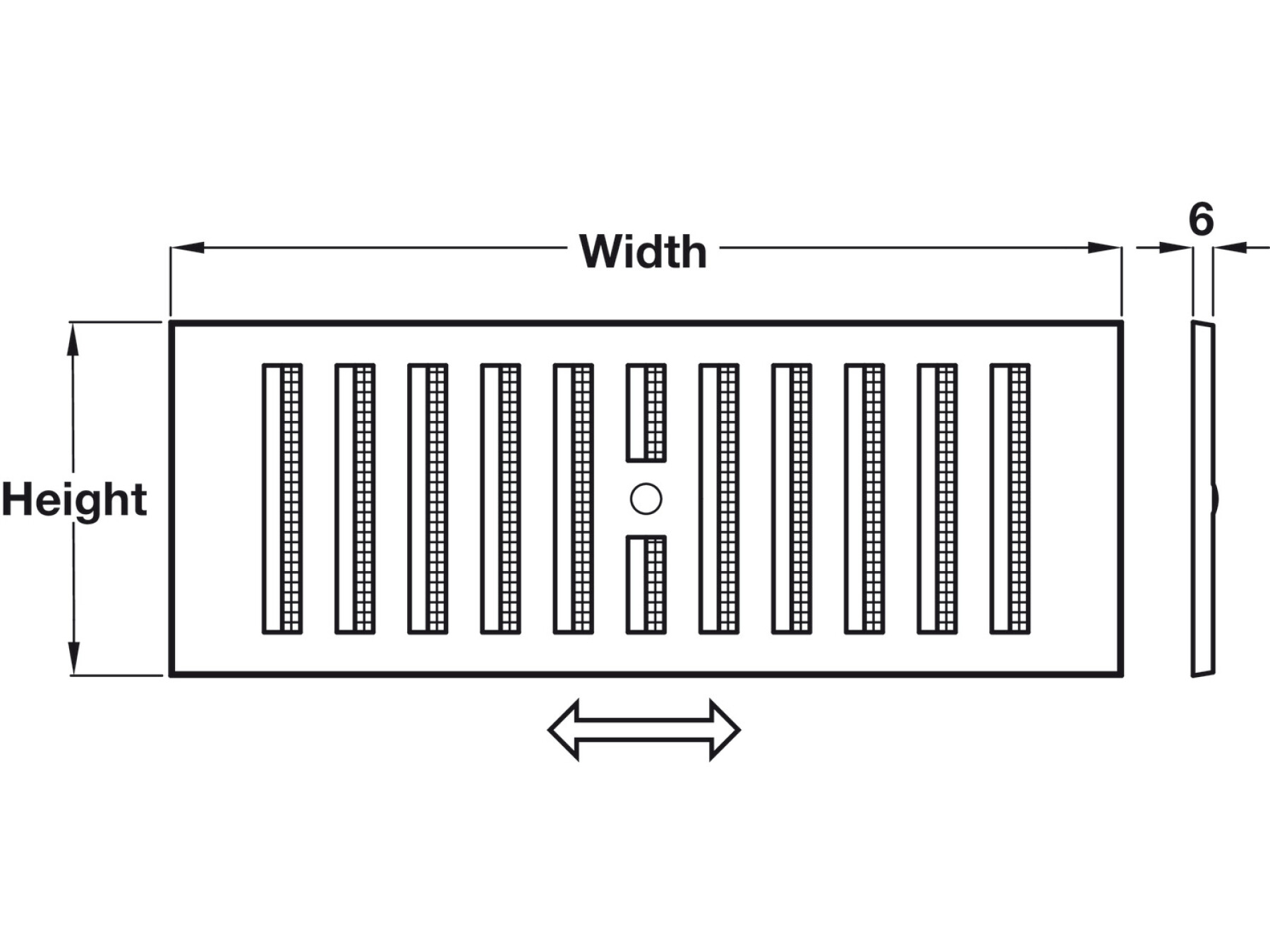

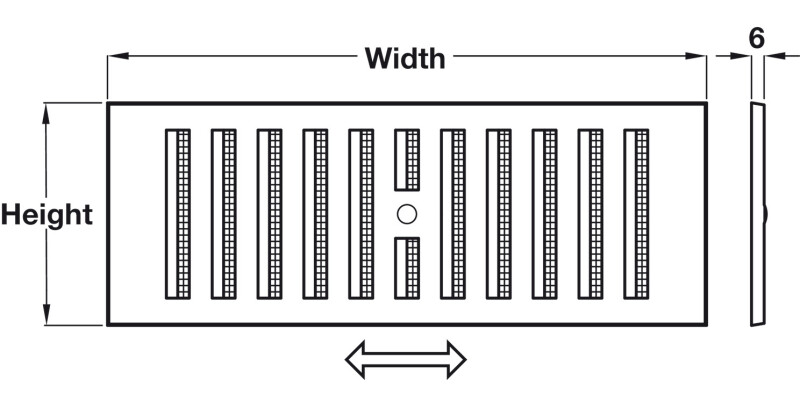

Width and height 289 x 269 mm, aperture size 229 x 229 mm, free air space 6350 mm2
Price:
£4.37
Per Item
Technical data Dim. (L x W) 107 x 284 mm 193 x 289 mm 269 x 289 mm Apertures (L x W) 229 x 76 mm 229 x... Read More
Product Information
Product Details
| Technical data | |||
|---|---|---|---|
| Dim. (L x W) | 107 x 284 mm | 193 x 289 mm | 269 x 289 mm |
| Apertures (L x W) | 229 x 76 mm | 229 x 152 mm | 229 x 229 mm |
| Ventilation Area | 22.4 cm² | 46.8 cm² | 63.5 cm² |
Specifications
Material
Plastic
Colour/finish
White
Installation
Surface fixing
Order reference
Order Hospa ⌀ 3.5 mm countersunk screws separately
Supplied with
Plastic flyscreen
