Concealed Hinge, Without Cup, for Thin Doors, Tiomos M0

Product Details

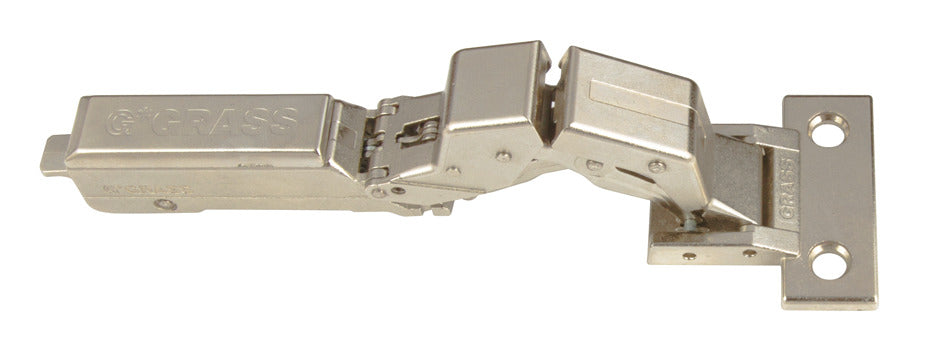

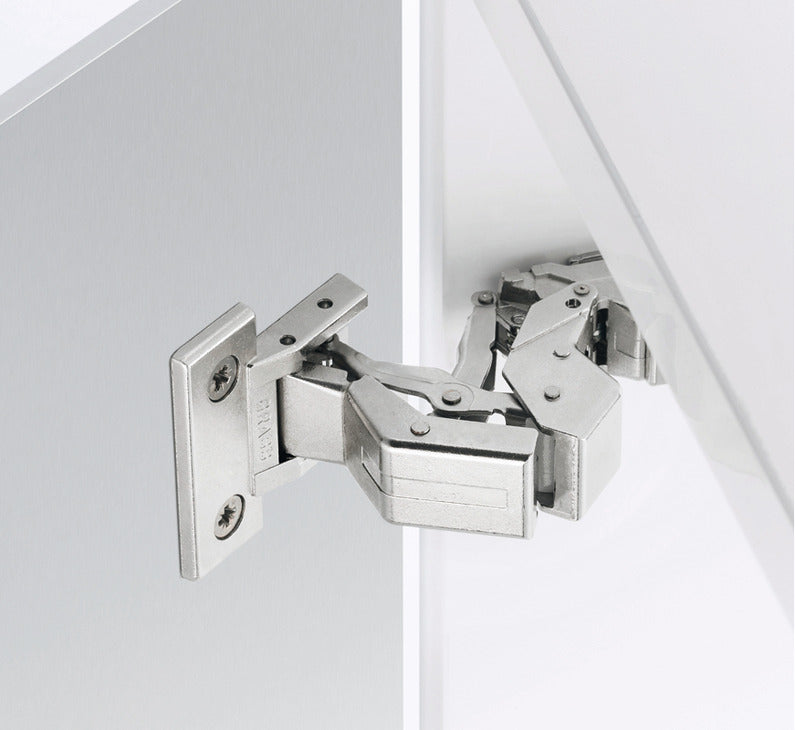

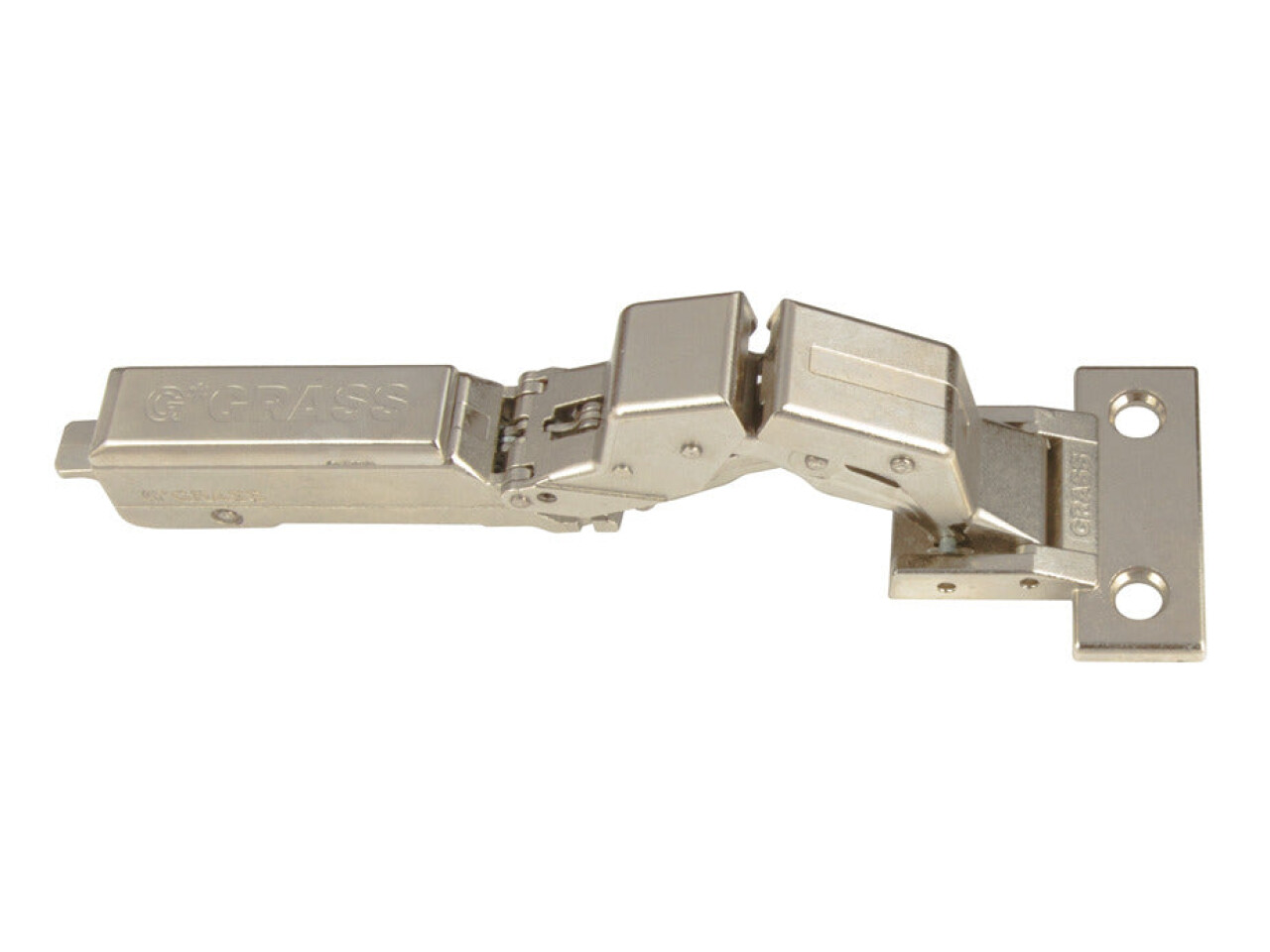

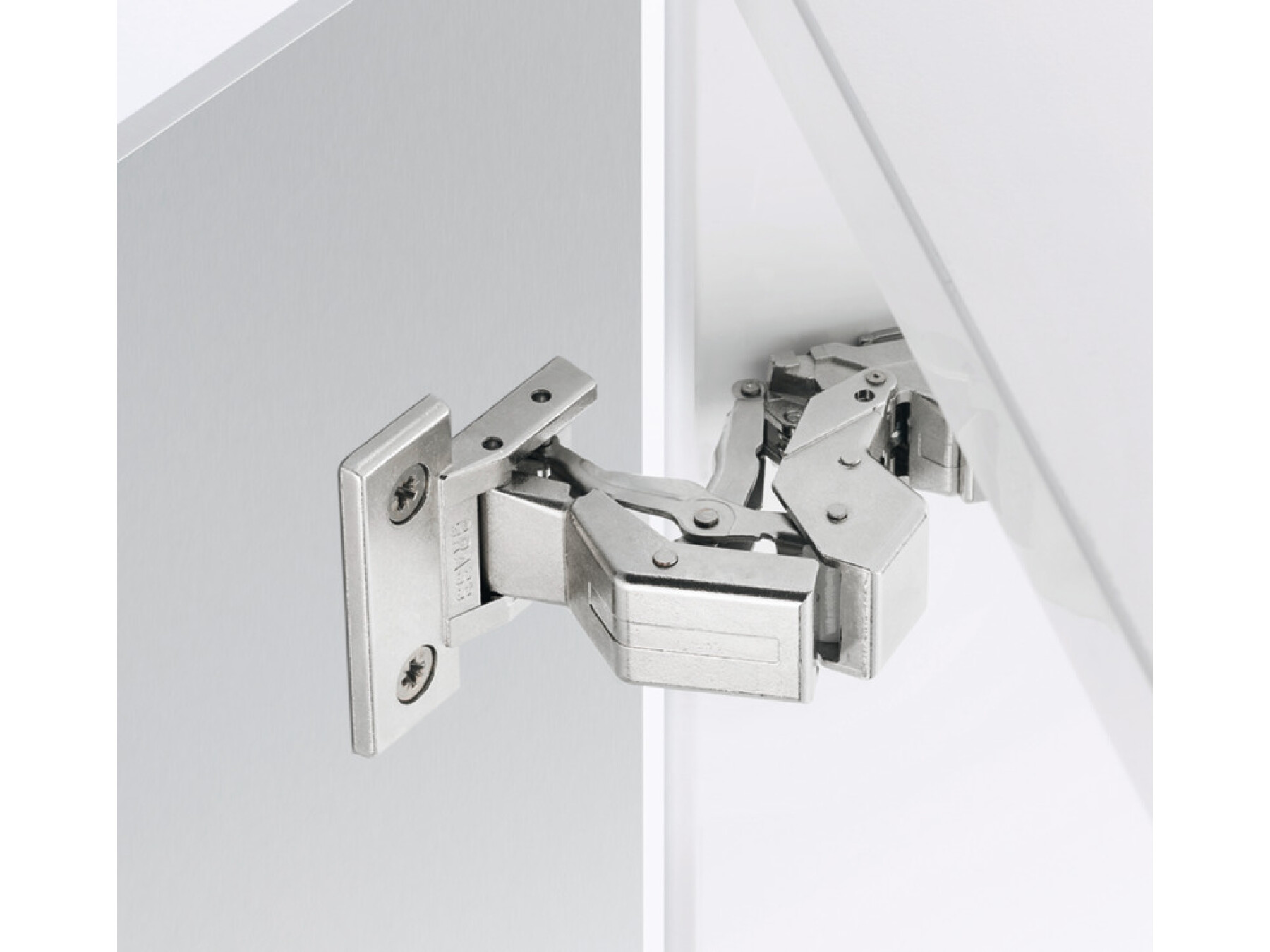

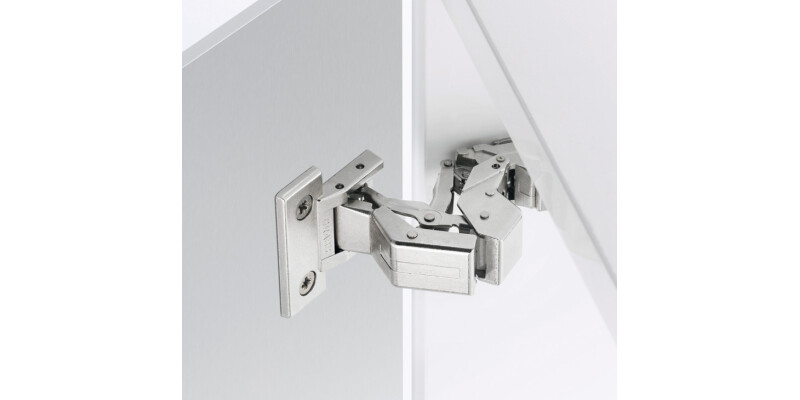

Concealed Hinge, Without Cup, for Thin Doors, Tiomos M0 (Part No. 348.27.801) is a premium concealed cabinet hinge designed for a clean, professional finish. Ideal for modern living spaces and commercial furniture alike, this hinge delivers smooth performance and a quieter closing experience thanks to its integrated damper.

One of the standout benefits of the Concealed Hinge, Without Cup, for Thin Doors, Tiomos M0 is its no-fuss installation. This no cup hole necessary design helps simplify cabinet preparation while keeping the look sleek. It’s also compatible with all Tiomos mounting plates, making it easy to match with your preferred system.

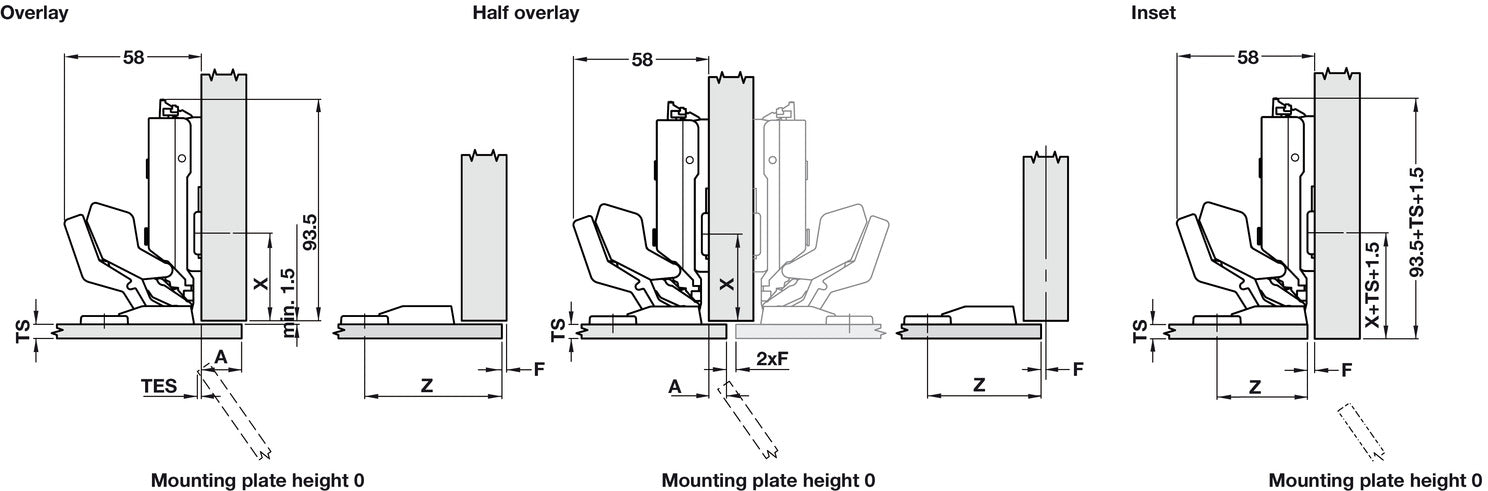

Area of application: Perfect for door thicknesses from 6 to 10 mm and door overlays up to 25 mm, giving you flexibility across a wide range of cabinet styles.

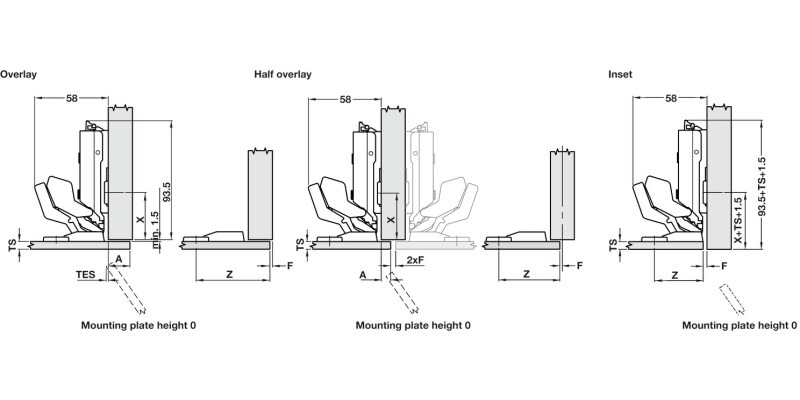

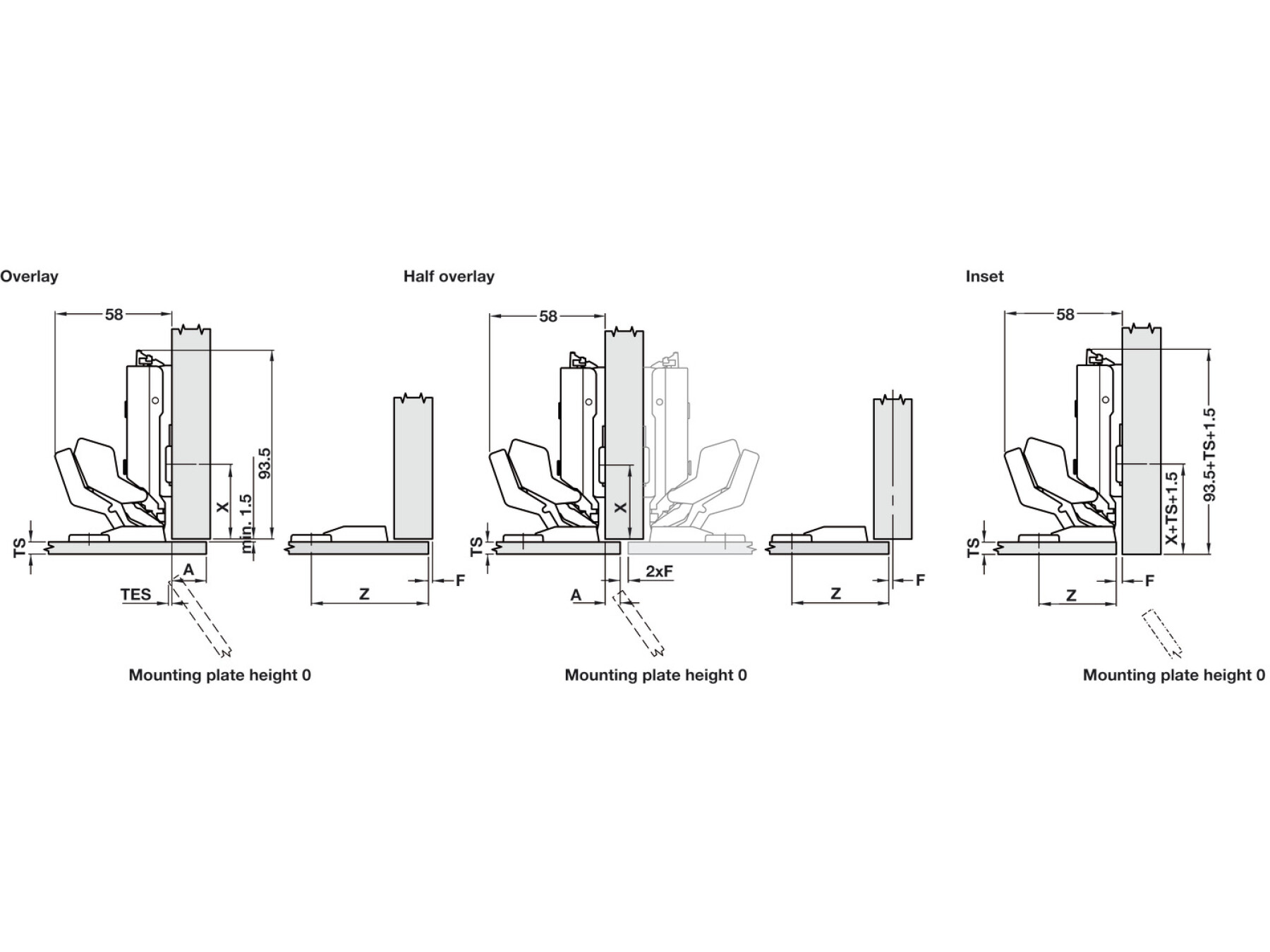

Version & fit: Enjoy zero protrusion with up to 14 mm overlay for a flush, elegant alignment. The hinge offers 125° opening angle, providing comfortable access without sacrificing cabinet aesthetics.

Built for durability: Made from zinc alloy, it’s finished with a nickel-plated cup for reliable strength and long-lasting appearance.

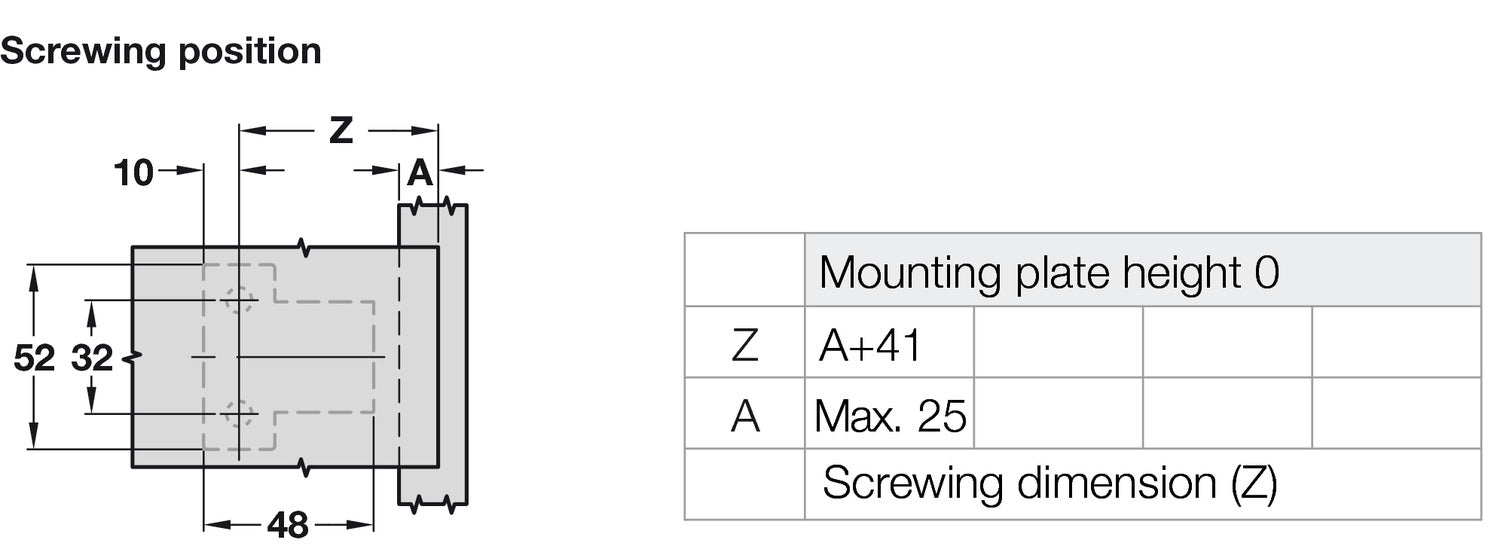

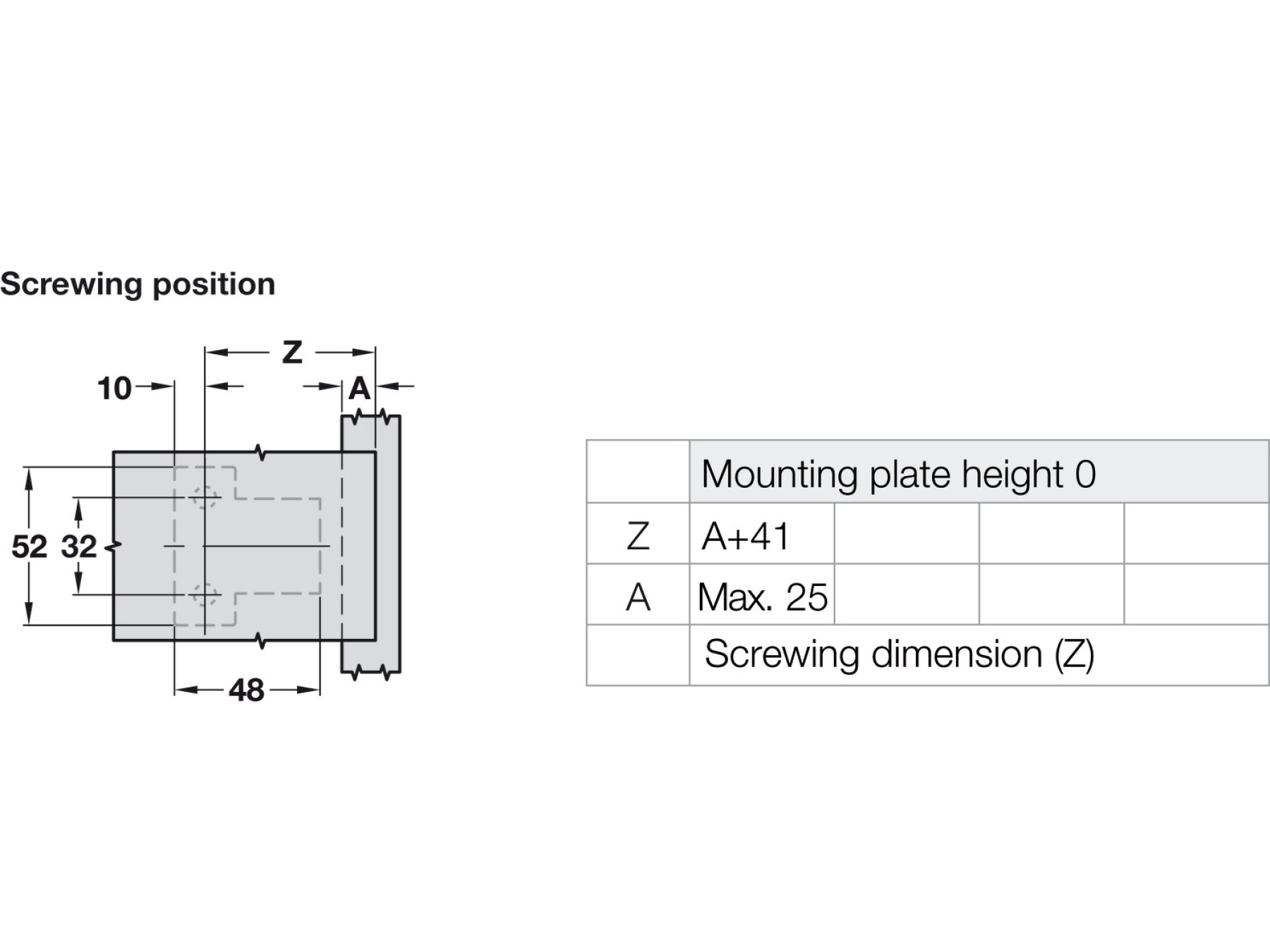

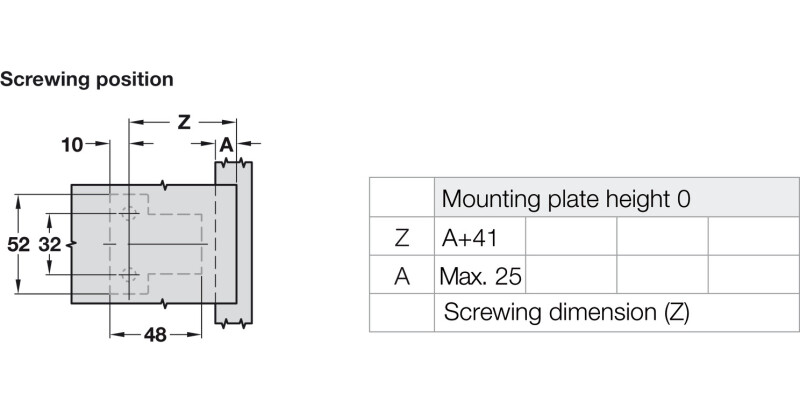

For precise installation and alignment, this hinge supports 3-dimensional adjustment when used with the appropriate mounting plate, helping you achieve a perfect door fit.

Included with delivery: 100 pieces M4 x 8 mm countersunk screws, 100 pieces M4 x 5.5 mm sleeves, and 1 mounting tool—so you can get started right away.

Upgrade your cabinets with the performance and finish of the Concealed Hinge, Without Cup, for Thin Doors, Tiomos M0—a smart choice for smooth operation, quiet comfort, and a refined final look.

100 pieces M4 x 8 mm countersunk screws
100 pieces M4 x 5.5 mm sleeves
1 piece mounting tool
