Concealed Hinge, 105°, Full Overlay Mounting, Tiomos H
Concealed Hinge, 105°, Full Overlay Mounting, Tiomos H. (Product Part No: 348.21.501) is the ideal concealed hinge... Read More
Product Details

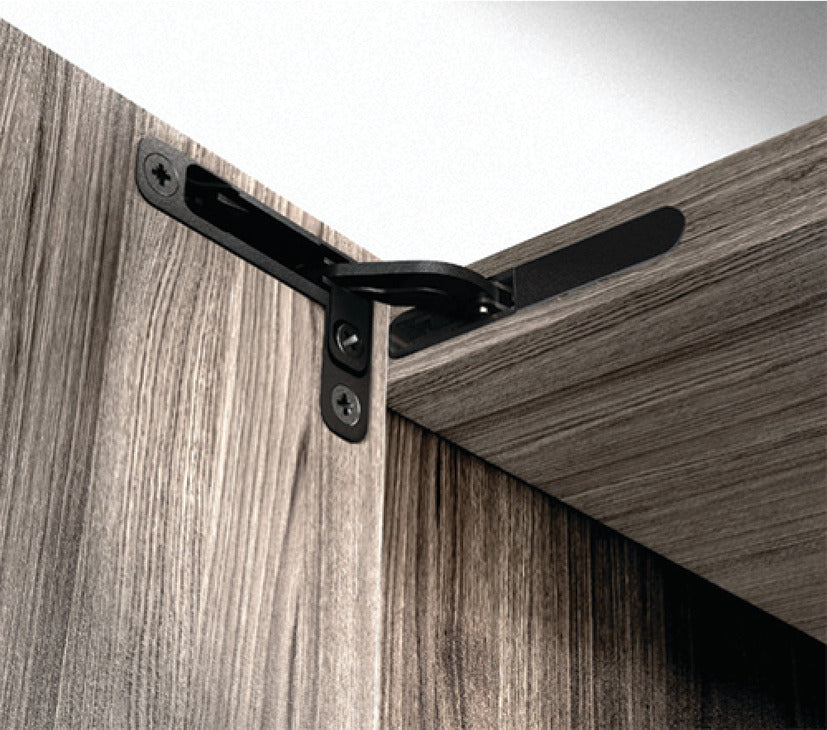

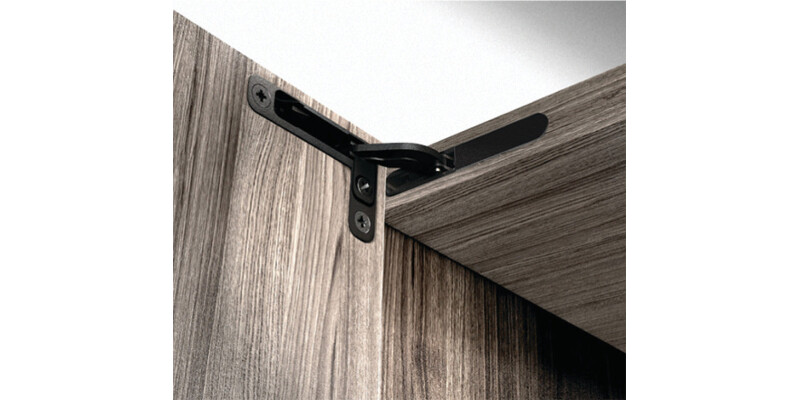

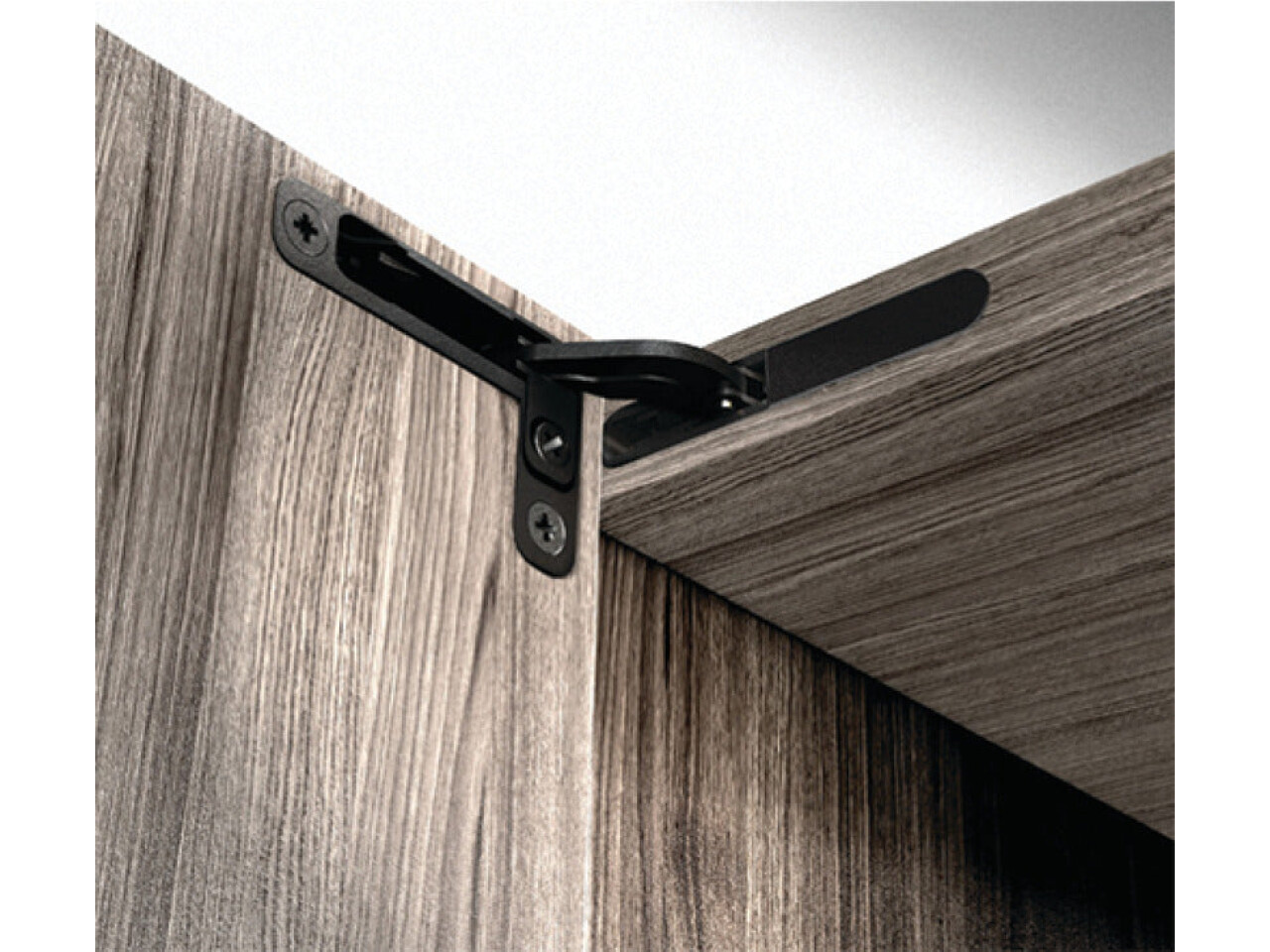

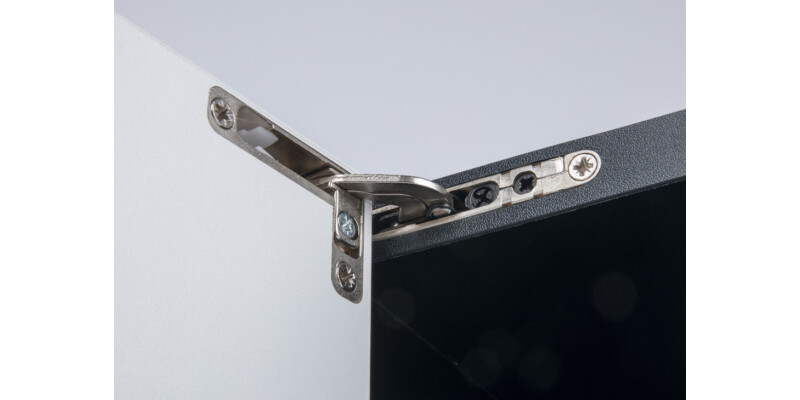

Concealed Hinge, 105°, Full Overlay Mounting, Tiomos H. (Product Part No: 348.21.501) is the ideal concealed hinge solution for achieving a clean, modern cabinet finish. Designed for seamless door alignment, this hidden cabinet hinge delivers smooth, controlled movement with an opening angle of 105°, making it perfect for both living and commercial furniture applications.
Crafted for reliability and long-term performance, the hinge is made from zinc alloy and finished in a nickel plated look for a durable, polished appearance. With a suitable mounting type of DIN left/right, installation fits effortlessly into compatible cabinet frameworks.

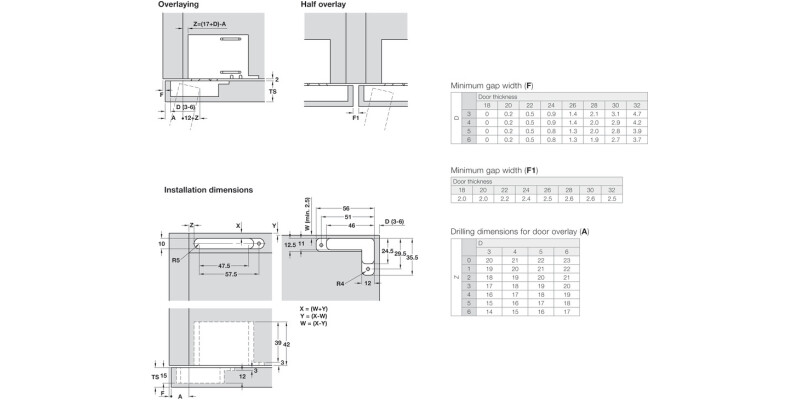

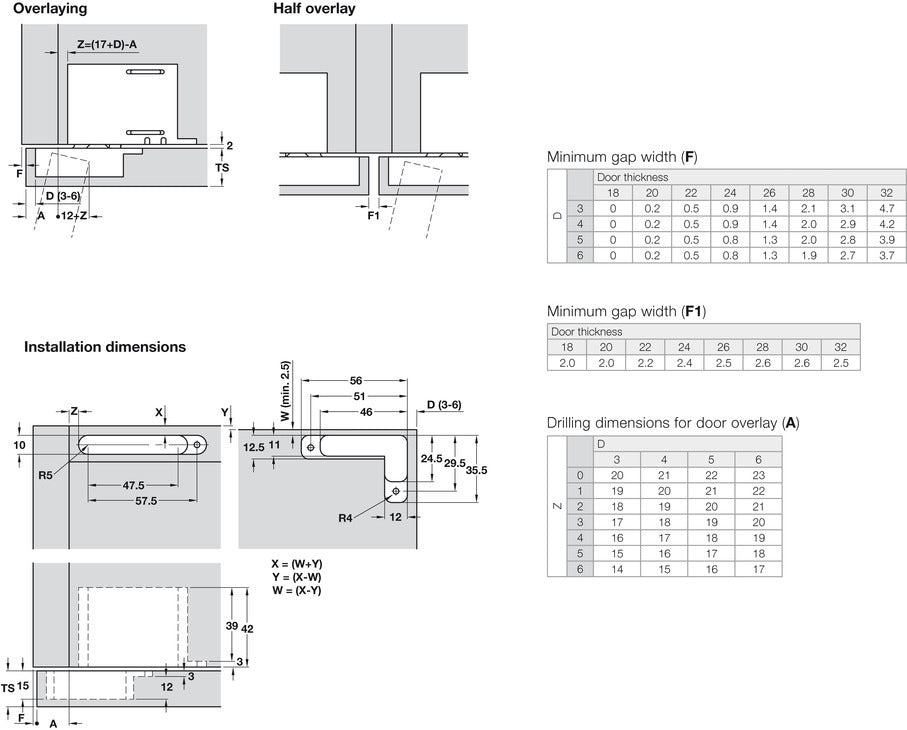

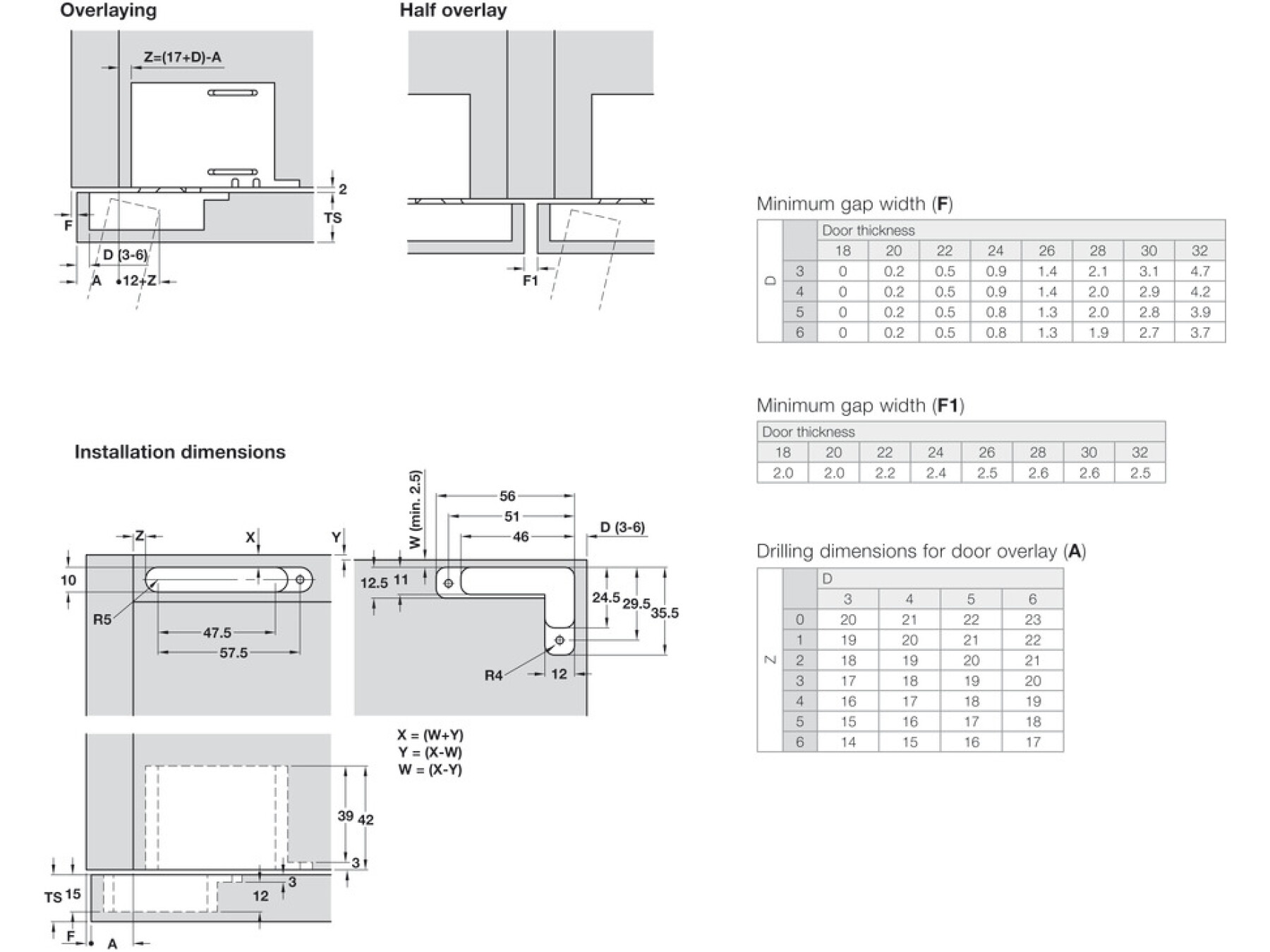

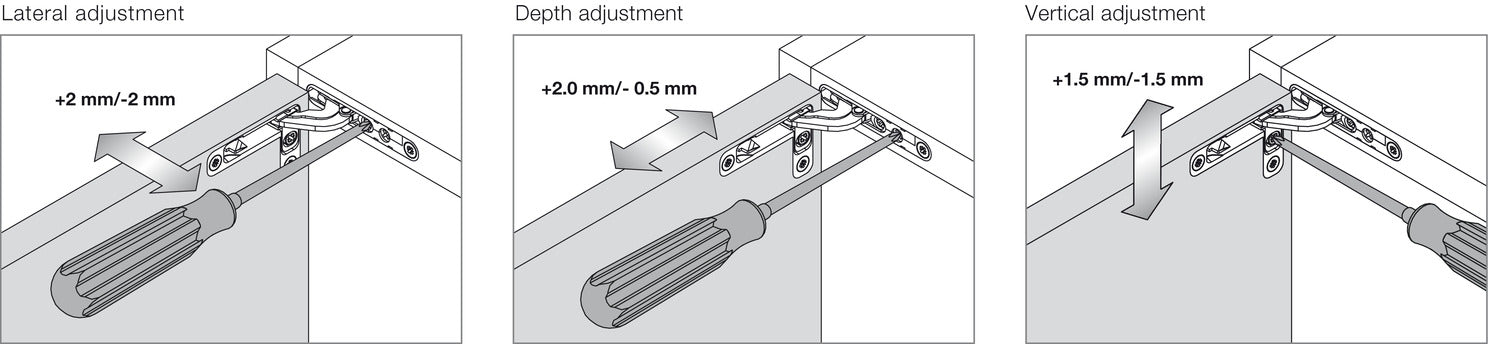

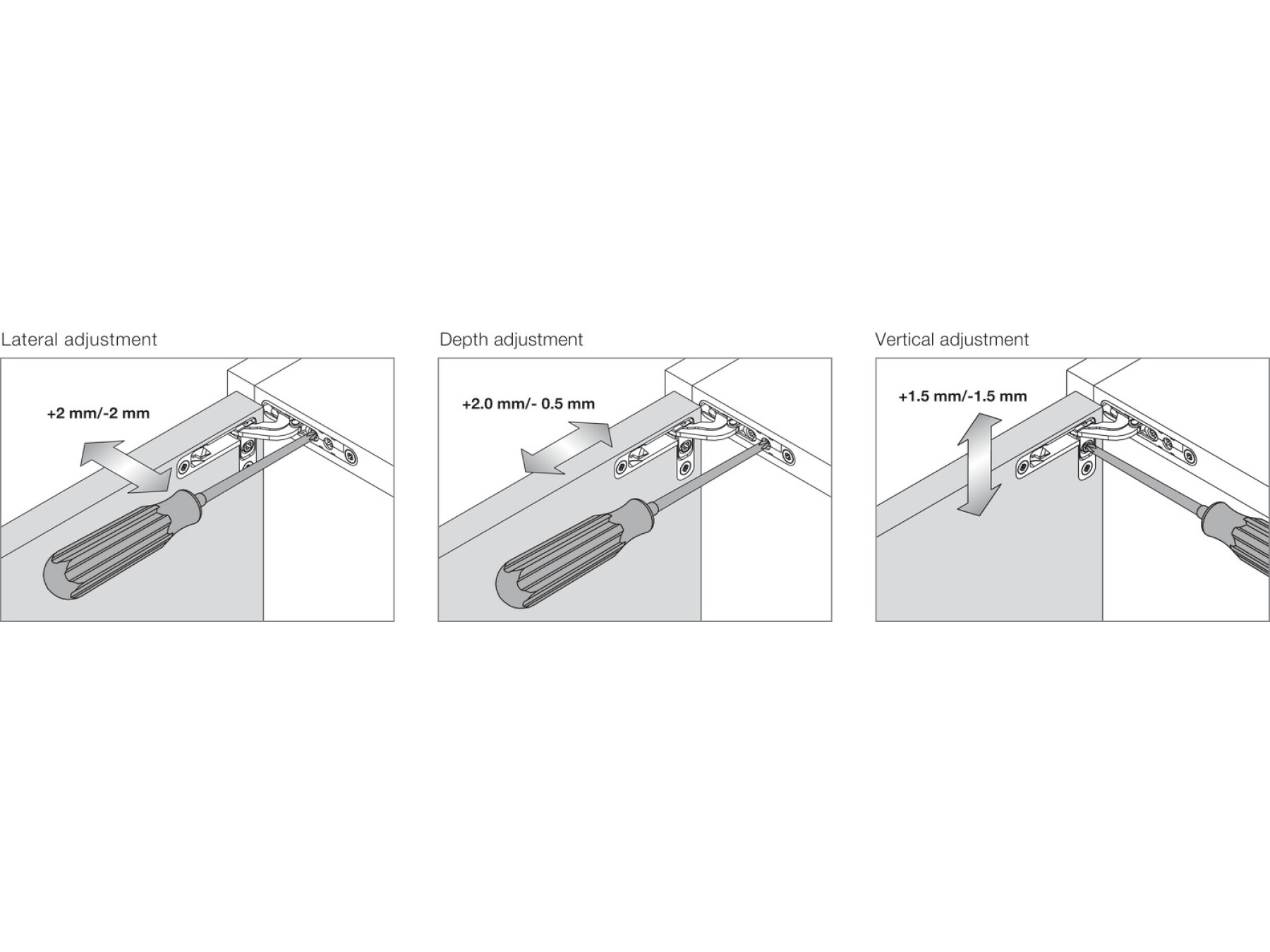

This hinge is built for cabinets with door thickness starting from 18 mm—helping ensure a secure fit and consistent operation. Fine-tuning is simple thanks to its adjustment facility: side adjustment of 2 mm, height adjustment from -1.5 to 1.5 mm, and depth adjustment from -0.5 to 2 mm. Get the alignment you want with fewer repeat adjustments.
What’s included: the set comes supplied with 2 hinges, 2 cover caps, and fixing screws, so you can complete your installation with confidence.
If you’re upgrading cabinet hinges for a professional look and smooth functionality, choose Concealed Hinge, 105°, Full Overlay Mounting, Tiomos H.—a discreet, dependable concealed hinge made for quality furniture fittings.
Specifications

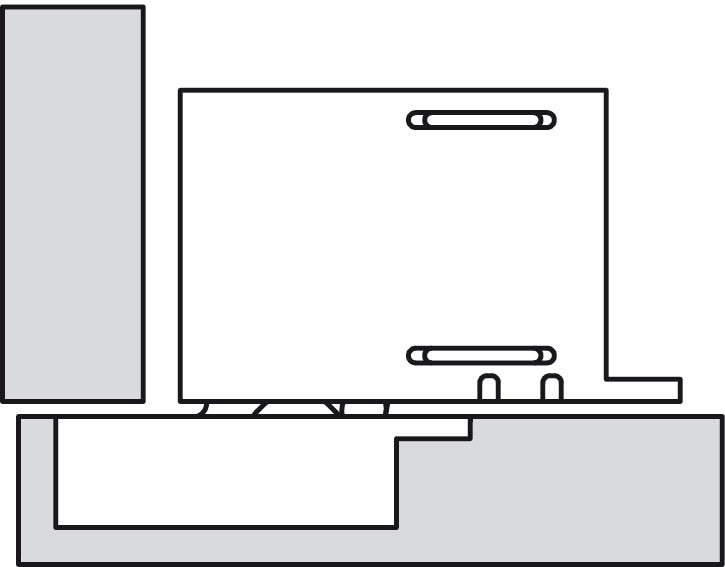

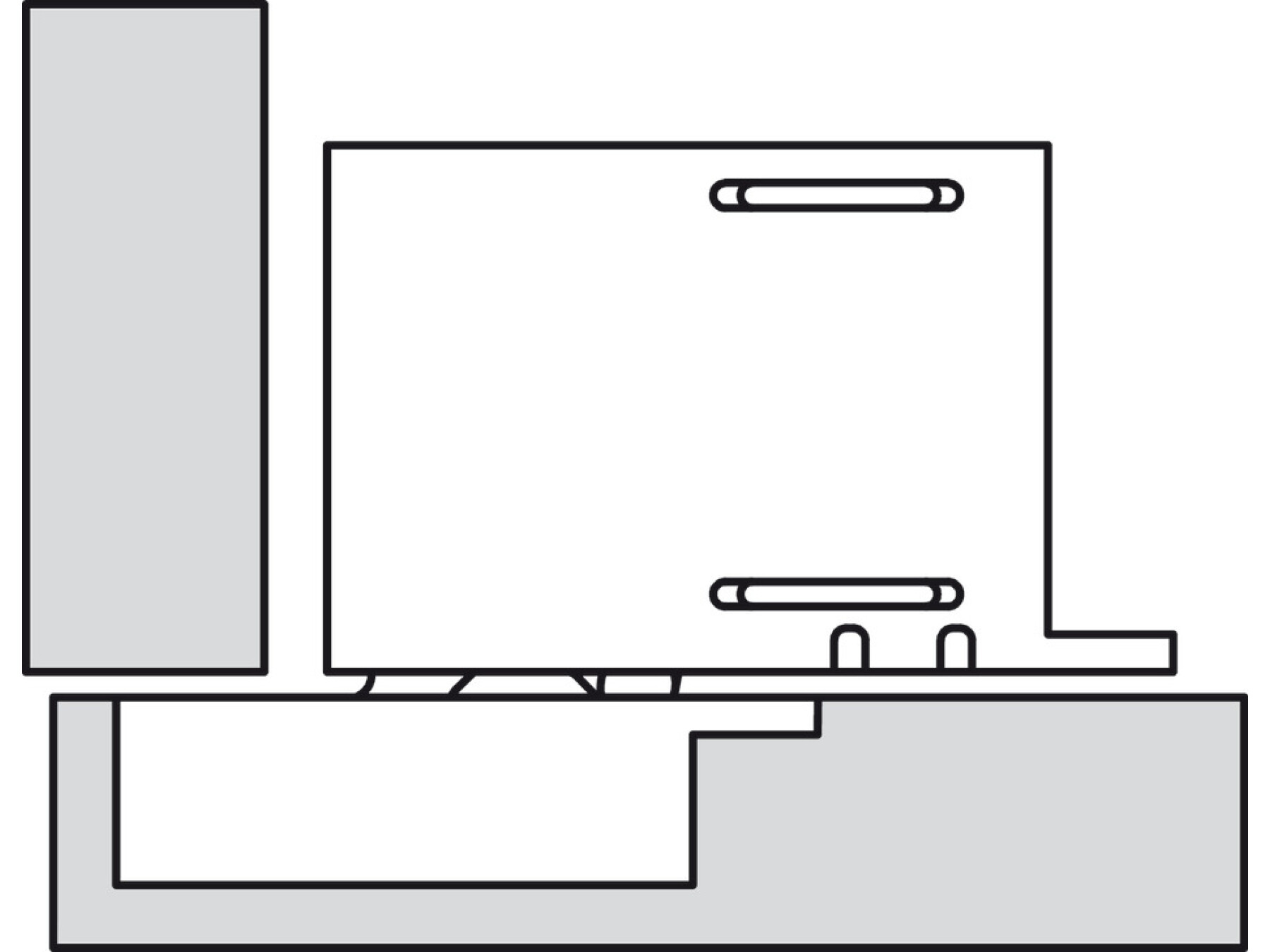

Mounting
For door thickness
Material
Zinc alloy
Model
Opening angle
Adjustment facility
Supplied with
Set consists of:
2x Hinges
2x Cover caps
Fixing screws
