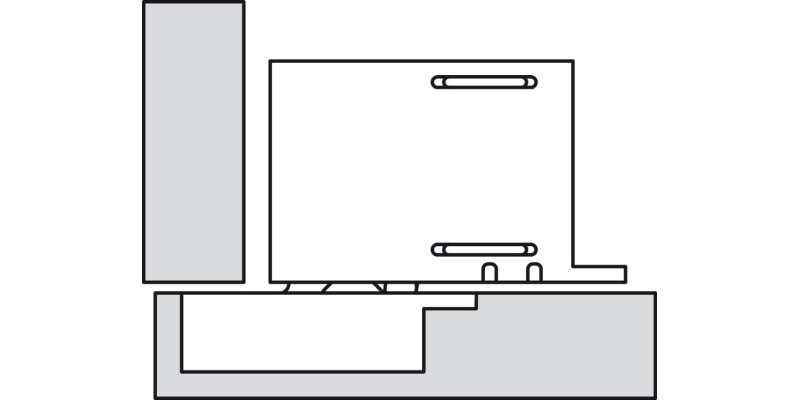

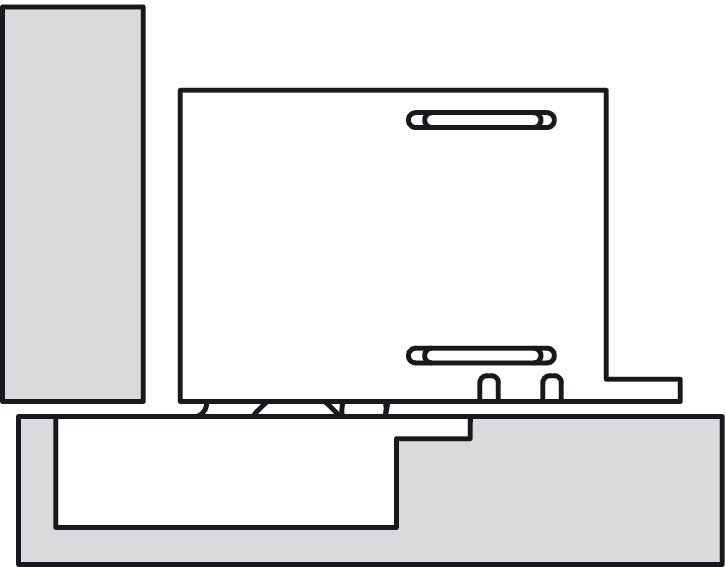

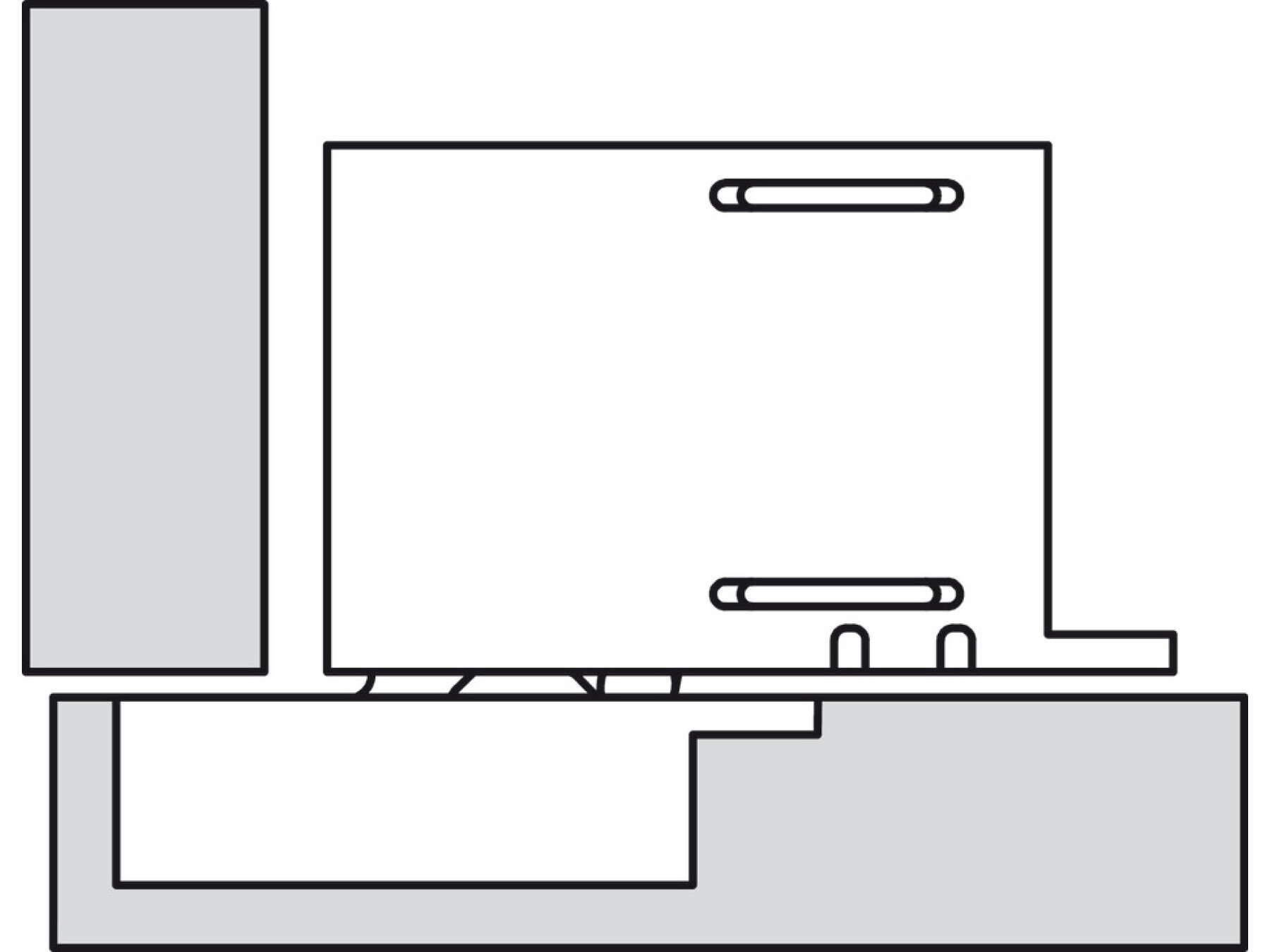

Concealed Hinge, 105°, Full Overlay Mounting, Tiomos H AL

Product Details

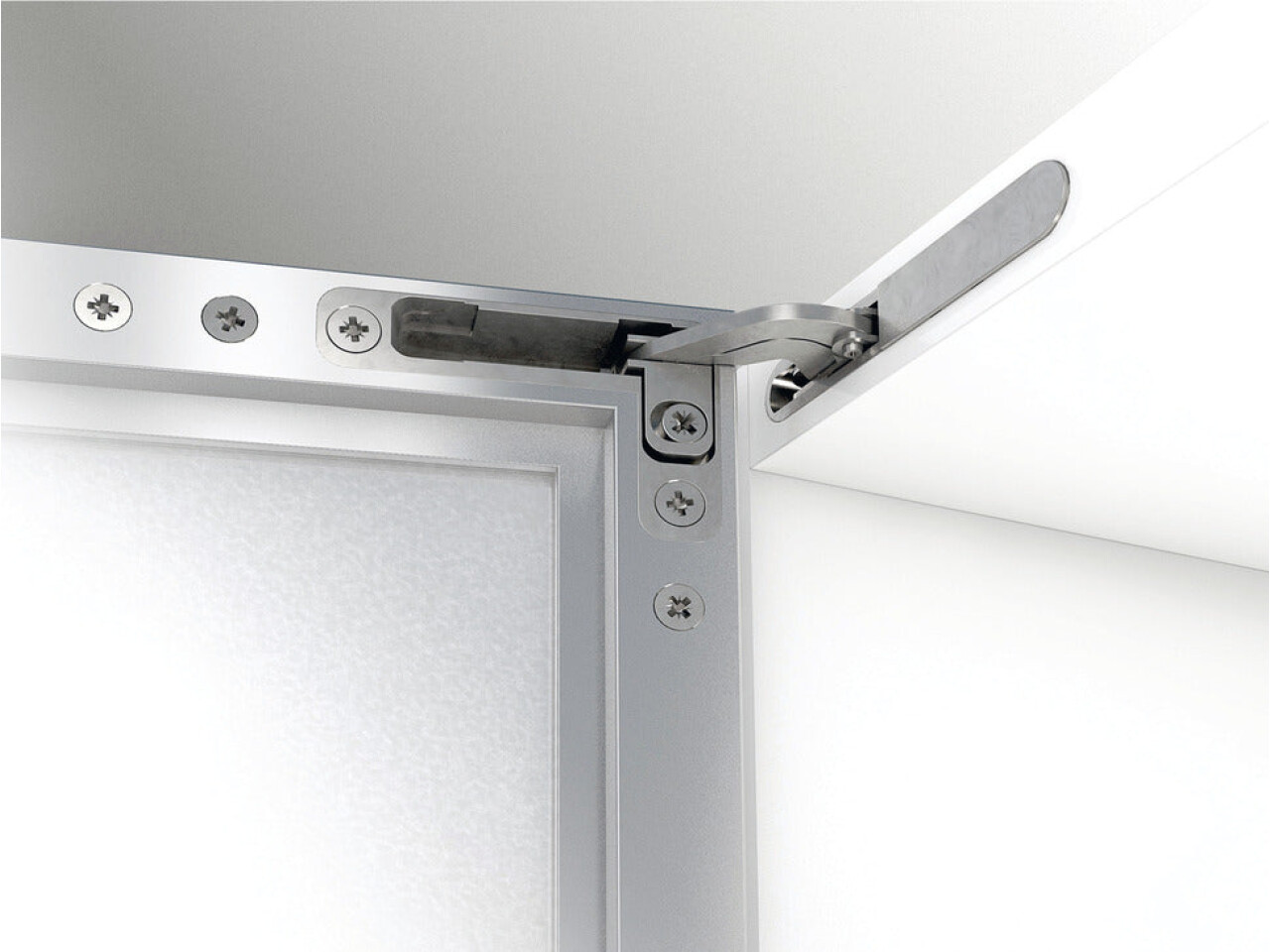

Concealed Hinge, 105°, Full Overlay Mounting, Tiomos H AL (Part No: 348.21.520) is a premium concealed hinge solution designed for a clean, modern look on aluminium framed doors. If you’re updating cabinets, luxury storage units, or commercial furniture where aesthetics matter, this hidden hinge set delivers a smooth, professional finish with a durable nickel plated surface.

Engineered around comfort and performance, the set includes a soft closing mechanism that helps prevent slamming and keeps doors closing gently and quietly every time. The concealed design ensures a streamlined appearance—ideal for contemporary interiors and high-end cabinetry builds.

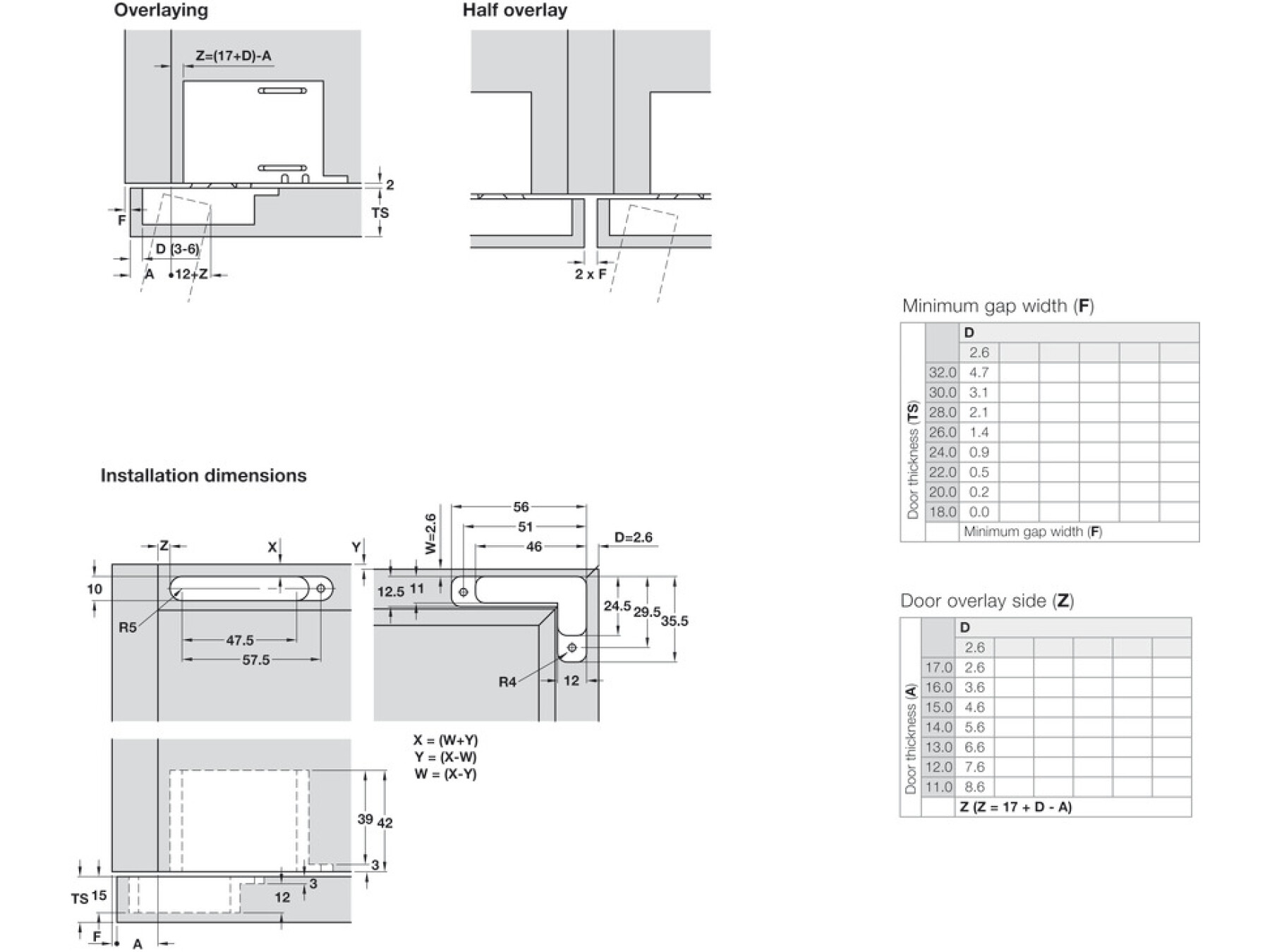

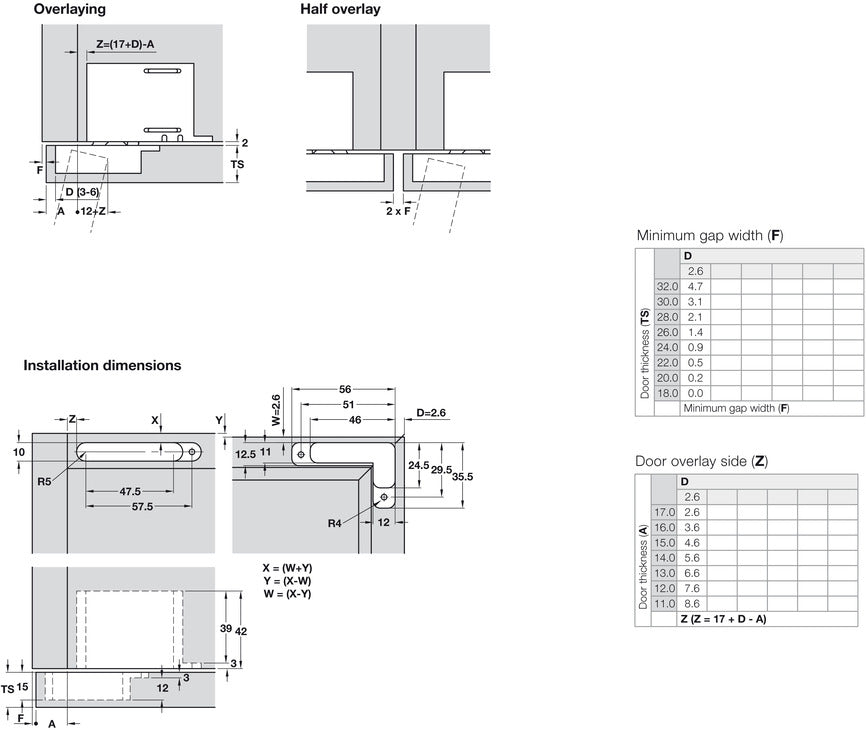

Built for easy installation and precise alignment, the hinge supports DIN left/right mounting for flexible fitting. With an opening angle of 105°, doors have the clearance they need for everyday use. Fine tuning is also supported with practical adjustment facilities: side adjustment (2 mm), height adjustment (-1.5 to 1.5 mm), and depth adjustment (-0.5 to 2 mm)—perfect for achieving consistent, accurate door gaps.

Made from zinc alloy and finished in nickel plated, the Tiomos system is built to withstand regular use while maintaining a refined appearance. Screws fixing makes it straightforward to secure during installation.

Order note: the Tiomos H AL adaptor and profile must be ordered separately. Supplied as a complete set, it includes 2 hinges, 4 corner connectors, 2 cover caps, and fixing screws.

Upgrade your cabinetry with Concealed Hinge, 105°, Full Overlay Mounting, Tiomos H AL—a discreet, dependable choice for elegant aluminium framed doors.

Tiomos H AL adaptor and profile to be ordered separately

Set consists of:
2x Hinges
4x Corner connectors
2x Cover caps
Fixing screws
