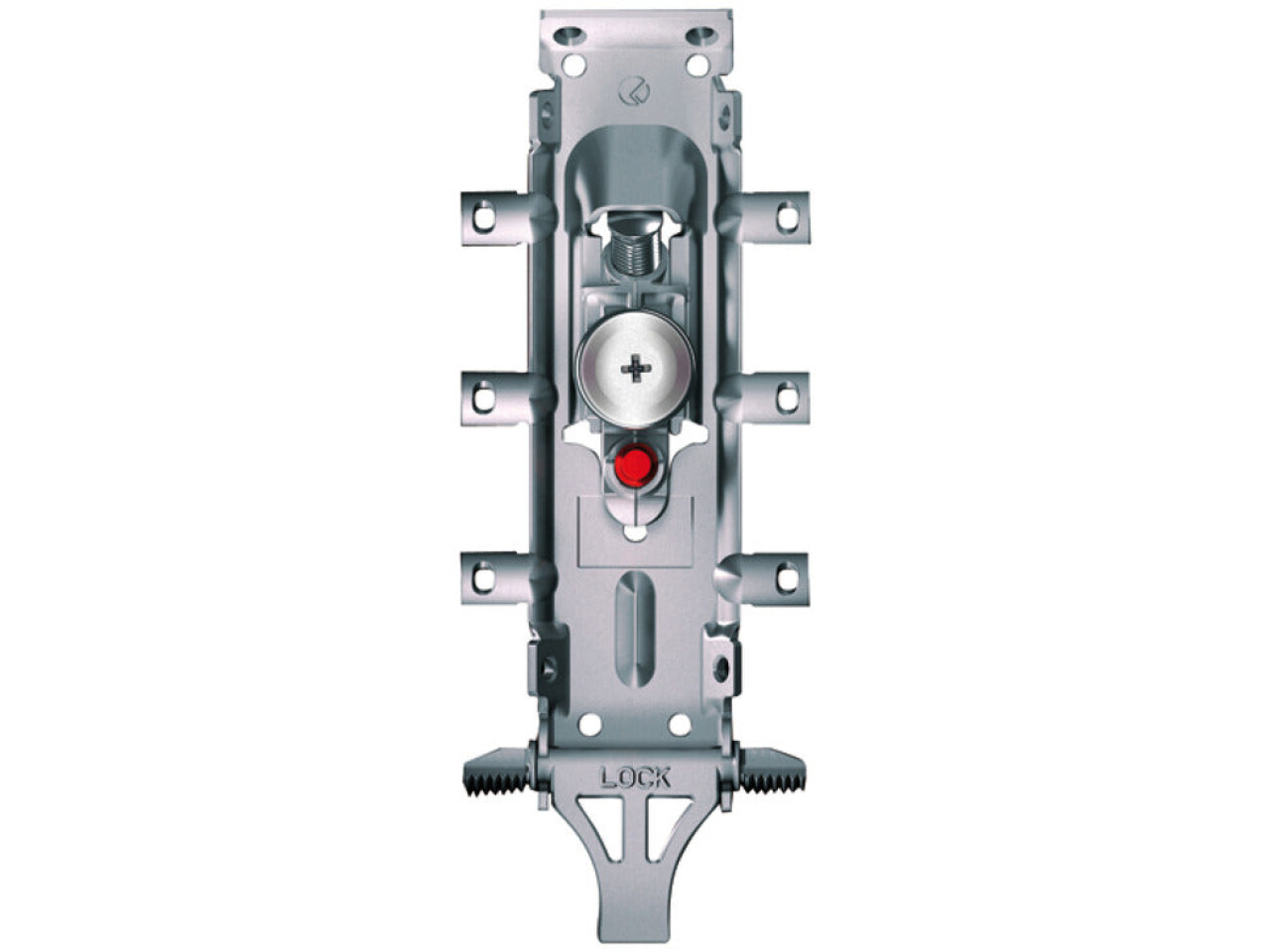

Concealed Cabinet Hanger, Dowel/Screw Mounting, Libra H2

Product Details

Is the Libra H2 Cabinet Hanger suitable for hanging wall units?

Yes. This concealed cabinet hanger is designed specifically for hanging wall units, making it a practical choice when fitting upper kitchen cabinets where you want the mounting hardware to stay out of sight.

What load can each pair of hangers support?

Each pair supports up to 150 kg of load bearing capacity. This makes it suitable for typical wall cabinet installations, provided the cabinet is installed correctly and the fixing points are appropriate for the wall construction.

How much adjustment is available after installation?

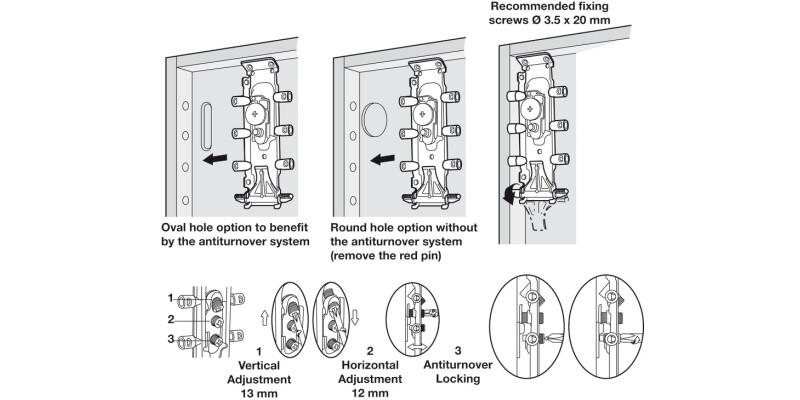

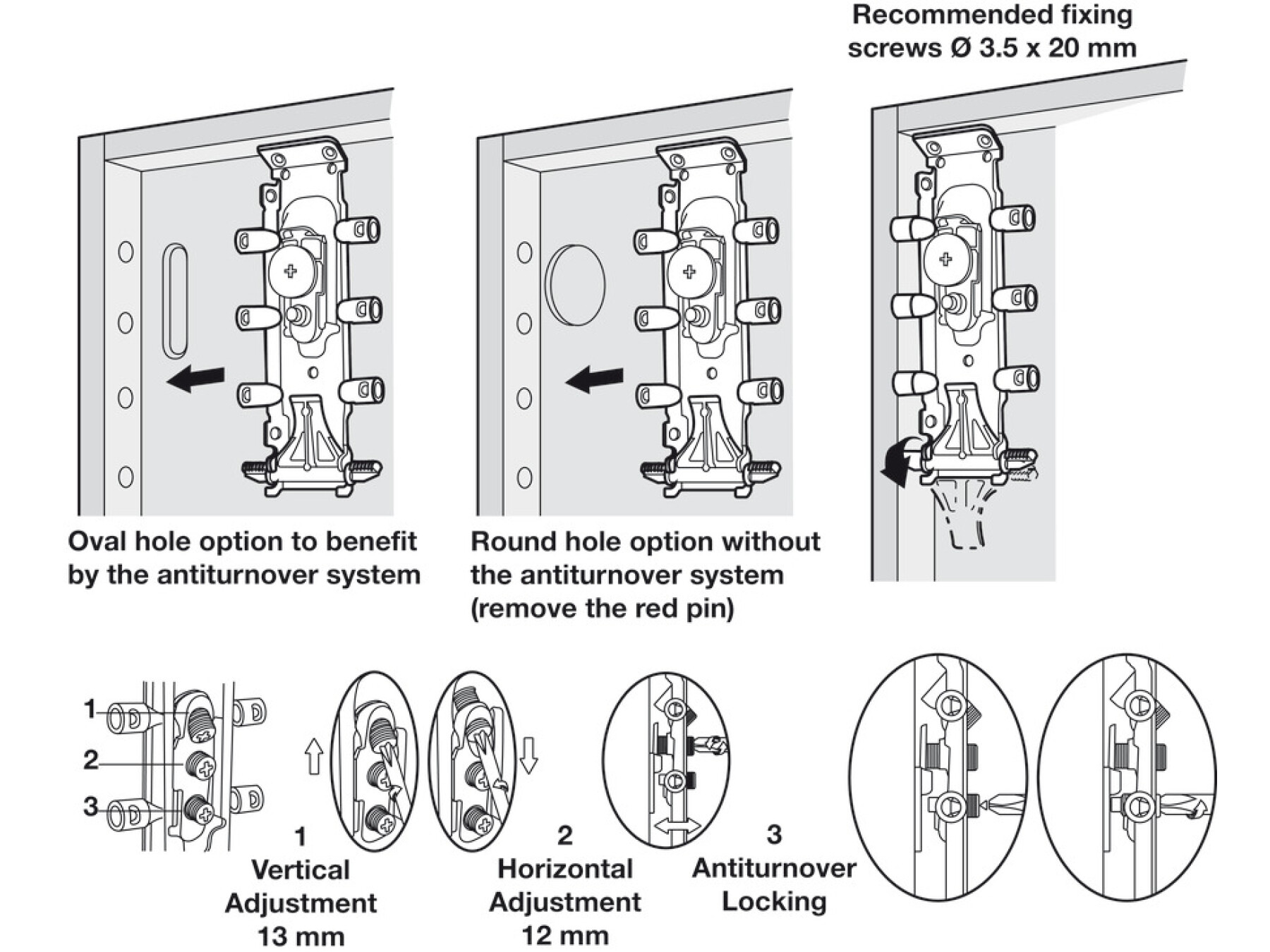

The hanger offers two way independent adjustment so you can fine tune cabinet alignment once fitted. You get 13 mm vertical adjustment and 12 mm horizontal adjustment, which is helpful for achieving a level, even look across multiple units.

Will I be able to align cabinets horizontally and vertically without removing the cabinet?

In most cases, yes. The built in adjustment range allows you to correct small positioning differences after the cabinet is mounted, reducing the need for repeated full removal and refitting during installation.

Where does this product fit in for kitchen fitting?

This part is a concealed cabinet hanger within the concealed cabinet hanger category. It is intended to be used with wall unit installation so the support system is hidden while the cabinet remains securely attached to the wall.

How do I identify the correct unit when ordering?

Use the product information to confirm you are ordering the right component. The Part No is 290.41.910, and the product name is Libra H2 Cabinet Hanger Conc UH SZP, which helps match it to your planned kitchen fitting setup.

If you are fitting or replacing concealed wall cabinet hardware, choosing the correct hanger and adjustments can make day to day alignment easier. Add the Libra H2 Cabinet Hanger Conc UH SZP to your order to complete your wall unit installation with confidence.
