Concealed Cabinet Hanger, Press Fitting or Screw Mounting Two Way Adjustment

Product Details

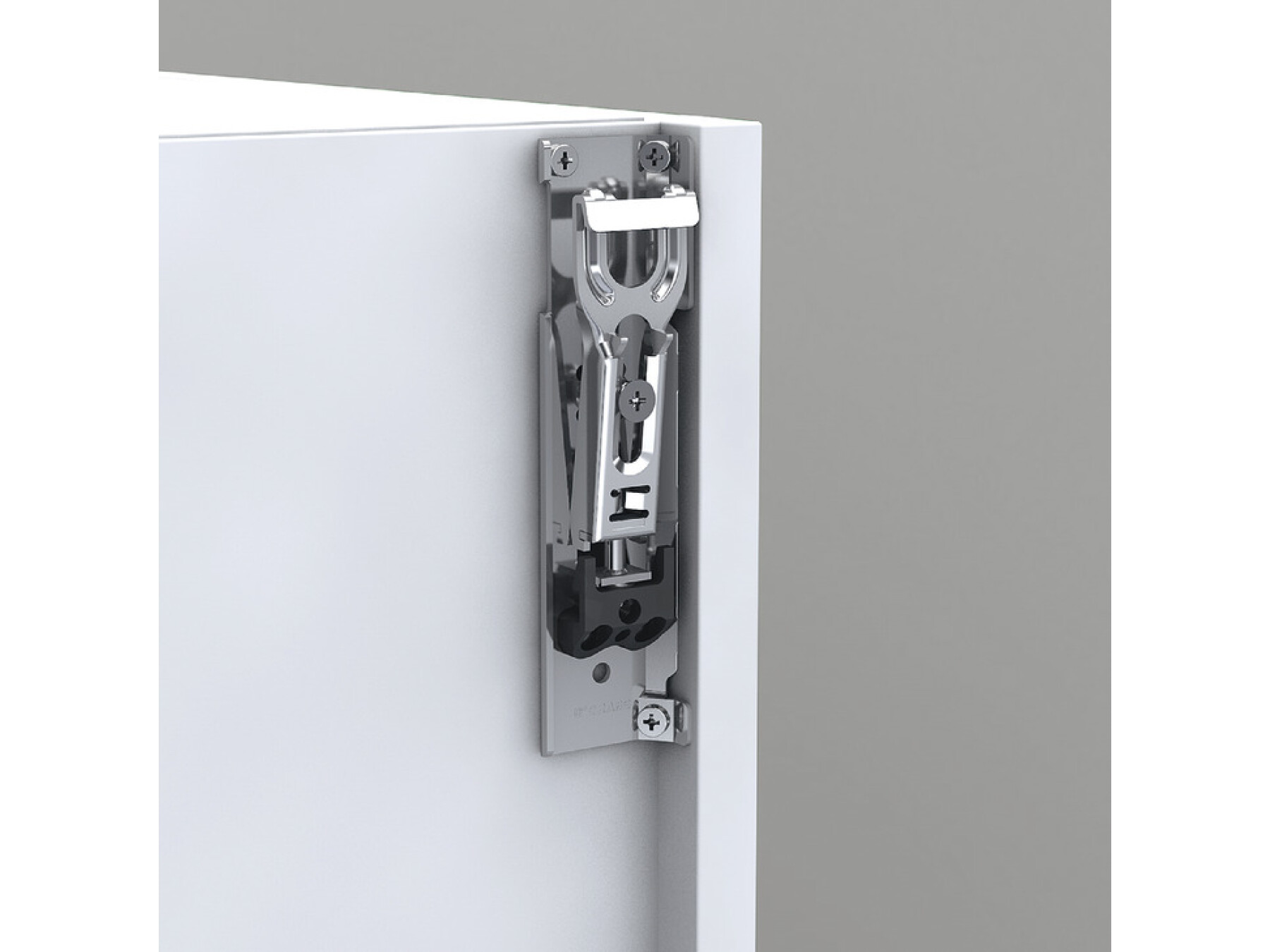

Concealed Cabinet Hanger, Press Fitting or Screw Mounting Two Way Adjustment (Part No: 290.03.935) is designed for homeowners and installers who want a clean, professional look in every kitchen. This invisible inside the cabinet right-handed hanger keeps your wall unit secure while hiding the fixing hardware for a smooth, uninterrupted finish.

Built for practical daily use, the concealed cabinet hanger features a short base plate and robust construction made from plastic and steel. The hardware is zinc plated for reliable protection and long-lasting performance, helping it handle the demands of kitchen environments.

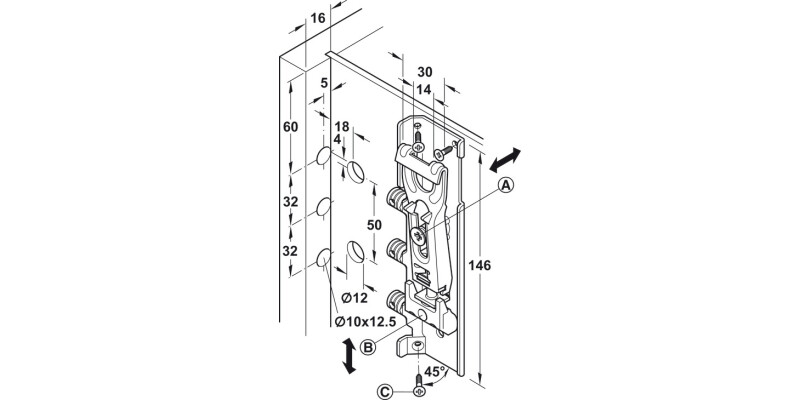

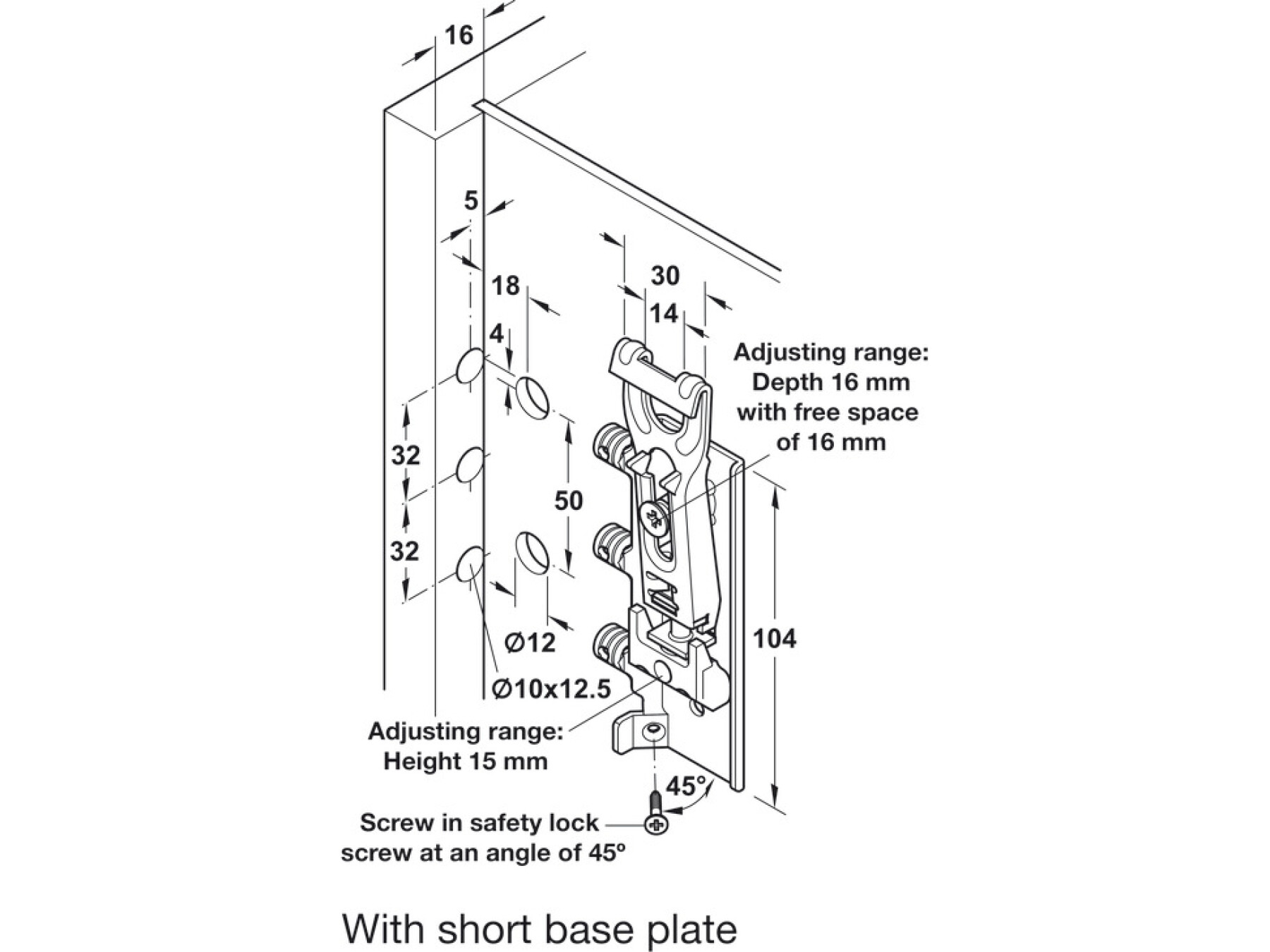

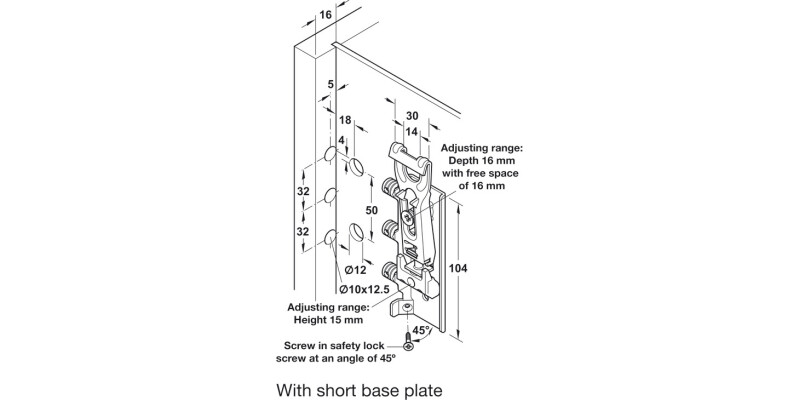

Ideal for hanging wall units, this system offers a load bearing capacity of 130.00 kg per pair, giving you peace of mind during installation and everyday use. Once fitted, you’ll enjoy precise positioning thanks to its smart adjustment facility: height and depth adjustment is achieved using ⌀ 12 mm drill holes with a 16 mm clearance.

For fine-tuning, additional adjustment is also supported with the same 16 mm clearance, again utilising ⌀ 12 mm drill holes. Supplied ready to install, the kit includes 1 cabinet hanger and 2 cover caps, so you can complete the concealed look neatly right from the start.

If you’re upgrading your kitchen storage with a durable, space-saving solution, choose the Concealed Cabinet Hanger, Press Fitting or Screw Mounting Two Way Adjustment—a reliable, right-handed fitting made to keep your cabinets perfectly aligned and beautifully finished.

1 cabinet hanger
2 cover caps
