Concealed Cabinet Hanger, Press Fitting or Screw Mounting Two Way Adjustment

Product Details

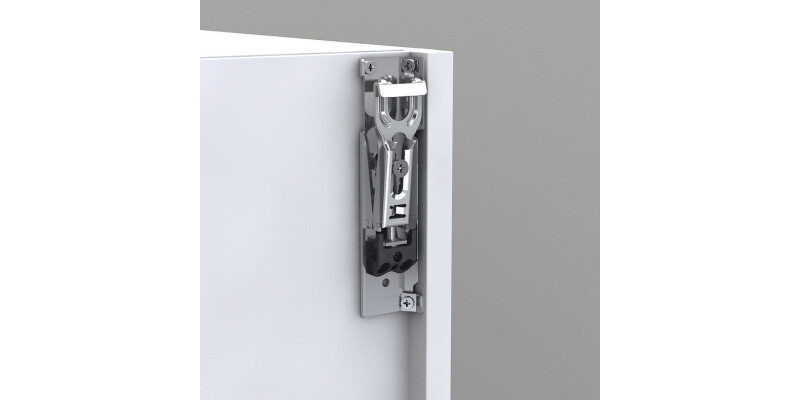

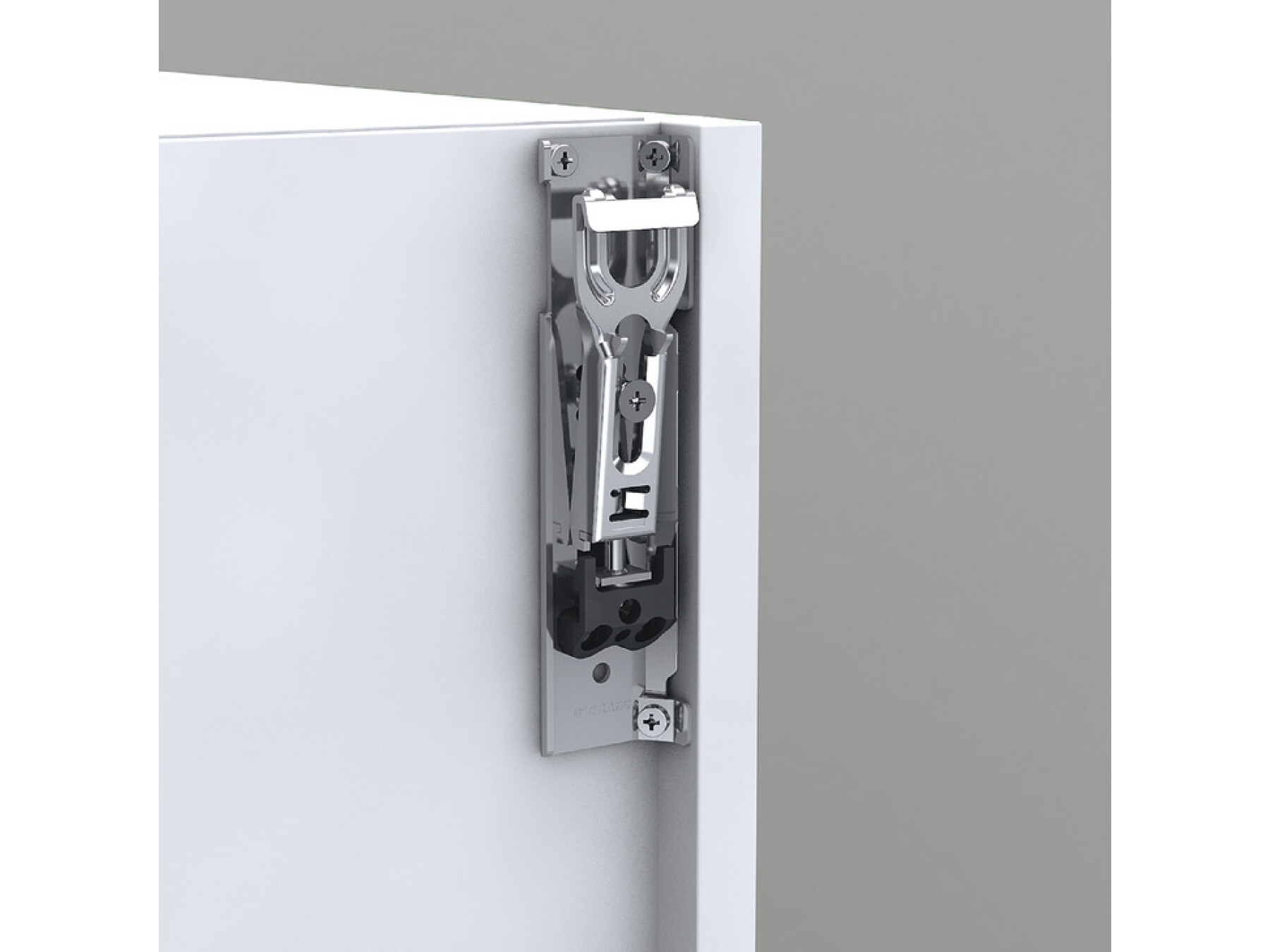

Concealed Cabinet Hanger, Press Fitting or Screw Mounting Two Way Adjustment (Product Part No: 290.03.936) is the ideal solution for fitting hanging wall units with a clean, professional finish. Designed to sit invisible inside the cabinet, this left-handed concealed cabinet hanger helps your kitchen look sleek and uncluttered—no bulky hardware on show.

Featuring a short base plate for the right mounting profile, this LH (left handed) hanger is built for confidence and stability. It’s made from a blend of plastic and steel and finished with zinc plating for durability and long-lasting performance in everyday kitchen use.

When you’re installing wall cabinets, reliable strength matters. This concealed hanger pair provides a load bearing capacity of 130.00 kg, helping you secure cabinets safely while keeping installation smooth and controlled.

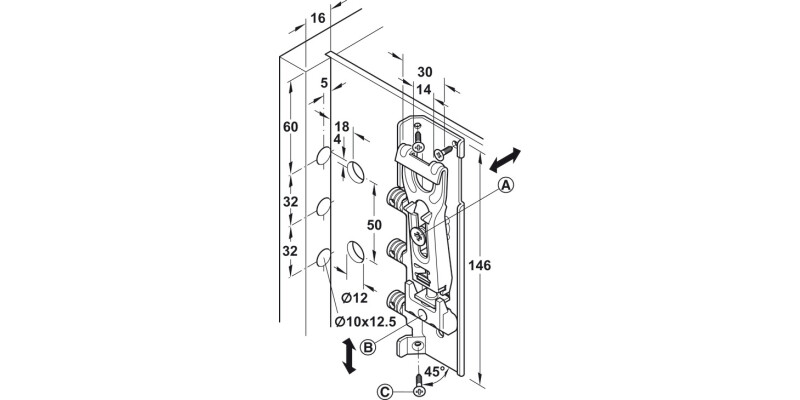

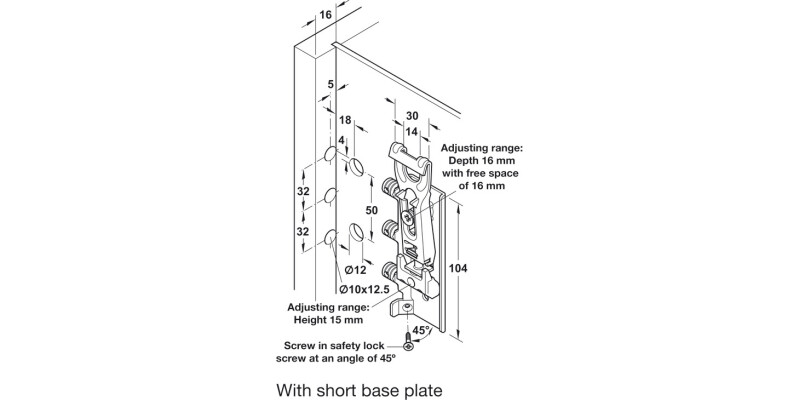

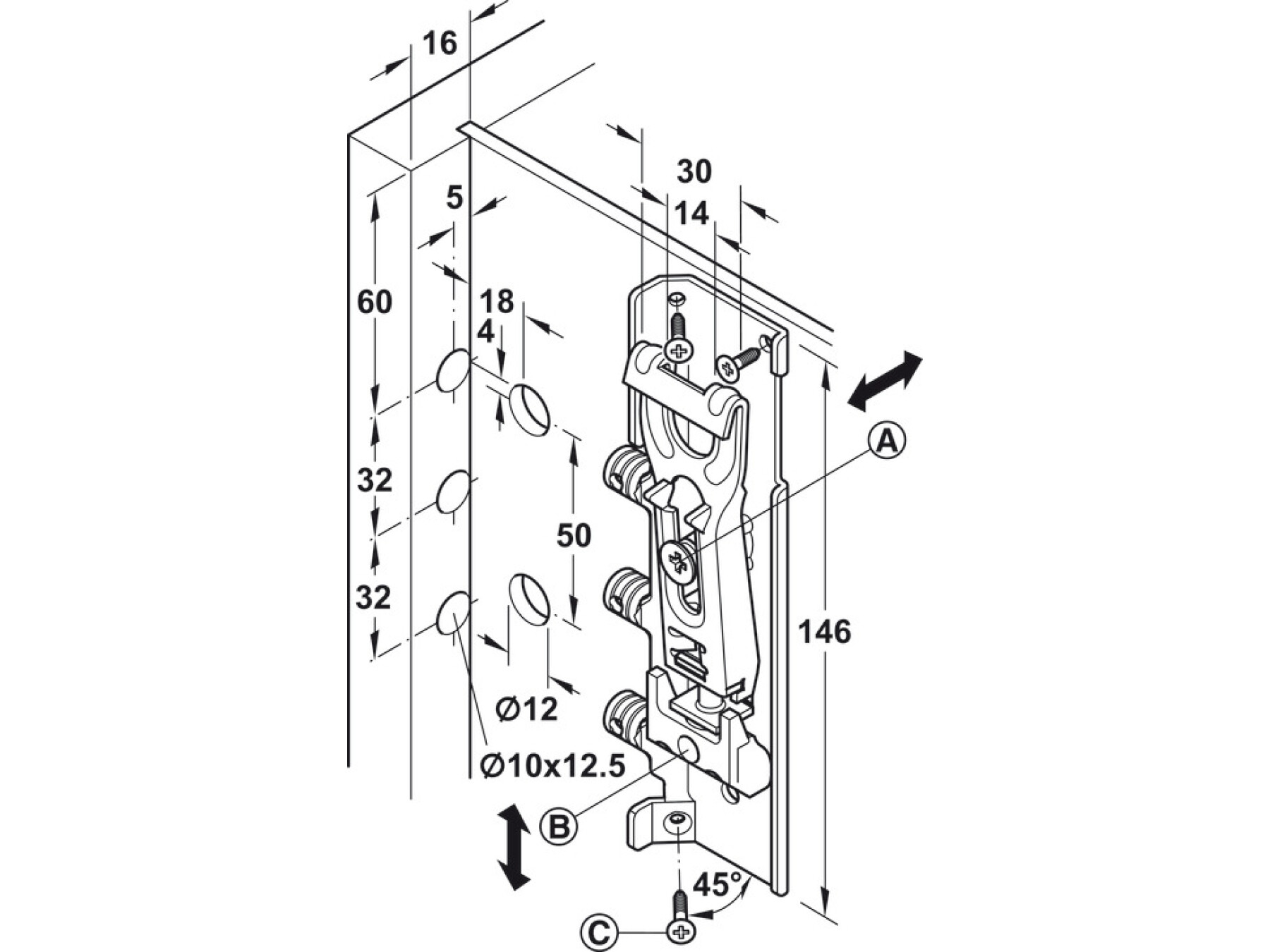

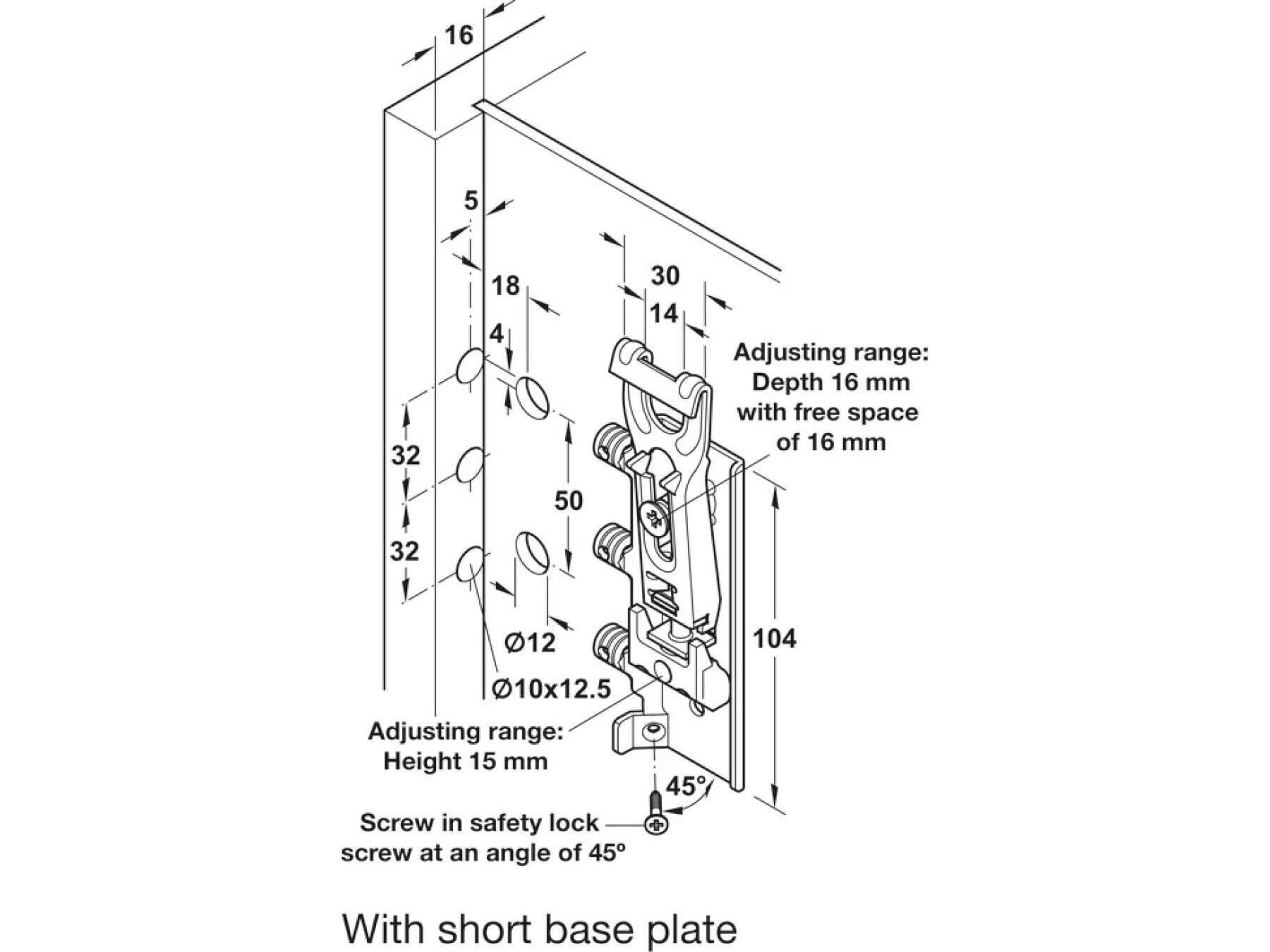

Precision adjustment is easy. With a clearance of 16 mm, you can fine-tune the position using height and depth adjustment through ⌀ 12 mm drill holes. Additional adjustment capability is also supported with the same 16 mm clearance for consistent alignment across your cabinet run.

The package includes 1 cabinet hanger and 2 cover caps, helping complete the concealed look once fitted.

If you’re upgrading your kitchen storage with neatly aligned wall units, choose Concealed Cabinet Hanger, Press Fitting or Screw Mounting Two Way Adjustment—a smart, discreet fitting that delivers strength, adjustability, and a beautifully tidy result.

1 cabinet hanger
2 cover caps
