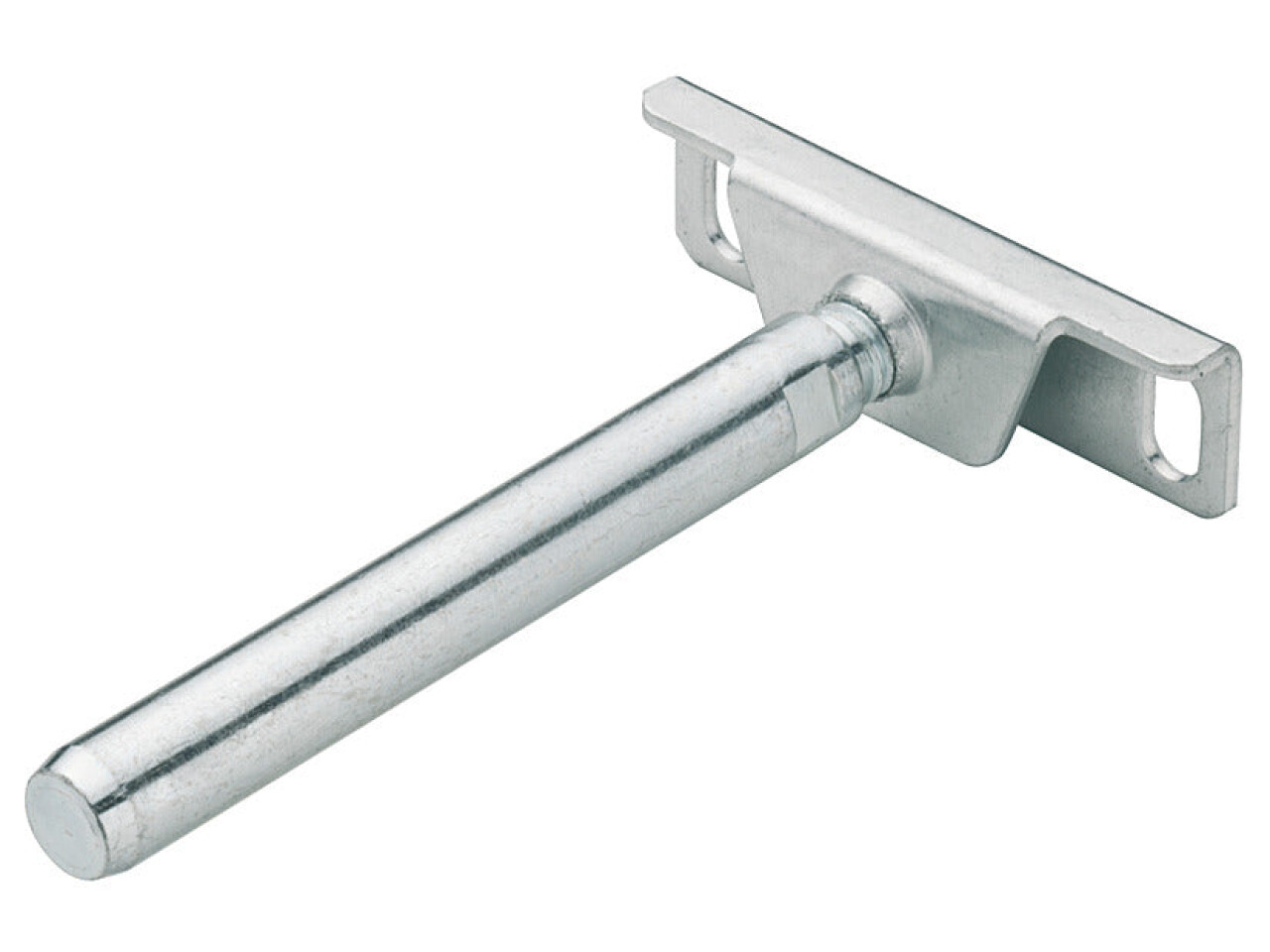

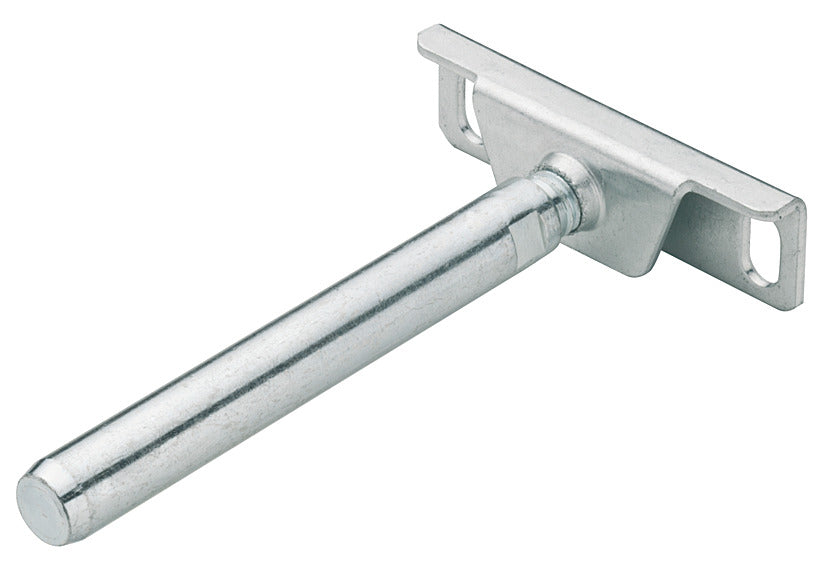

Con Shelf Support 24mm Screw Mount Plt
Part Number: 283.33.910
For concealed mounting of shelves, With screw mounting plate, for min. shelf thickness: 24 mm, galvanized
Price:
£10.93
Per 4 Pack
Supporting pin is installed in a Ø 12 mm hole in the shelf, the pin may be exposed or concealed depending on the... Read More
Product Information
Product Details

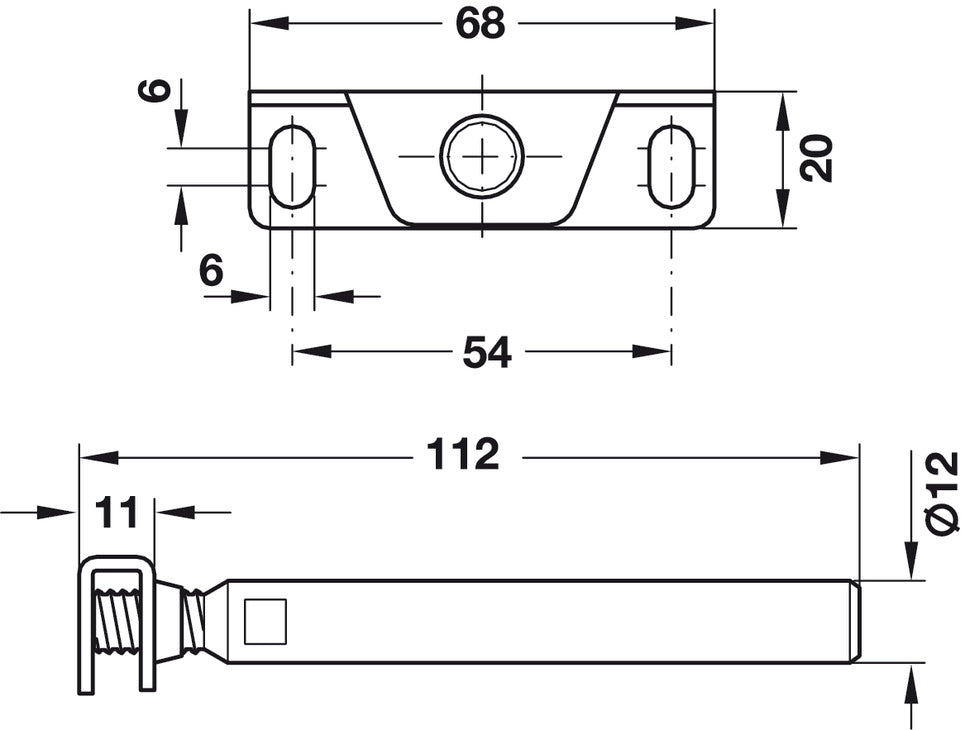

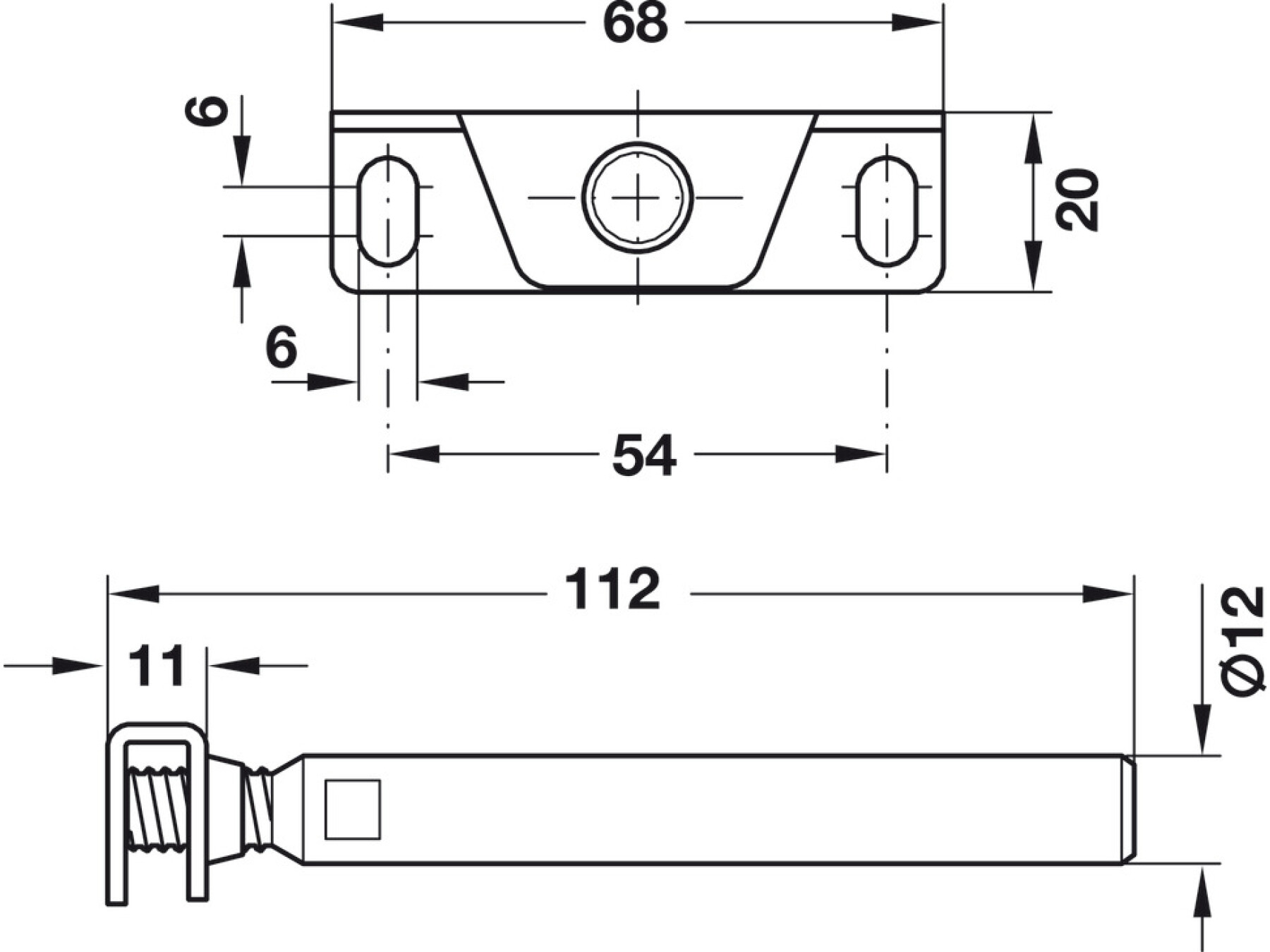

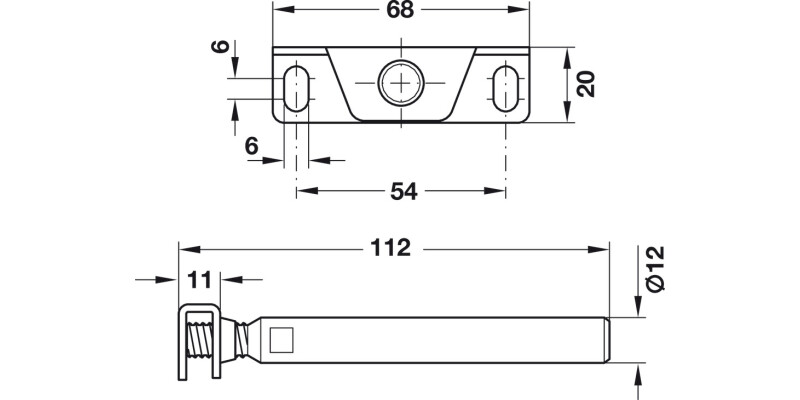

Supporting pin is installed in a Ø 12 mm hole in the shelf, the pin may be exposed or concealed depending on the thickness of the shelf

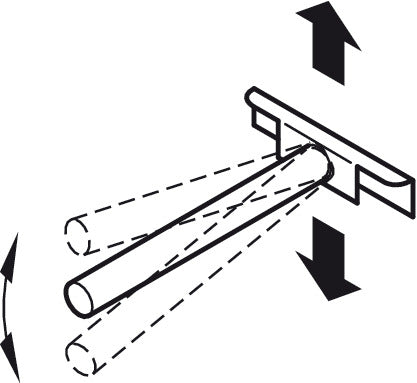

Height adjustable via slots
Inclination adjustment using supporting pin which presses on the rear plate when turned in
Installation
For screw fixing to support element

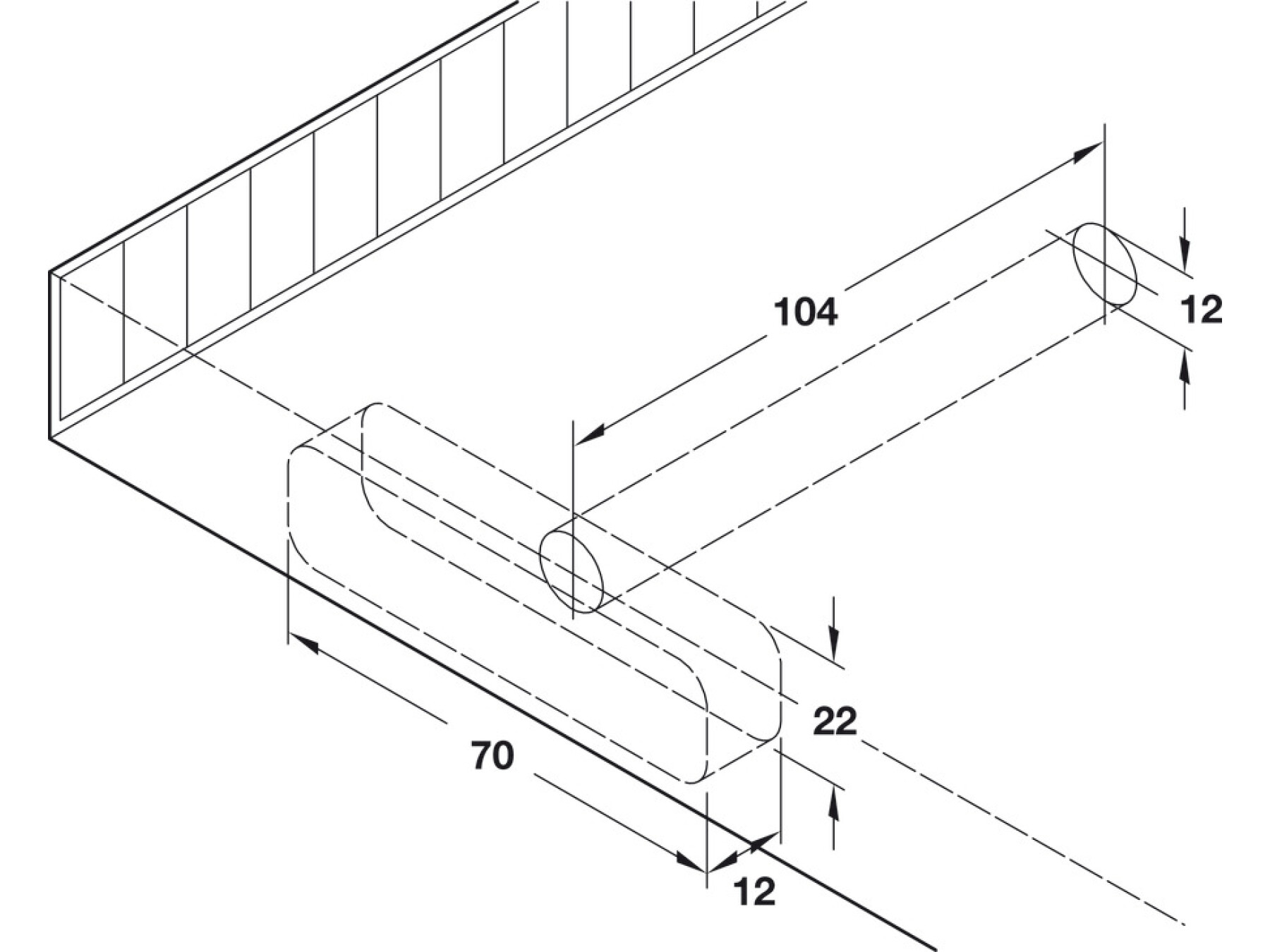

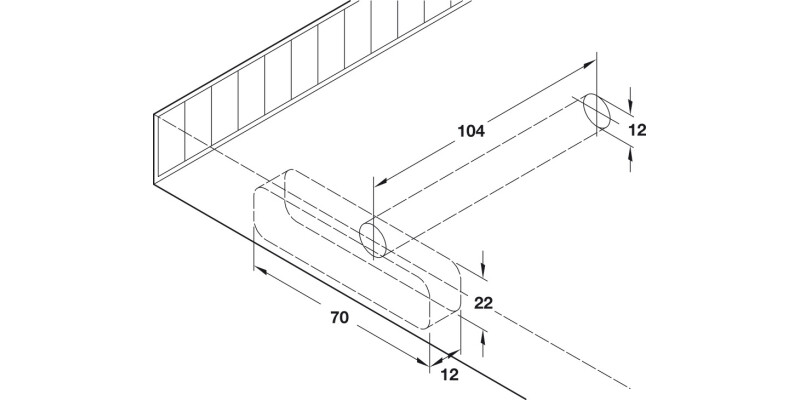

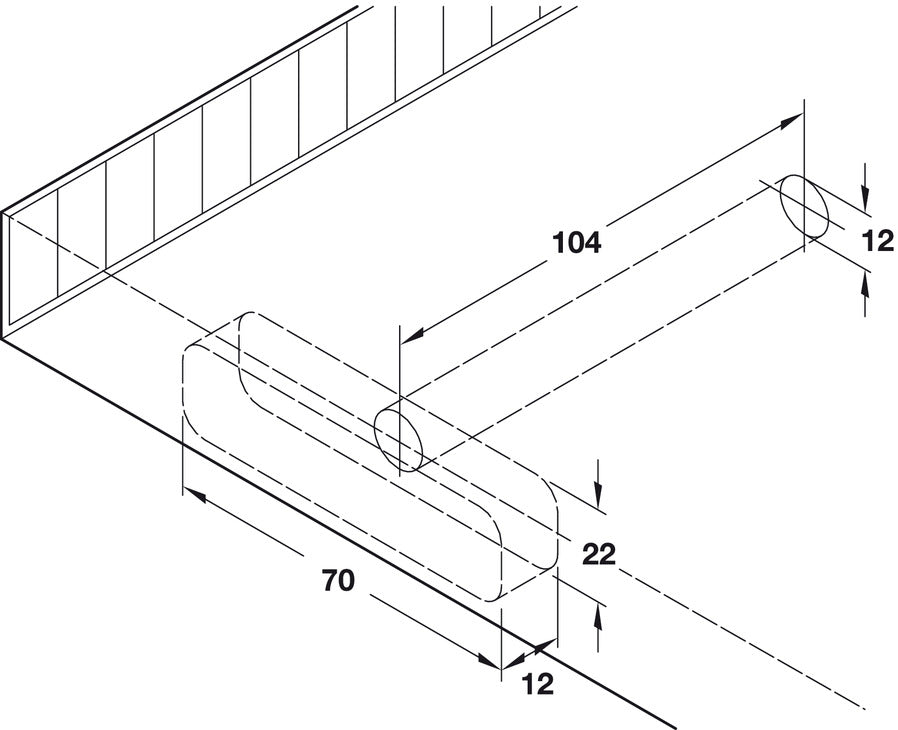

For mounting in drilled hole in shelf
For installation into woodwork or masonry walls
| Shelf depth mm | Max. load bearing capacity kg/m² |
|---|---|
| 200 | 200 |
| 250 | 140 |
| 300 | 80 |
Specifications
Adjustment facility
Tilt adjustment: via support boltsHeight adjustment: via slots in screw-on plate
For shelf thickness
≥24 mm
Colour/finish
zinc plated
Version
With screw-on plate
Area of application
For concealed installation
Material
Steel
Load bearing capacity max.
200.00 kg/m²
Note on load bearing capacity
with shelf depth 200 mm,
see table
Order reference
Hospa Screw Ø 5.0 mm is not supplied. Please order separately
Supplied with
1 Supporting pin with mounting plate, galvanized steel
