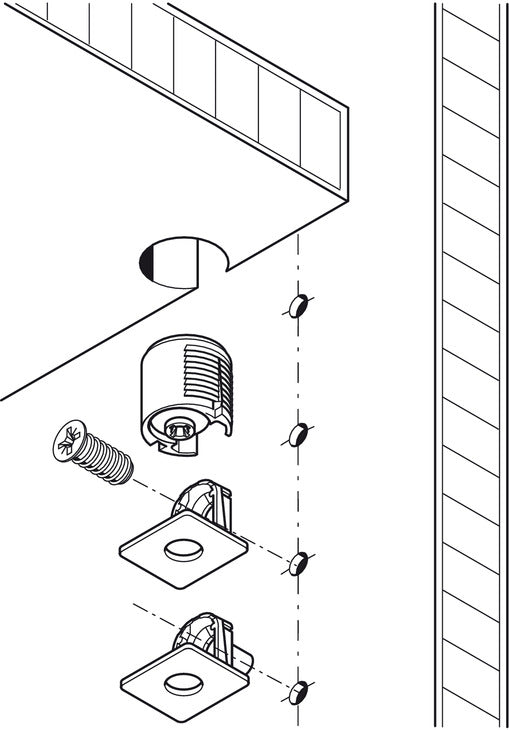

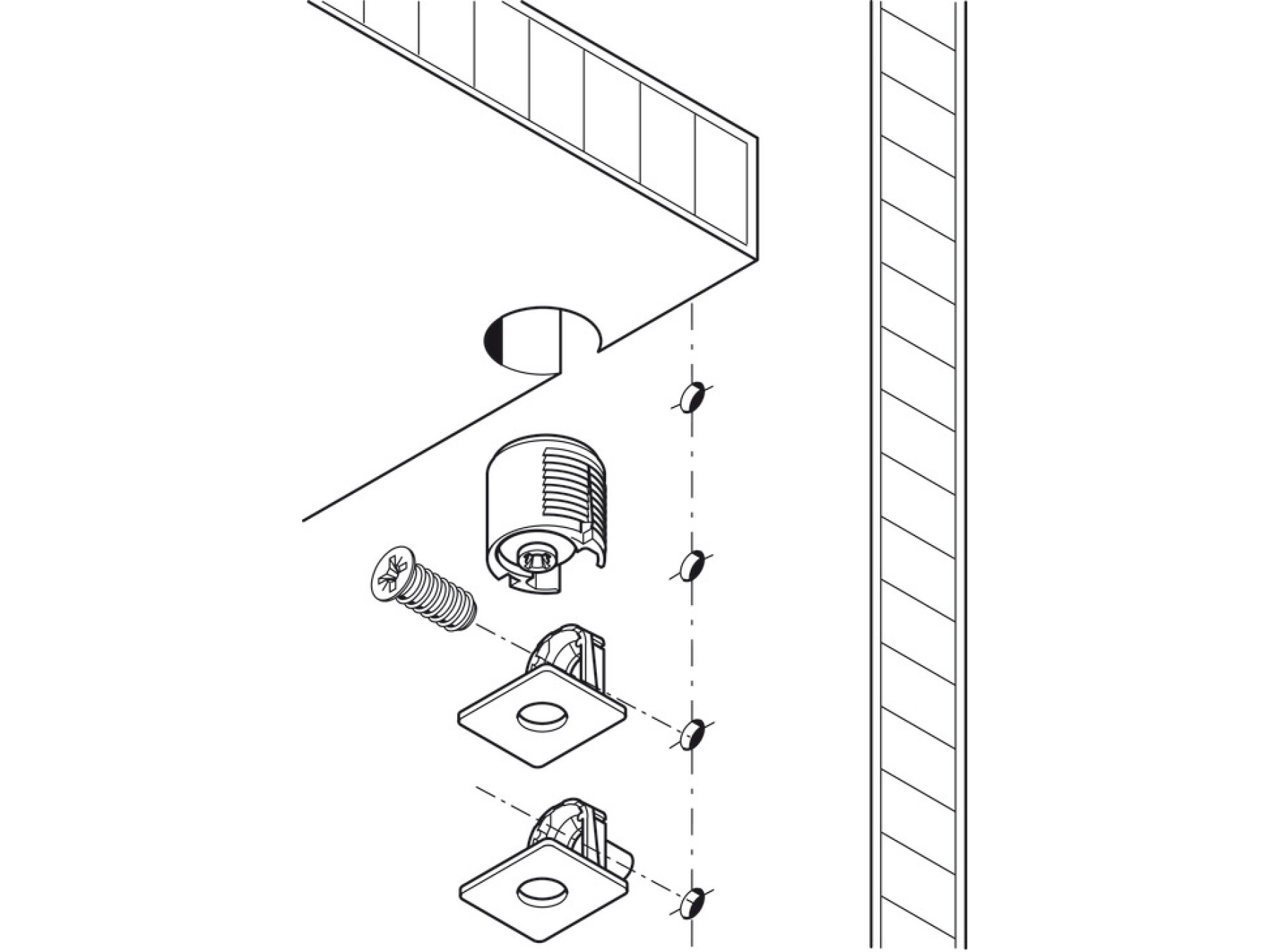

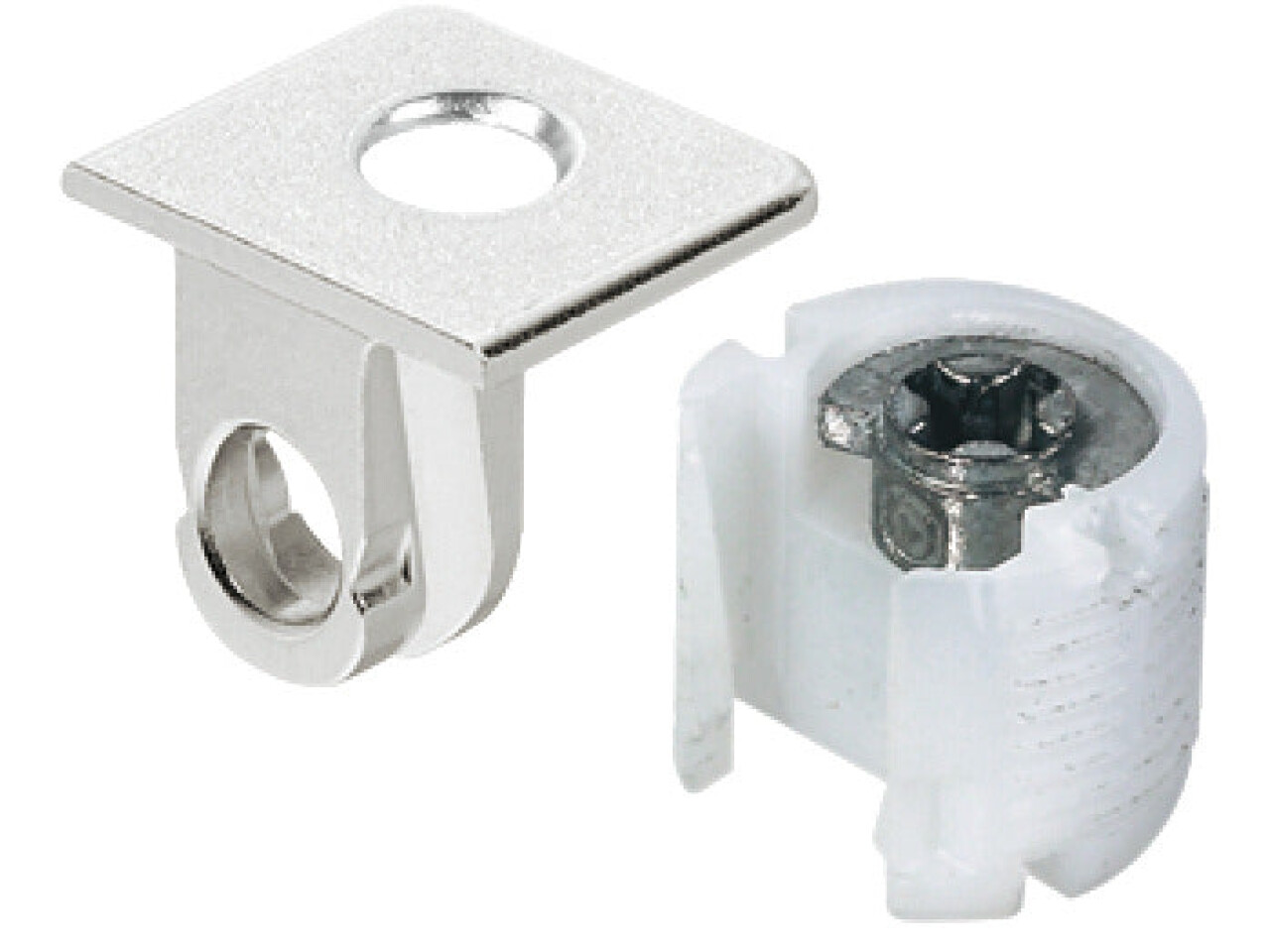

Shelf Connector, Zinc Alloy Support, TAB 18

Product Details

Is this shelf connector suitable for wood thickness of 19 mm?

Yes. The Tab 18 Shelf Connector is designed for wood thickness from 19 mm, using a screw fixing tensioner. This helps provide a secure fit when installing shelves in cabinets and furniture units.

What drill hole size is required for installation?

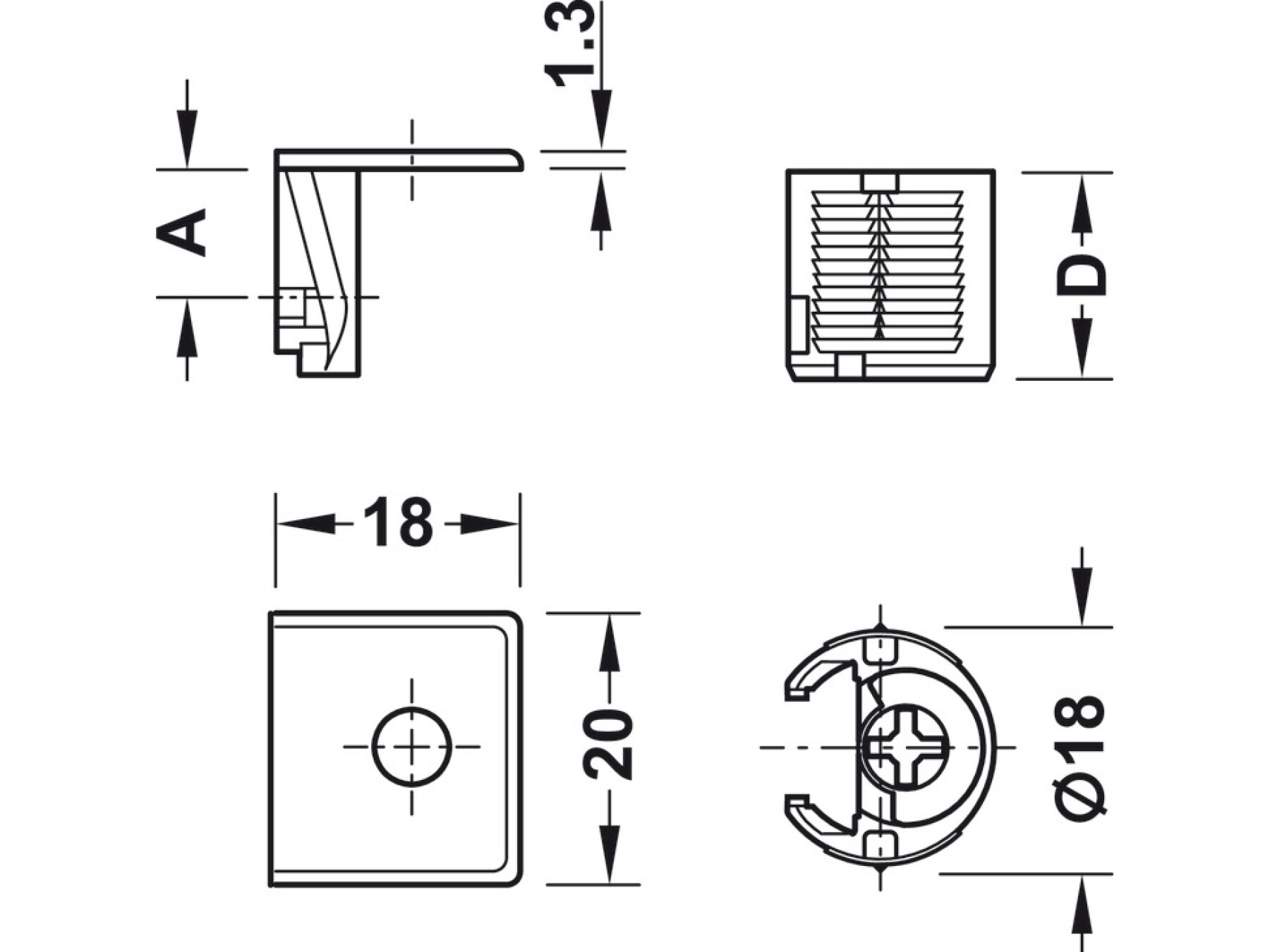

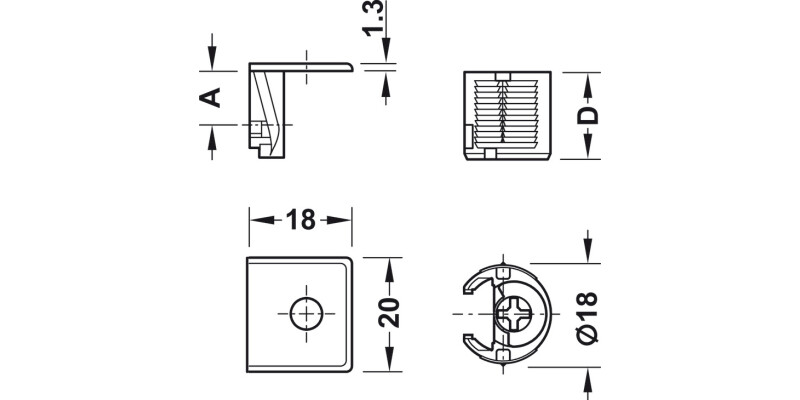

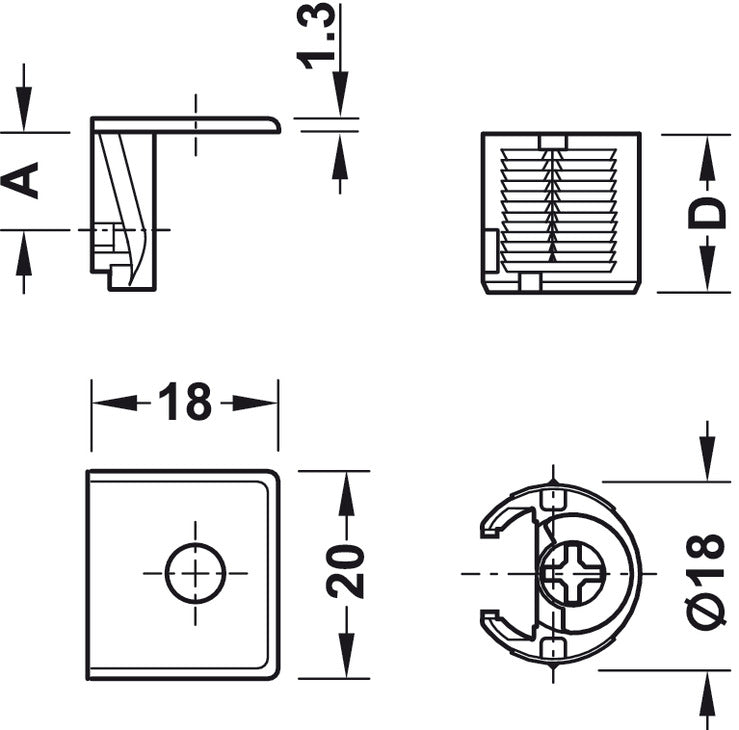

A drill hole of 18 mm diameter is specified for this connector. For the screw fixing into the shelf side, the support uses a Ø 5 mm drill hole for plugging or screwing in, depending on your installation method.

How deep should I drill into the shelf for a proper fit?

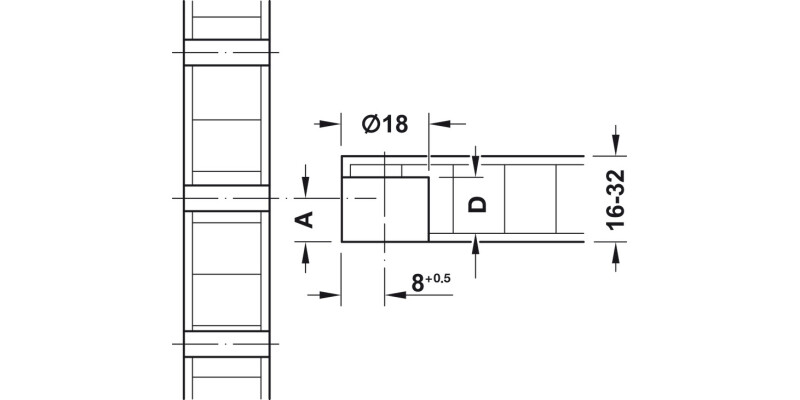

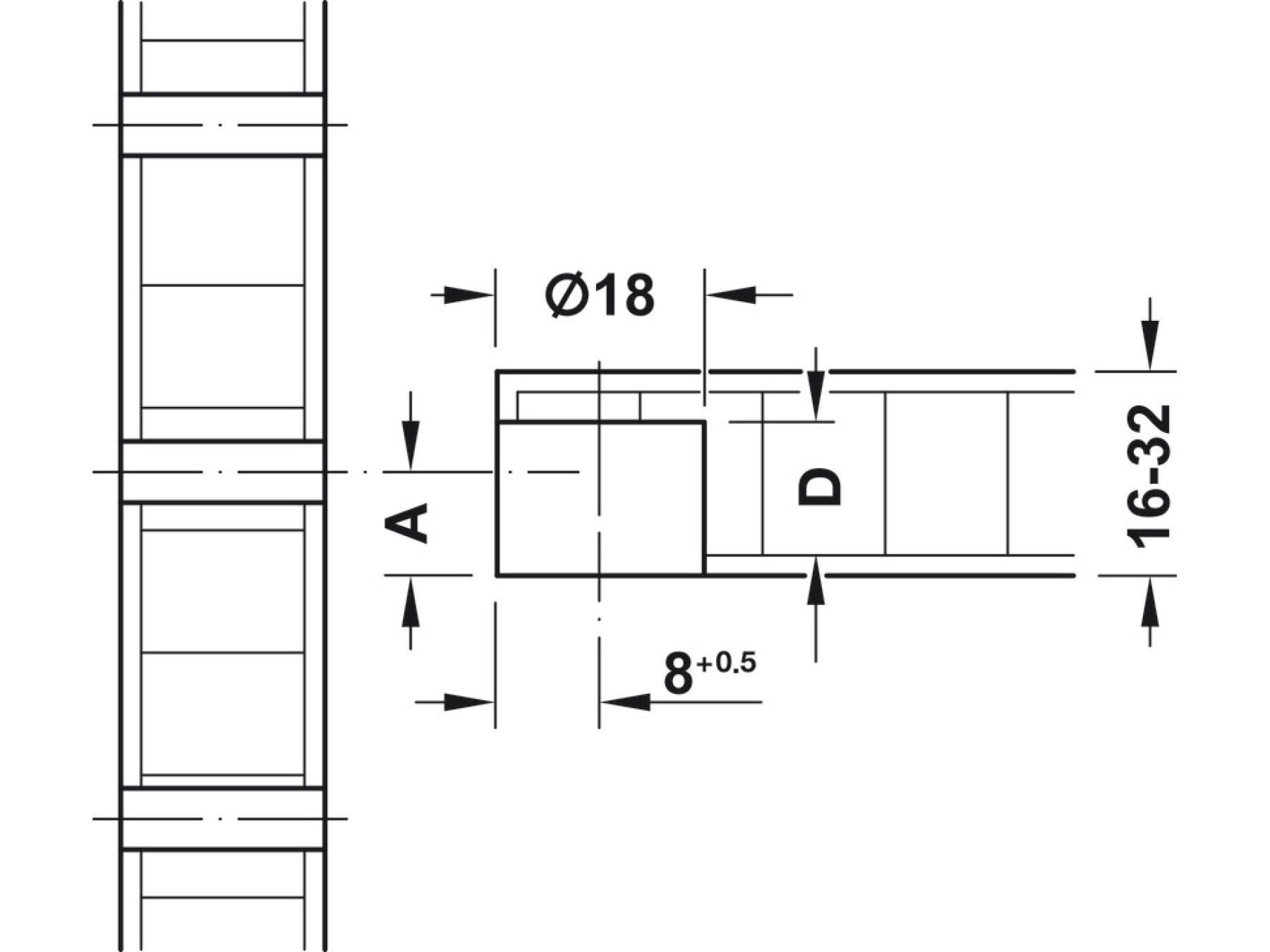

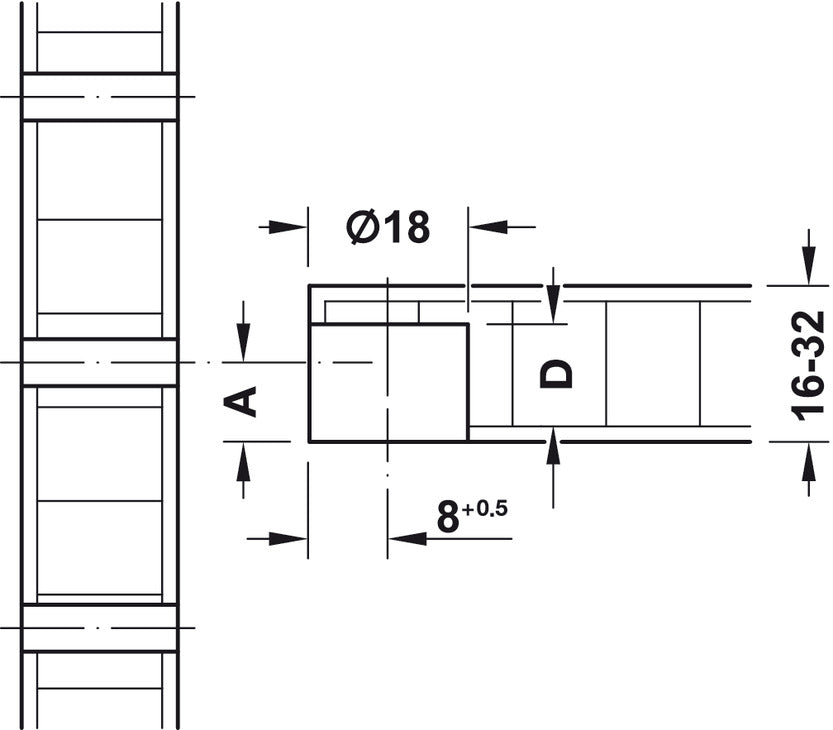

Drilling depth is 15.0 mm. Sticking to the stated depth helps ensure the boss insert seats correctly and that the tensioner can lock the shelf securely.

Does it include a locking mechanism to help stop the shelf lifting or toppling?

Yes. This version includes a locking mechanism intended for additionally securing the shelf to help prevent toppling. It is a useful option where shelves will be regularly loaded or accessed.

What are the visible and key components made from?

The boss insert is plastic, while the tensioning element and support are based on zinc alloy with nickel plated components. The nickel plating is intended to provide a durable, corrosion resistant surface for everyday use.

What colour or finish should I expect when fitted?

Boss insert is white, with nickel plated support and tensioning elements. This combination is often chosen because it matches common furniture hardware finishes while keeping the connector discreet within the drilled section.

Is there a guarantee for this shelf connector?

Yes. It is covered by a Hafele Lifetime Guarantee of 25 years, supporting long term performance when installed correctly and used within normal furniture applications.
