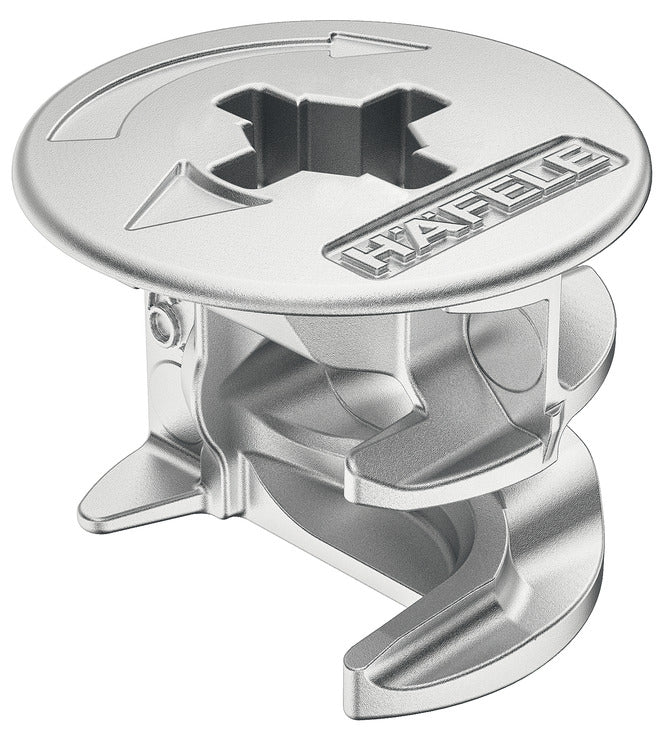

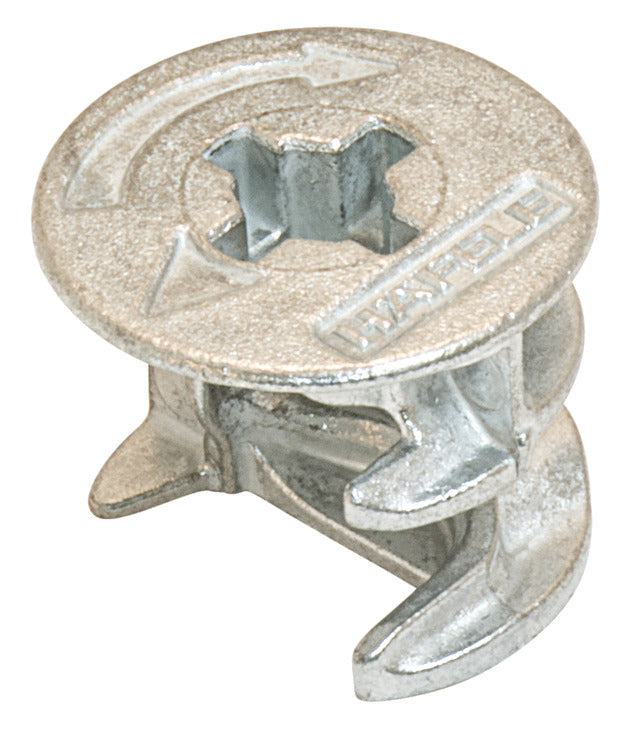

Connector Housing, with Rim, Zinc Alloy, Minifix 15
Connector Housing, with Rim, Zinc Alloy, Minifix 15 (Part No: 262.25.033) is a premium connector housing designed... Read More
Product Details

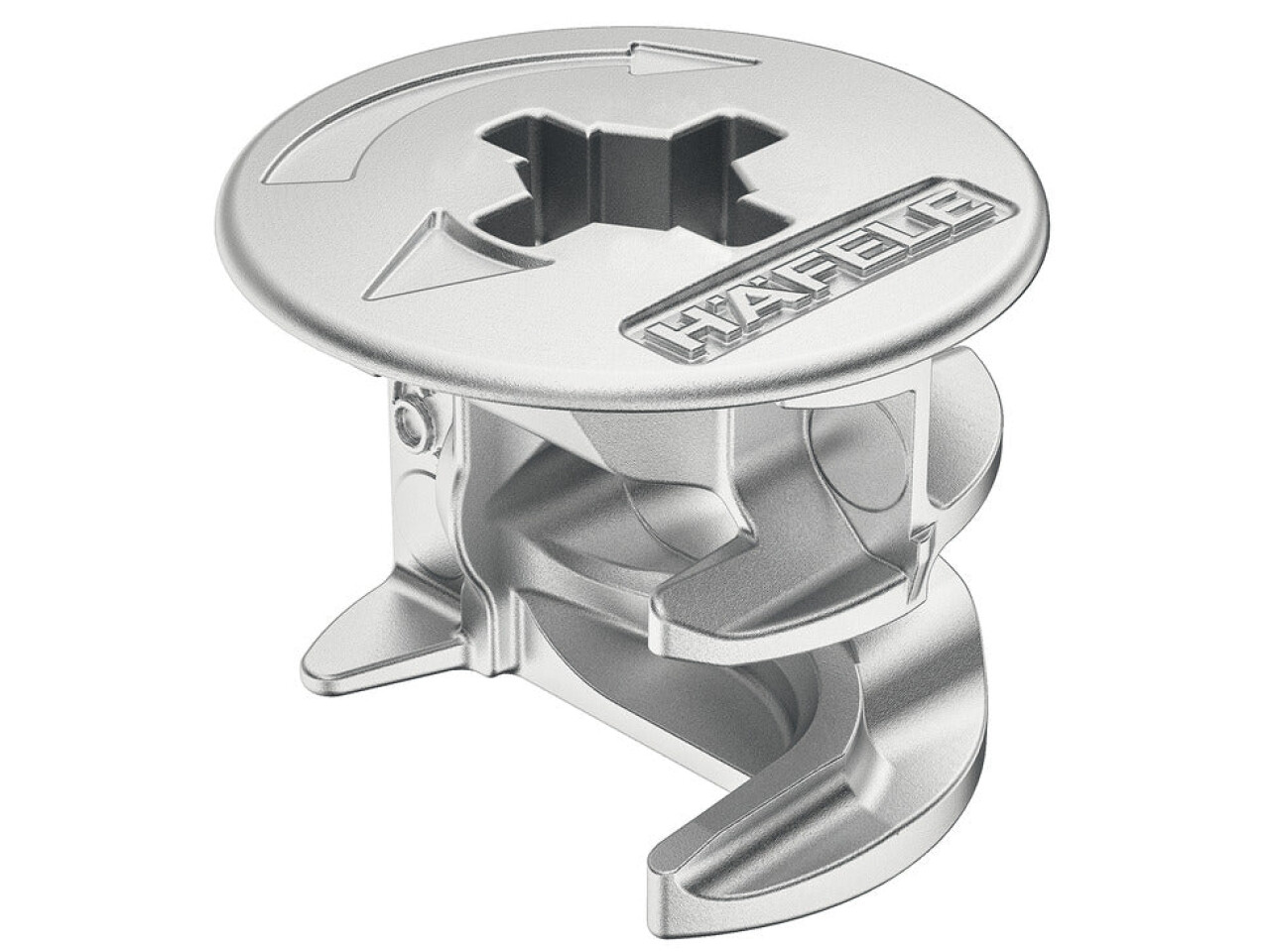

Connector Housing, with Rim, Zinc Alloy, Minifix 15 (Part No: 262.25.033) is a premium connector housing designed to help you build clean, reliable furniture joints—ideal for both living spaces and commercial projects. If you’re working with wood thickness of 16 mm, this bright-finished housing delivers a precise fit and a professional look once installed.

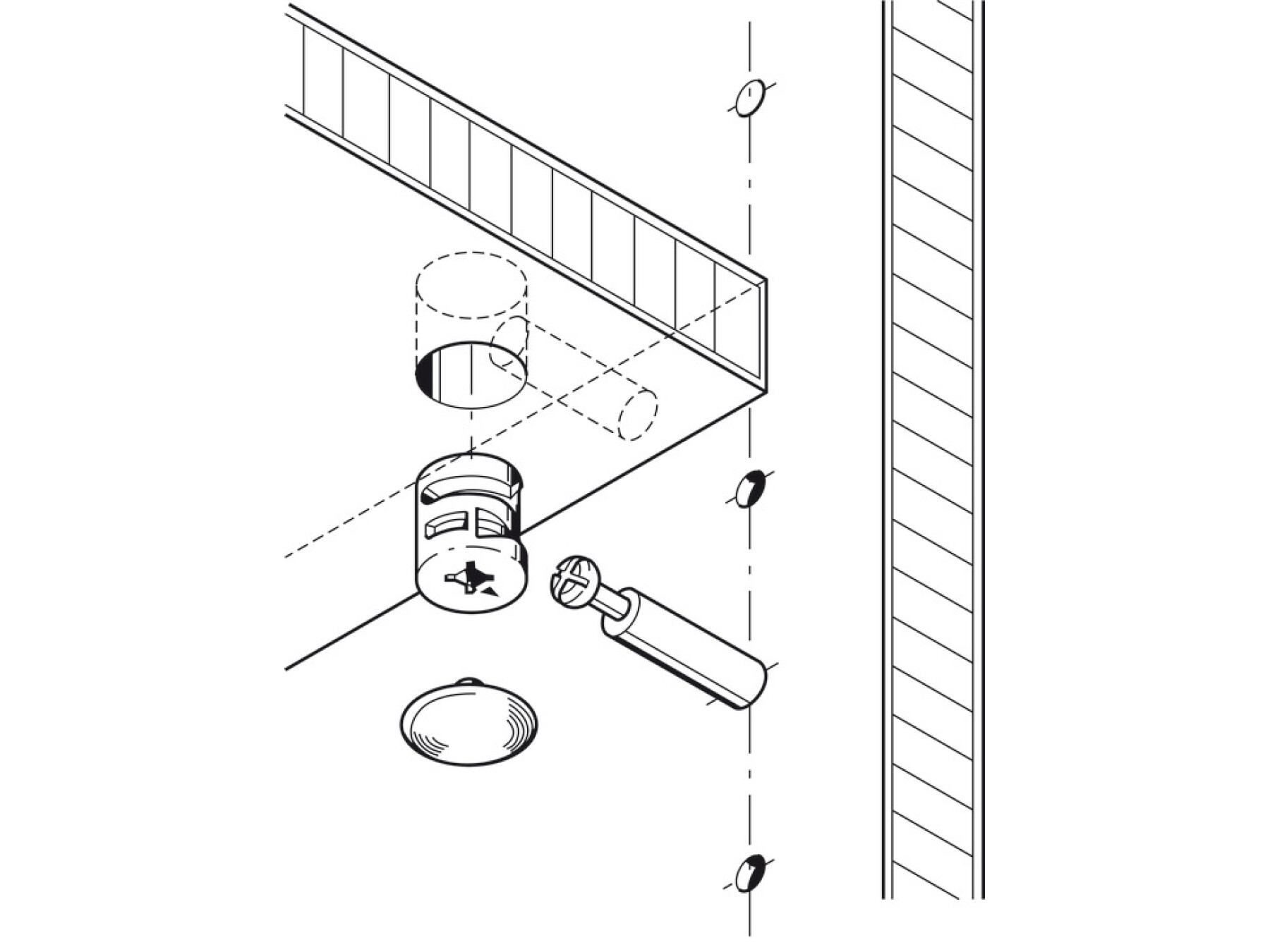

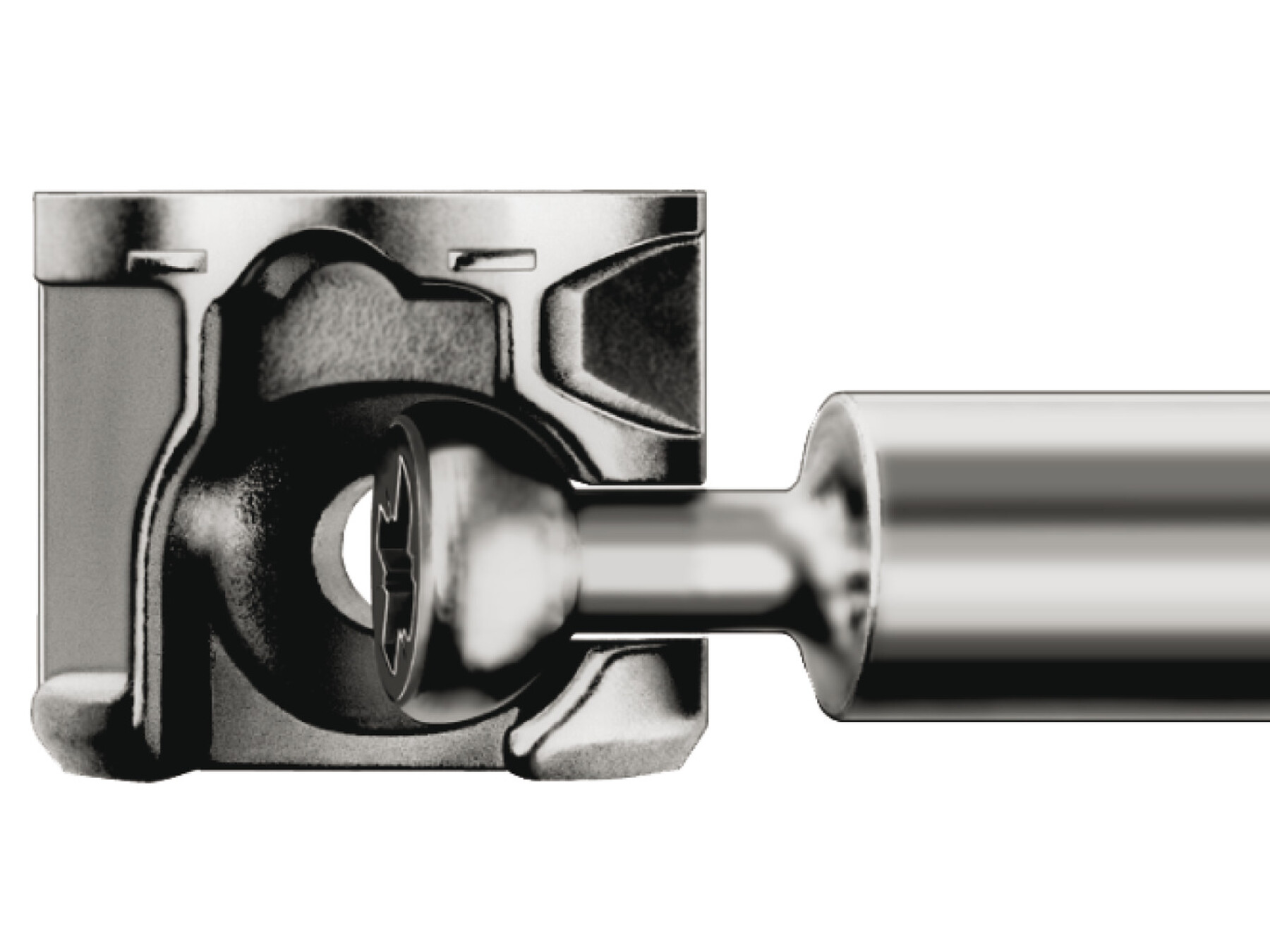

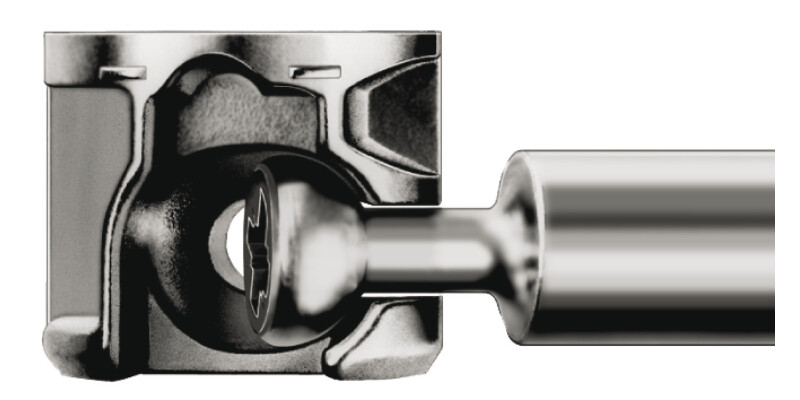

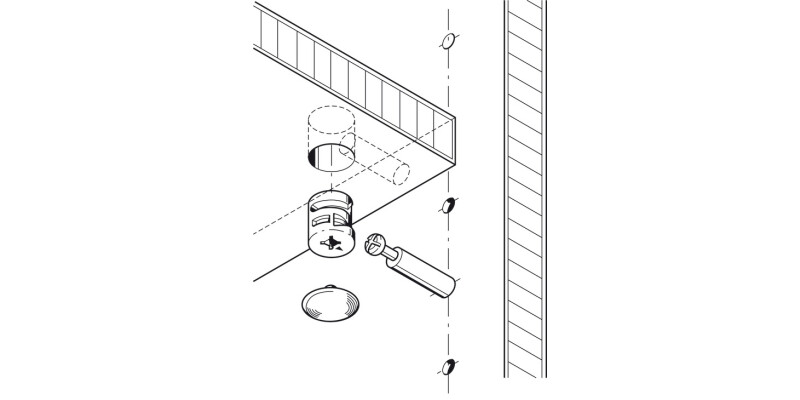

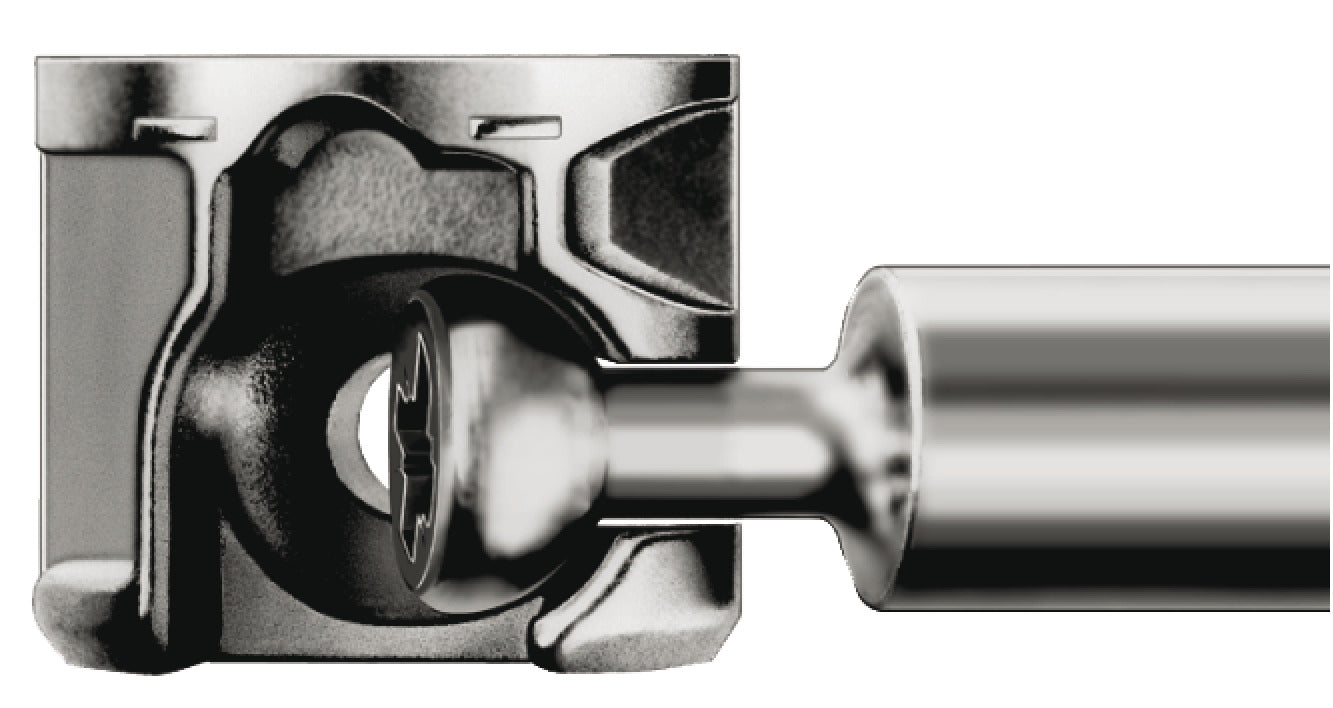

Created for smooth integration with the Minifix® system, this connector housing is suitable for all connecting bolts from the Minifix range. That means you can standardize your hardware selection and streamline assembly—whether you’re fitting cabinets, wardrobes, or other wooden furniture components.

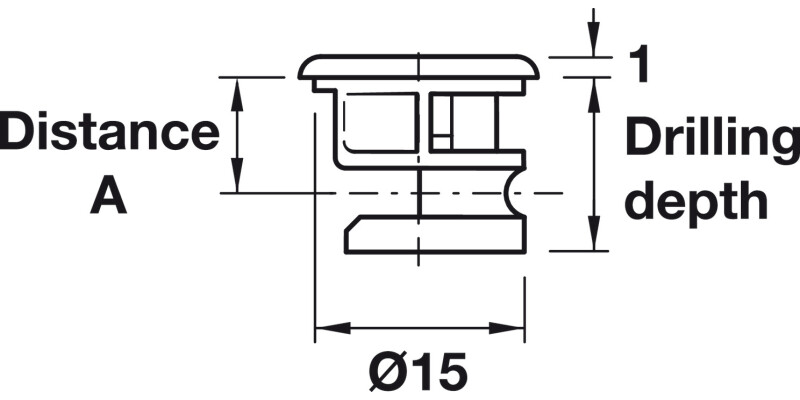

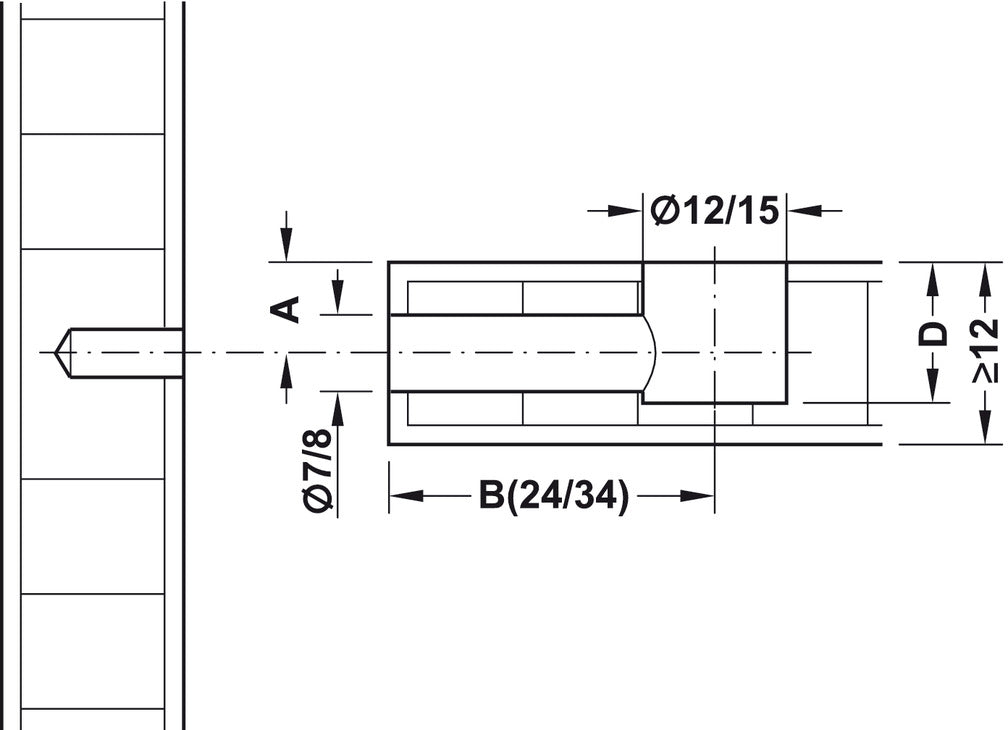

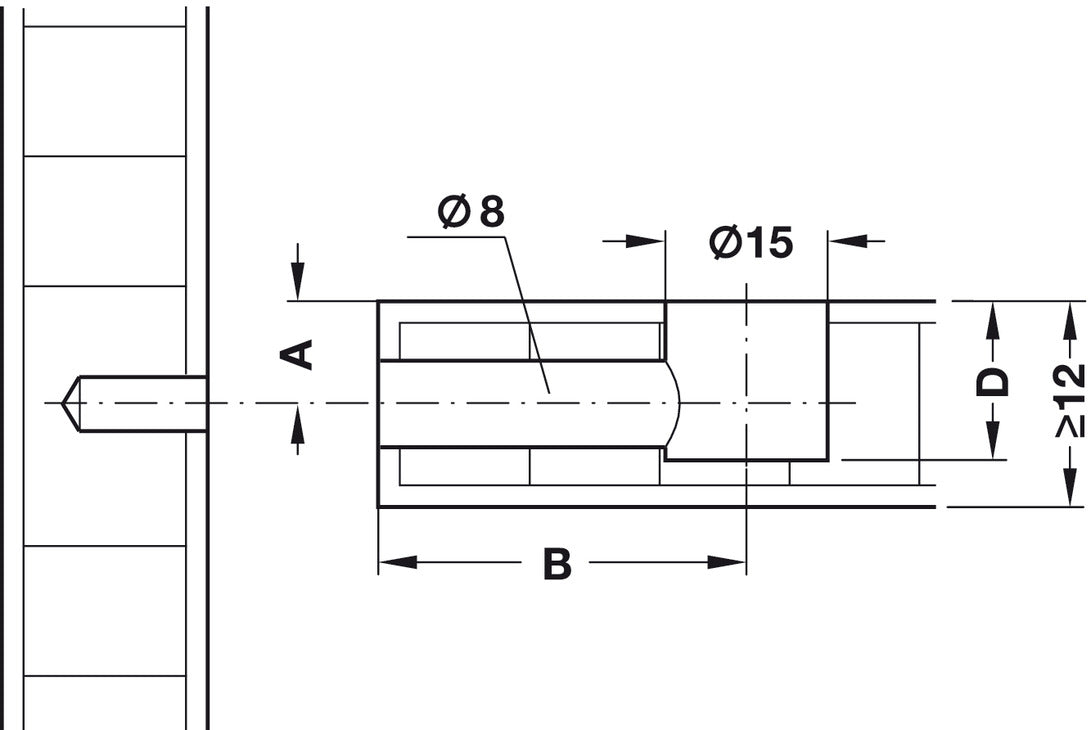

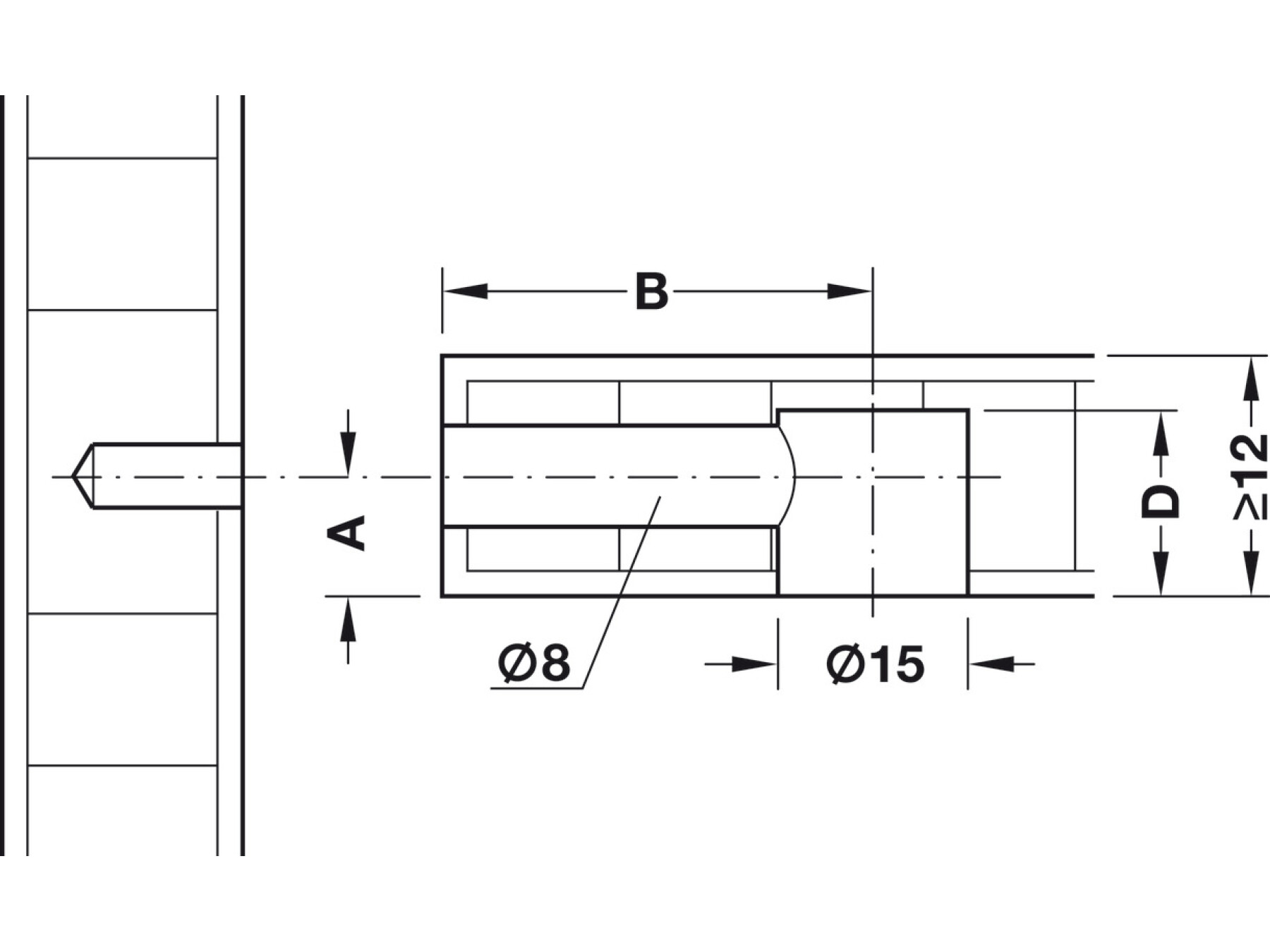

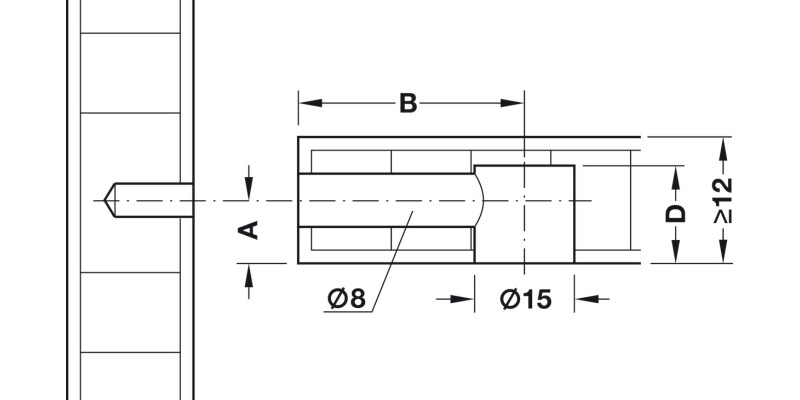

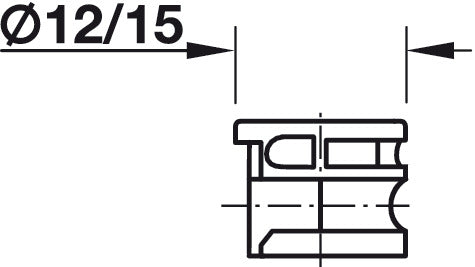

Engineered drilling accuracy helps you achieve consistent results. The drill hole Ø housing is 15.00 mm, with a recommended drilling depth D: 12.5 mm. The housing dimension A: 8 mm supports secure fastening and stability for long-lasting performance.

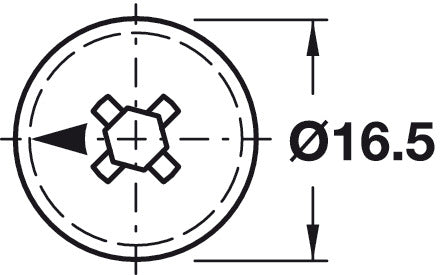

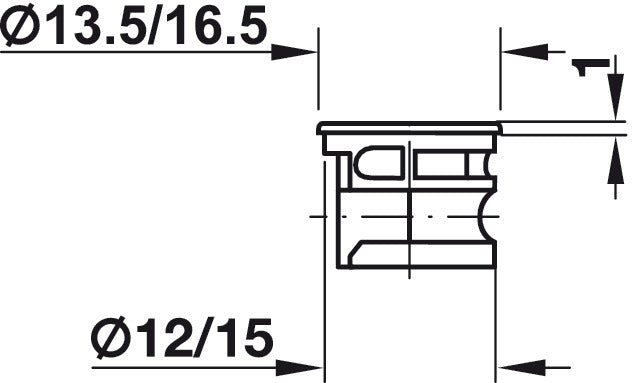

With a rim Ø of 16.50 mm, this connector housing provides an attractive, well-centered finish. The housing is made from zinc alloy, selected for durability and dependable performance in everyday use.
Perfectly suited for a wooden cabinet application, it’s installed for all connecting bolts—making it a smart choice when you want strength without visible clutter.
Purchase with confidence: backed by the Hafele Lifetime Guarantee of 25 years.
Specifications
Drill hole Ø housing
Rim Ø
Area of application
For wooden cabinet
Material
Suitable for
All connecting bolts from the Minifix® system
Installation
For all connecting bolts
