Connector Housing, Flush-Fitting, Plastic, without Ridge, Rafix-20

Product Details

Connector Housing, Flush-Fitting, Plastic, without Ridge, Rafix-20 (Part No: 263.50.105) is a smart, space-saving solution for creating clean, professional furniture connections. Designed for flush-mounted installation, this connector housing brings a neat finish to wooden cabinet builds while helping you achieve consistent alignment during assembly.

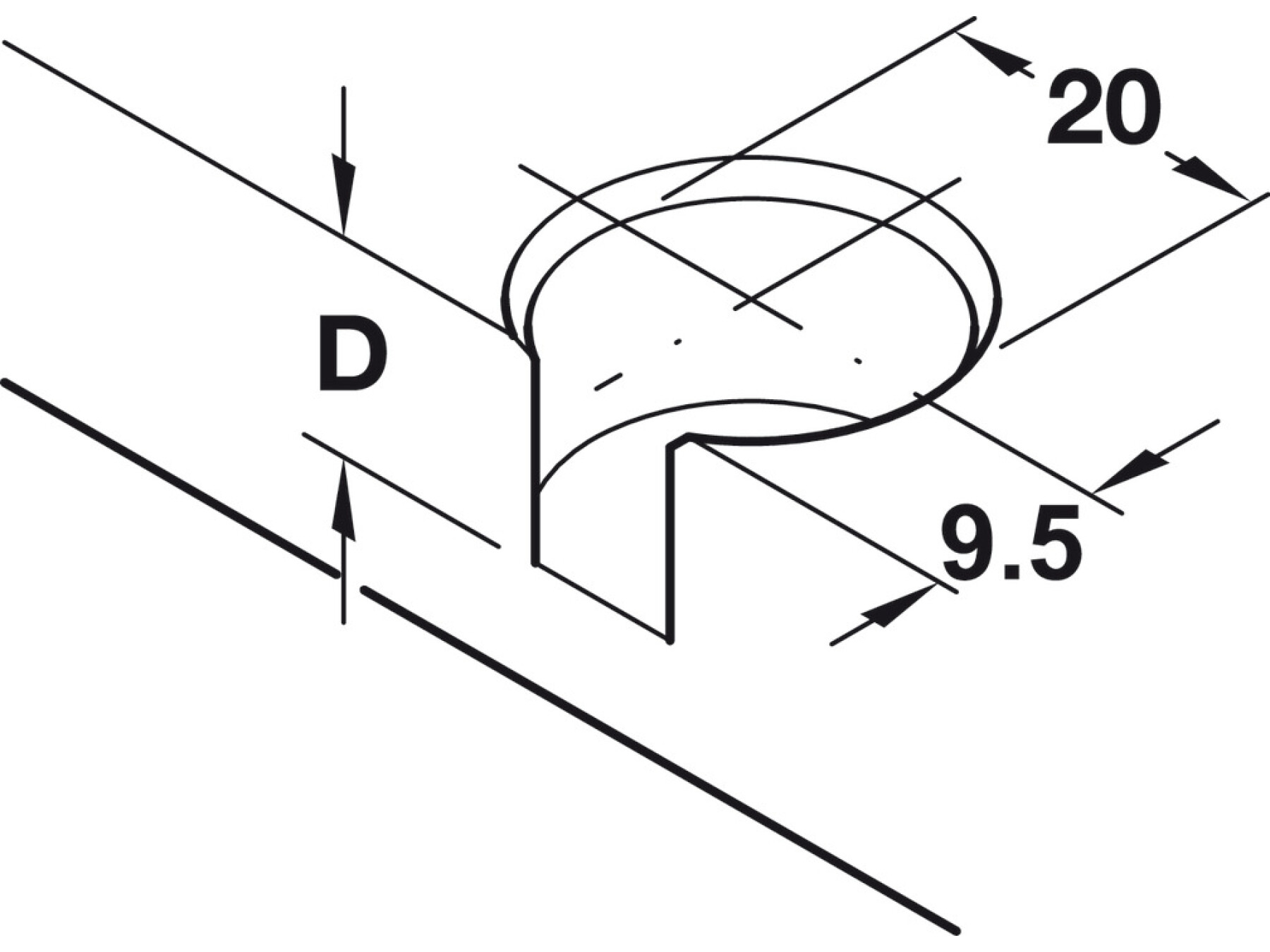

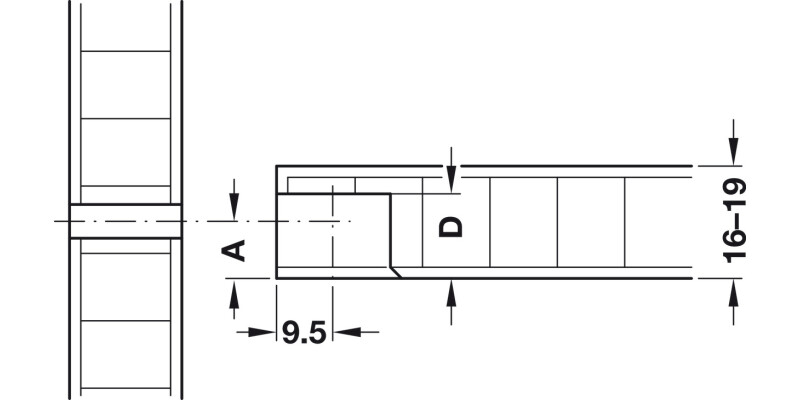

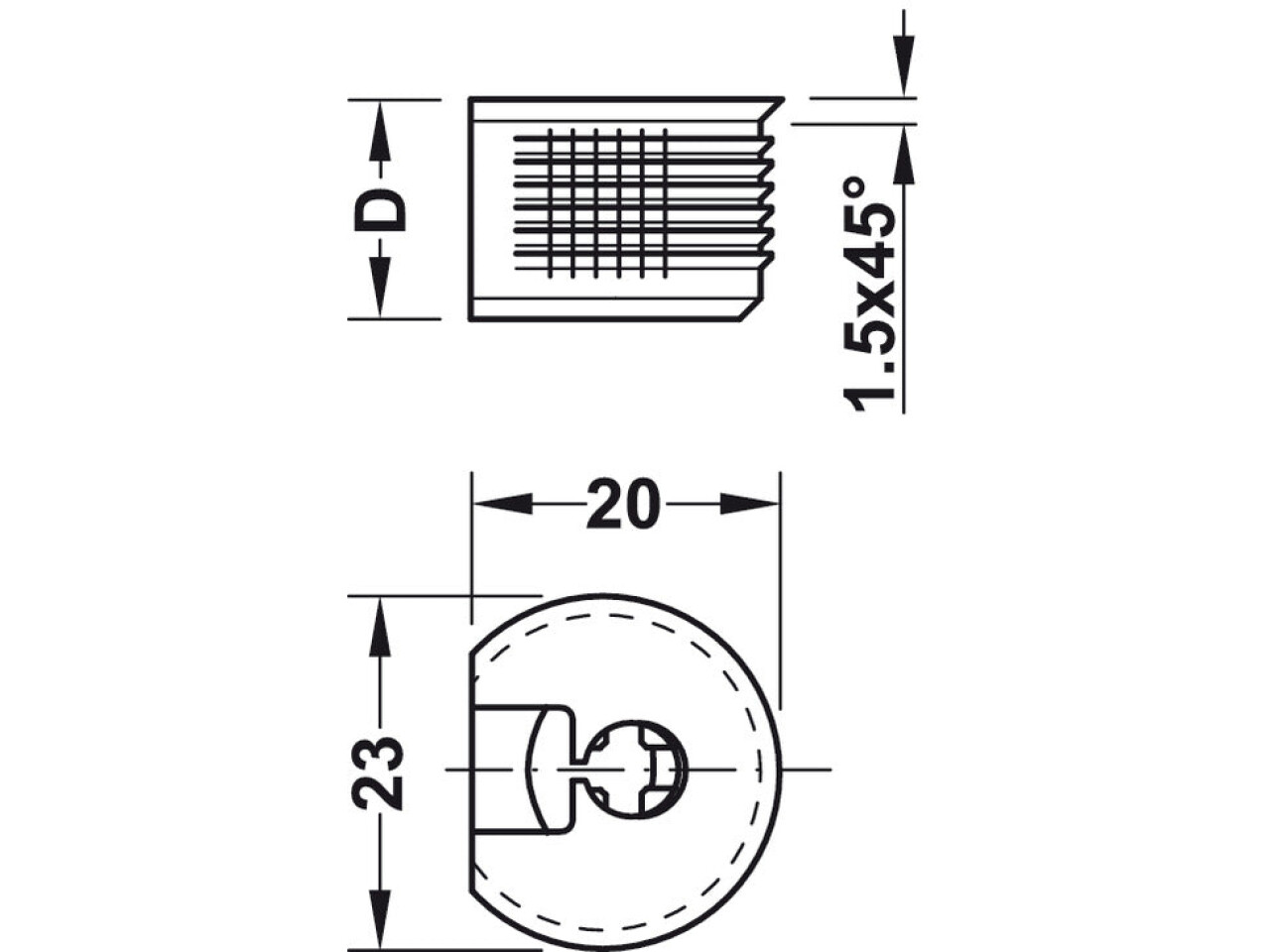

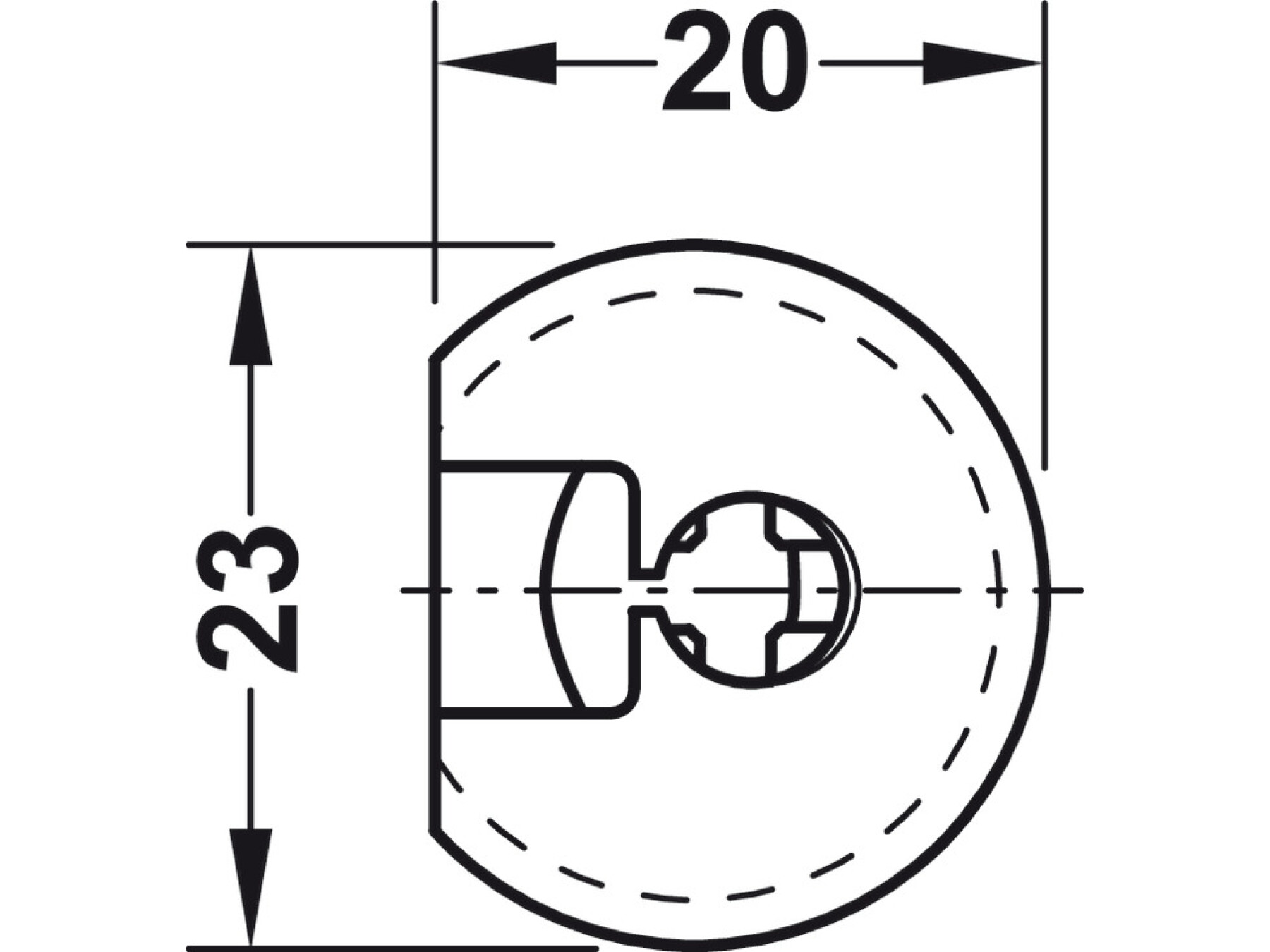

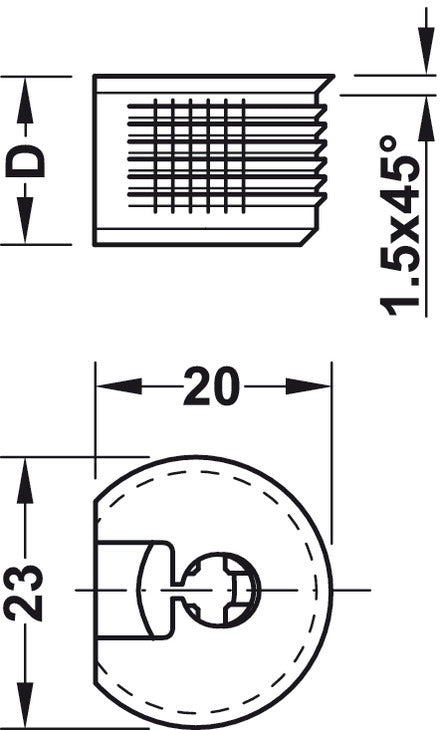

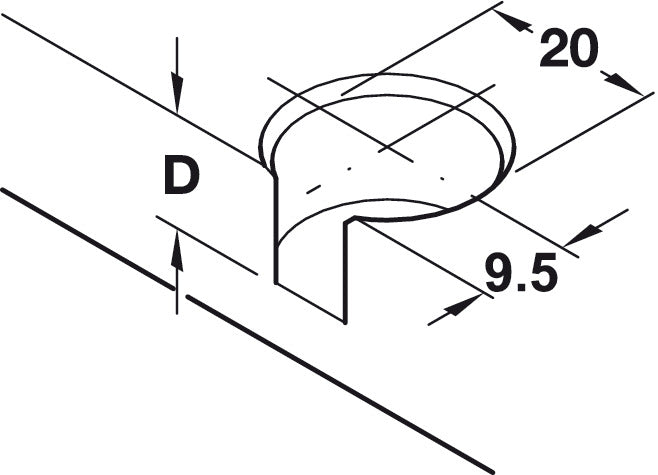

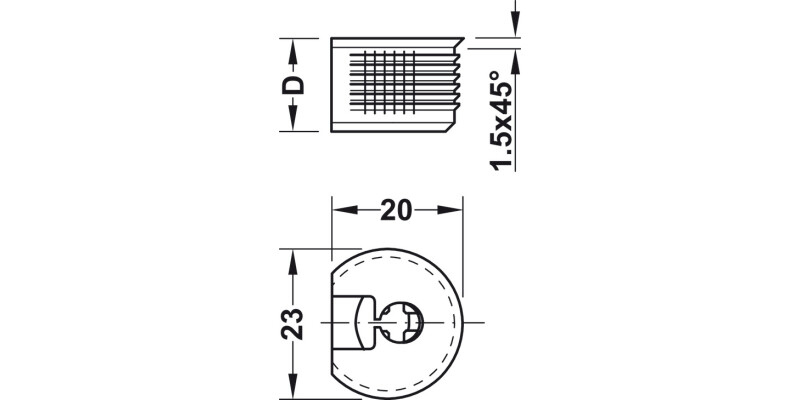

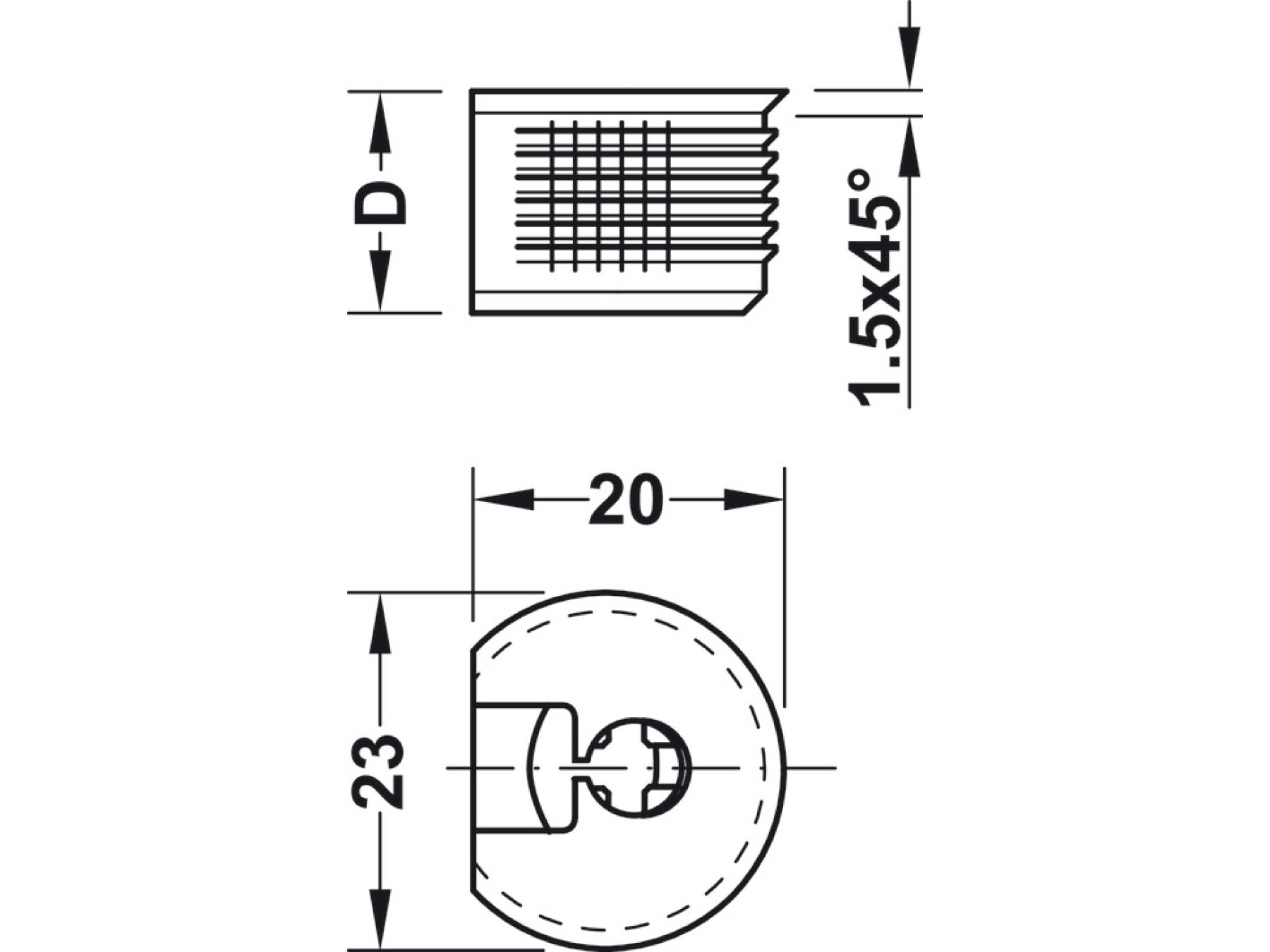

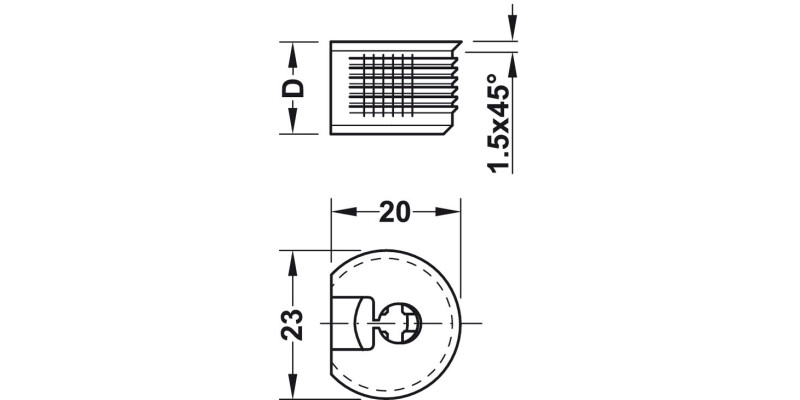

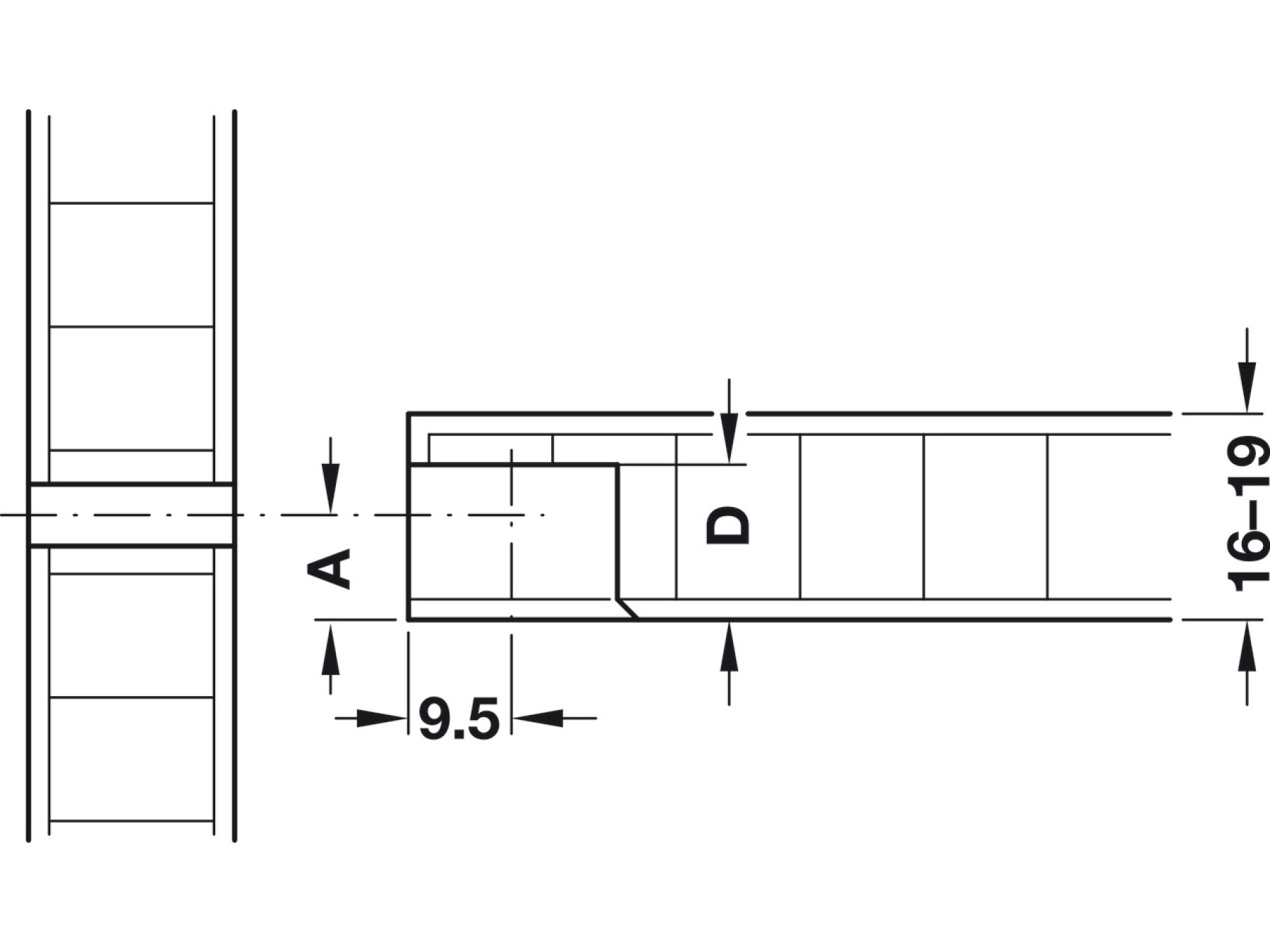

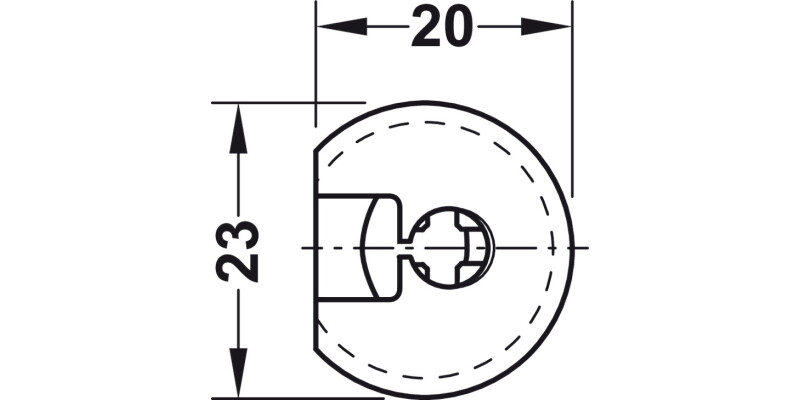

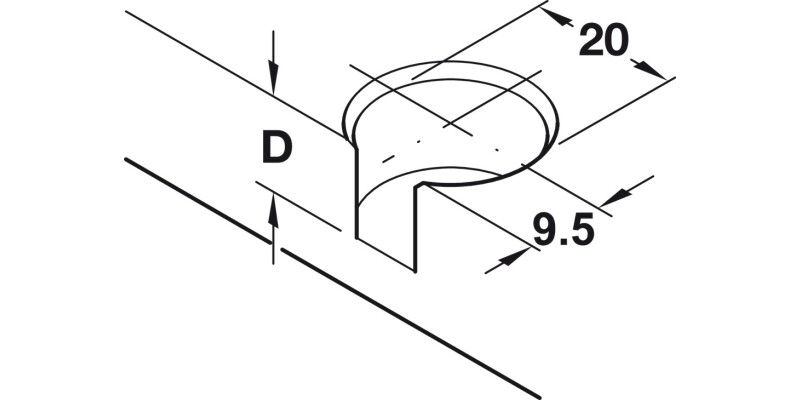

Perfectly suited to cabinets with wood thickness from 19 mm, the housing features a drilling depth of 14.2 mm (with a tolerance of +0.2) and a compact dimension A 9.5 mm. The drill hole Ø for the housing is 20.00 mm, making it ideal for pre-planned furniture fitting layouts.

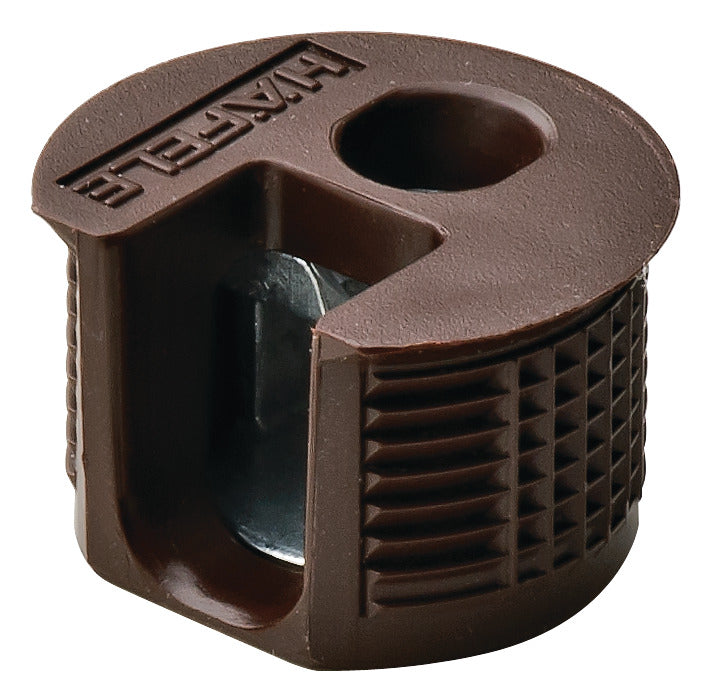

Built with quality in mind, the brown FlushFit housing includes a zinc alloy tightening element for secure performance over time. It’s manufactured from durable plastic, combined with a tightening component that delivers reliable clamp strength. The design includes a countersunk rim and a flush-mounted profile for a tidy, integrated look on the cabinet face.

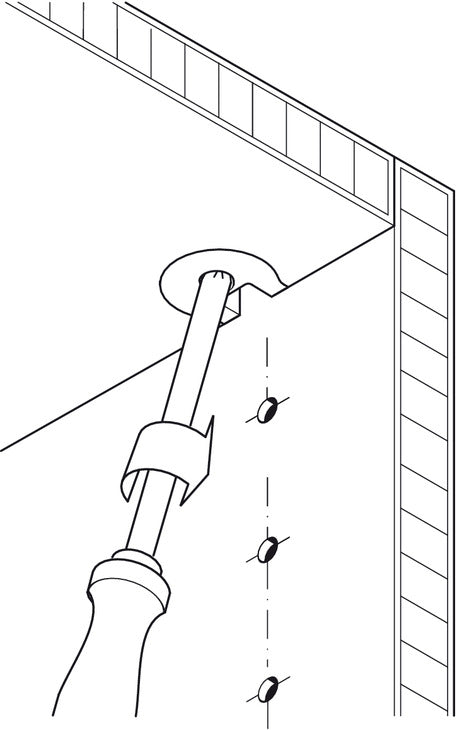

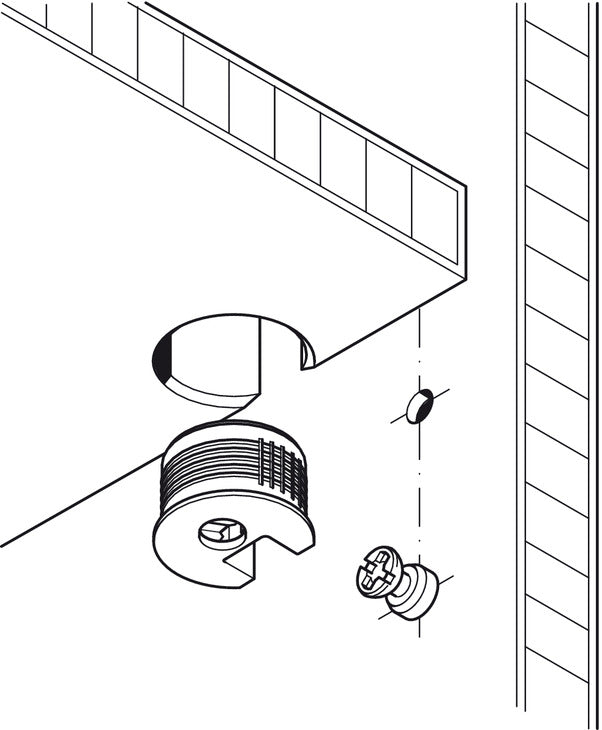

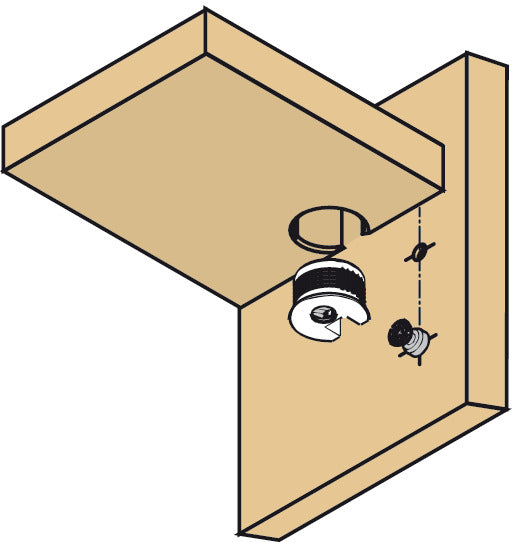

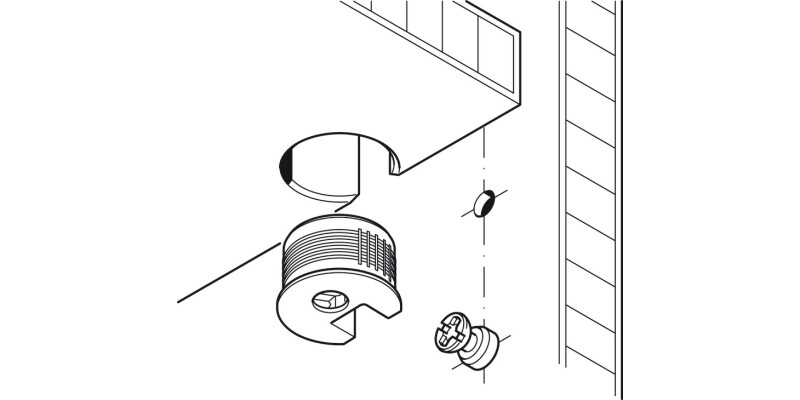

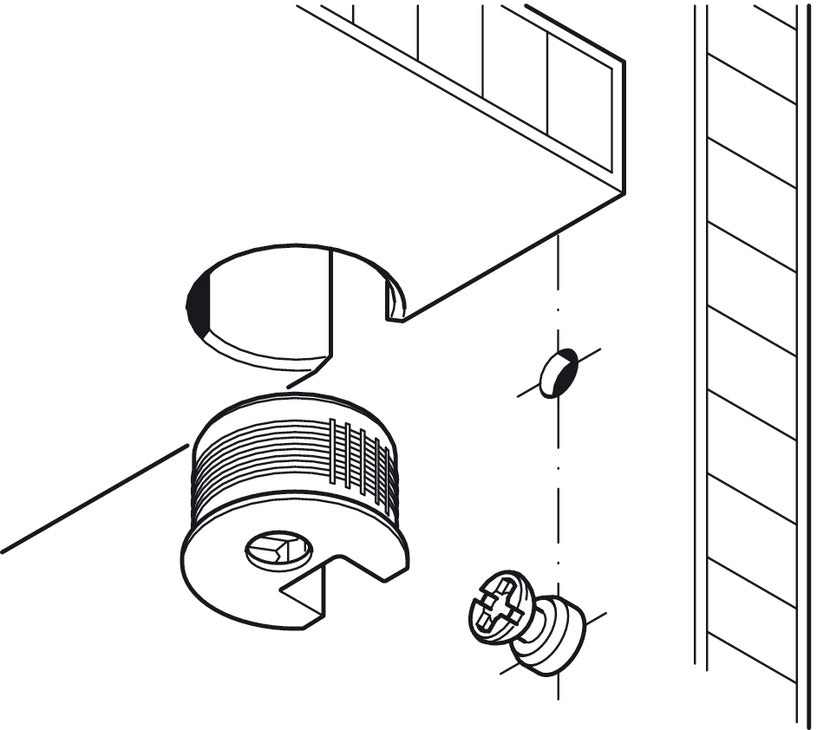

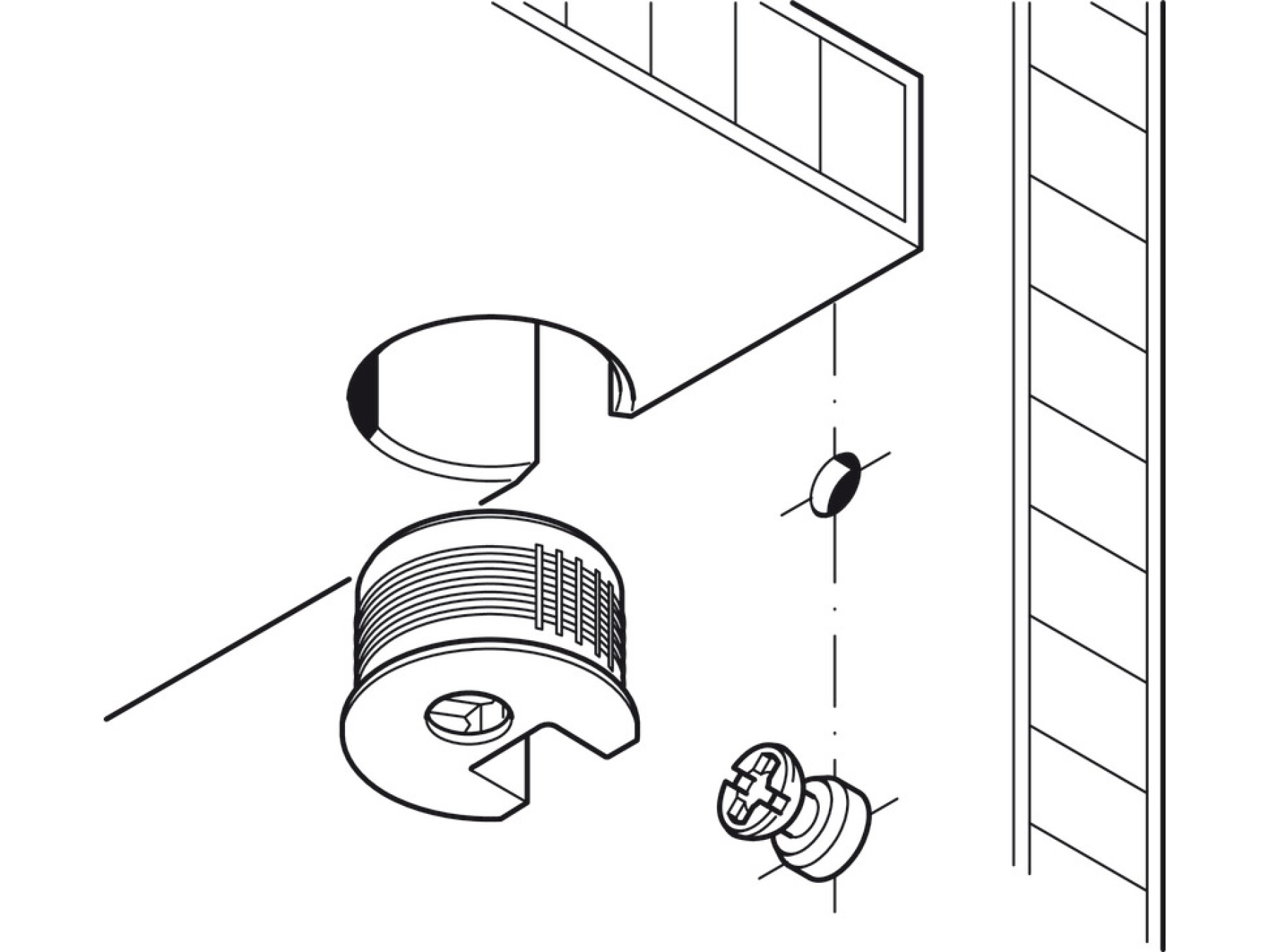

Application is straightforward: it’s for wooden cabinet use and comes in a version featuring rim and tightening element (without dowel and without ridge, for a cleaner fit). Drive is provided via a PZ2 cross slot for easy handling during installation.

For added peace of mind, it carries the Hafele Lifetime Guarantee (25 years). Please note: Rafix-20 connecting bolts and jigs must be ordered separately.

Rafix-20 connecting bolts and jigs to be ordered separately
