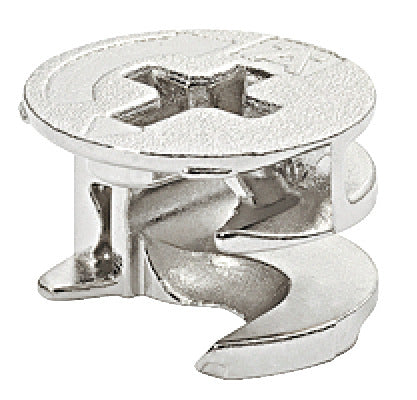

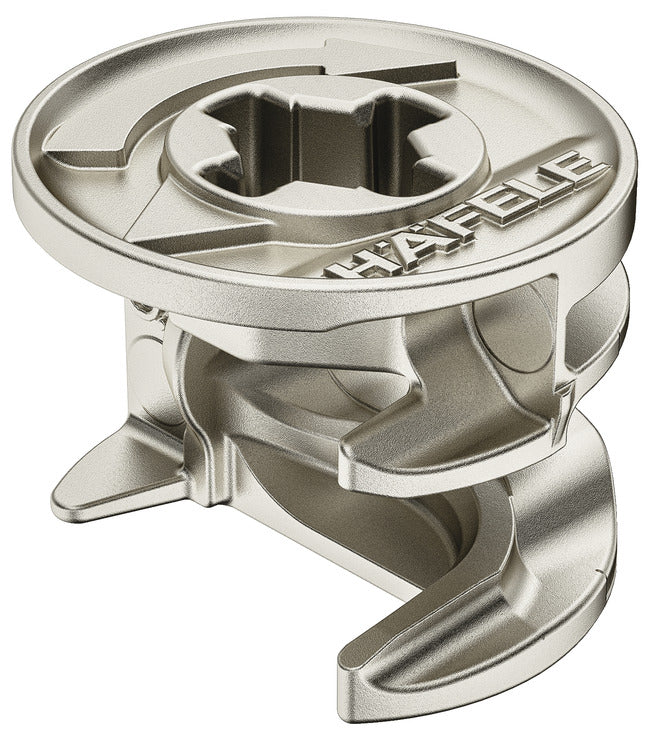

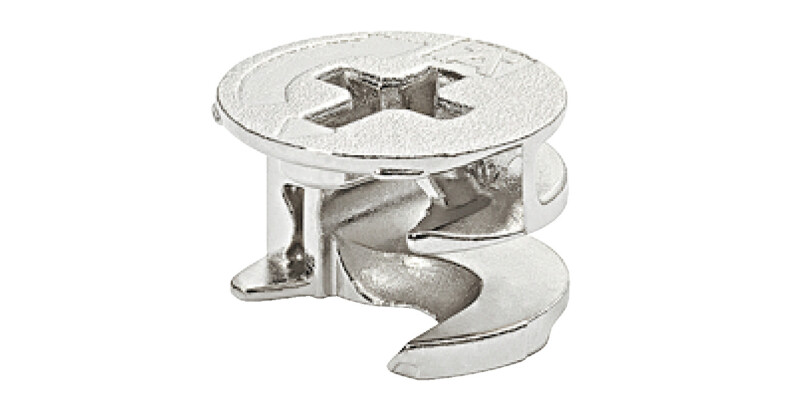

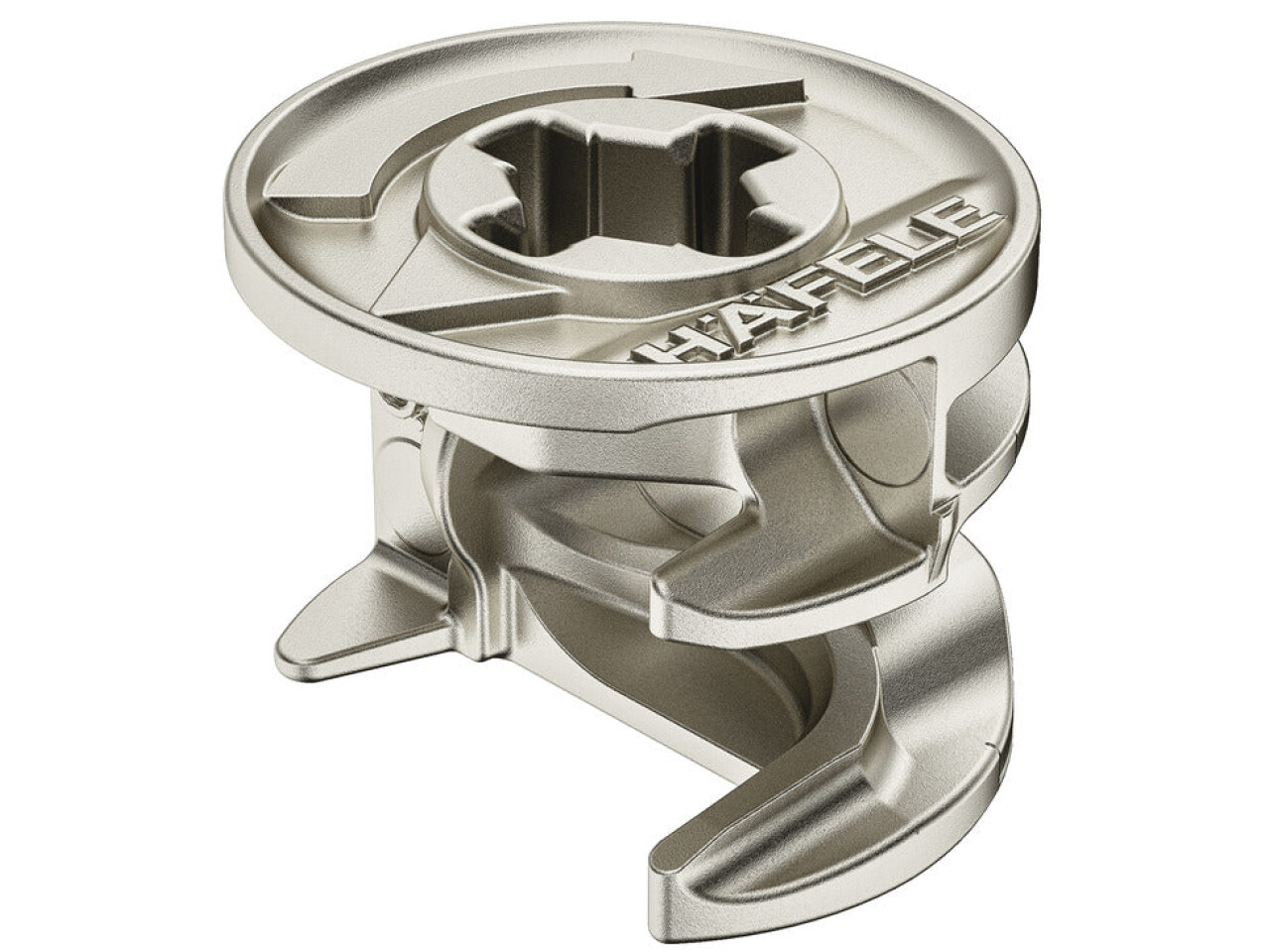

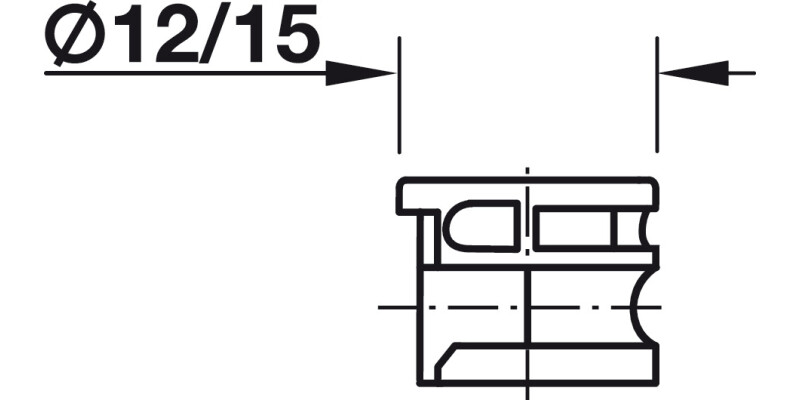

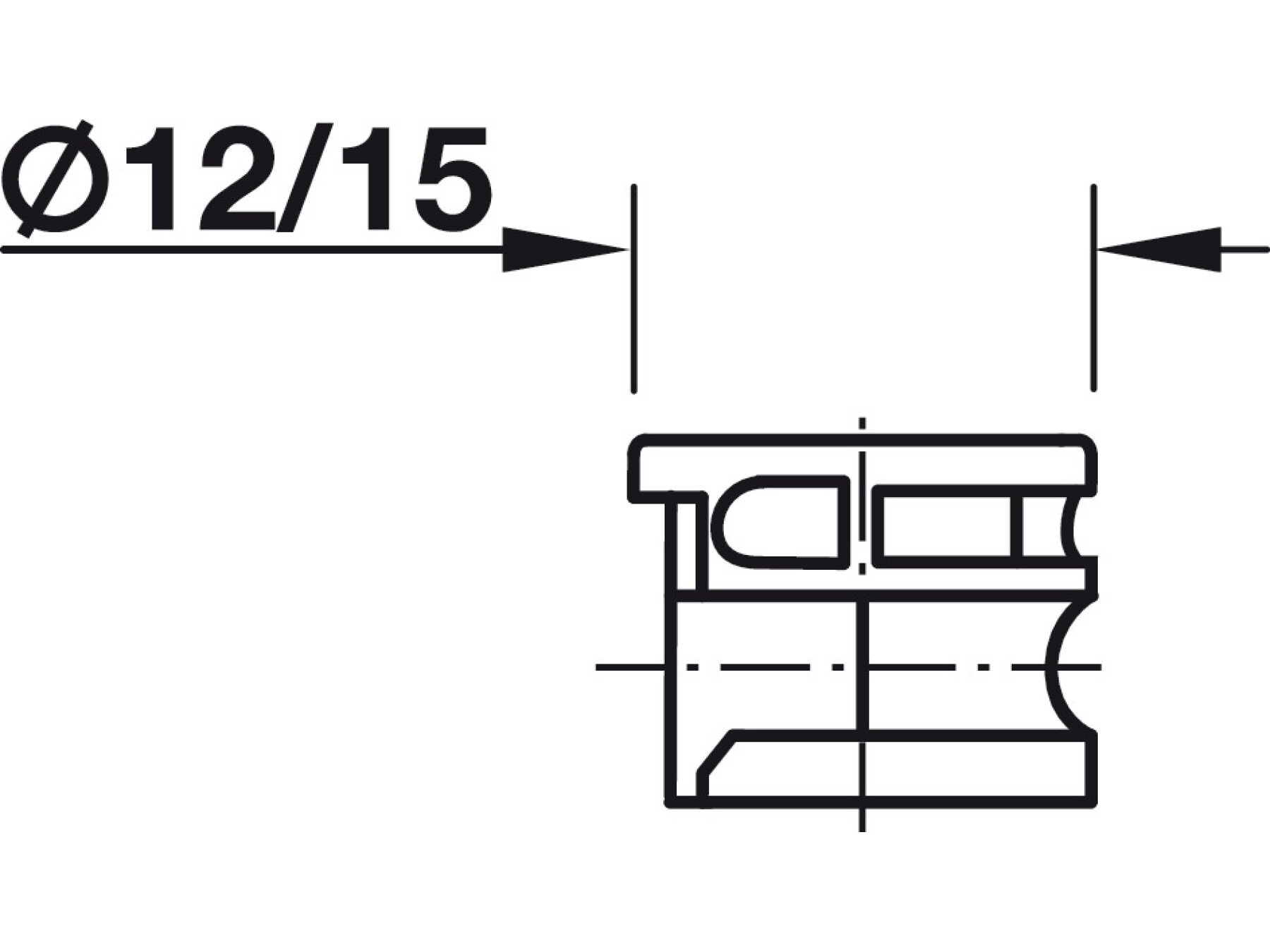

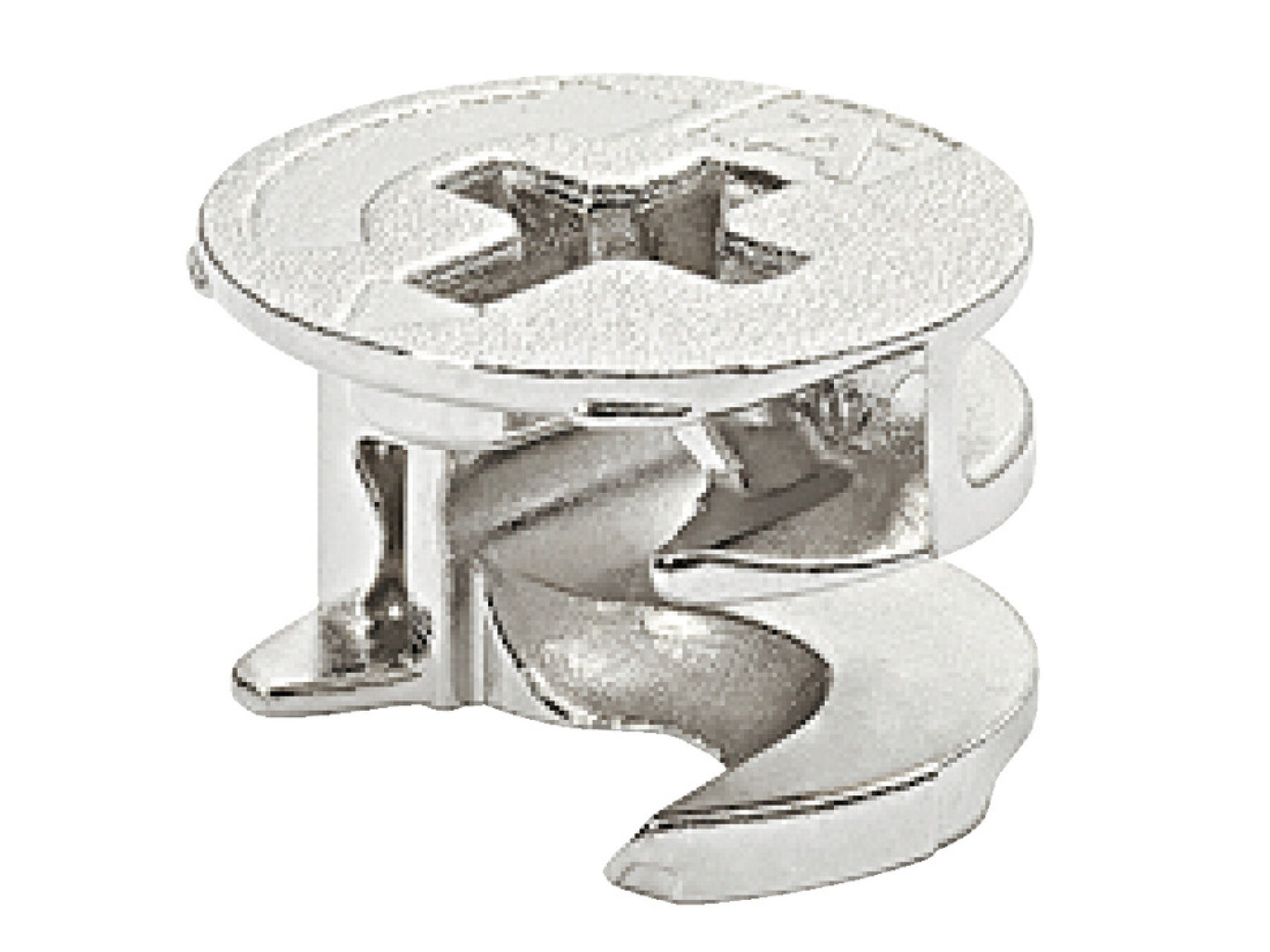

Connector Housing, without Rim, Zinc Alloy, Minifix 15

Product Details

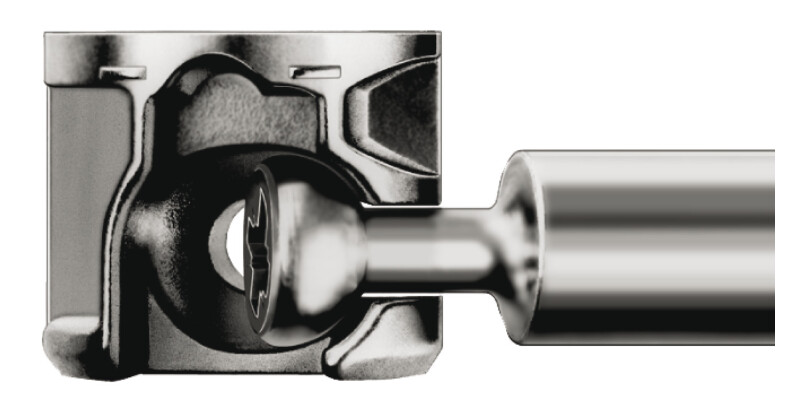

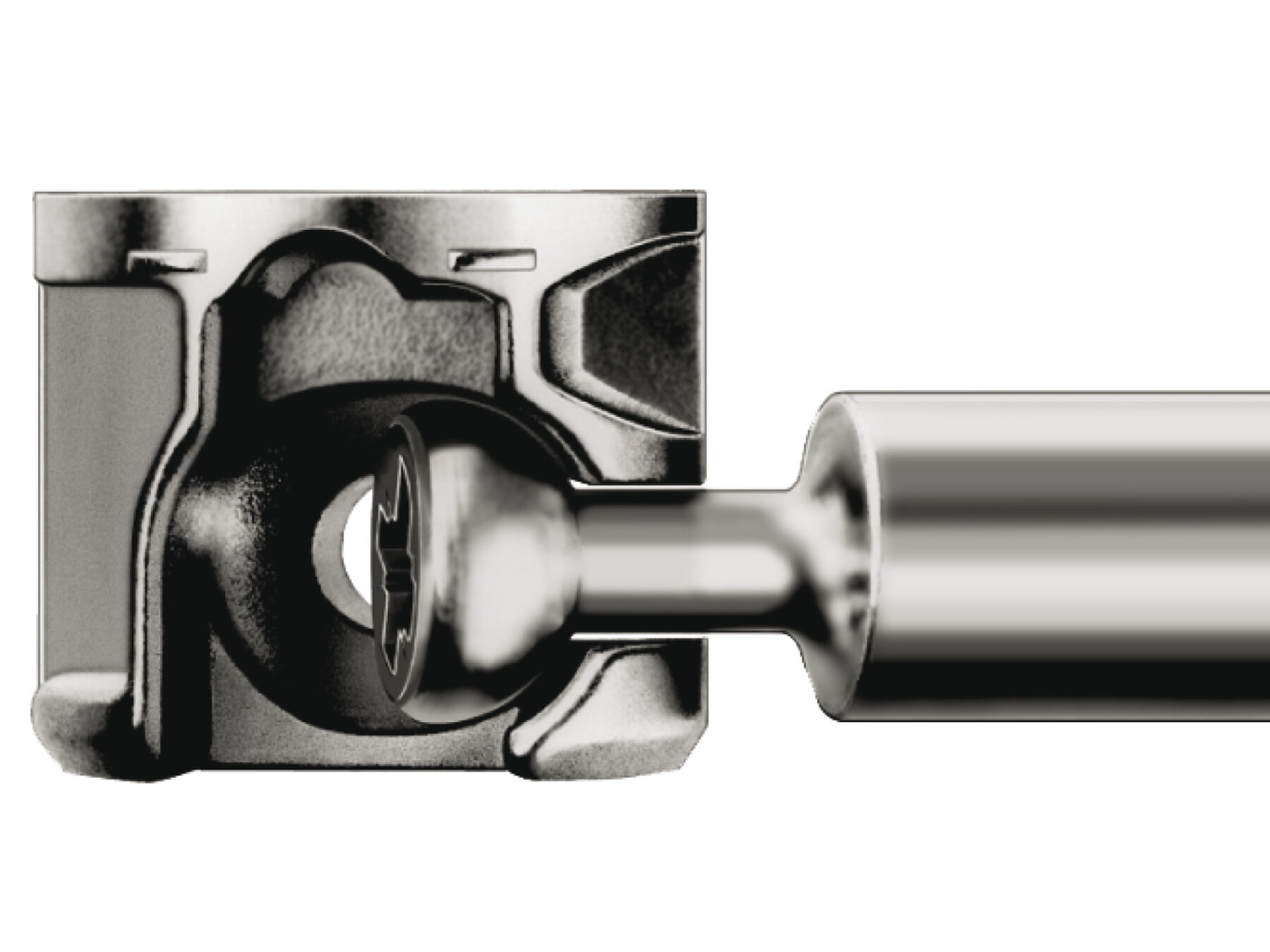

Which Minifix components does this connector housing work with?

This housing is designed for use with all connecting bolts from the Minifix system. If you are matching it to an existing Minifix setup, ensure your connecting bolt is part of the same system for a proper fit.

Is this Minifix 15 housing suitable for 12 mm thick wood?

Yes, it is specified for use with wood thickness of 12 mm. This makes it a good choice when assembling cabinets, shelving, or furniture parts where the board thickness matches the 12 mm setting.

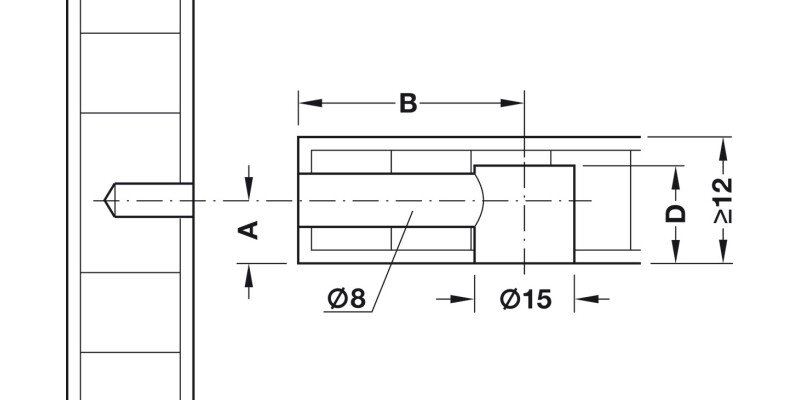

What drilling size and depth should I use?

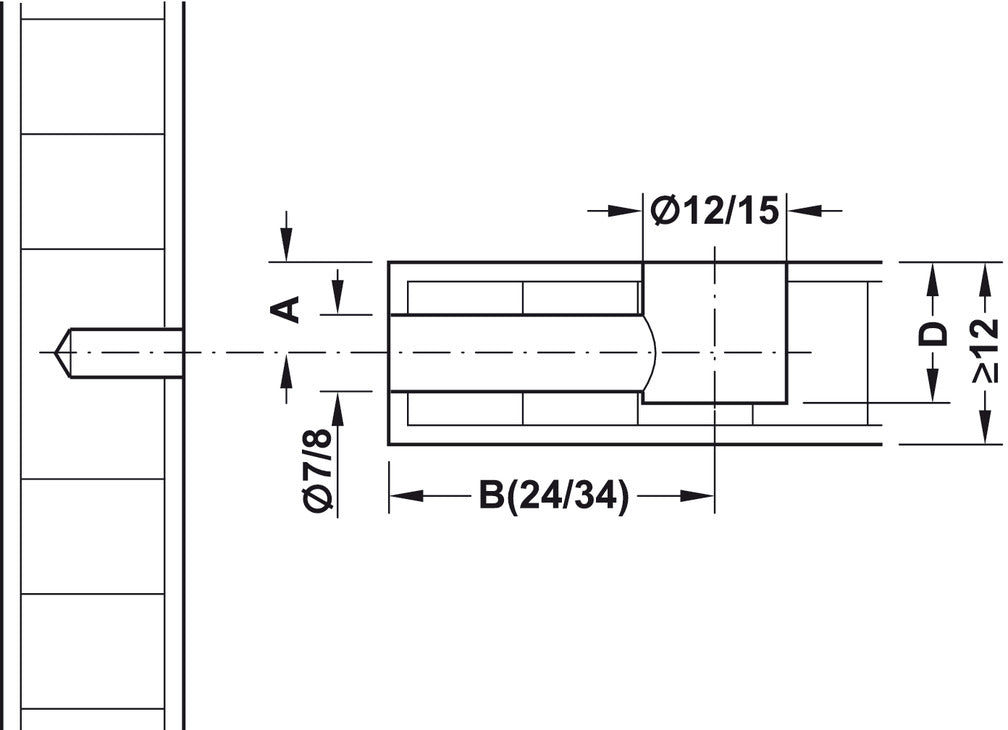

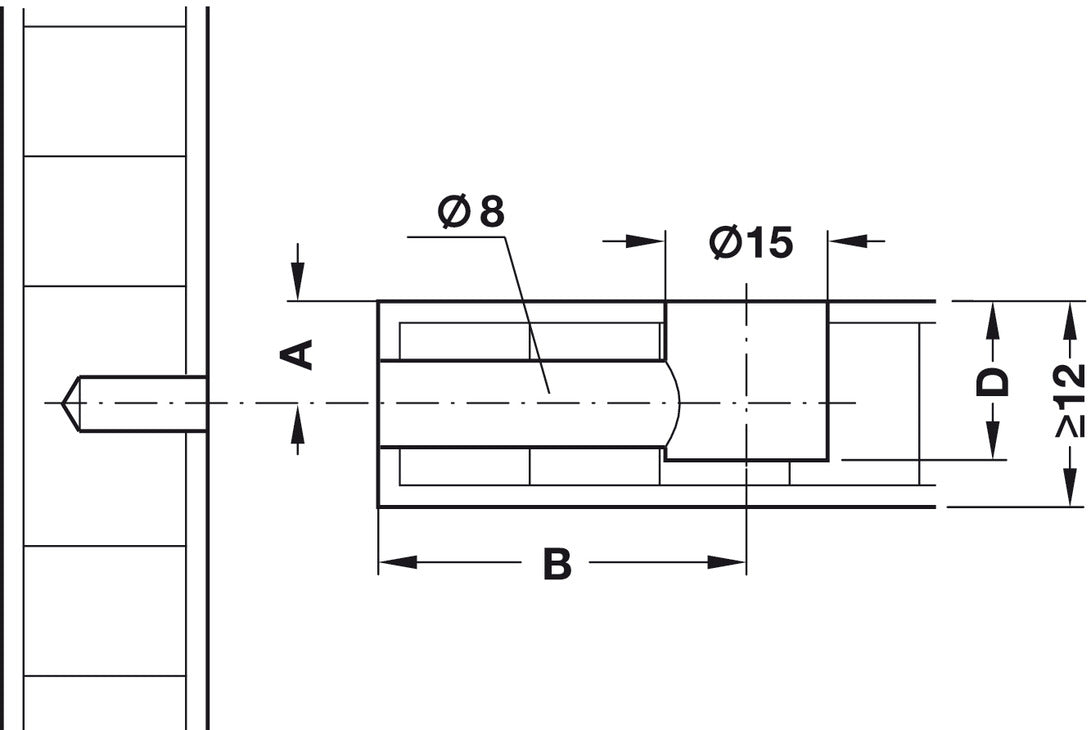

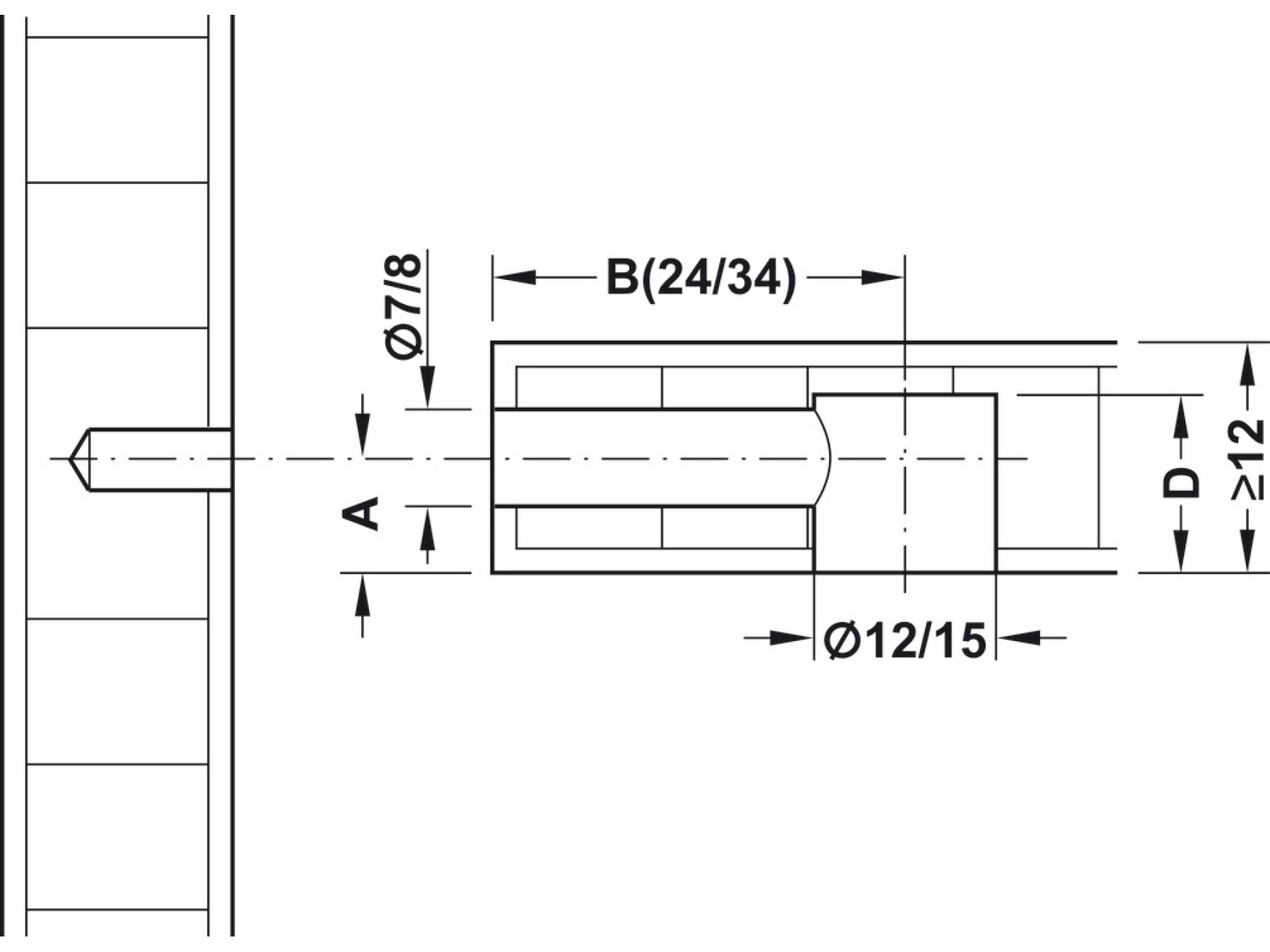

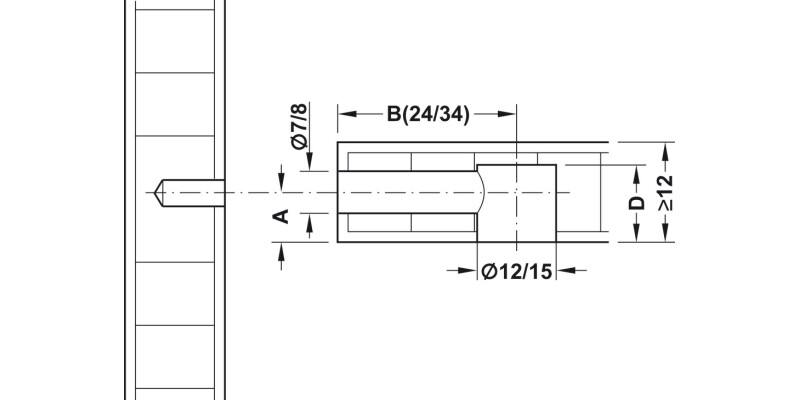

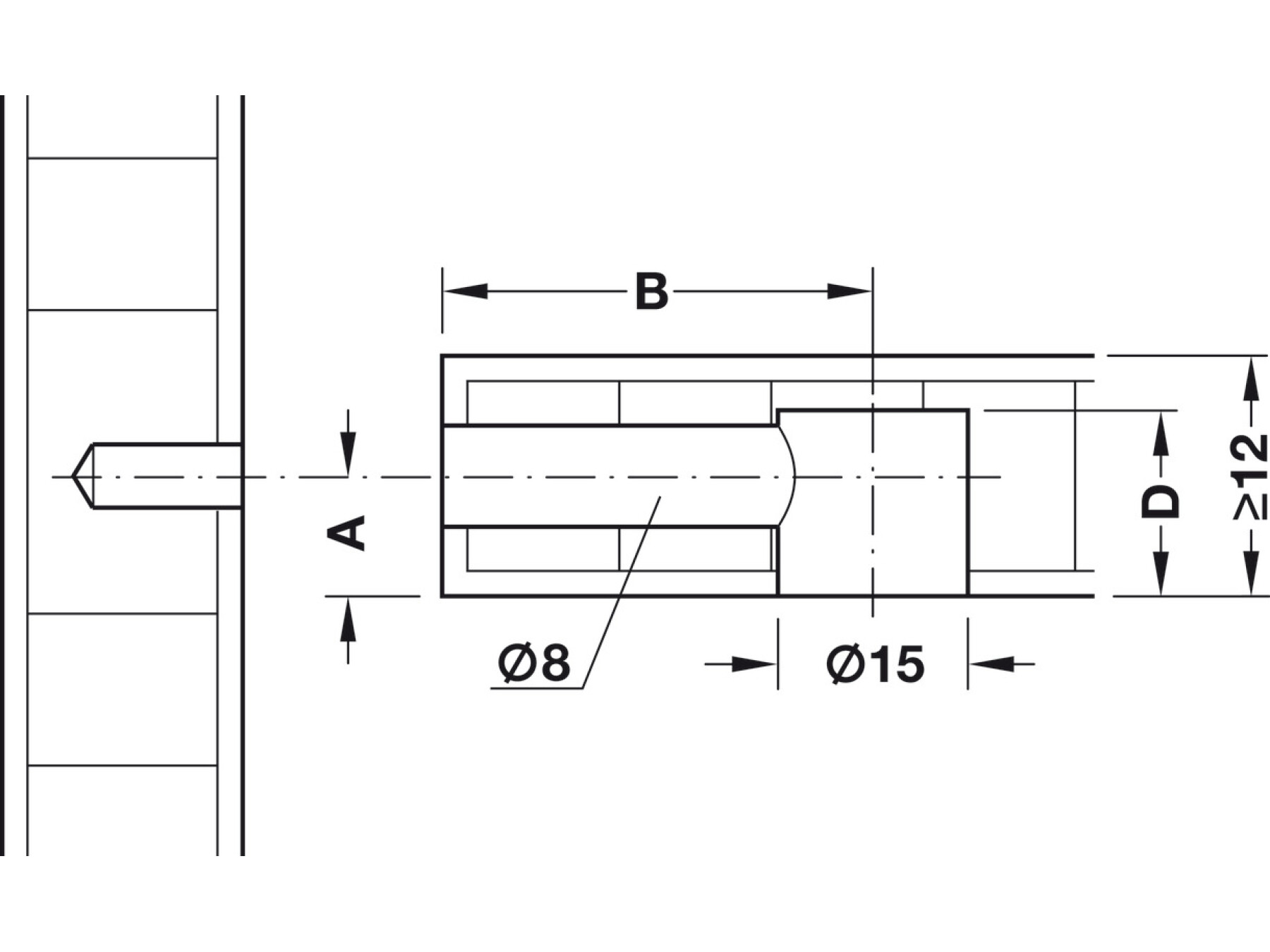

For accurate installation, the recommended drilling depth is 9.5 mm with a tolerance of plus 0.2 mm, and the specified dimension A is 6.0 mm. Using the correct depth helps ensure the housing seats fully and the connection aligns correctly.

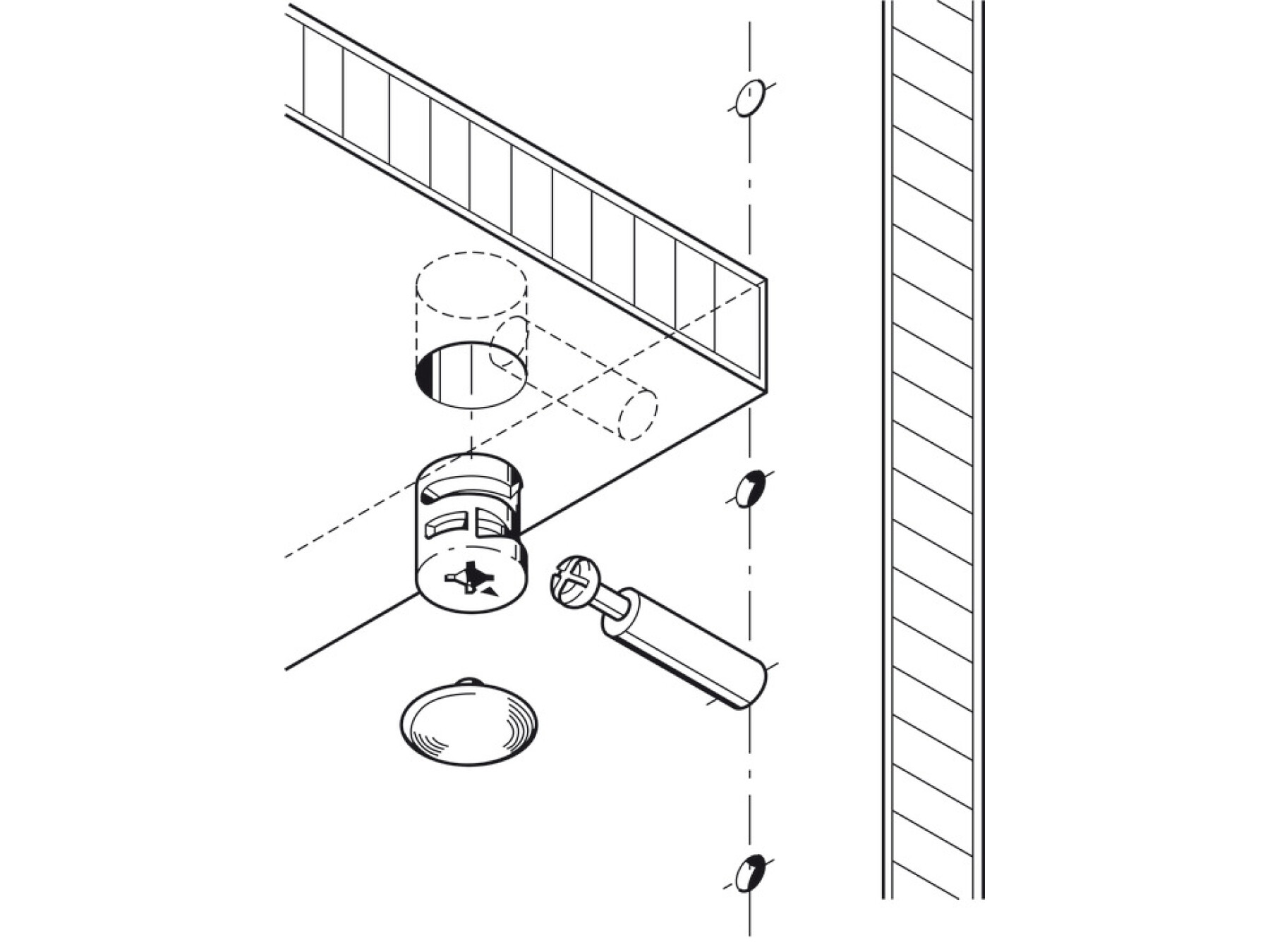

Where is this housing typically used in furniture making?

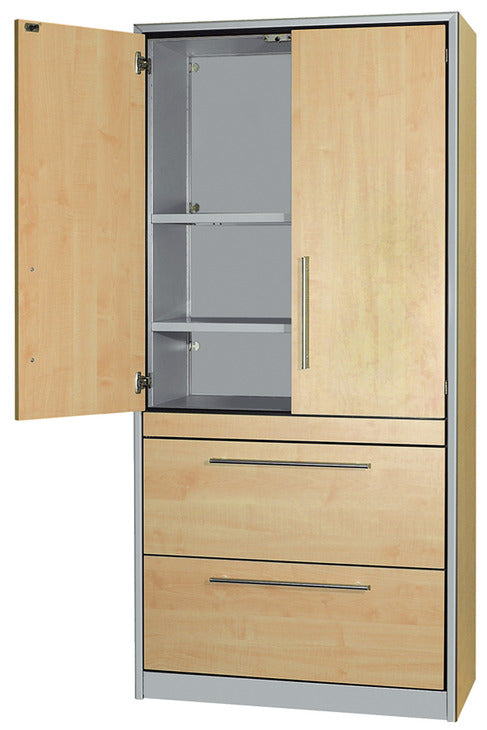

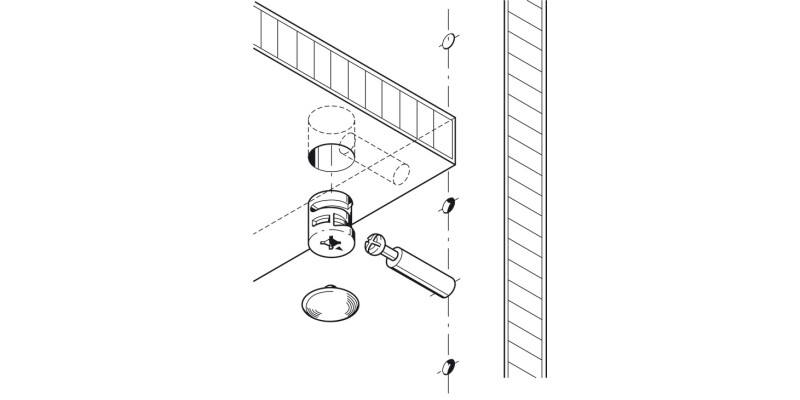

It is intended for wooden cabinet applications where you need a concealed, stable connector for assembly. It is commonly used in living and commercial furniture solutions that require reliable connecting and repeatable installation.

Will the nickel plated finish affect corrosion resistance or appearance?

The housing is nickel plated, which can help improve resistance to corrosion compared with uncoated parts and provides a consistent finish. This can be especially useful if the furniture will be used in varied indoor conditions.

What material is the connector housing made from?

The housing is made from zinc alloy. Zinc alloy components are widely used in furniture fittings because they provide good dimensional stability and strength for connecting hardware.

Can I buy this as a replacement part for an existing connector housing?

Yes, if you are repairing or updating furniture and need a replacement housing, choosing the same Minifix 15 Housing 12 mm wo Rim specification and part number 262.26.570 will help you match the original installation requirements.
