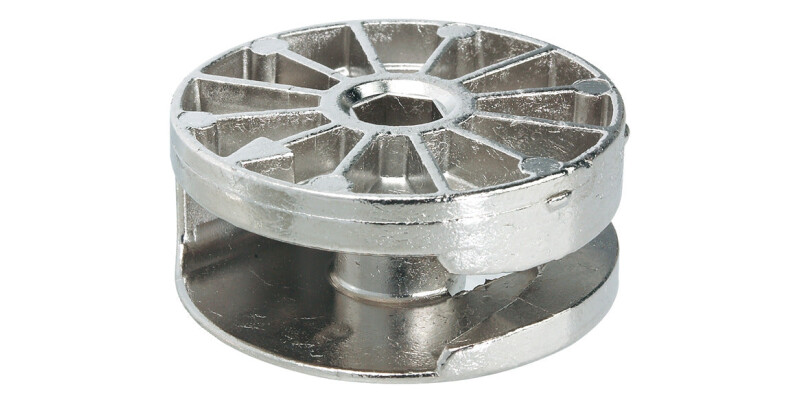

Connector Housing, for Wood Thickness from 19 mm, Maxifix

Product Details

Which wood thickness is this housing suitable for?

This Maxifix Housing SW6 is designed for applications with a wood thickness of 19 mm or greater. Using the correct thickness helps the connection stay stable, especially where heavier loads are involved.

How deep do I need to drill for the SW6 housing?

The drilling depth for this housing is 15.5 mm. Drilling to the specified depth supports a secure fit and helps maintain the alignment of the connector system.

What drilling diameter does the housing require?

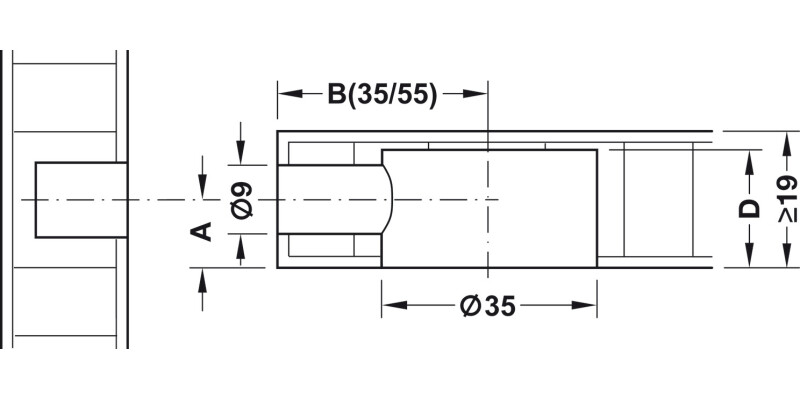

You will need to drill a housing hole diameter of 35.0 mm. Getting this hole size correct is important for a snug fit, which improves stability of the completed furniture joint.

Is this connector housing compatible with the correct connecting bolt?

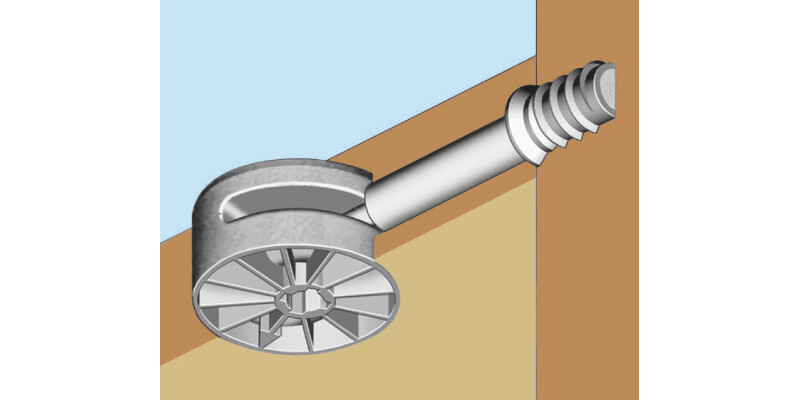

Yes. This housing is suitable for a connecting bolt with a drill hole diameter of Ø 9 mm. Matching the bolt and housing is key to achieving the intended strength and performance.

Where can I use this connector housing for best results?

This SW6 housing is intended for extremely stable connections subjected to heavy loads. It is a good choice for cabinets and furniture that need robust joint performance during everyday use.

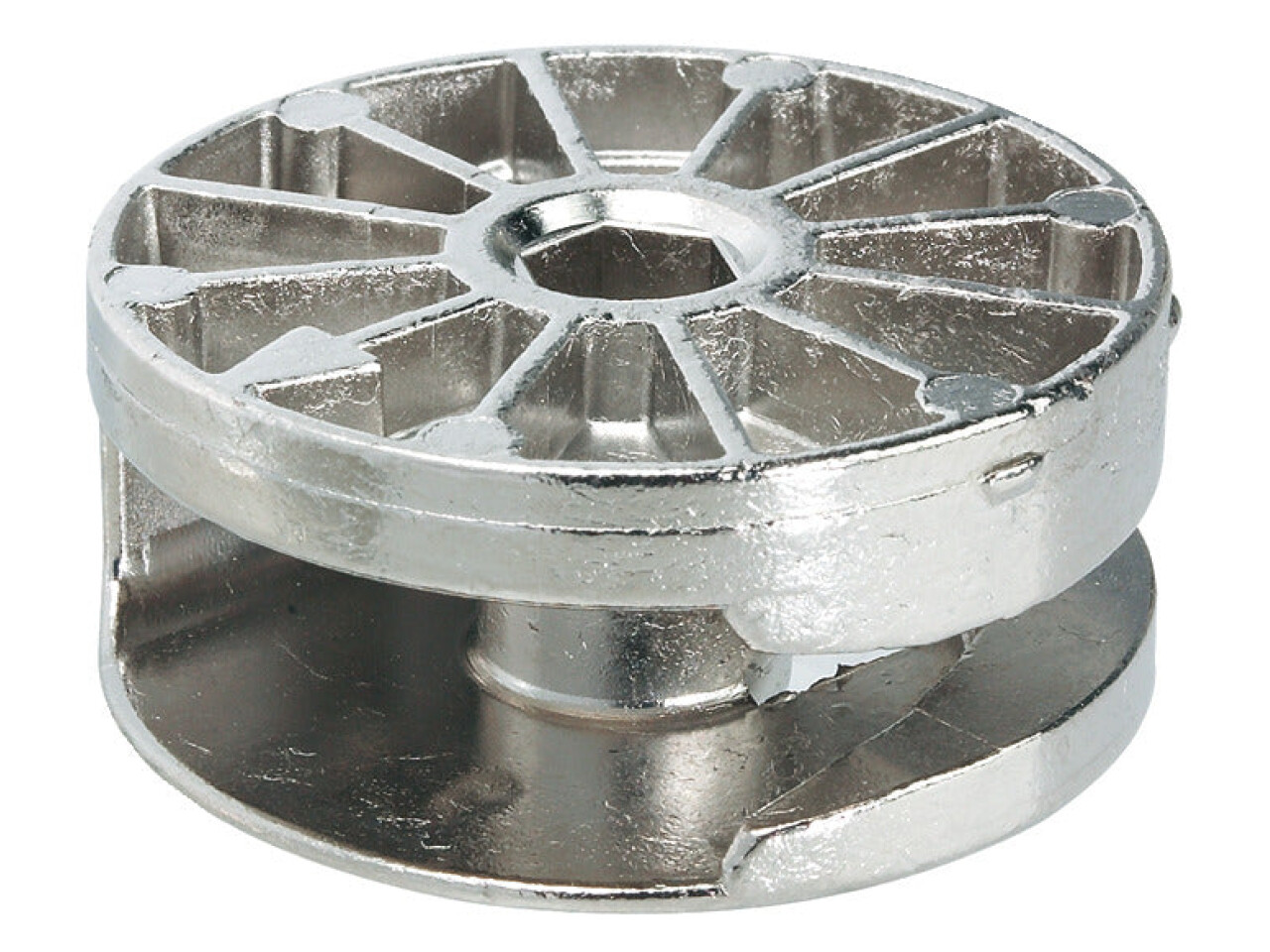

What finish does the “Bright” version provide?

The “Bright” version is finished in a bright, visible zinc alloy style. It is ideal when you want components to look clean and consistent within the assembly.

How confident can I be in long term performance?

Hafele provides a 25 year Lifetime Guarantee for this product. Choosing a connector system with this level of coverage helps when building or maintaining furniture where long term reliability matters.
