Connector Housing, Flush-Fitting, Plastic, without Ridge, Rafix-20

Product Details

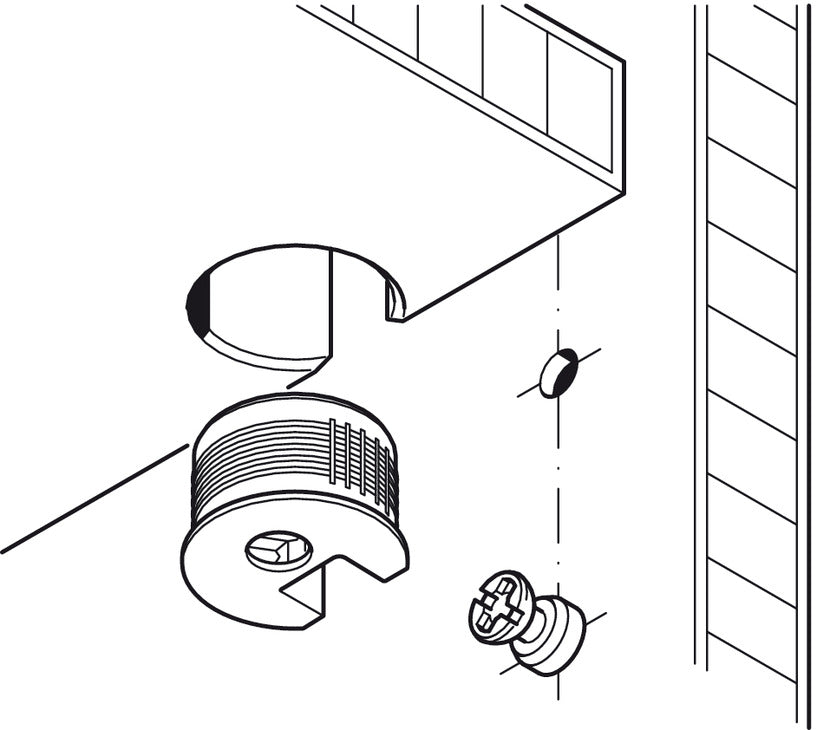

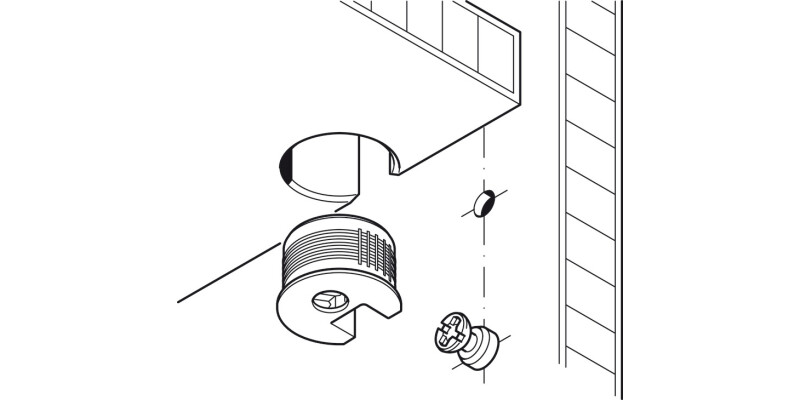

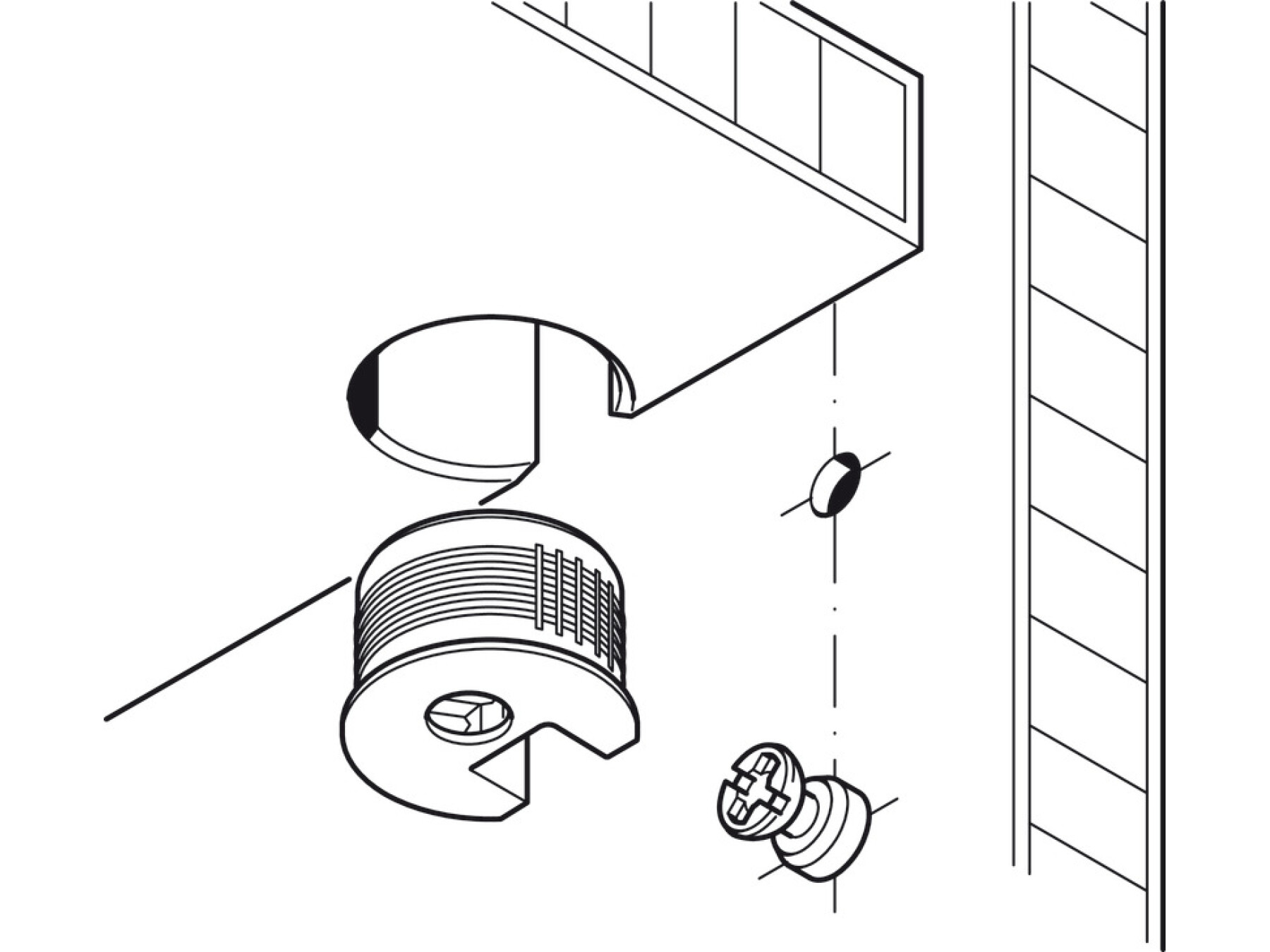

Connector Housing, Flush-Fitting, Plastic, without Ridge, Rafix-20 (Part No. 263.50.103) is the ideal connector housing for clean, flush-mounted furniture assembly—designed especially for wooden cabinet constructions where a neat finish matters. This brown flush-fit housing pairs beautifully with modern joinery, helping you achieve precise alignment and a professional look from the inside out.

Built for reliability, the Connector Housing, Flush-Fitting, Plastic, without Ridge, Rafix-20 features a zinc alloy tightening element that improves grip and stability during fastening. It’s engineered for wood thicknesses from 16 mm, making it a great choice for wardrobes, cabinetry, and living or commercial shelving systems.

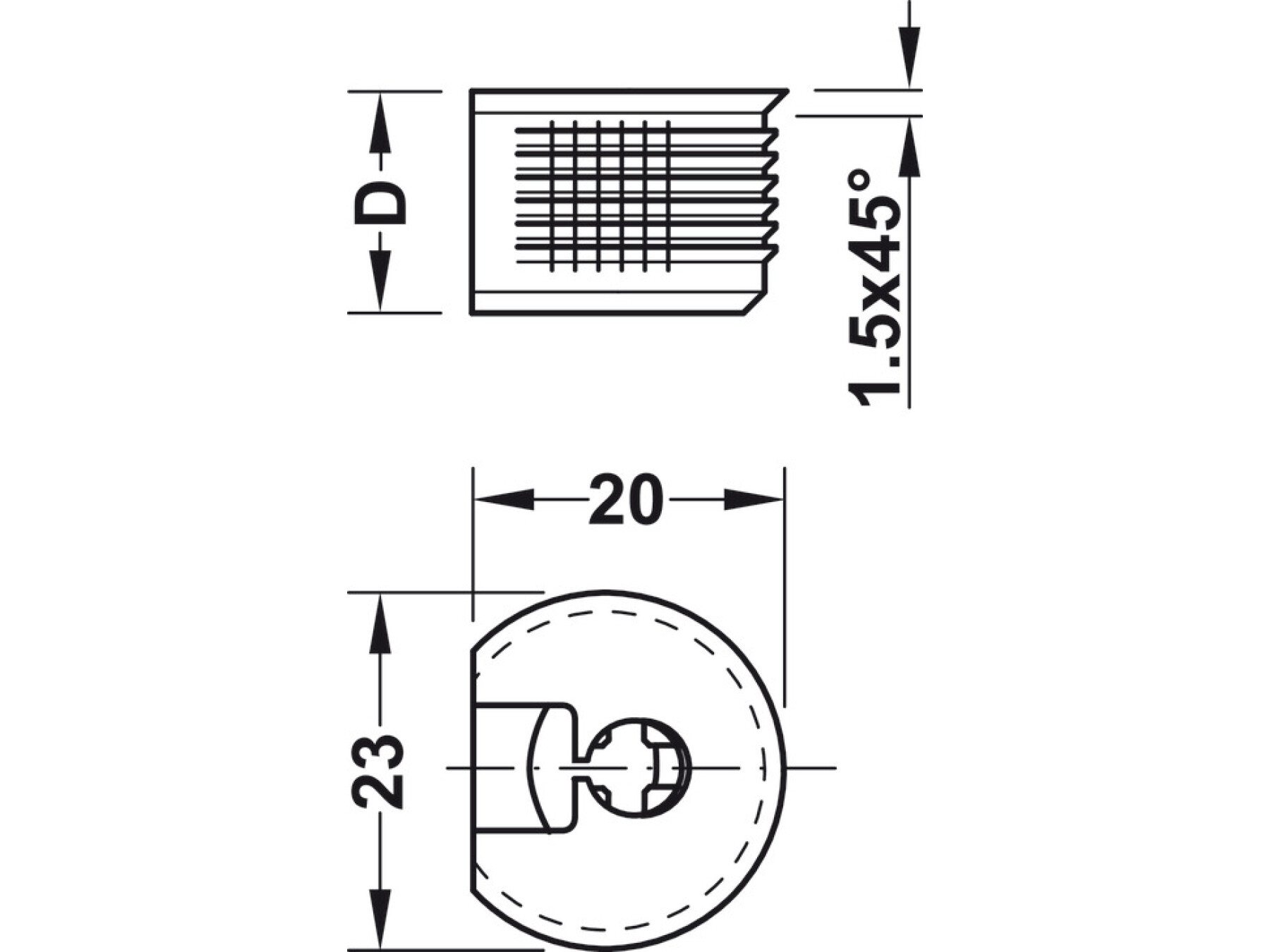

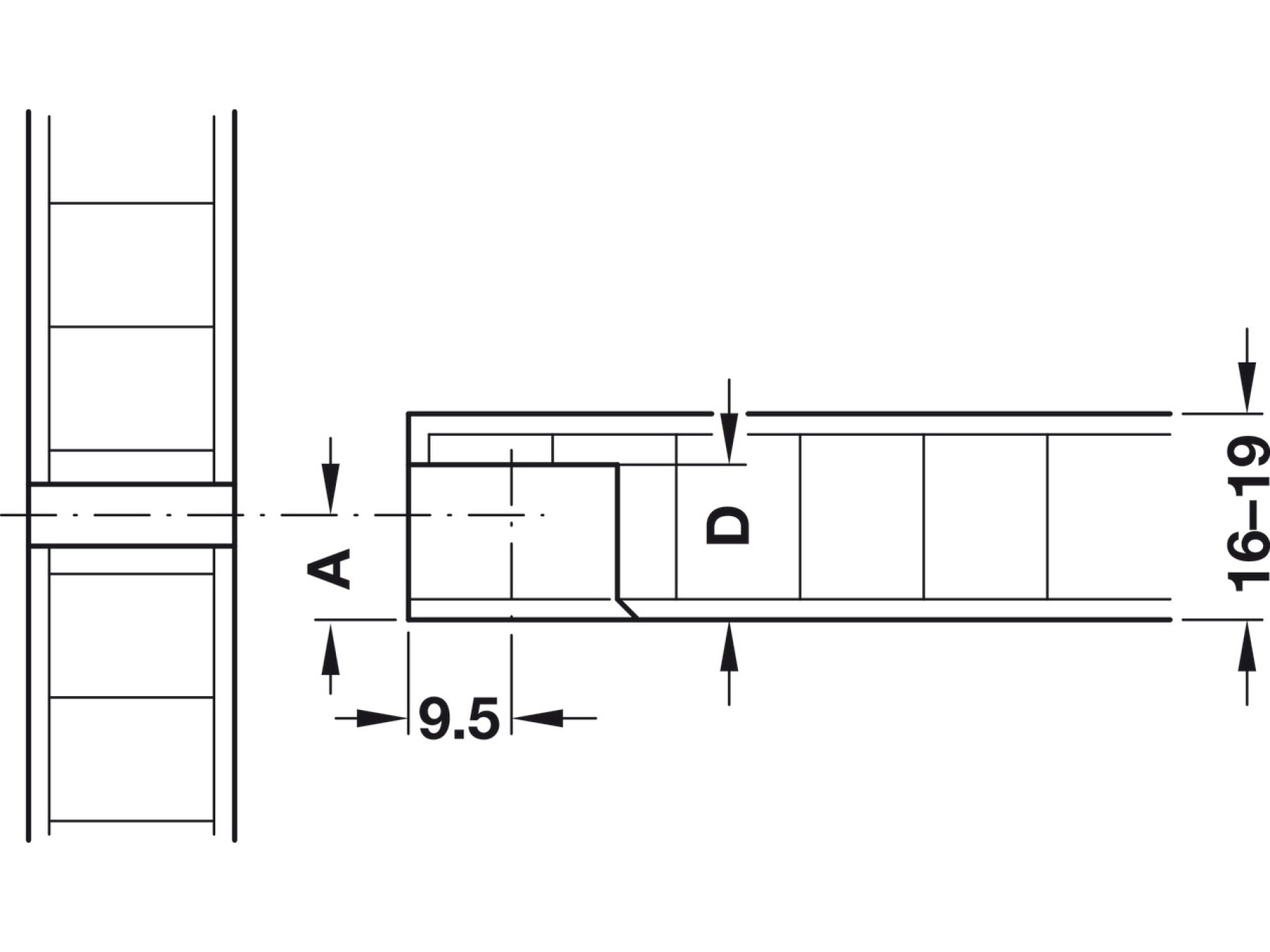

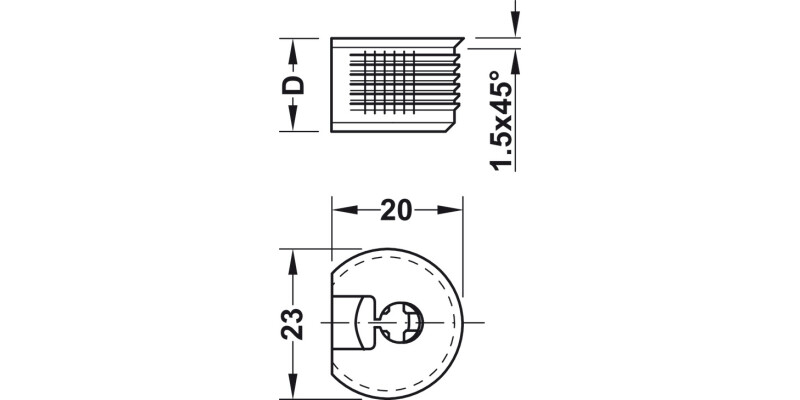

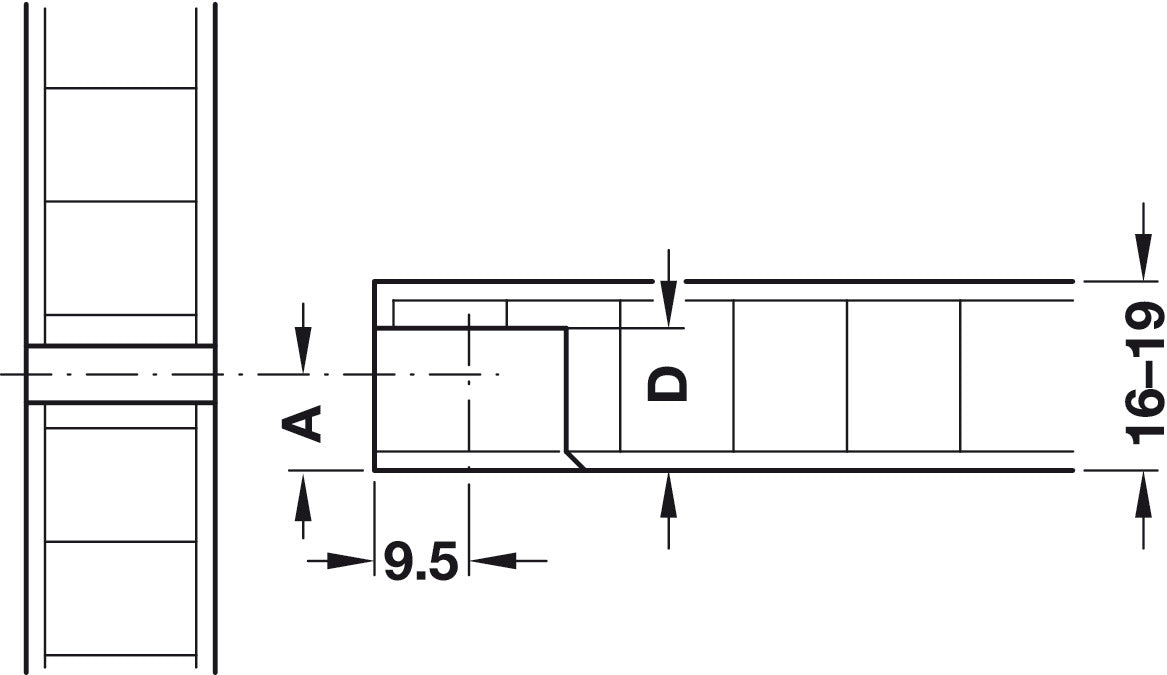

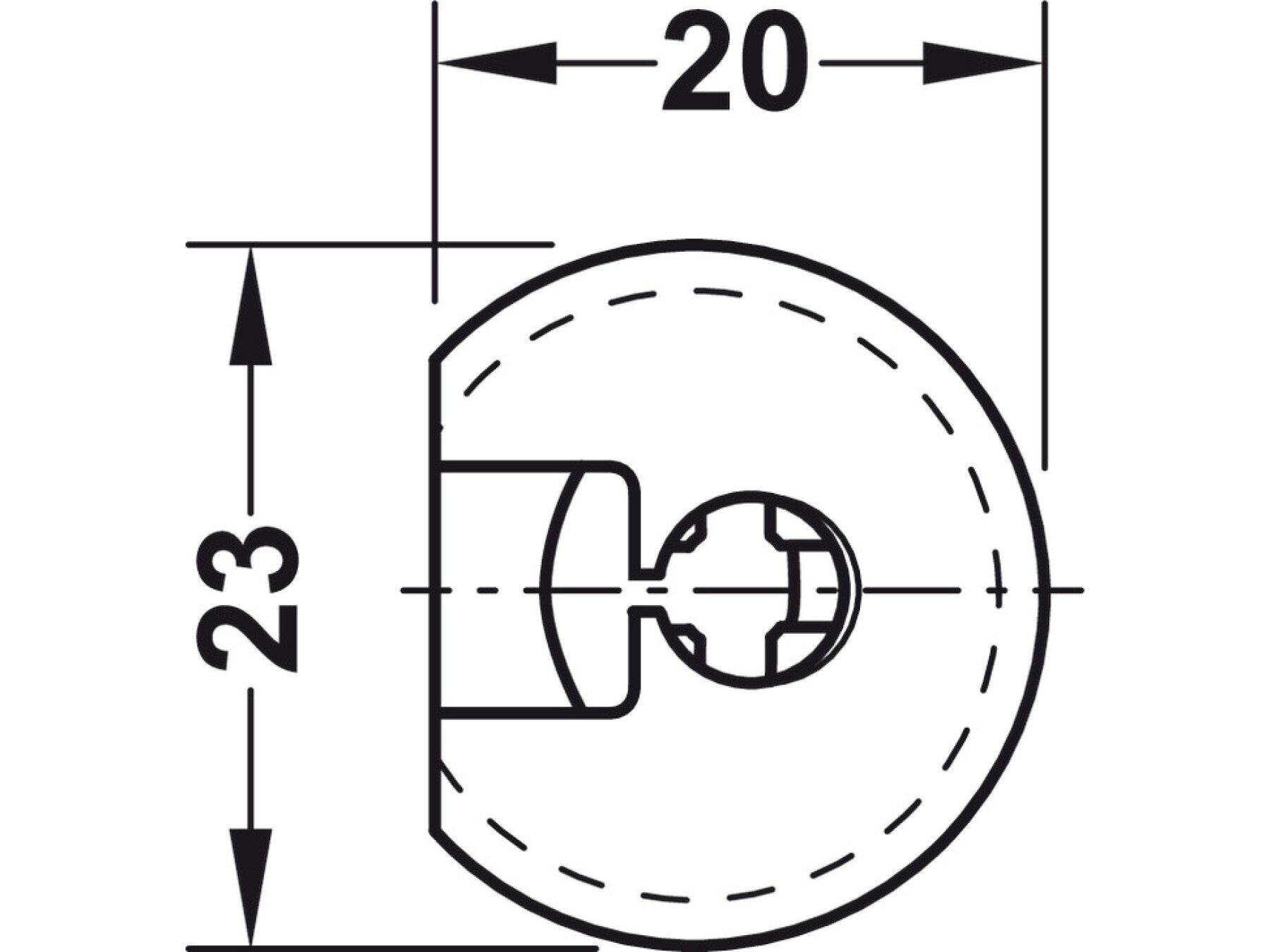

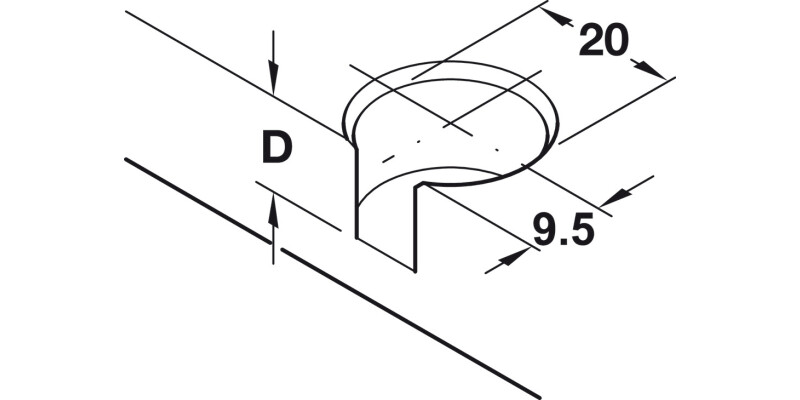

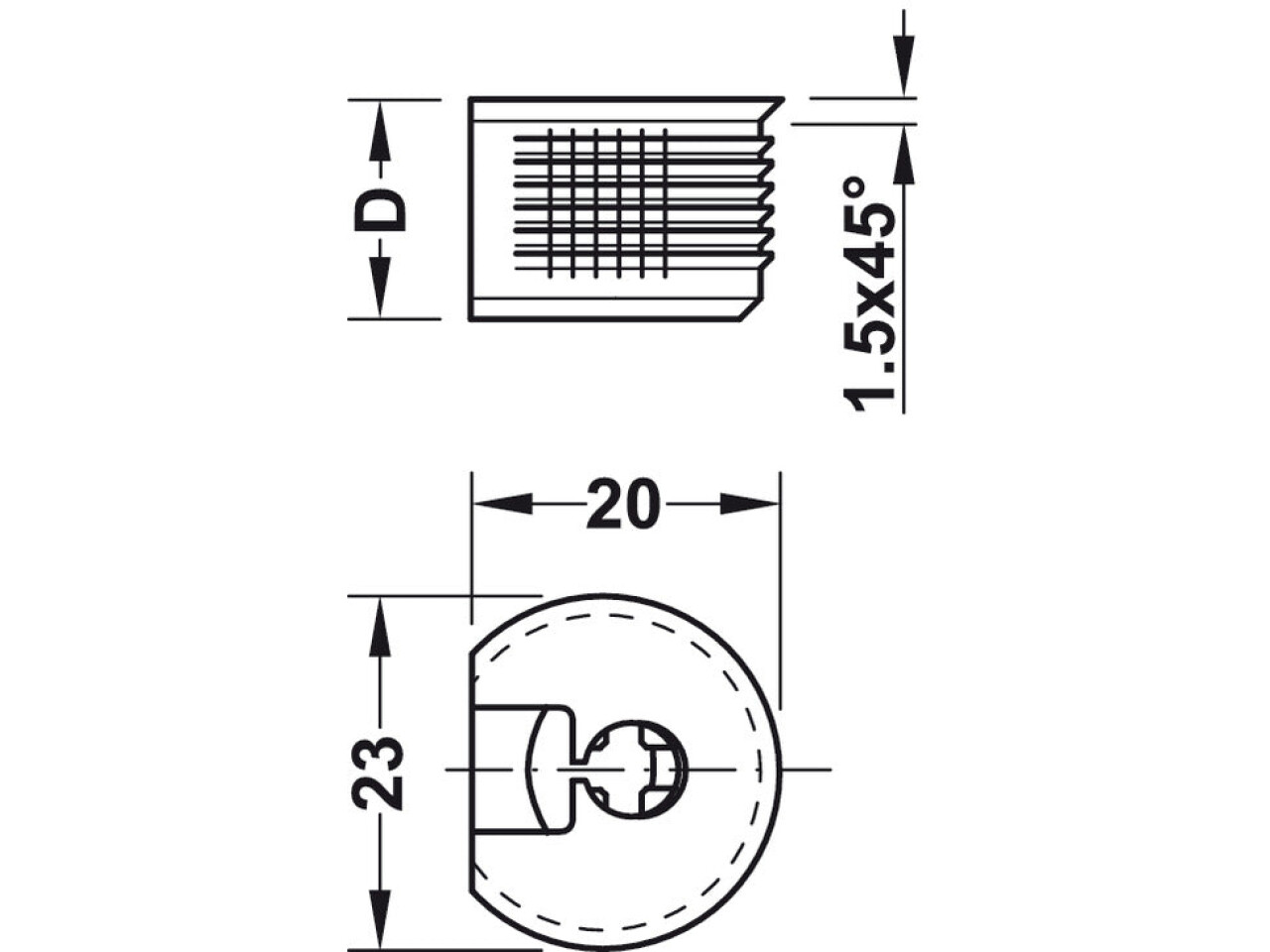

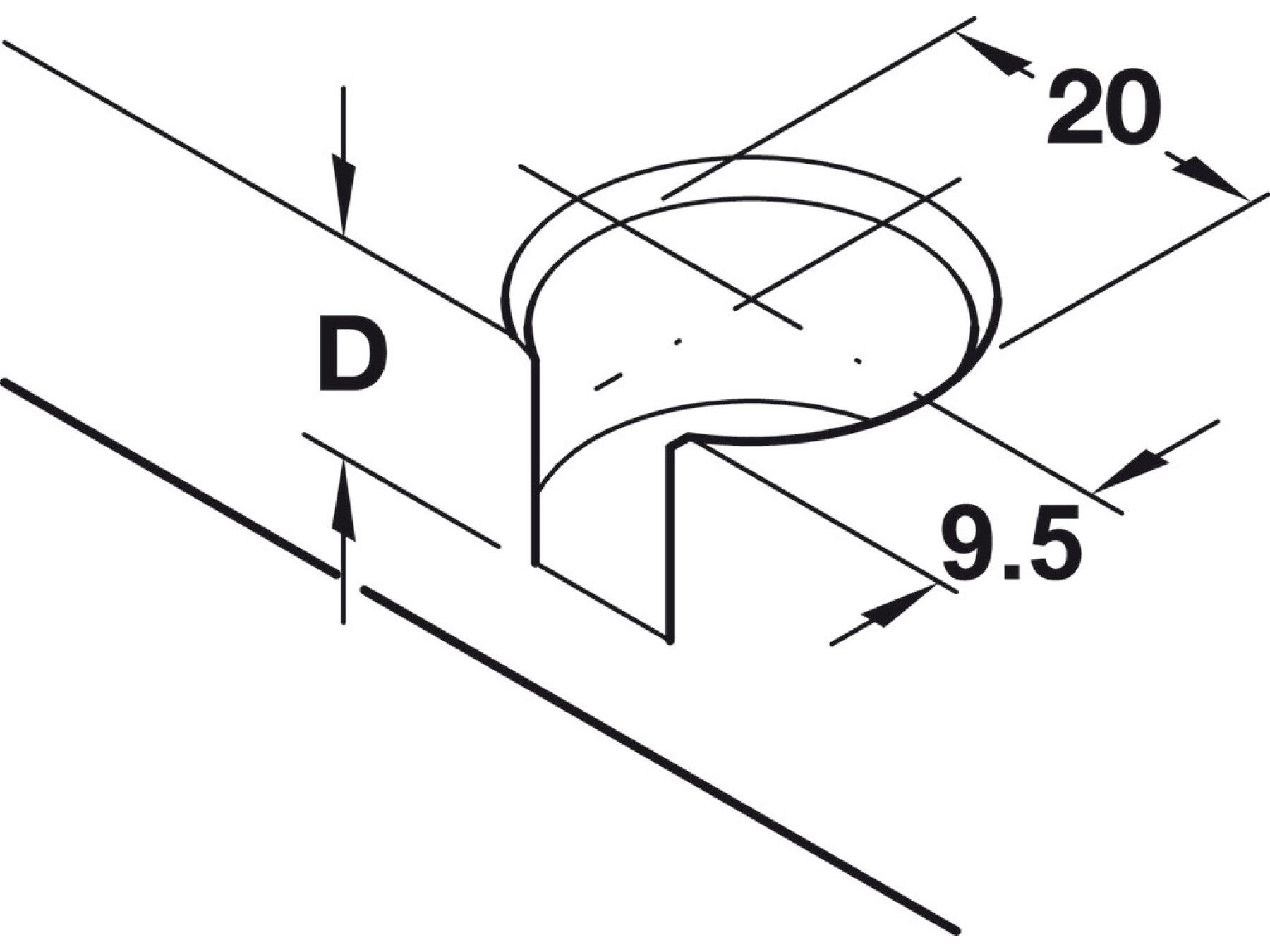

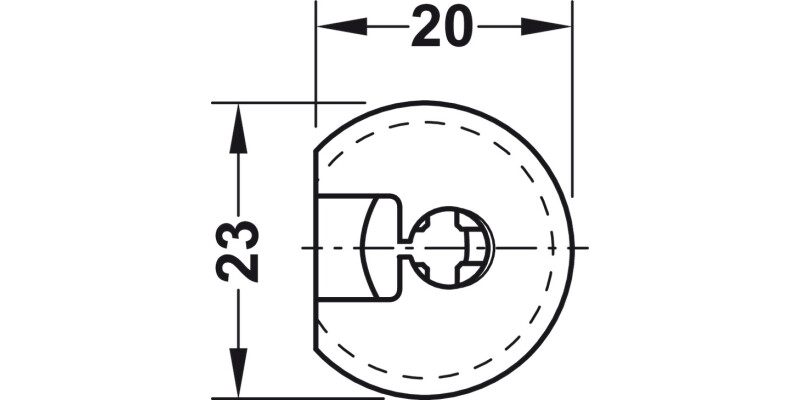

With a tailored drilling setup, the housing is made to fit seamlessly: drill hole Ø housing: 20.00 mm and drilling depth of X 12.7 +0.2 with dimension A 8.0 mm. Installation is straightforward and delivers a flush-mounted result, thanks to its with countersunk rim design and smooth compatibility for a tidy build.

Key features include: flush-mounted installation, a durable combination of plastic housing with a zinc alloy tightening element, and a secure drive type for fitting. The housing version supports multiple assembly characteristics, including with rim and with tightening element.

For added confidence, it carries the Hafele Lifetime Guarantee (25 years). Please note: Rafix-20 connecting bolts and jigs must be ordered separately. Upgrade your connector setup today with this dependable, flush-fitting housing for a smoother, stronger furniture build.

Rafix-20 connecting bolts and jigs to be ordered separately
