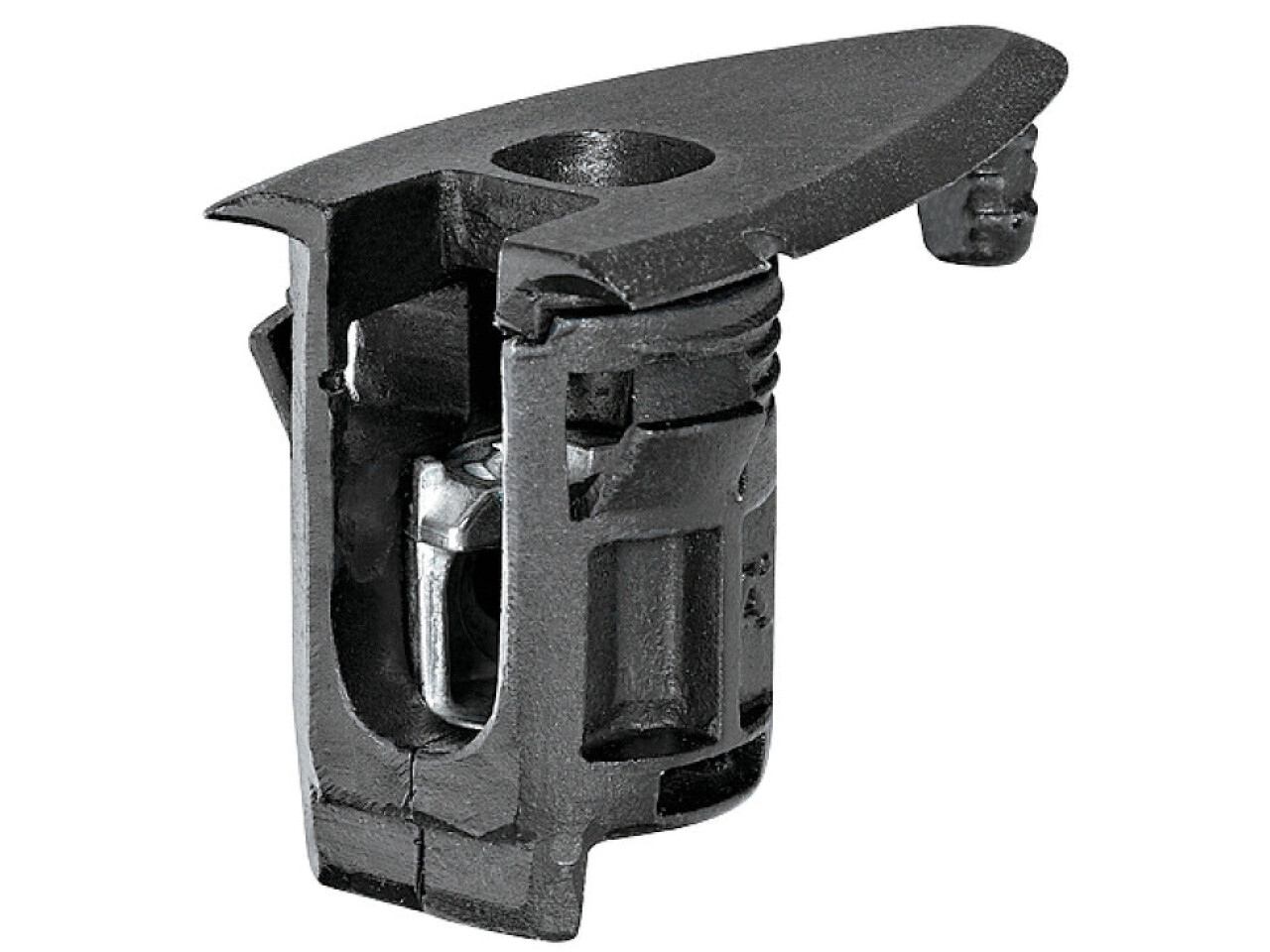

Connector Housing, for Wood Thickness from 32-50 mm, Rafix 20 HC

Is Rafix 20 HC Conn Housing suitable for lightweight panels?

Yes. This connector housing is designed for lightweight panels with a top layer of 4 mm and includes an expansion option for mounting lugs in the core, helping it suit typical furniture panel constructions.

What panel thickness can I use with part number 263.18.302?

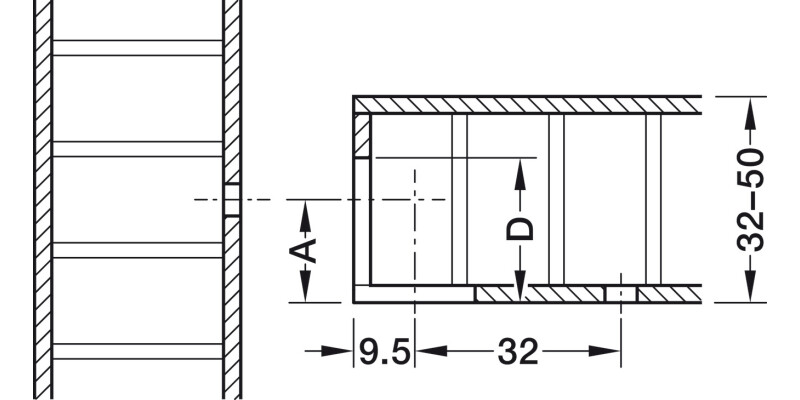

For wood thickness 32 to 50 mm. Rafix 20 HC Conn Housing 32mm Pl Black is intended for work within this range, so the connector geometry and drilling requirements stay within the planned dimensions.

What drilling dimensions are required for installation?

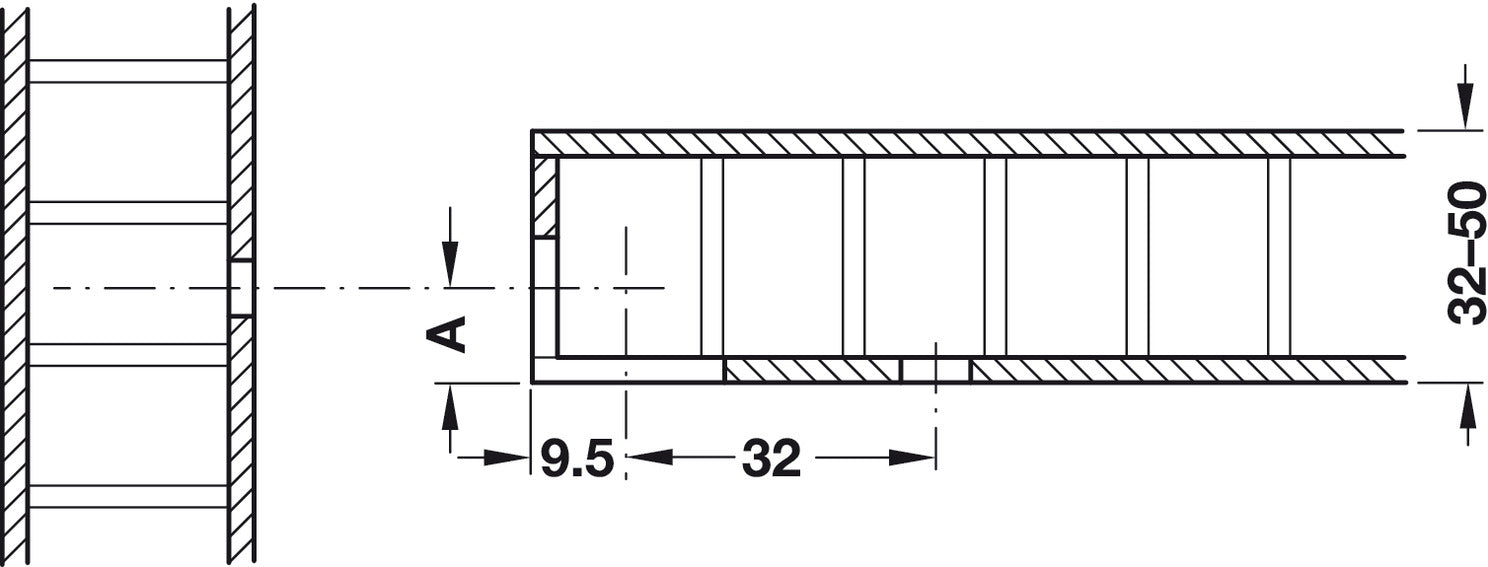

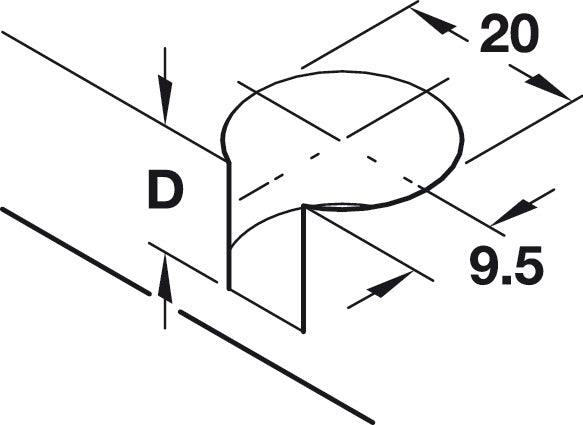

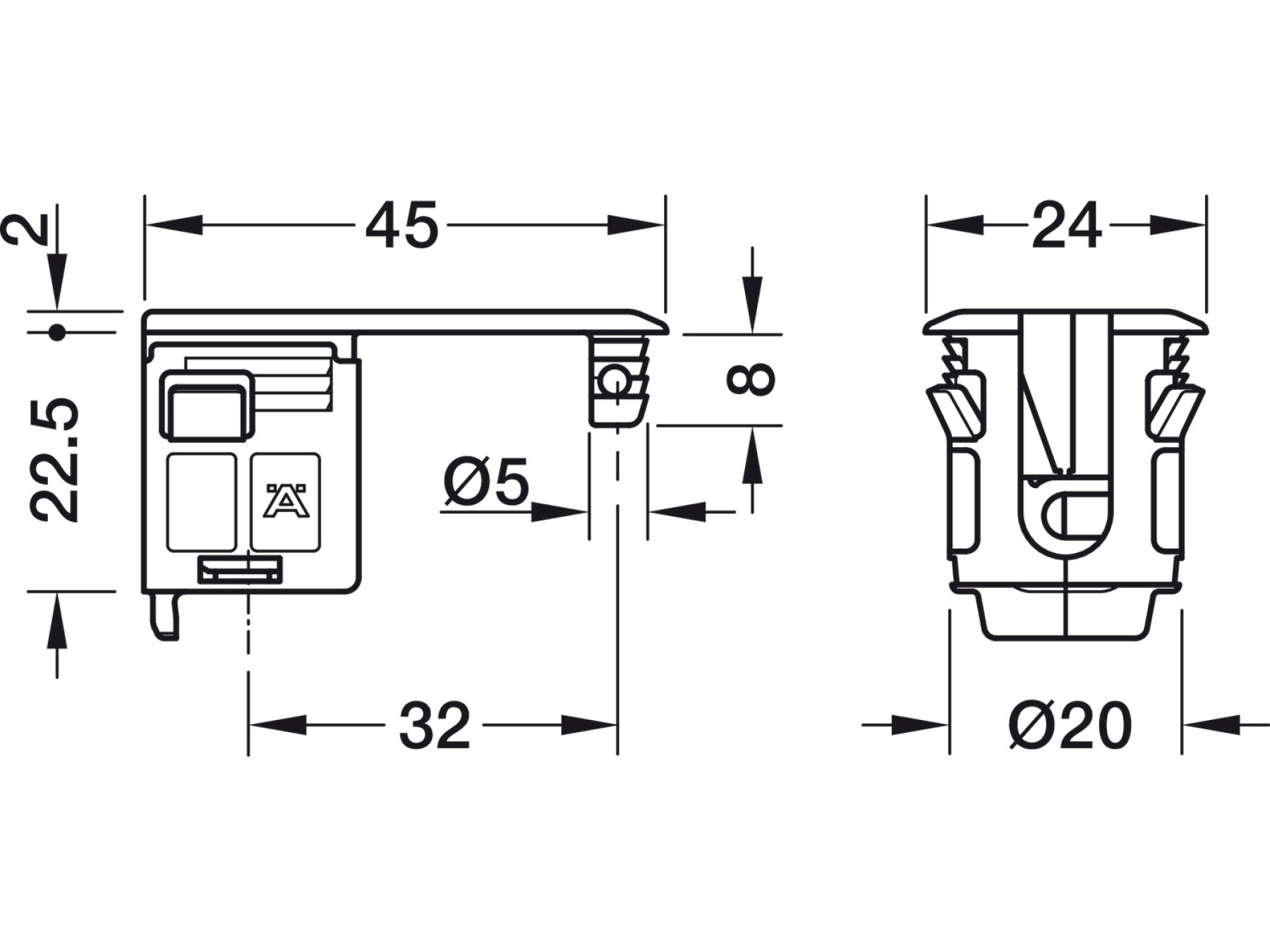

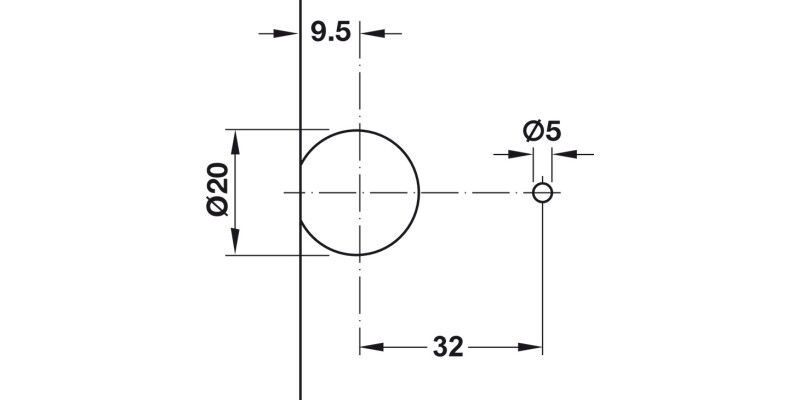

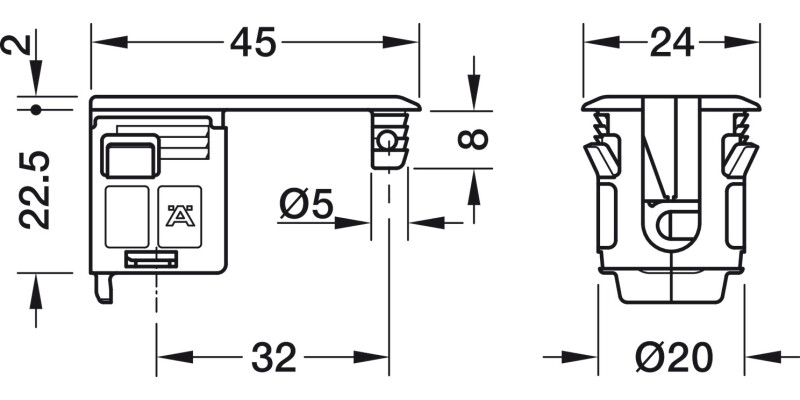

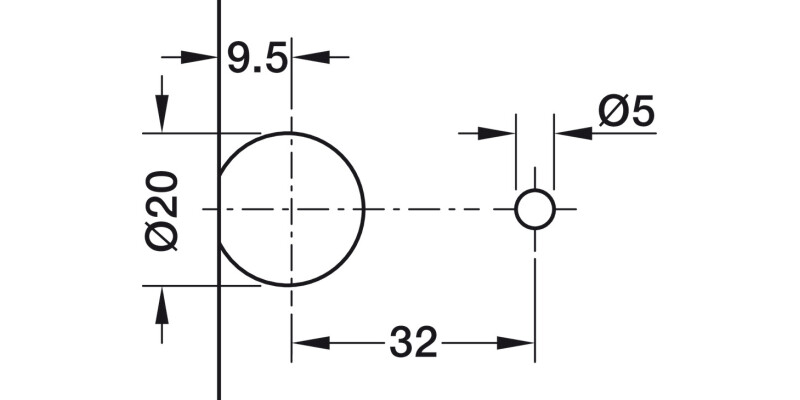

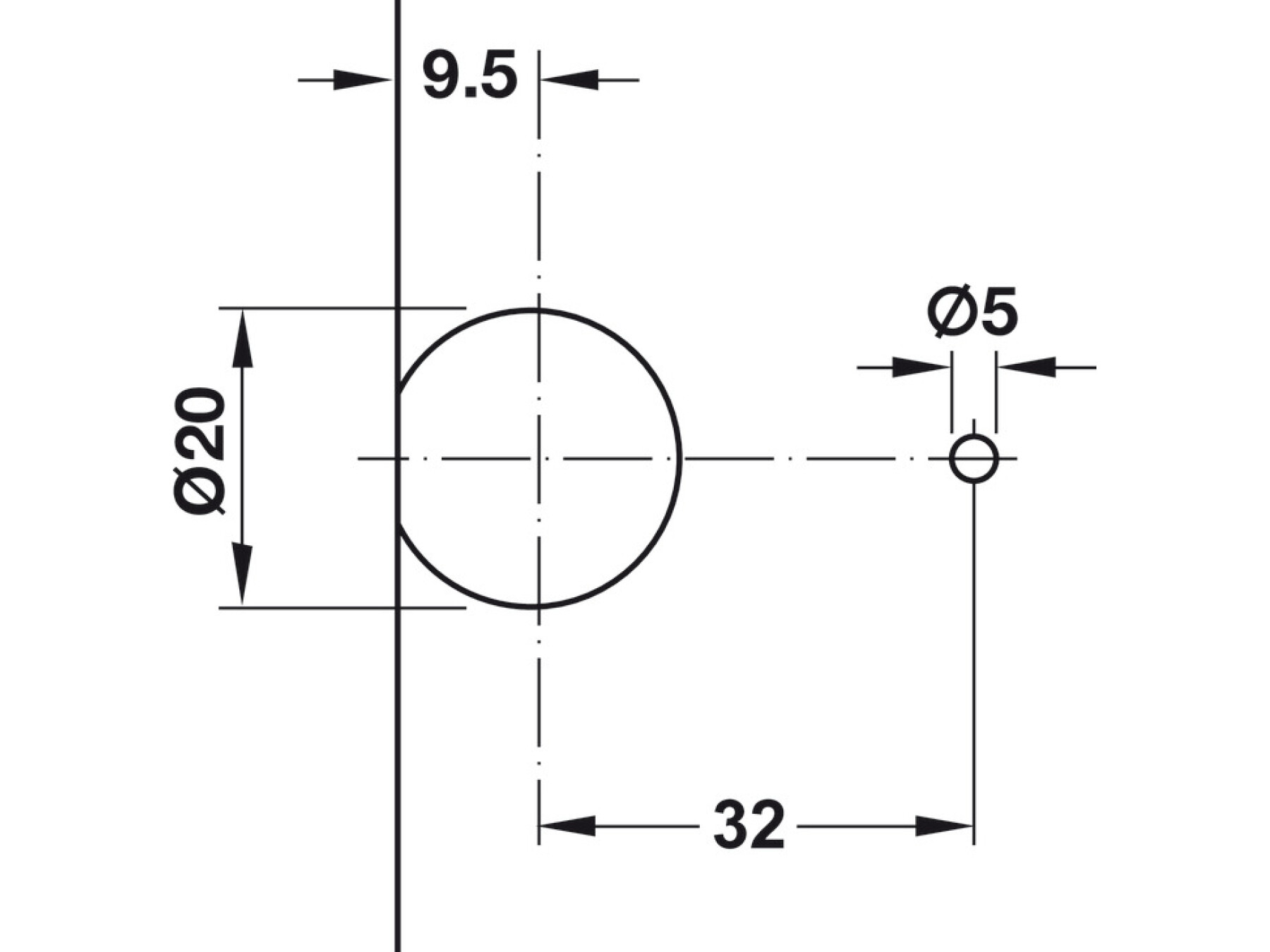

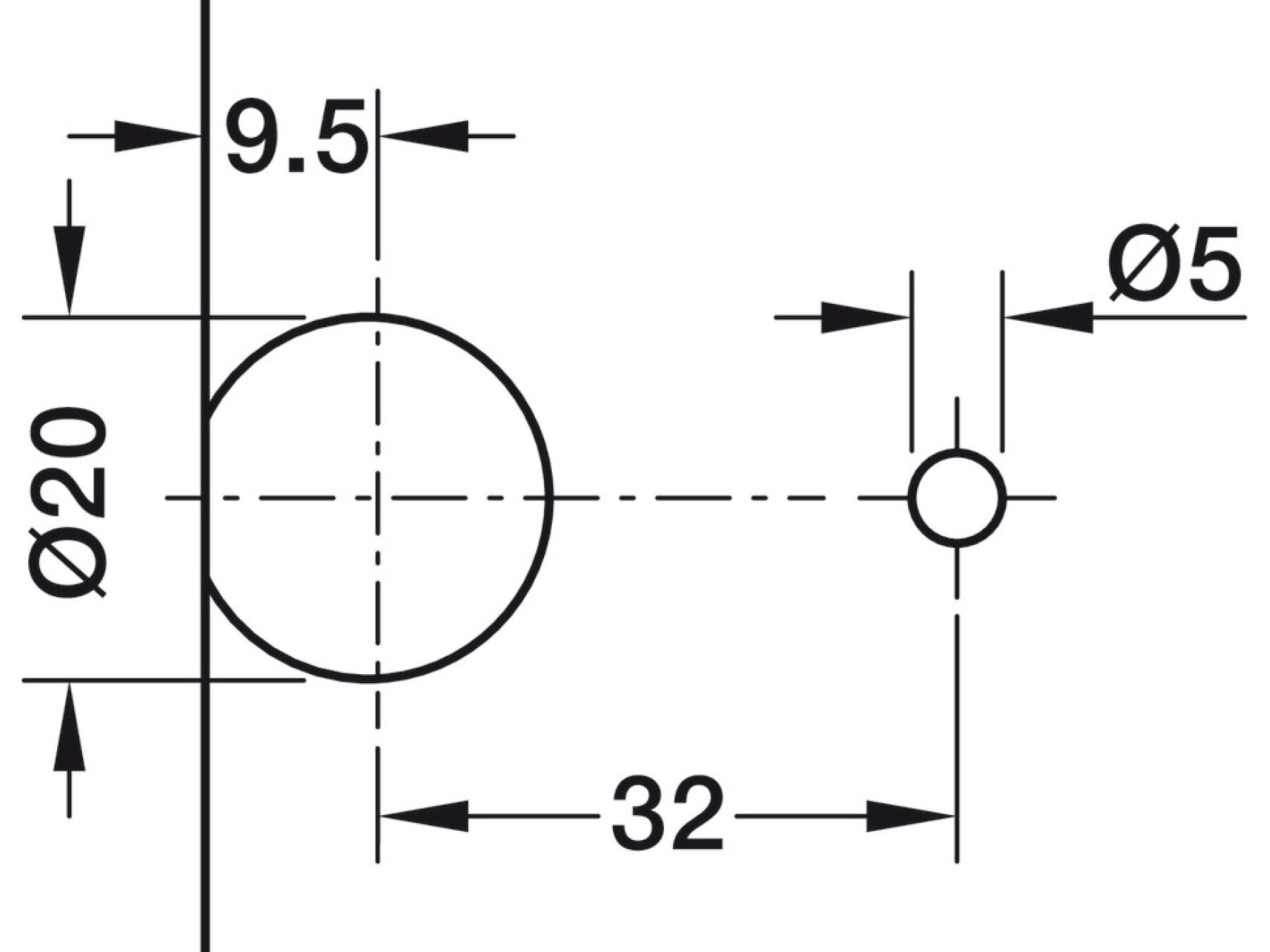

You will need to follow the specified layout: Dim. A 16 mm, drilling depth 22.5 mm, and a housing drill hole diameter of 20 mm. Using the correct hole and depth helps ensure the housing sits properly and aligns with mating components.

What versions and fixing features does the housing include?

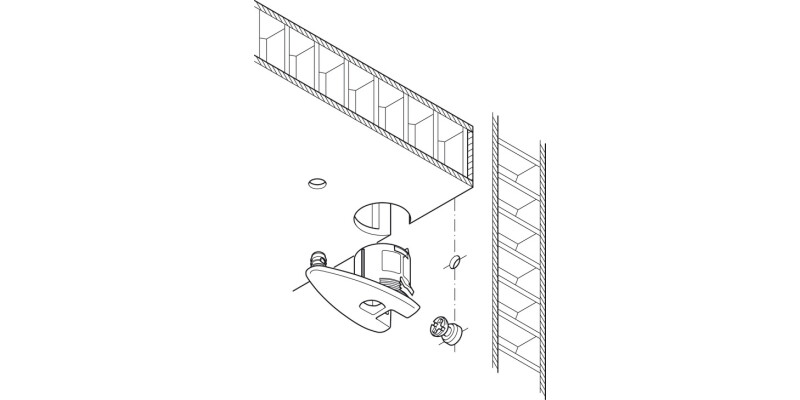

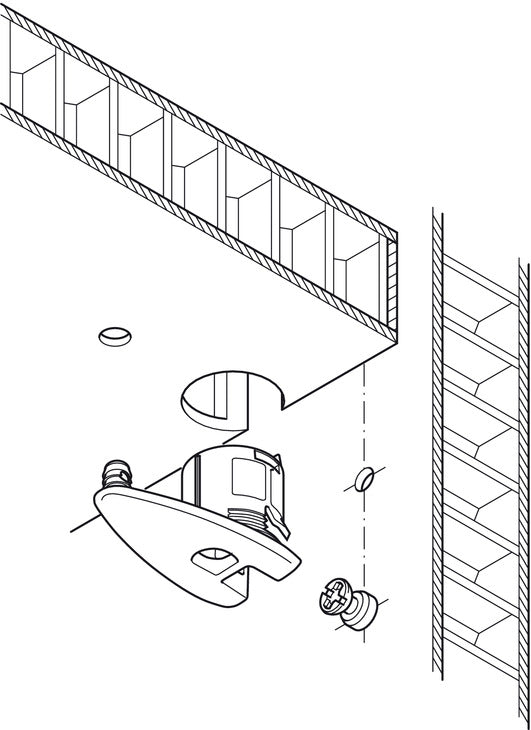

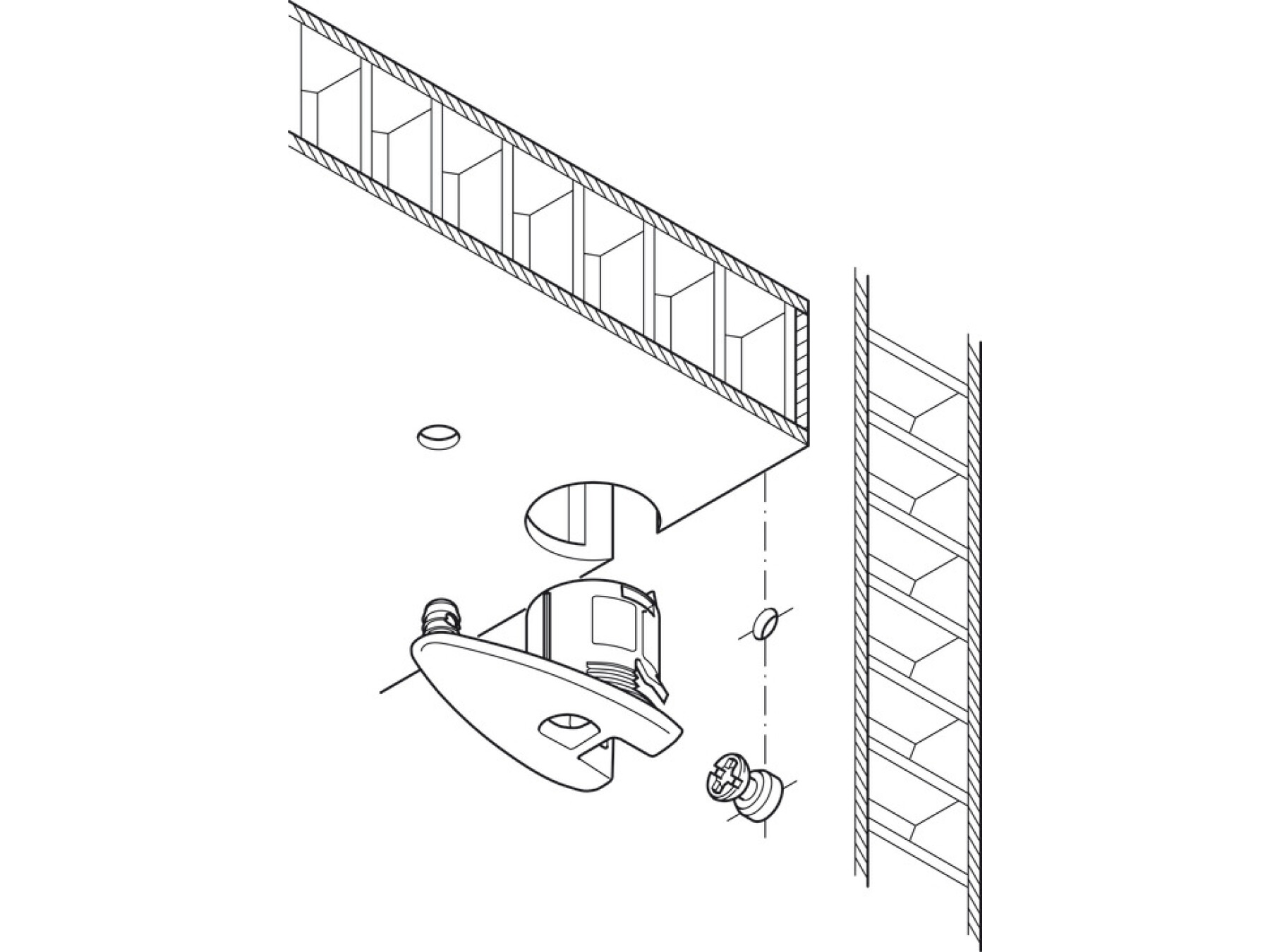

The housing is available as a version with rim, a version with tightening element, and a version with dowel. These options can affect how the connector is secured into the panel, so choose the version that best matches your build method.

Which drive and screw compatibility should I plan for?

The tightening element uses a PZ2 cross slot drive. If you are pairing with the matching connector set and screws, a PZ2 driver will give the correct fit for tightening without cam out.

What finish and colour is provided?

The connector housing finish is black. This is useful when you want a consistent appearance on visible connector areas or when colour matching is important for the final furniture look.

Is there a warranty on Rafix connector housings?

Hafele provides a 25 year lifetime guarantee for this product. It is a reassuring option for customers who want dependable connector components for living and commercial furniture applications.
