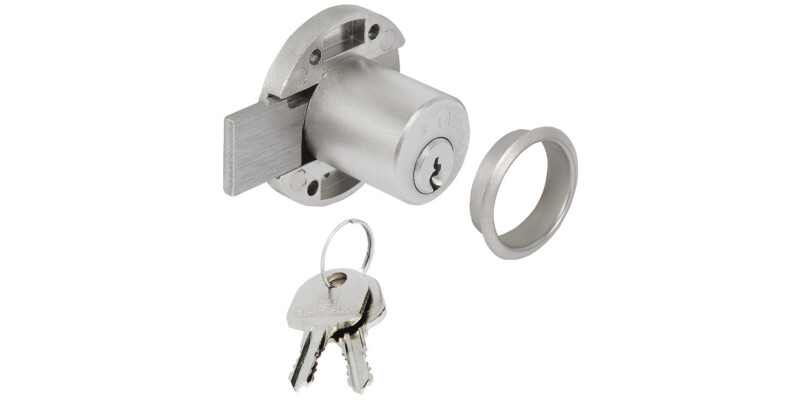

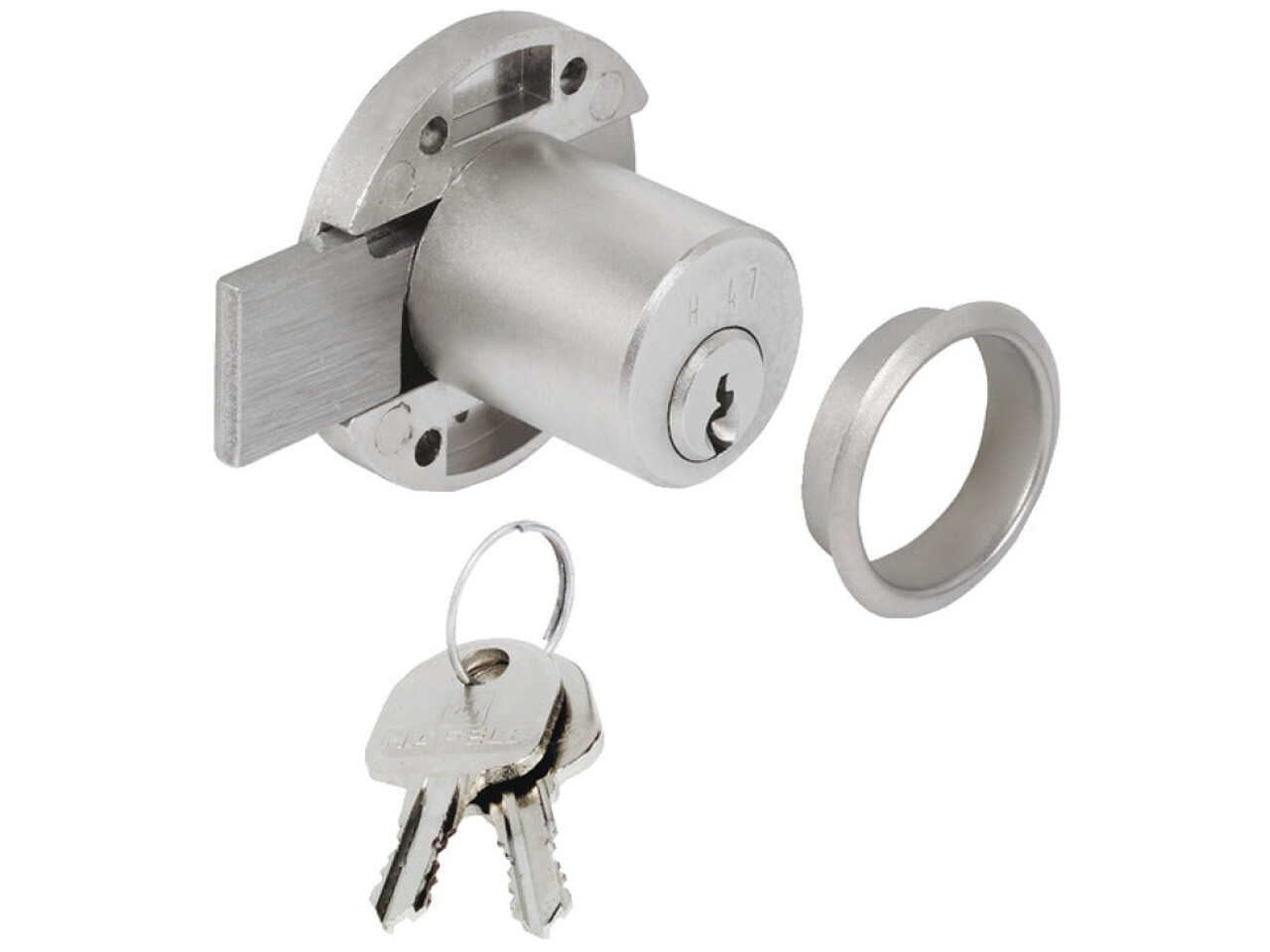

Inlaid Lock, with Ø 22 mm Cylinder, Backset 20 mm, Minilock 40

Product Details

Inlaid Lock, with Ø 22 mm Cylinder, Backset 20 mm, Minilock 40 (Product Part No: 230.19.221) is a premium inlaid cabinet locking solution designed to give drawers and furniture doors a secure, professional finish. Built for everyday reliability, this Minilock40 rim lock features a smooth, dependable locking feel with a cylinder engineered for controlled access—ideal for living spaces and commercial furniture applications.

With the Inlaid Lock, with Ø 22 mm Cylinder, Backset 20 mm, Minilock 40 subtitle: With fixed pin tumbler cylinder, Keyed alike: key change H1, drawer, you get a fixed pin tumbler system and a keyed-alike option for convenient master-style organization. That means you can plan consistent keying across compatible cabinets or drawer units using the H1 key change.

Locking system: Standard profile, with fixed pin tumbler cylinder and 5 pin tumblers for improved security. The lock housing is made from zinc alloy, the cylinder is brass, and the deadbolt uses steel—a strong combination built for long service life.

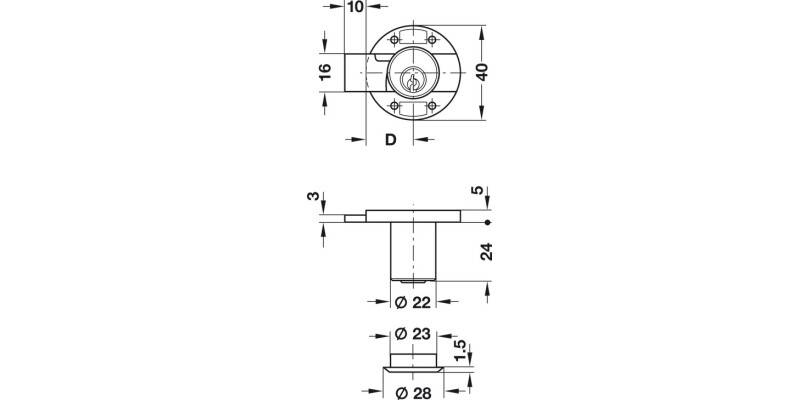

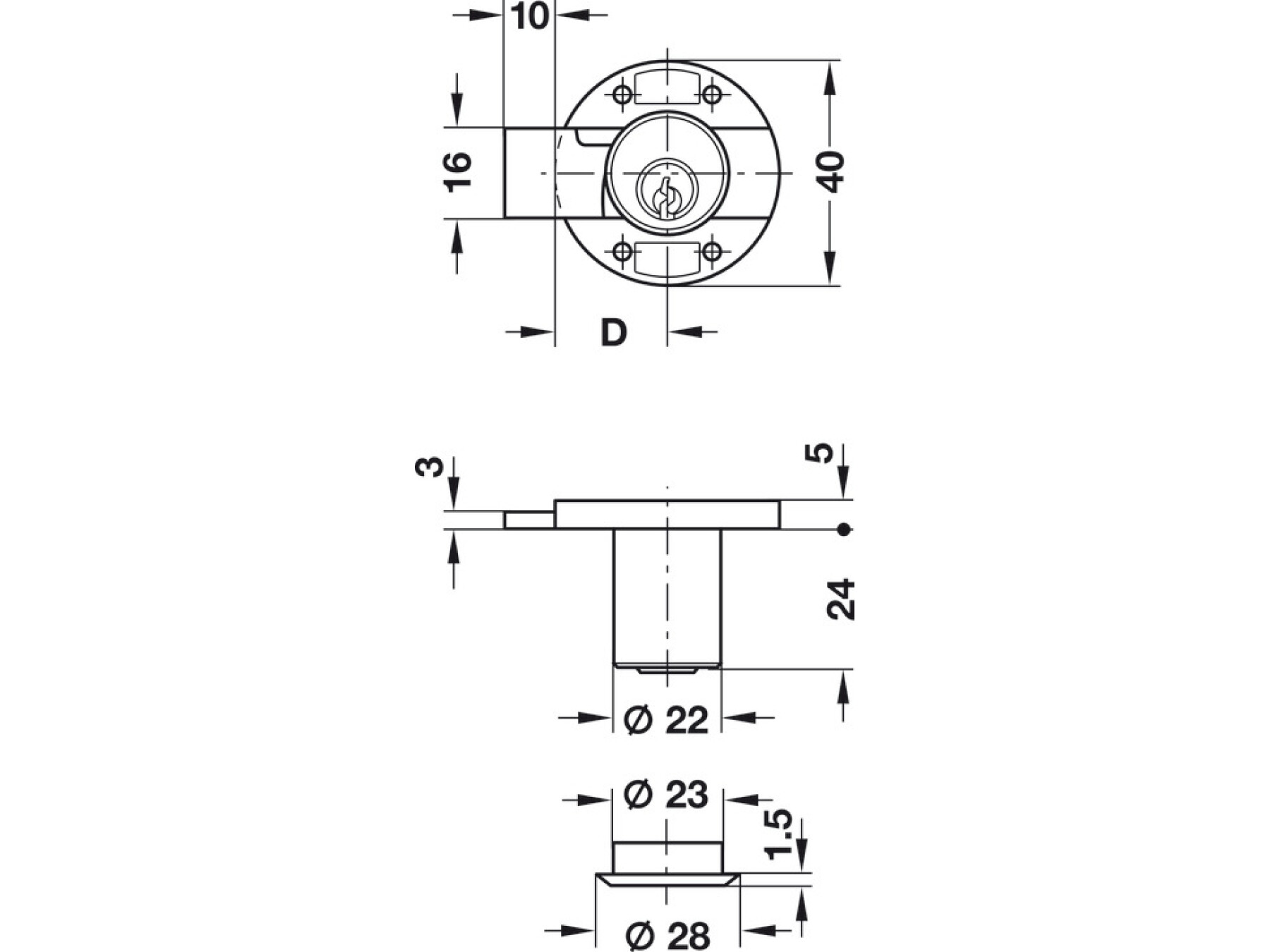

Finish and fit: The housing and cylinder are finished in matt nickel plated for a clean, modern look. This model is designed as a drawer version with a 20.00 mm forend. The cylinder is round with 22.00 mm diameter and 24.00 mm length.

Included: 1 inlaid lock, 2 keys, 1 cylinder rosette, plus a security pass and locking map for master key systems (where applicable). Choose the Inlaid Lock, with Ø 22 mm Cylinder, Backset 20 mm, Minilock 40 for secure control, refined styling, and confident installation.

1 inlaid lock
2 keys
1 cylinder rosette
Security pass and locking map with master key systems
