Inlaid Lock, with Ø 22 mm Cylinder, Backset 20 mm, Minilock 40

Product Details

Inlaid Lock, with Ø 22 mm Cylinder, Backset 20 mm, Minilock 40 (Part No: 230.19.211) is a smart, secure choice for anyone upgrading cabinet security in both living and commercial settings. Designed for a clean, professional fit, this Minilock40 rim lock is supplied as a reliable inlaid locking solution that blends durable engineering with an elegant matt nickel look.

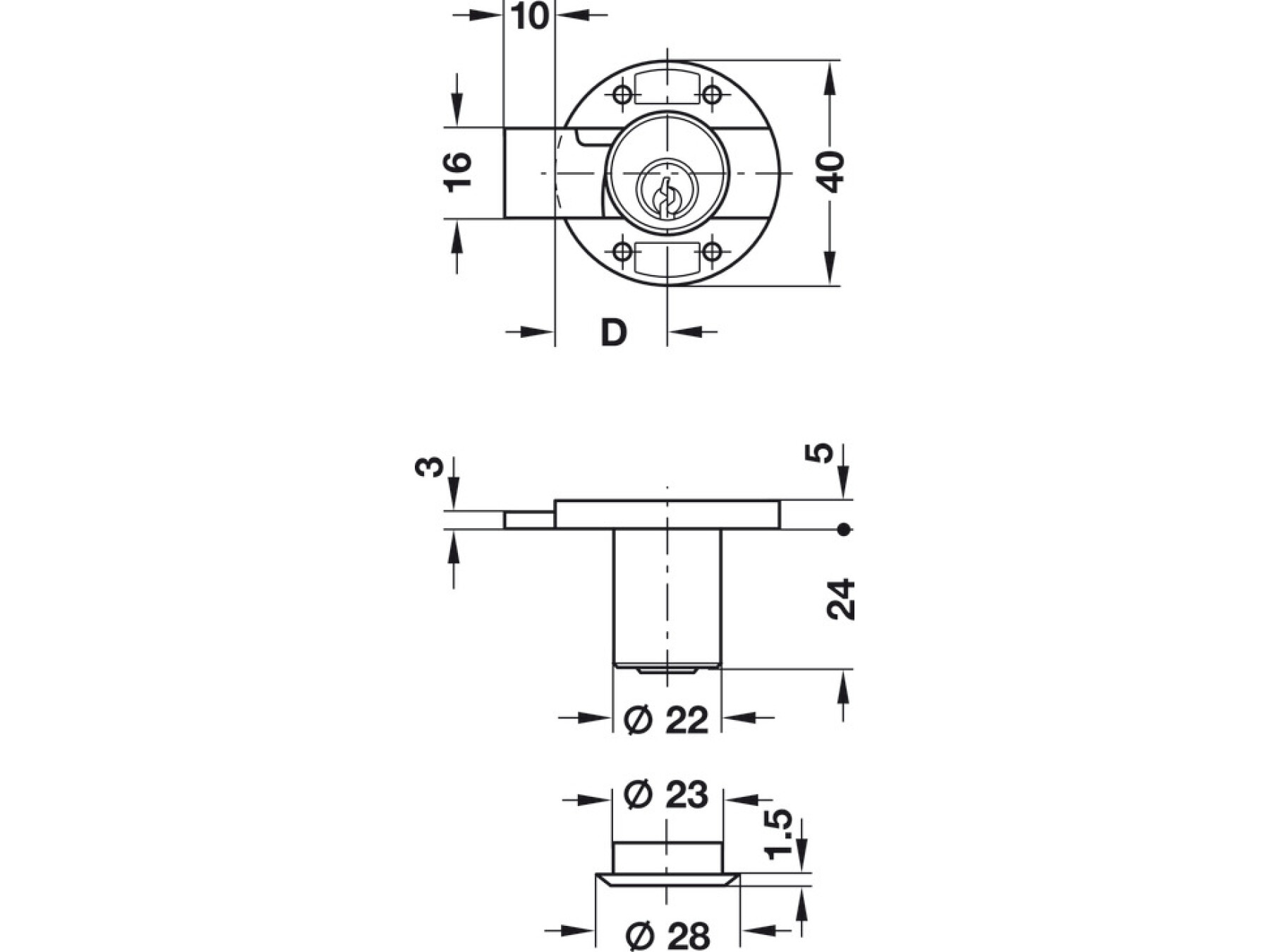

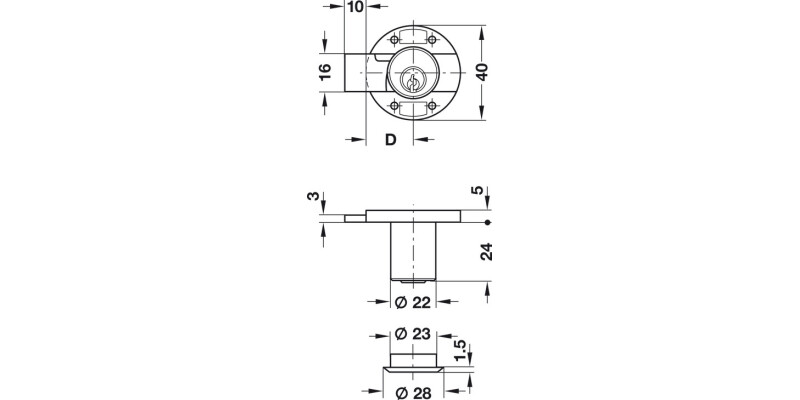

Inlaid Lock, with Ø 22 mm Cylinder, Backset 20 mm, Minilock 40 features a fixed pin tumbler cylinder with 5 pin tumblers, helping deliver smooth, dependable locking performance every day. The cylinder is round with a 22mm diameter and 24mm length, matched to a standard profile for an accurate installation.

Built with quality materials, the lock housing uses zinc alloy, the cylinder is brass, and the deadbolt is steel—a combination chosen for strength, stability, and long-lasting use. The matt nickel plated finish on both the housing and cylinder adds a refined appearance that suits modern cabinetry.

Installation is made specifically for left-hand configurations, with a 20mm forend type. The lock is keyed alike using key change H1, making it a great option for systems where multiple locks share matching keys.

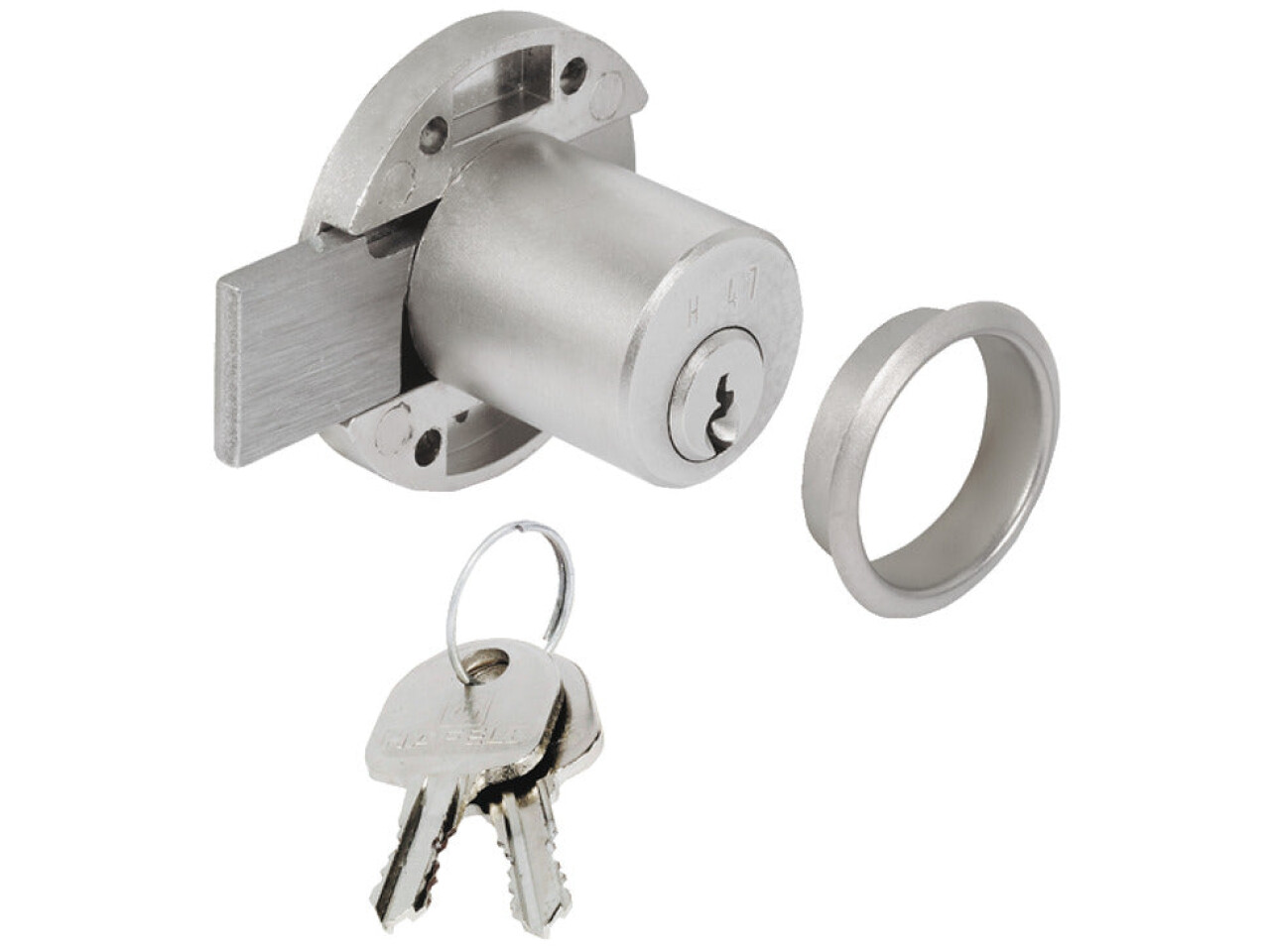

What’s included: 1 inlaid lock, 2 keys, 1 cylinder rosette, plus security information such as a security pass and locking map with master key systems—ideal for organised master key planning.

Choose Inlaid Lock, with Ø 22 mm Cylinder, Backset 20 mm, Minilock 40 for confident cabinet security, a premium finish, and a hassle-free path to coordinated keying.

1 inlaid lock
2 keys
1 cylinder rosette
Security pass and locking map with master key systems
